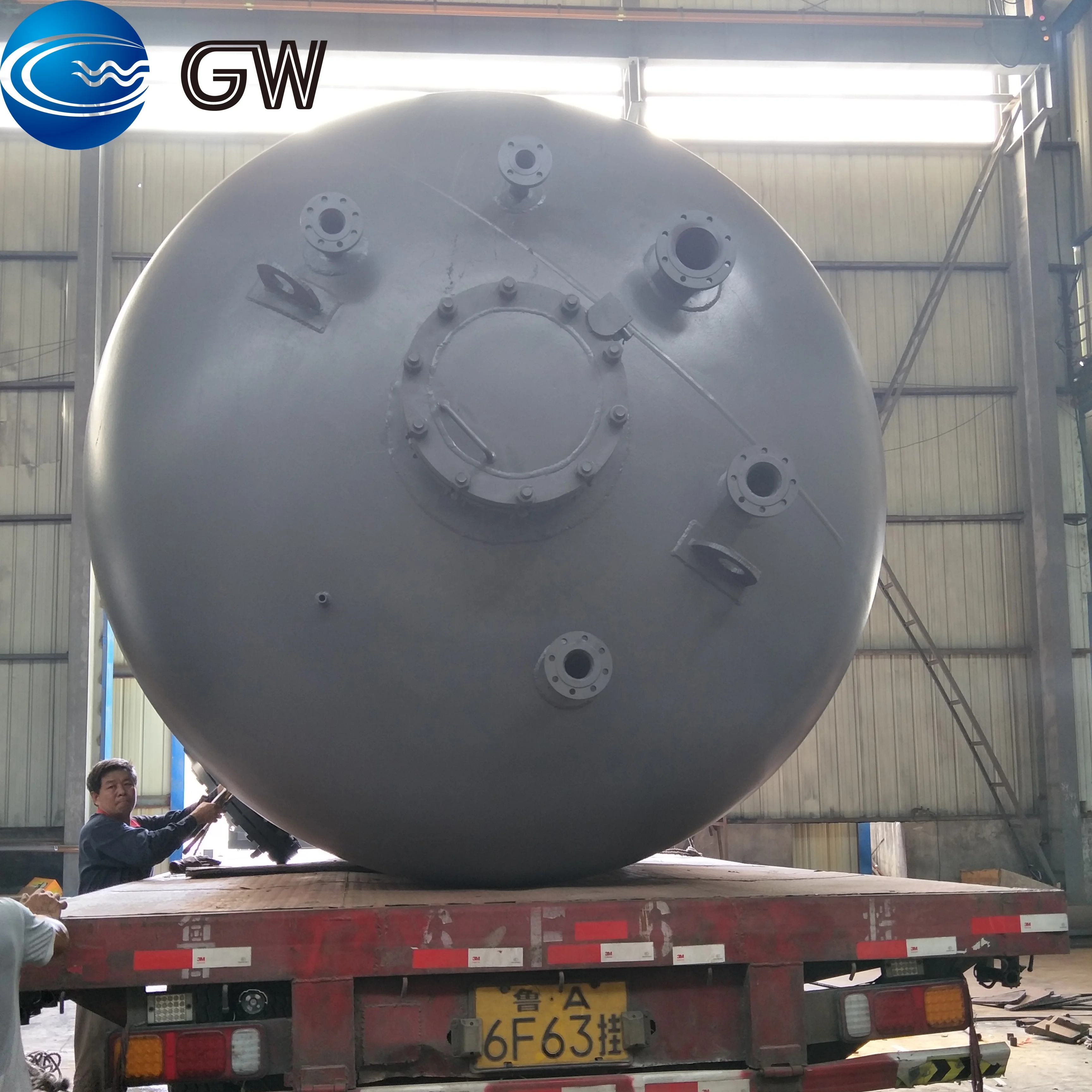

10 m3 Sodium Silicate Diegestor for Sodium Silicate Liquid Solution

Introduction

Verticaltype sodium silicate plant is an equipment for sodium silicate solution, it is specalized in the lump sodium silicate dissolving into sodium silicate liquid

Design Standard: GB150-98
Design Pressure: 1.0 MPa
Working pressure: 0.8 MPa
Common specifications: 25m3, 20m3, 17m3, 15m3, 12m3, 10m3, 8m3, 6m3, 3m3
Material: Q345R
Container Category: Class I

Some Tipe

1. the size of the sodium silicate plant will be variable to suit the container size for easy transportation or customized as site situation
2.The dry materials, sodium silicate liquid output will be variable according to different molar ratio or baume requirements
3.The steam consumption is referencial date
4.The date is according to one batch production, the working time will be 3.5-4 hours/batch(including the raw materials feeding, dissolving and discharging)

Features

1. One-time investment,low cost: The price for 25m3 roller production will be double the price of 20m3 static pressure kettle.
2. No mechanical wear, less maintenance cost.
3. Power saving, only steam is required for static pressure kettle during dissolving . No Gear assembly is used and no electricity consumption.
4. Space and cover area saving: Vertical installation, can be buried half underground,for the same volume of static pressure kettle and roller, roller covers an area of about 1.5 times of the static pressure kettle.
5. Long service life: The service life of static pressure kettle can be as long as 20 years.
6. Simple operation, low noise: The operation of static pressure kettle is simple, reliable, safe and stable. It is a clean process in environmental protection (low water pollution, zero emissions, and can be recycled), and the static tank is the best match for sodium silicate solution.
