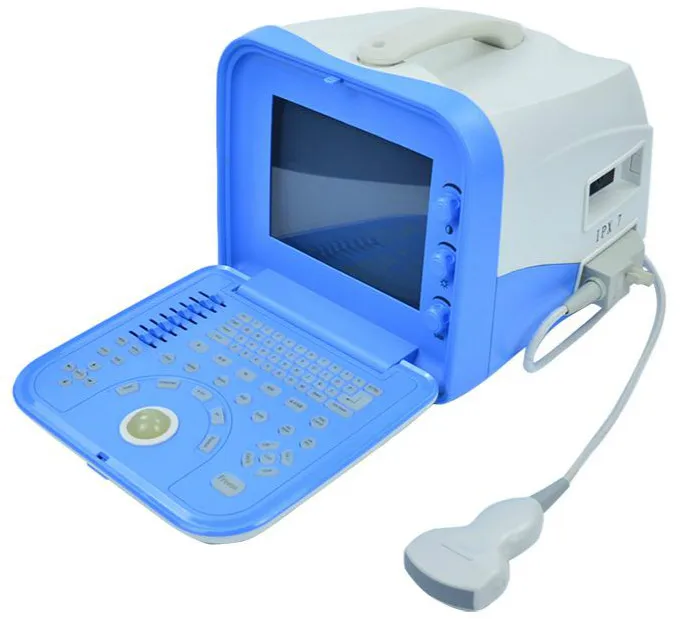

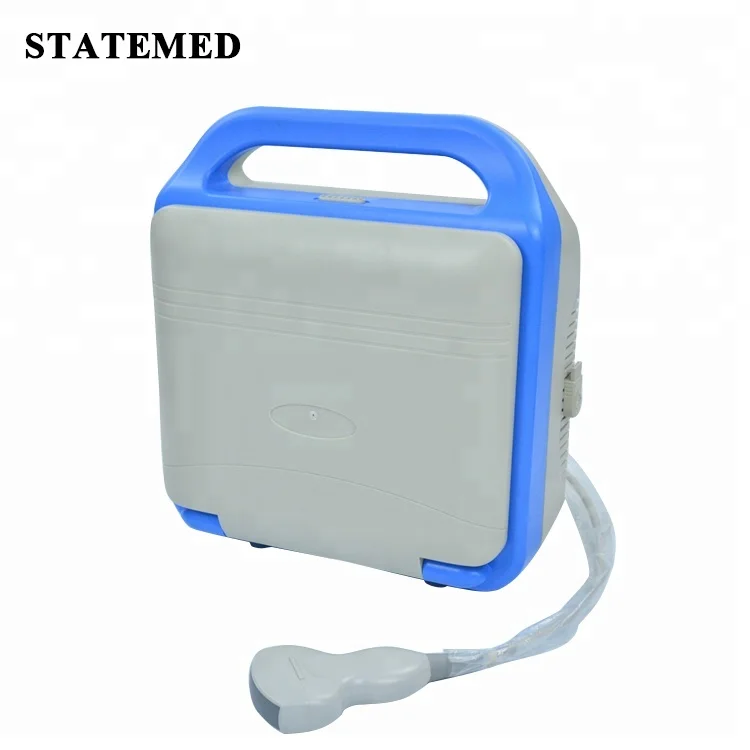

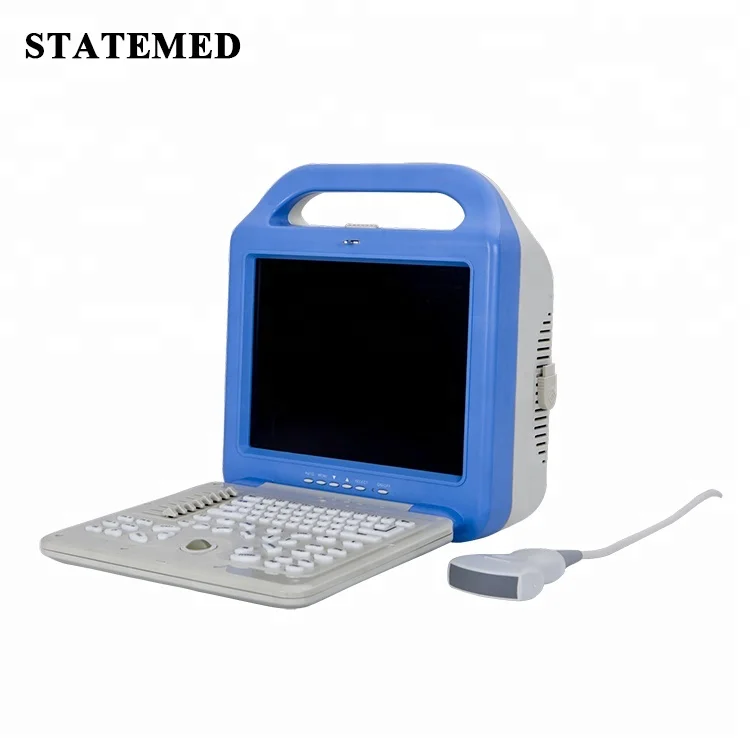

Animal Use Medical Laptop Portable Ultrasonic Scanner Device

Main Features:

Powerful measurement & calculation software packages

8-Segment TGC Trackball adjustment

12 inch LCD monitor

Permanent function of image store: 32 images

Probe automatic identification

Main Technical Specification:

Scanning mode: Convex/Linear/Trans-vaginal

Display modes: B, B+B, B+M, M, 4B

Scanning depth: 240mm

Gray scales: 256

Body marks: 44

Image conversion: up/down, left/right, black/white

Function of puncture guide

Comment: Date, Name, Sex, Age, Hospital, Annotation

Zooming: 1.0, *1.2, *1.5, *2.0

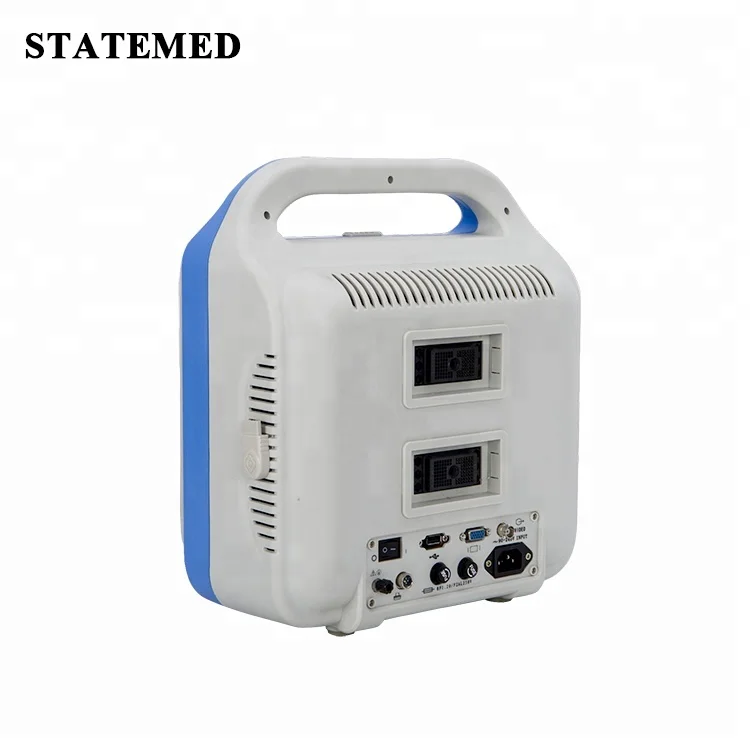

Port: USB 2.0, VGA, Video connector

USB Function of image store: more than Sixteen thousand images

Power supply: AC 110V-240V, 50HZ/60HZ

Max dynamic range>=100db;
Detecting depth>=190mm, scanning depth>=240mm;
The geometric location accuracy: vertical<=5%; lateral<=5%; blind spot: <=4mm;
Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm<depth<170mm);
Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm<depth<160mm);

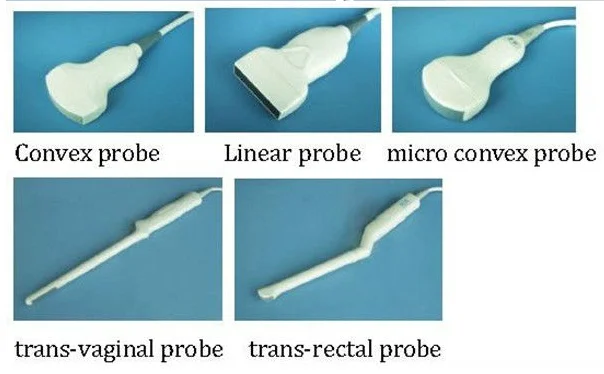

Options:

Linear array probe/ Micro-Convex array probe

Trans-vaginal array probe/ Rectal probe

Video Printer/ Laser printer
