China Supplier 24V 1.5A DC Switching Power Supply with Battery Backup
- Category: >>>
- Supplier: Shenzhen Techcrepower Technologies Co. Ltd.
Share on (60764962404):
Product Overview
Description

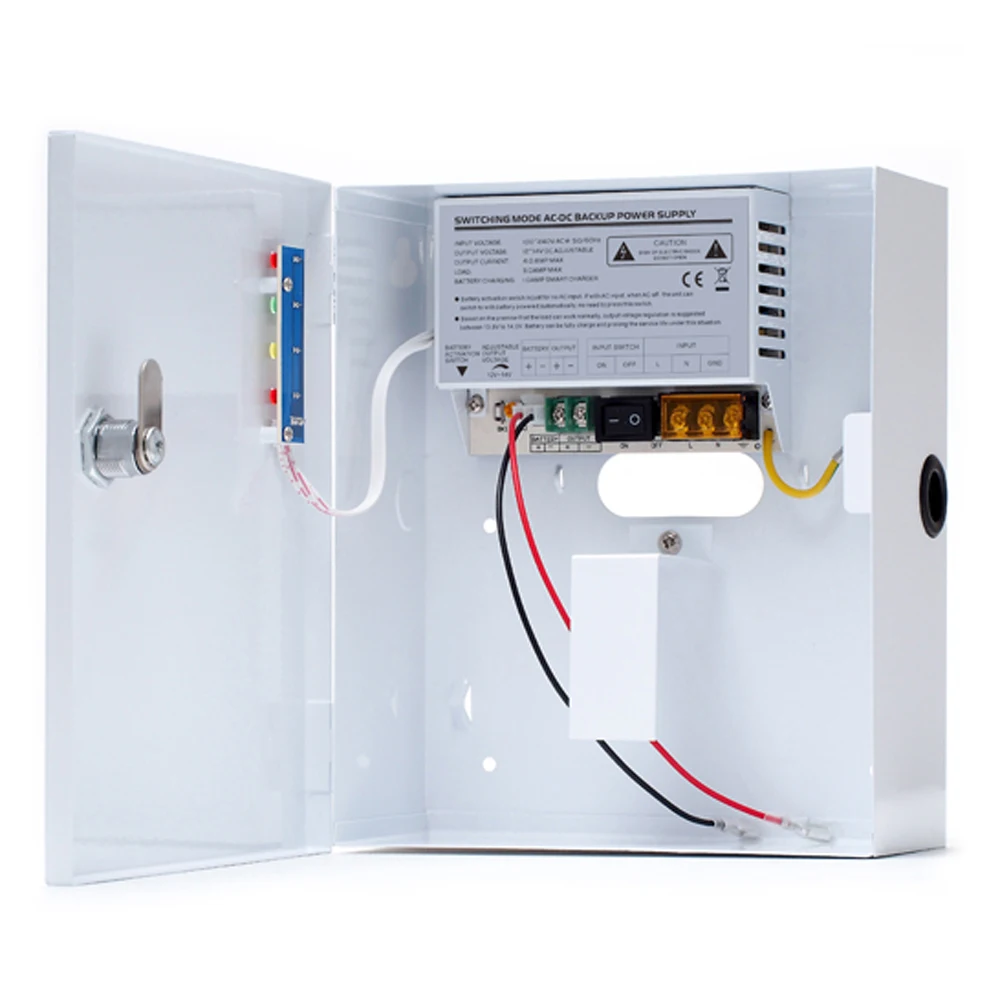

China Supplier 24V 1.5A DC Switching Power Supply with Battery Backup
Feature:
Use of efficient, environmental protection switching power supply circuit frame
Optimization of the shape and structure to facilitate the construction systems
Small ripple & noise -- video output signal more stable, clearly images
Splitter output -- by-pass failure to protect other equipment to work
Power protection -- Output over-voltage protection, over-current protection, short circuit protection
Specification:
Model | ZTP24015B |
Product | Switching Power Supply |
Input Voltage | 100-240V AC |
Output Voltage | 24 VDC |
Output Current | 1.5A |
Output Channel | single |
Batetery Backup | 2 x 7AH Acid Battery |
Product Dimension | 225*195*83mm |
Package | 10pcs in a carton |
Charging Voltage/Current | 13.8V/1A |
Conversion Efficiency | ≥85% |
Ripple Wave | (mVp-p): <1% |
Working Temperature | -20~60℃ |
Storage Temperature | -35~85℃ |
Humidity | 0%~95%RH |
Overload Protection
| 100%~150% rated output power, Auto Recovery |
Overvoltage Protection
| >115%~135% Rated Output Voltage |
Temperature Coefficiency
| ±0.003% (0~50℃) |

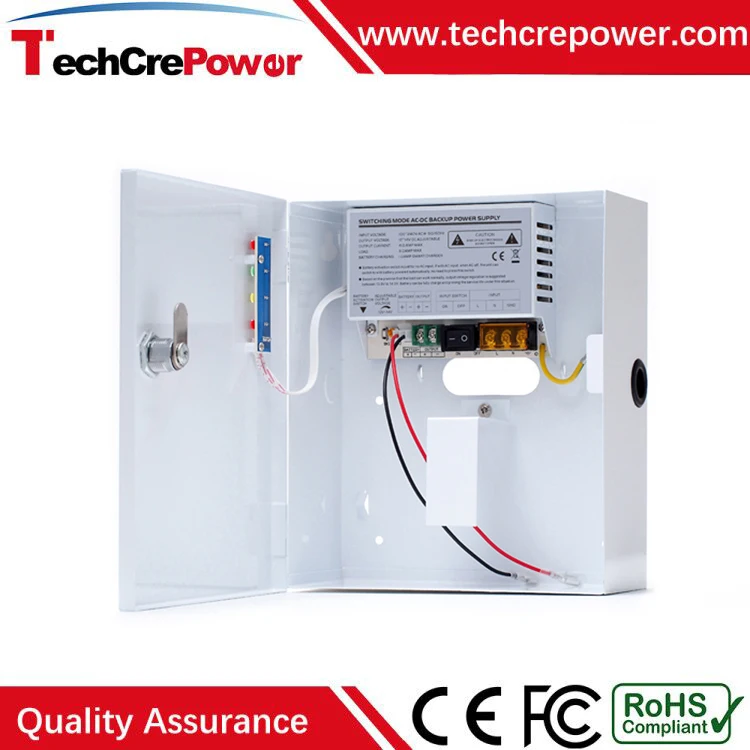

Product Display
Related Products
Company Information
Certifications
FAQ
1.What is your minimum order quantity? |
Actually, we don't have strict rules on MOQ and welcome you to get samples for testing.
| 2.What is your payment term? |
Bank T/T, Paypal, L/C, Western Union and MoneyGram.
| 3.What about the shipping way? |
Generally, the package is delivered by Express DHL/Fedex/TNT/UPS. For big order, we recommend to ship by air or sea to save cost, but it might take longer time. Of course we could ship goods to your forwarder in China according to different customers requirements.
| 4.How long does it take? |
Usually we need 2-8 days differently for preparing and another 3-7 days for delivery. If special products, may need more time.
| 5.What about the warranty? |
We provide 1-2 years warranty from the date of delivery but lifetime technical support.
