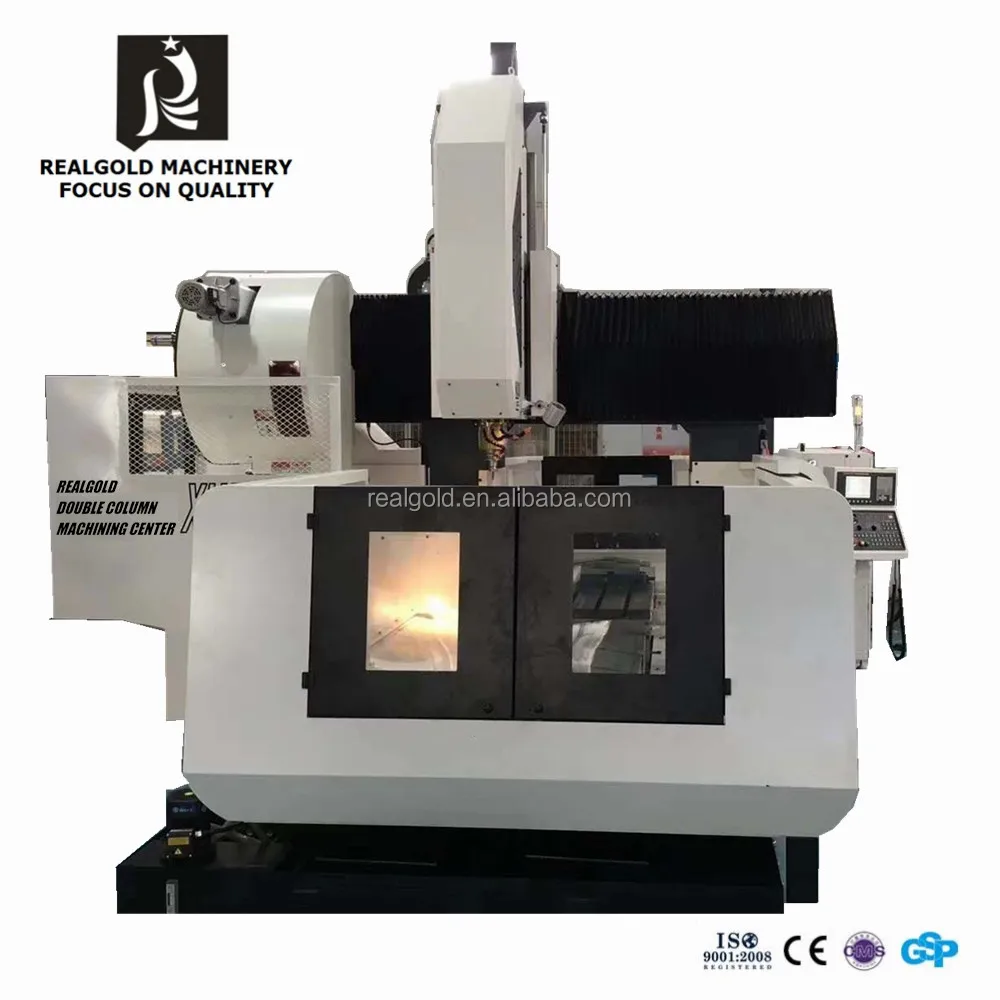

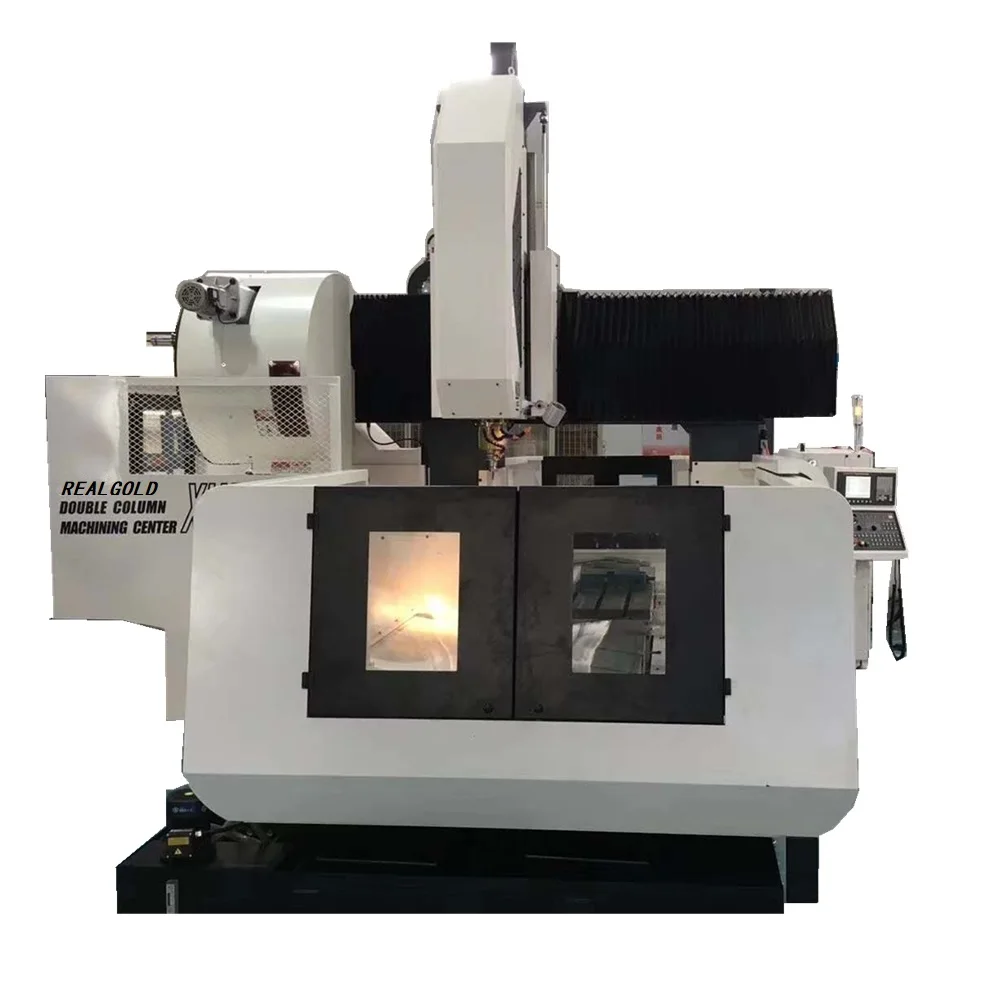

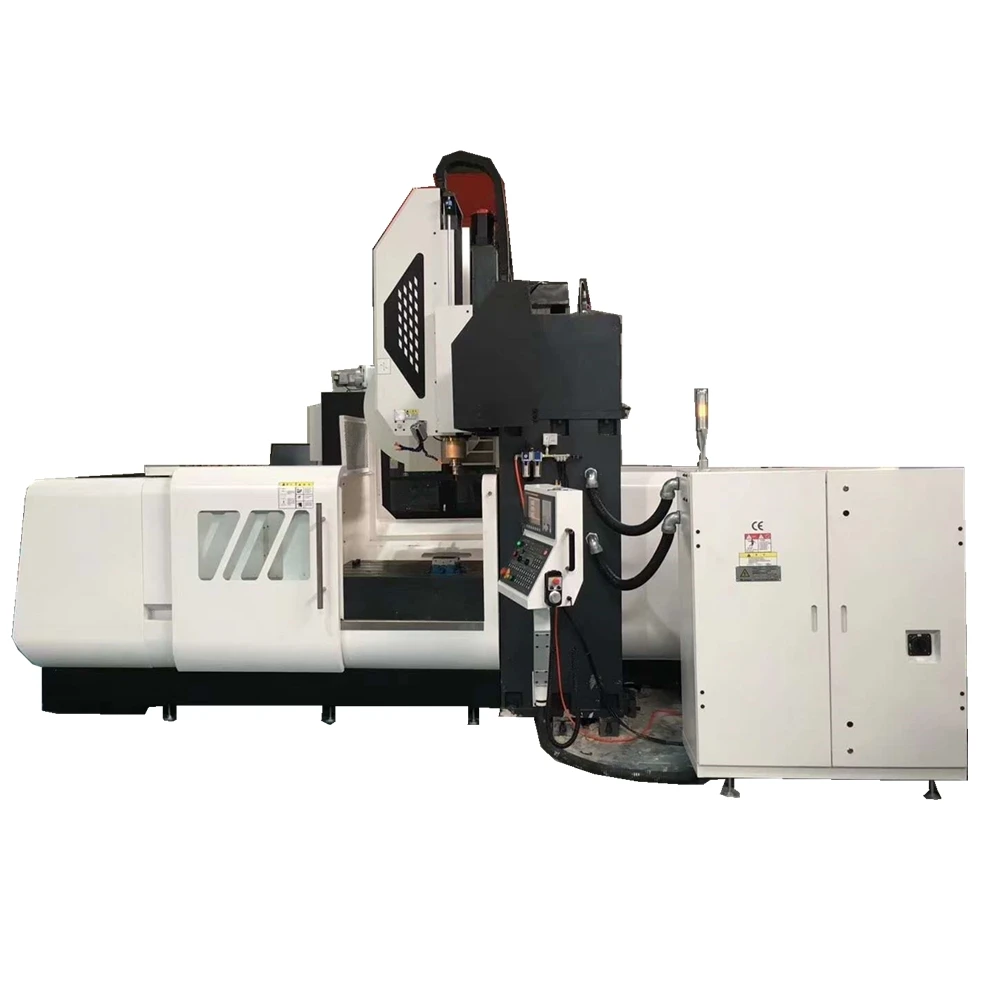

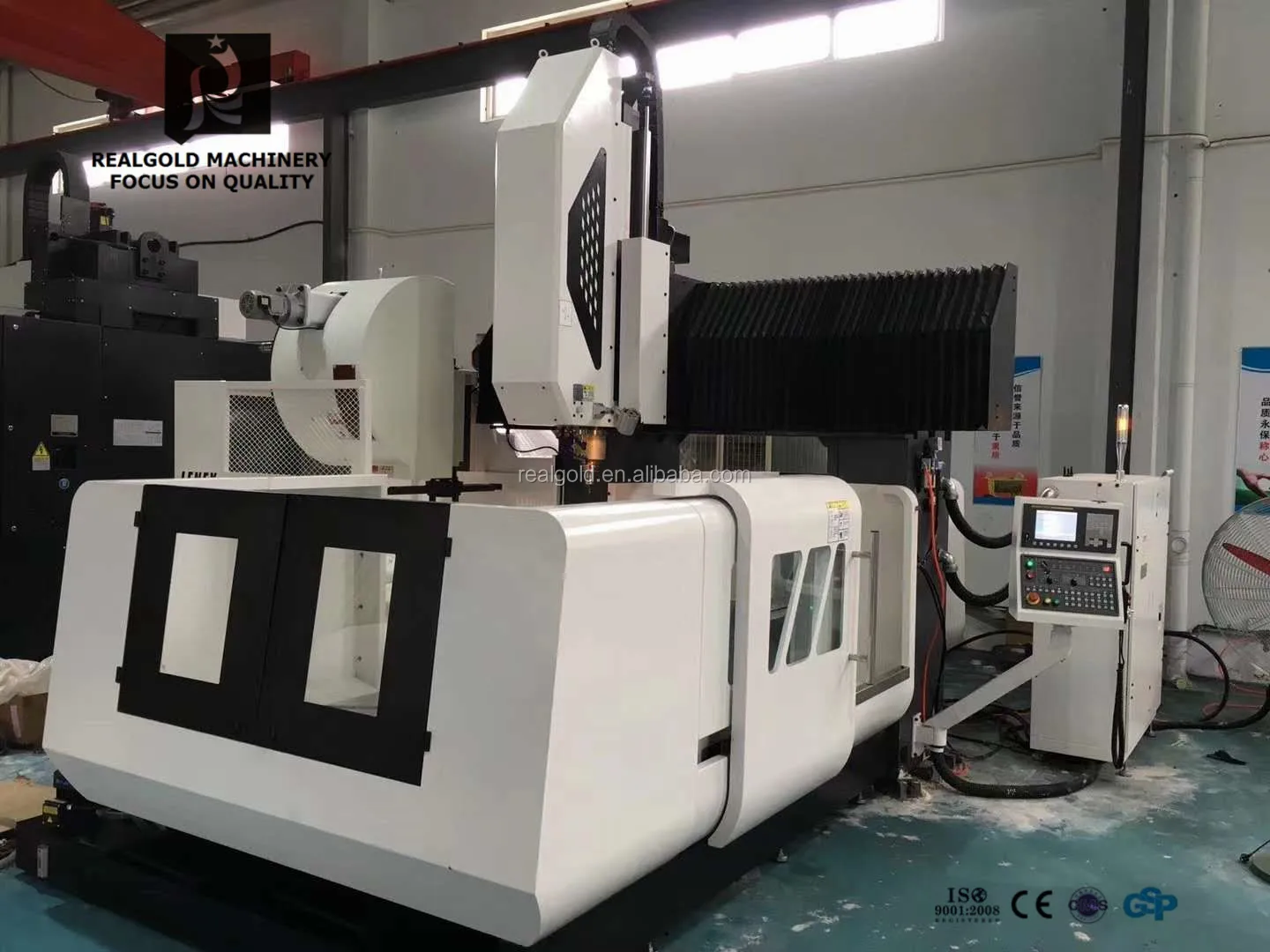

1.Extremely rigid and stable structure, the oversized column combined with box type beam construction features additional machine rigidity.
2.The slant beam construction with increased slide way surfaces efficiently upgrades force distribution area this results in greater stability.
3.The spindle head is located at the center of beam, providing high movement accuracy, superior heavy cutting capability and outstanding rigidity. The position is specially designed with symmetrical to center.
4.Equipped with spindle motor ball screw and double counter-balance cylinders are all properly located at the best positions to avoid unequal torque, while assuring the best structural accuracy.
5.The double counter – balancing cylinders on Z-axis are suspension supported, close to the movement gravity center, symmetrical to the spindle drive ball screw and the center of spindle motor. Optional position design not only fully eliminates the possibility of unequal torque, but also provides high feeding accuracy and machining accuracy.
Specifications

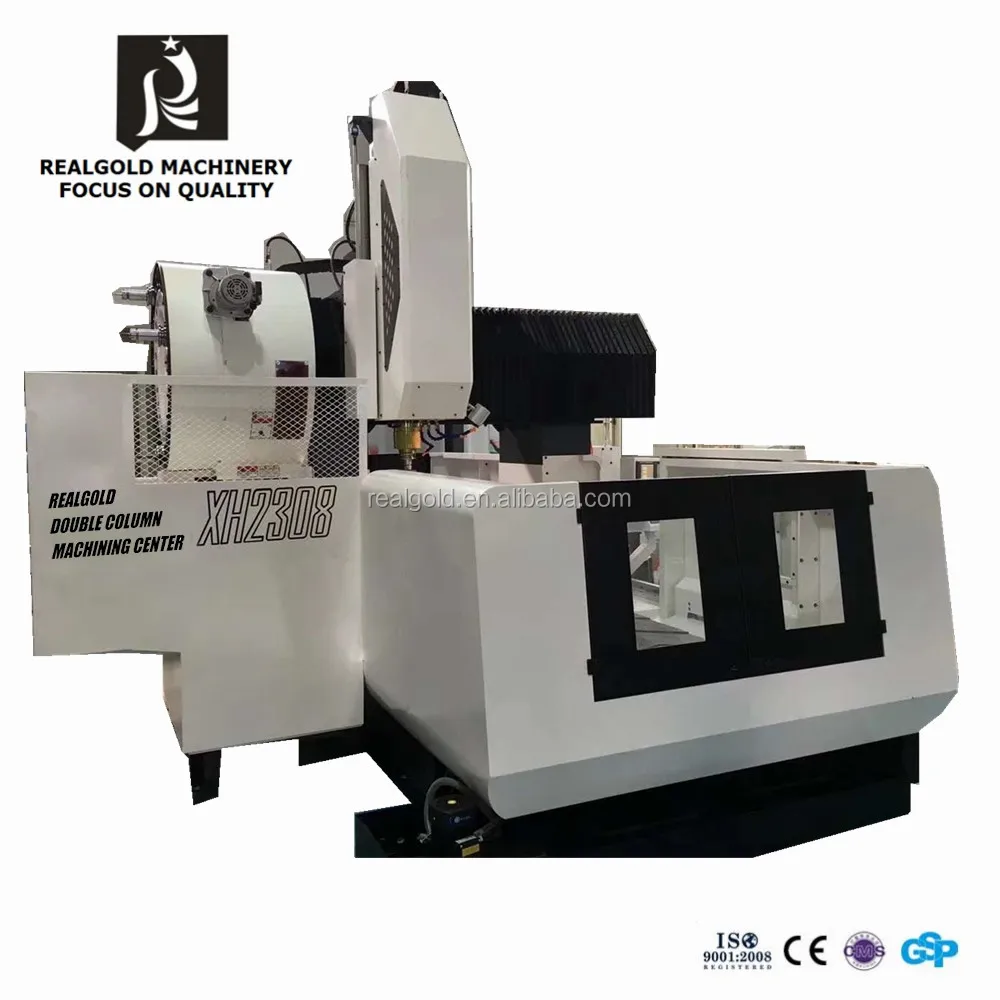

XH2308
Table size(W×L)
800×1600mm
Max table load
3000kg
Diameter between two column
1240mm
T-slot (No-width×pitch)
5-22×140mm
Movement travel of work table
1700mm
Movement travel of Spindle slide
1400mm
Vertical travel of spindle
500mm
Spindle nose to table surface Short nose
200-700mm
Spindle nose to table surface Long nose
110-610mm
Spindle specifications (Model/Dia.)
BT50/Φ155mm
Spindle speed
40-6000r/min
X/Y axis Rapid feed speed
10000mm/min
Z axis Rapid feed speed
5000mm/min
X/Y/Z axis rapid traverse
5-5000mm/min
Main motor power
15kw
X/Y/Z axis torque
30/22/22Nm
X/Y positioning accuracy
0.02mm
Z positioning accuracy
0.015mm
X/Y/Z repeatability accuracy
0.01mm
Tool magazine capacity
16pcs
All pockets full
Φ125×300mm
No tool nearby
Φ200mm
Max. tool weight
15kg
Machine weight
12000kg
Standard accessories:
Spindle taper hole cleaning system;
Fanuc 0i-MF controller
Cooling system;
Automatic Lubrication Systems;
Pneumatic system;
Ring type splash guard;
Lighting;
Stainless steel protection plate;
Tri-color alarm lamp;
Air gun;
Fixed sizing block;
Cool-heat exchanger.
Taiwan Royal or POSA spindle;
Taiwan PMI or HIWIN ball-screw;
Taiwan PMI Linear;
Taiwan Cylinder;
Japan lubrication;
NSK Bearing
Optional accessories:
BT50-16T Umbrella Tool Magazine
BT50-24T Arm type Magazine
Spindle ZF or BF gearbox
Spindle Oil Cooler
Spindle water outlet
Chip conveyor

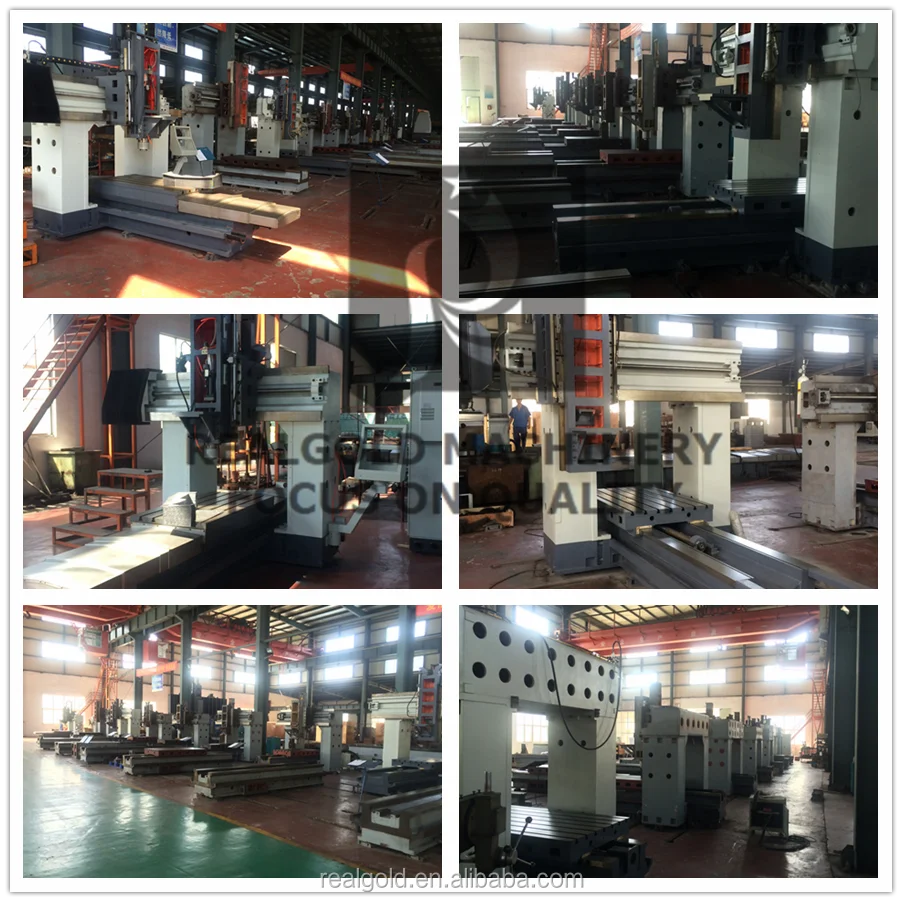

Our workshop

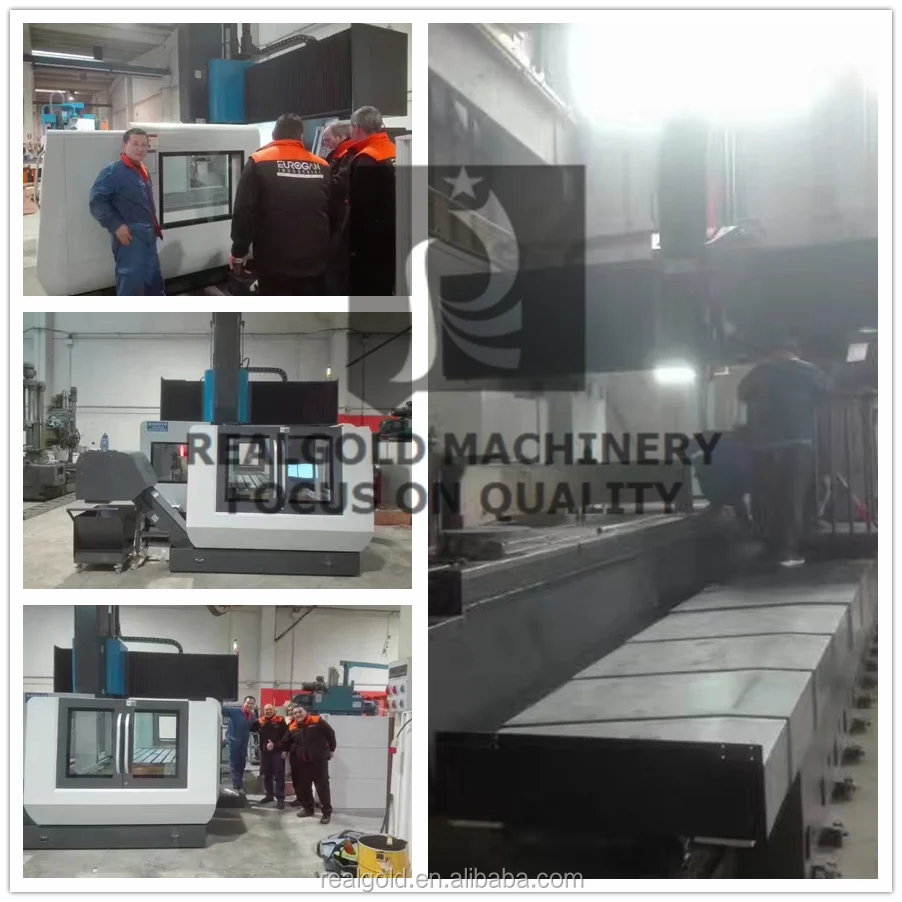

OVERSEA SERVICE

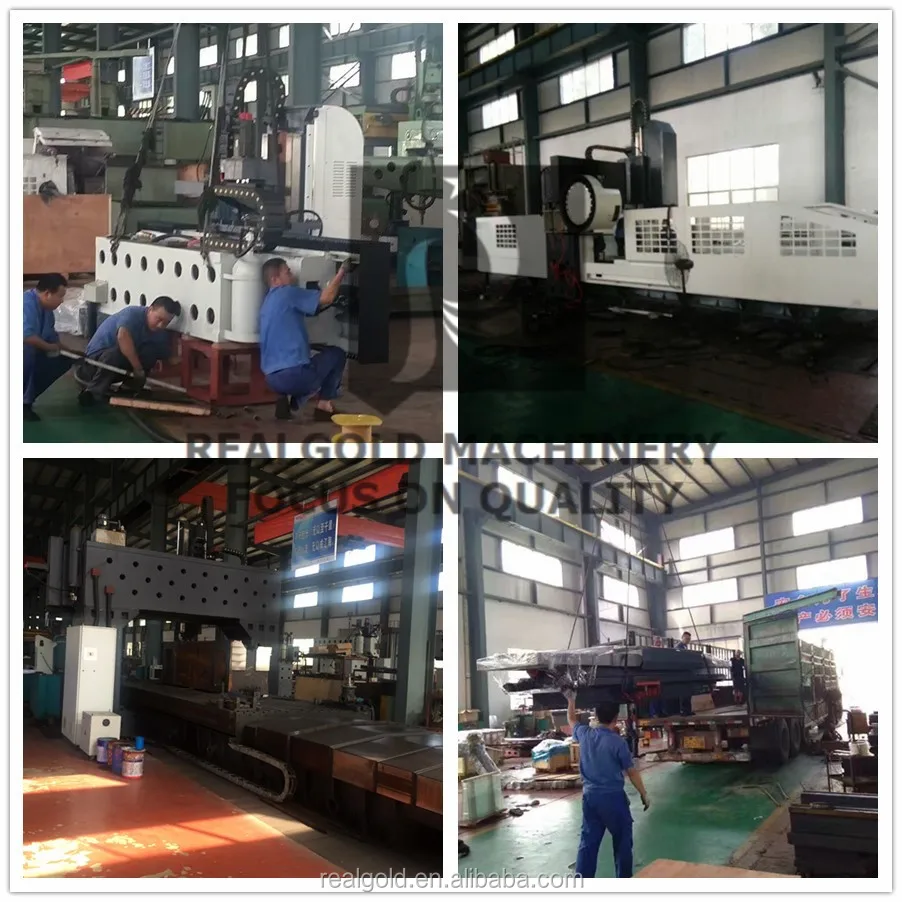

MACHINE DELIVERY
Our parnters
FAQ
Q1. How can I get a quotation? A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purpose machine)?
A.Yes, we provide kinds processing solutions for customers, in order to meet different requirements.
Q3. Can you provide training for operation CNC machines?
A.Yes, free training in our factory or customer's factory is available.
Q4. How about your price?
A.Send me details about what you need, you will get the best price in China. The price is competitive not only in China.
Q5. What's your warranty terms? A.We will supply a replacement for parts that prove to be defective for a period of 18 months, starting on the machine’s bill of lading date.
