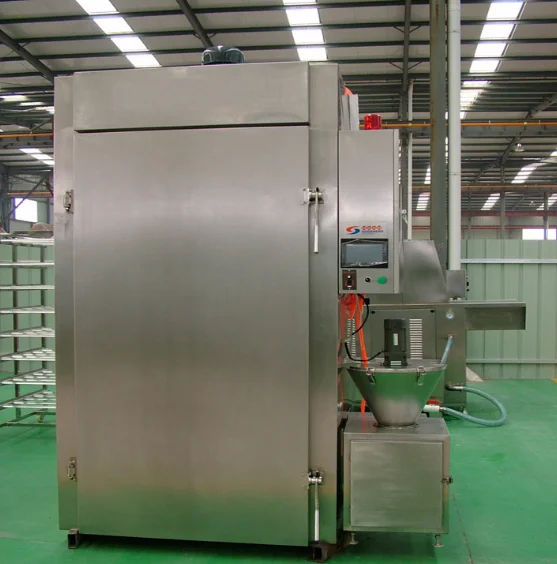

Industrial smoking house food fish turkey smoker smoking oven smoked chicken equipment
- Category: Meat Product Making Machines >>>
- Supplier: Zhengzhou Great Machinery Equipment Co. Ltd.
Share on (60764980552):
Product Overview
Description

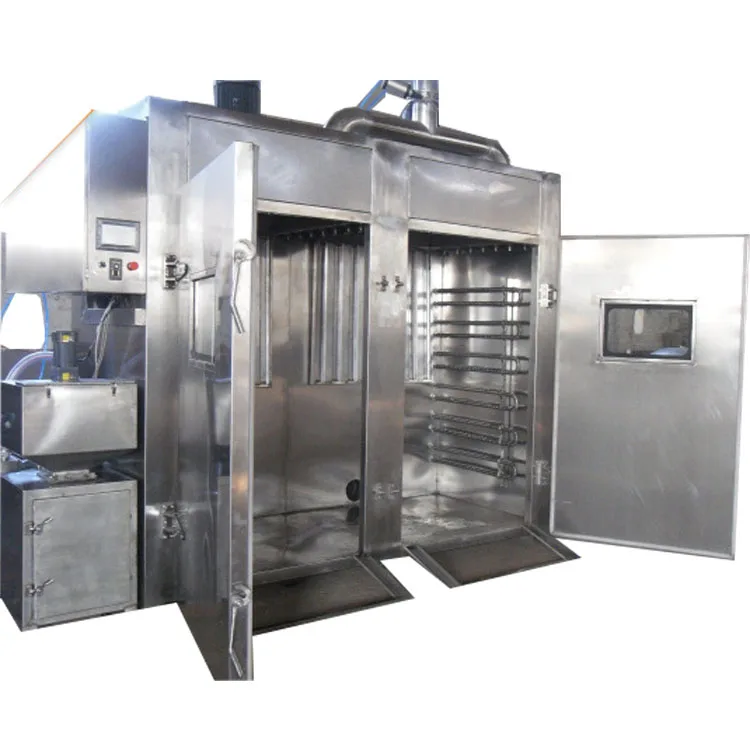

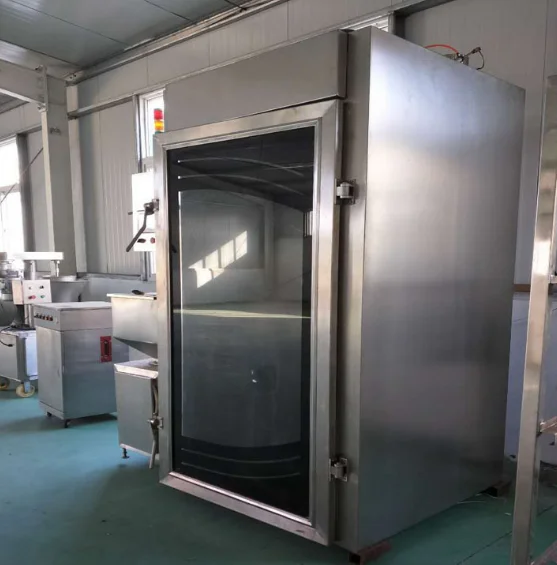

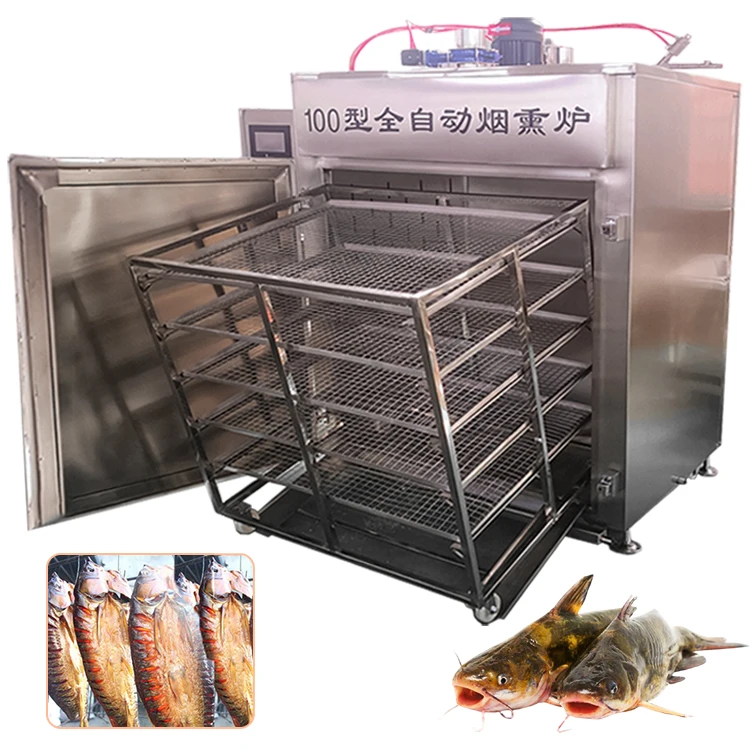

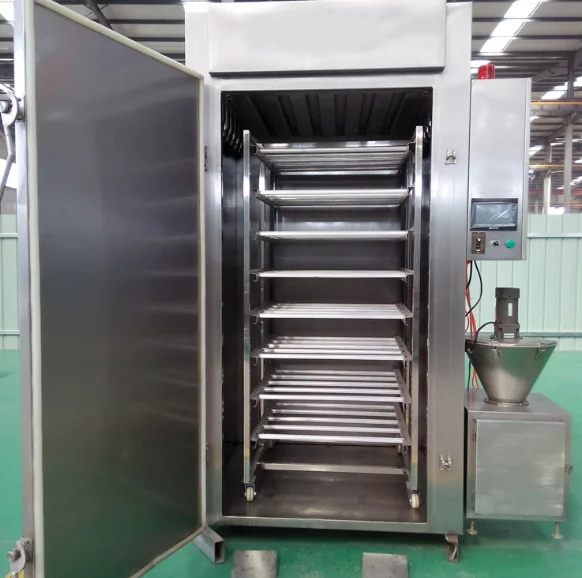

Industrial smoking house food fish turkey smoker smoking oven equipment
Product Description

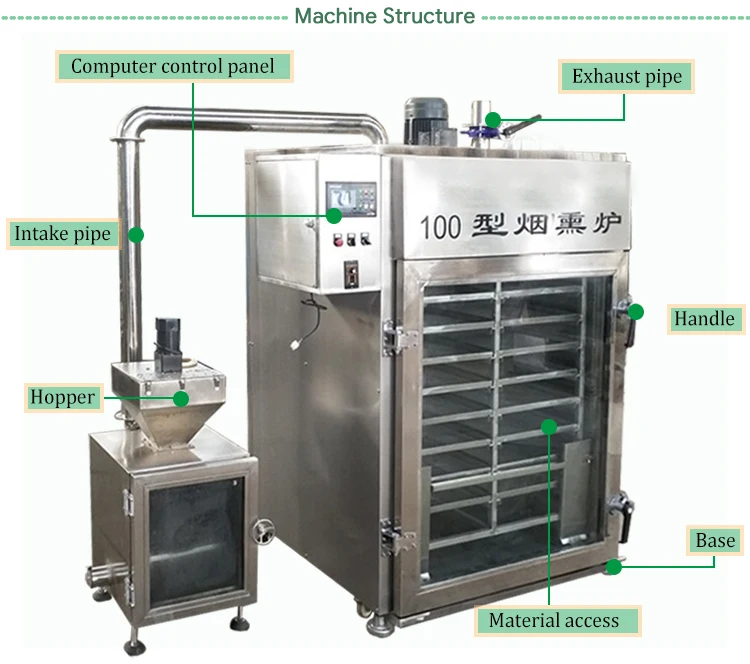

Smoke oven introduction :
Smoke oven with cooking, baking,drying,smoking,color functions,mainly for smoked meat and fish products process,Heated by electricity or steam.
Smoked oven can realize the mechanization,electrification,continuous production,greatly improve production efficiency;its production process is simple,operation is convenient, short time and labor intensity low pollution of environment and product play anticorrosion, preservation,to extend shelf life of use.
1.It has the functions of steaming,drying, baking, smoking and air exhaust. According to the product process requirements,the user can flexibly select the process requirements to achieve automatic computer control,to achieve the goal of curing and sterilization.
2. Imported steam valve, control steam flow,accurate temperature control, reliable operation, temperature difference less than 2 degrees.
3.The maximum wind speed of the fan can reach 25 meters per second after the balance check of 3000 revolutions per minute, effectively ensuring the temperature in the furnace is balanced up and down,left and right.
4.The smoke generator device adopts wood-grain smoke detector.The smoke is stable and fast, and the smoke entering the box is clean
Technical parameters:
| Model | GRT-SD-50 | GRT-SD-100 | GRT-SD-150 | GRT-SD- 200 | GRT-SD- 250 | GRT-SD-500 |
| Capacity(kg) | 50 | 100 | 150 | 200 | 250 | 500 |
| TotalPower(kw) | 3.5 | 4 | 4.5 | 5.5 | 7.5 | 13.5 |
| High pressure | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 |
| Low pressure | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 |
| Temperature | <100 | <100 | <100 | <100 | <100 | <100 |
| Waterpressure | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
Standard Trolley L/W/H(mm) | 700 | 800 | 1000 | 1000 | 1000 | 1000 |
| 730 | 800 | 1000 | 1000 | 1030 | 1030 | |
| 915 | 1280 | 1350 | 1460 | 1840 | 1840 | |
Dimension L/W/H (mm) | 1000 | 1340 | 1350 | 1400 | 1600 | 2500 |
| 1200 | 1300 | 1200 | 1400 | 1350 | 1500 | |
| 1680 | 1800 | 2200 | 2500 | 3000 | 3000 | |
| Weight(kg) | 300 | 800 | 1000 | 1200 | 1900 | 2600 |
Application area :

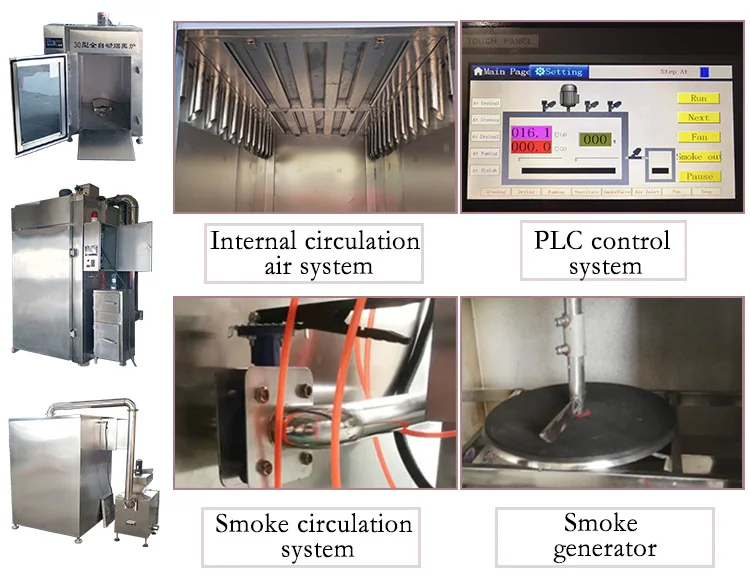

Machine Characteristics:
1.Fully automatical electricity control, temperature and humidity curve can be seen.
2.Steam valve can control the steam flow with accurate temperature control,and the temperature tolerance of whole oven is less than 2 Celsius.
3.The fan will keep the temperature equilibrium of the oven by rotating 3000r/min, 25m/s air speed.
4.Smoke generator unit by using smoke of wood grain, smoke is stable, color fastly, and enter smoke box body clean and health.
5. machine has special systems to control temperature, humidity and time. PLC or normal electrical control and single or double door are availabe.
Packaging & Shipping
Our products are multi-layered packaging, and finally packed in wooden boxes to ensure that the machine will not be damaged. Customers are very satisfied after receiving the goods, and many customers praise our machine packaging is very professional.
Our Services
Pre-sales Service
-Inquiry and consulting support within 24 hours.
-Sample testing support, testing video guildance.
-View our Factory.
After-sales Service
-Training how to instal the machine, training how to use the machine.
-One year warranty for repairing replaceing and returning.
-Engineers available to service machinery overseas.

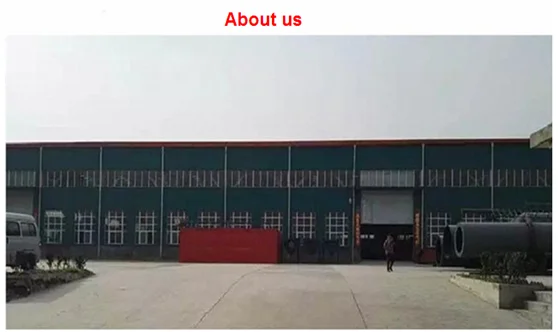

Company Information
