Солнечный стабилизатор напряжения PV SPD 600 В постоянного тока предохранитель вспышки солнечный стабилизатор напряжения
- Category: Low Voltage Products >>>
- Supplier: Zhejiang THOR Electric Co. Ltd.
Share on (60765003306):
Product Overview
Description
Product Effects
Product Overviews

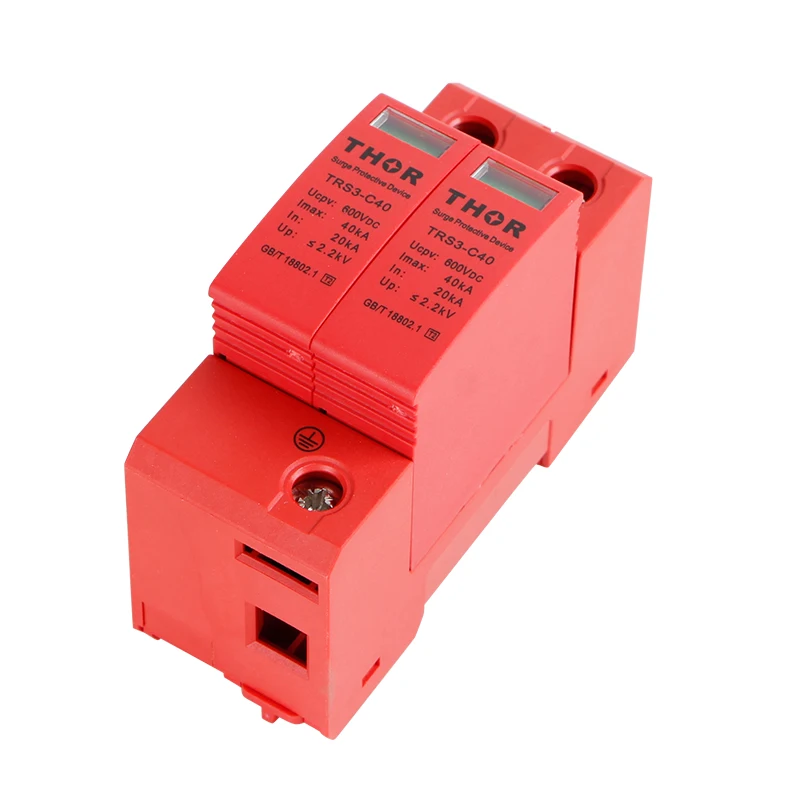

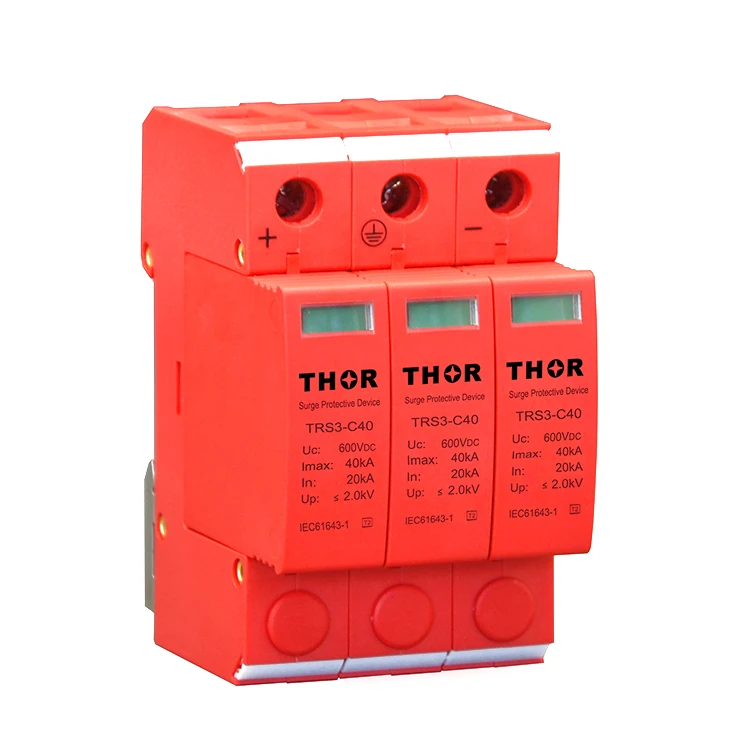

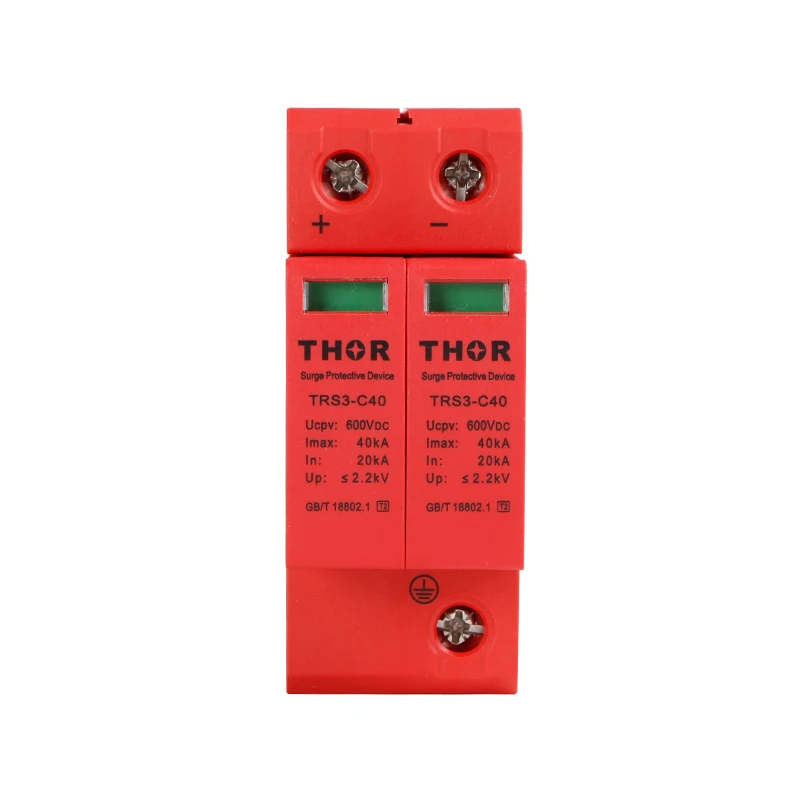

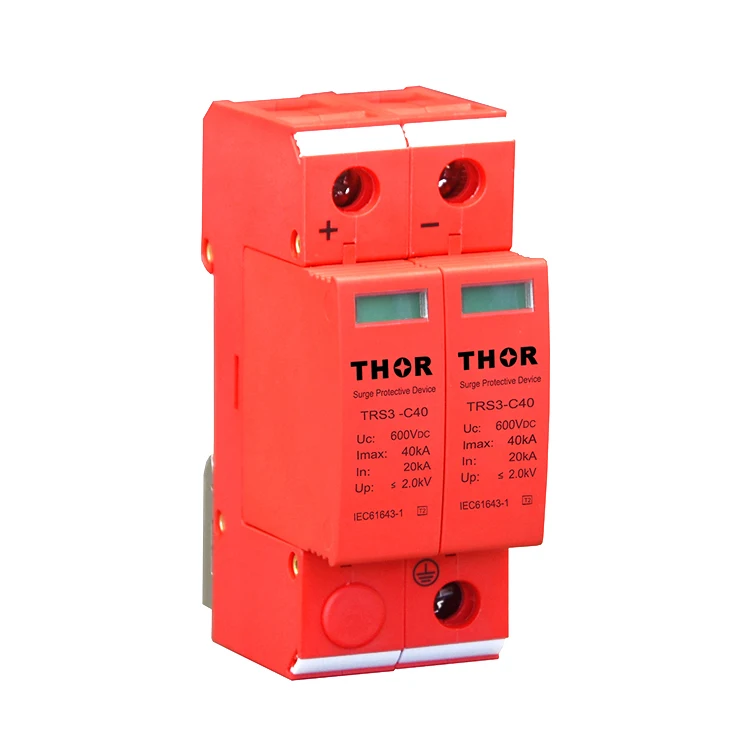

TRS3 surge protector series is suitable for the new energy solar photovoltaic power generation systems or other dc power supply system of lightning protection, the maximum continuous operating voltage DC500V, 800 v, 1000 v. Installation position in the dc power supply system, always of lightning current and lightning current directly or indirectly other instantaneous overvoltage protection.
Main technical parameters
| Model and specificatioon | TRS3-C40 | ||||
| Max continuous operating voltage Uc(VAC) | 500V | 600V | 800V | 1000V | 1200V |
| Voltage protection level Up(kV)≤ | 1.8 | 2.0 | 3.0 | 3.6 | 4.2 |
| Max discharge current (8/20μS) lmax(kA) | 40 | ||||
| Nominal discharge current (8/20μS) | 20 | ||||
| Response time ns | <25 | ||||
| Indication of invalidation | Aging invalidation:green Nomal red lnvladtion | ||||
| Degree of protection | IP20 | ||||
| Remote signal function | Can also picking | ||||
| Remarks | Other max continuous operating voltage can be customized | ||||
