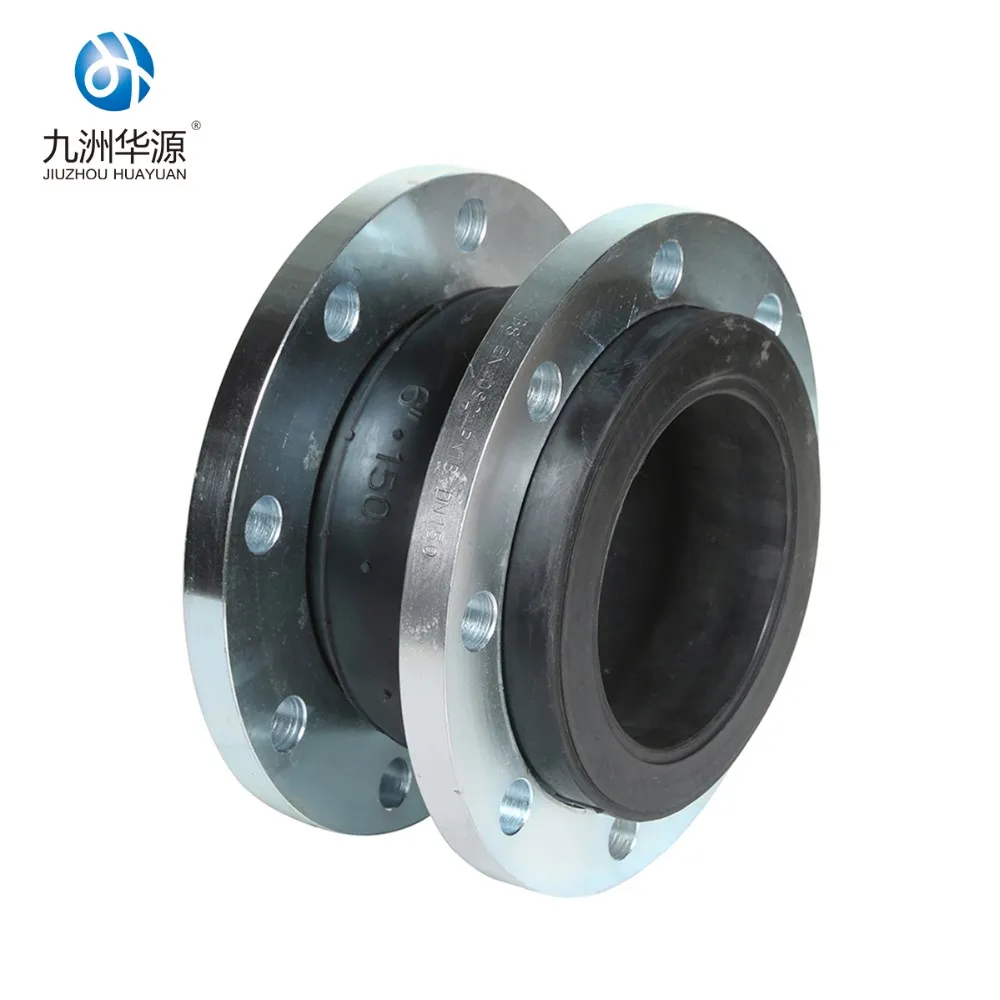

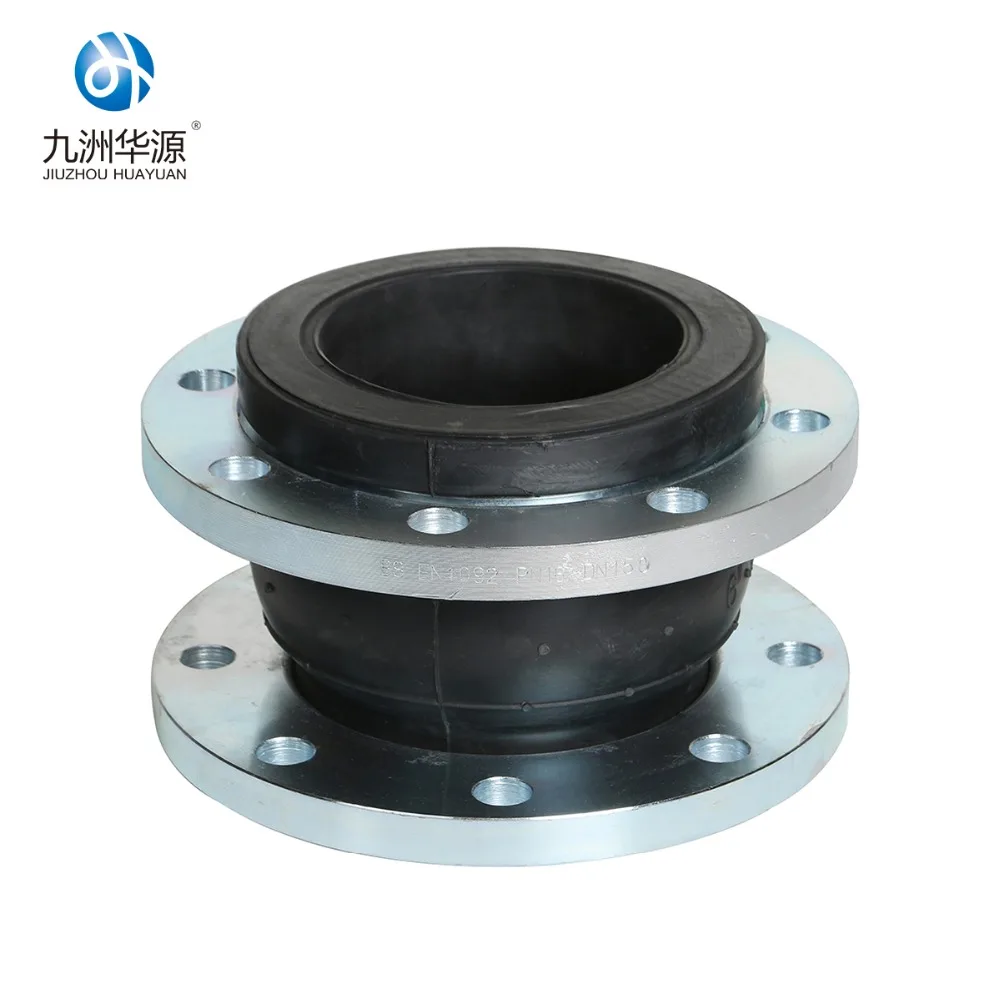

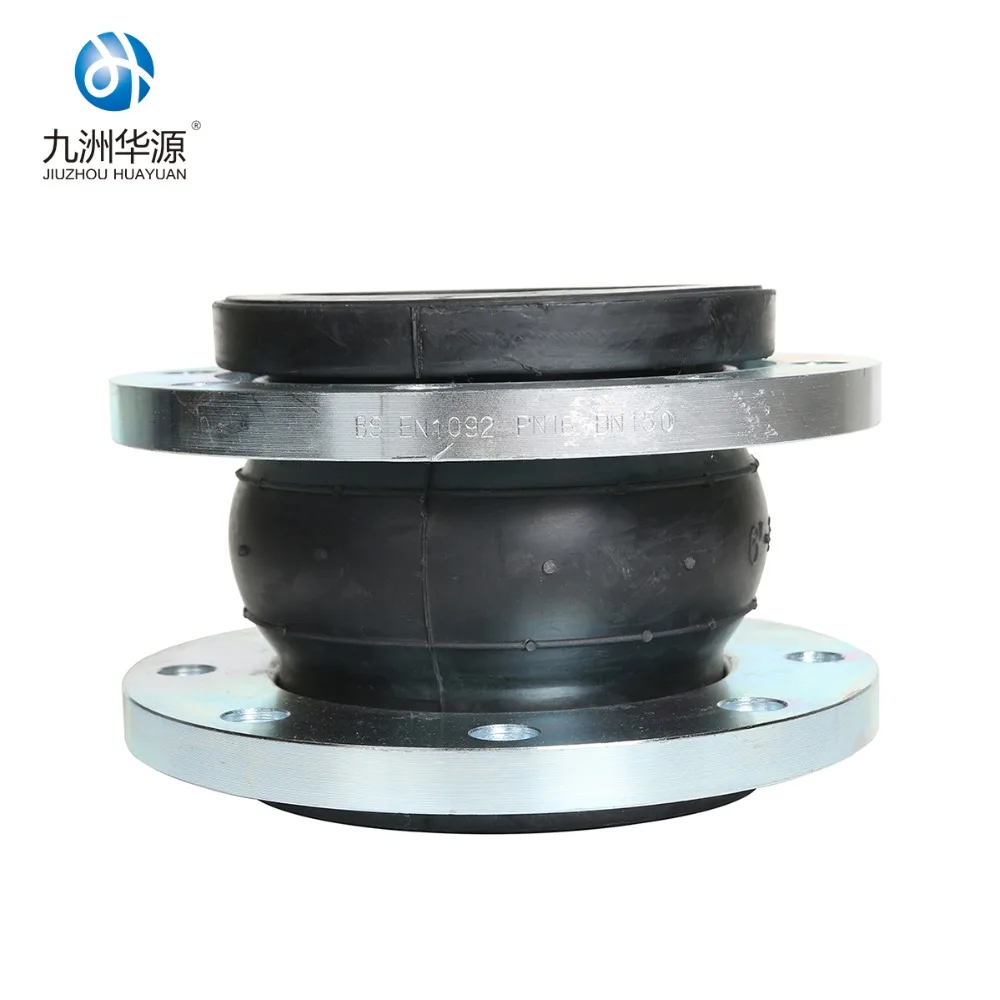

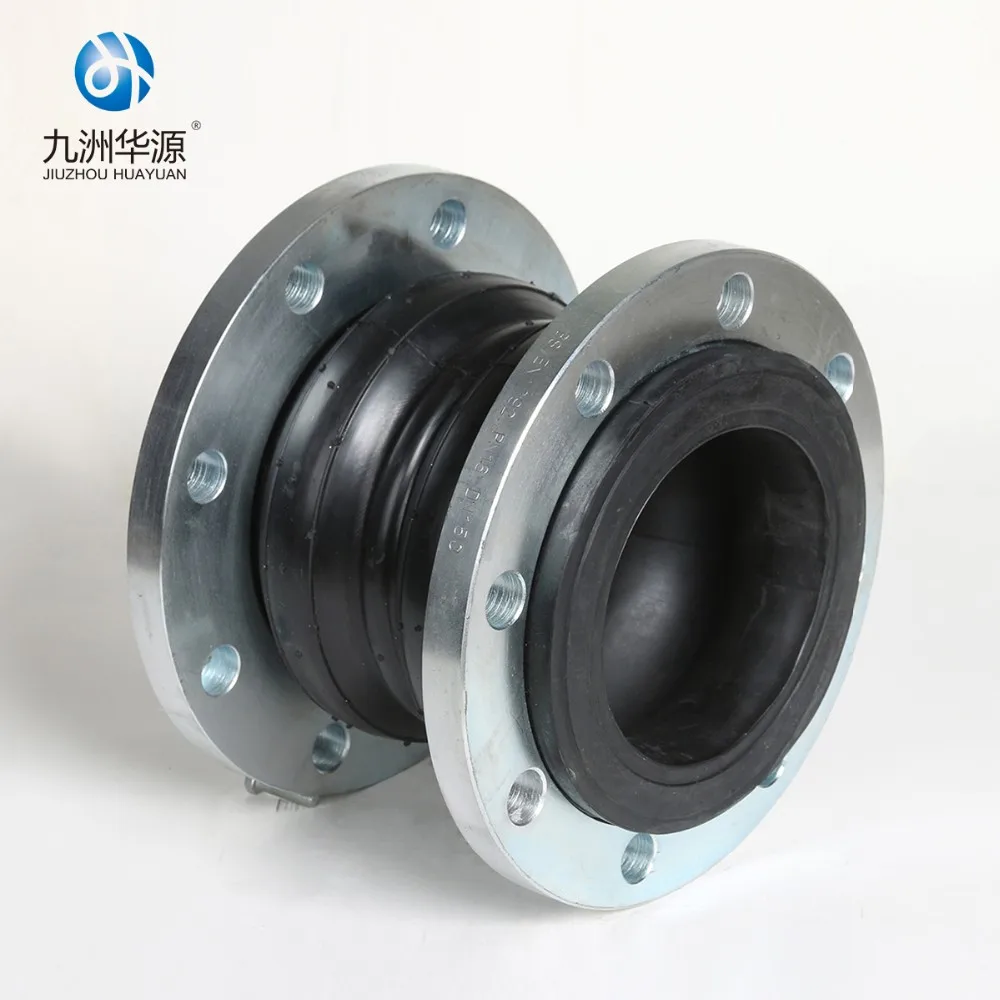

EPDM Single Rubber Joint Flange /galvanized rubber expansion joint
EPDM Single Rubber Joint Flange /galvanized rubber expansion joint
EPDM Single Rubber Joint Flange /galvanized rubber expansion joint
EPDM Single Rubber Joint Flange /galvanized rubber expansion joint
EPDM Single Rubber Joint Flange /galvanized rubber expansion joint
EPDM Single Rubber Joint Flange /galvanized rubber expansion joint
EPDM Single Rubber Joint Flange /galvanized rubber expansion joint

EPDM Single Rubber Joint Flange /galvanized rubber expansion joint

Share on (60765004255):


Price:$80.30 - $199.00

Quantity:


Product Overview

Description



Why Choose Us




Product Description

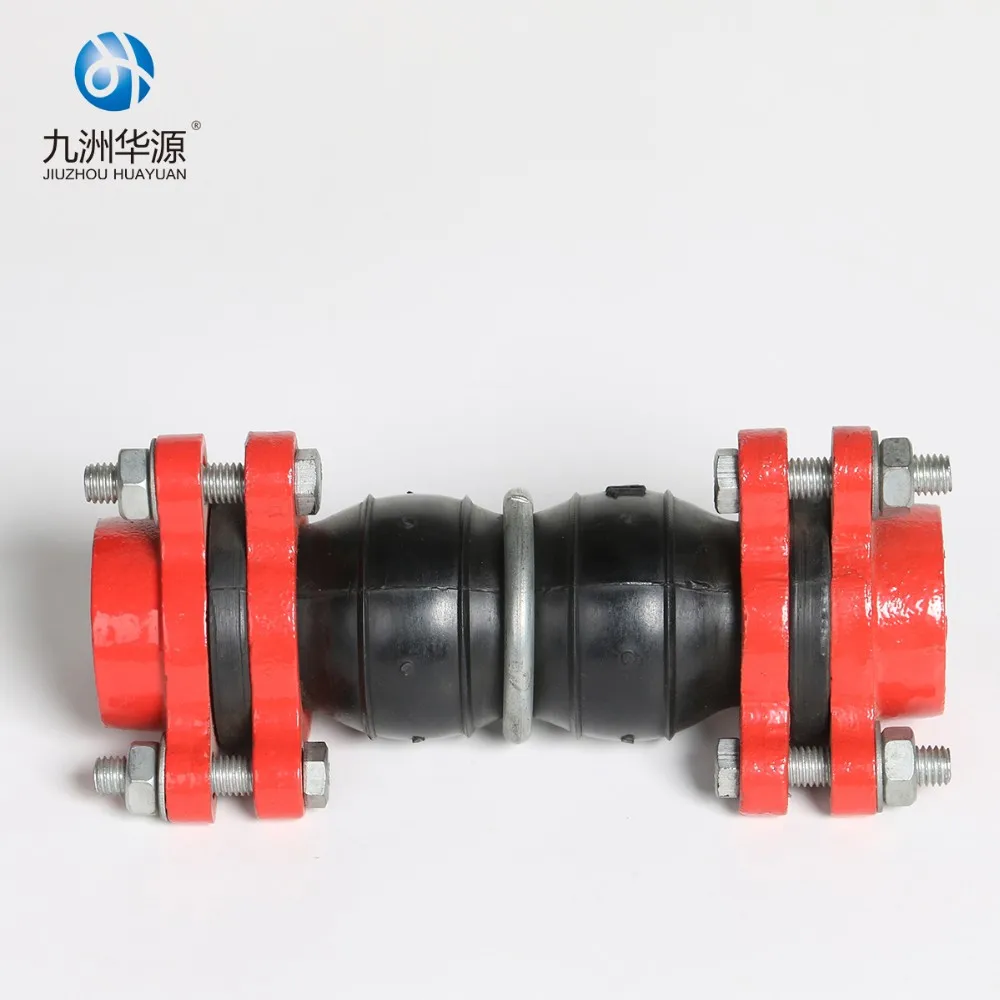

EPDM Single Rubber Joint Flange /galvanized rubber expansion joint

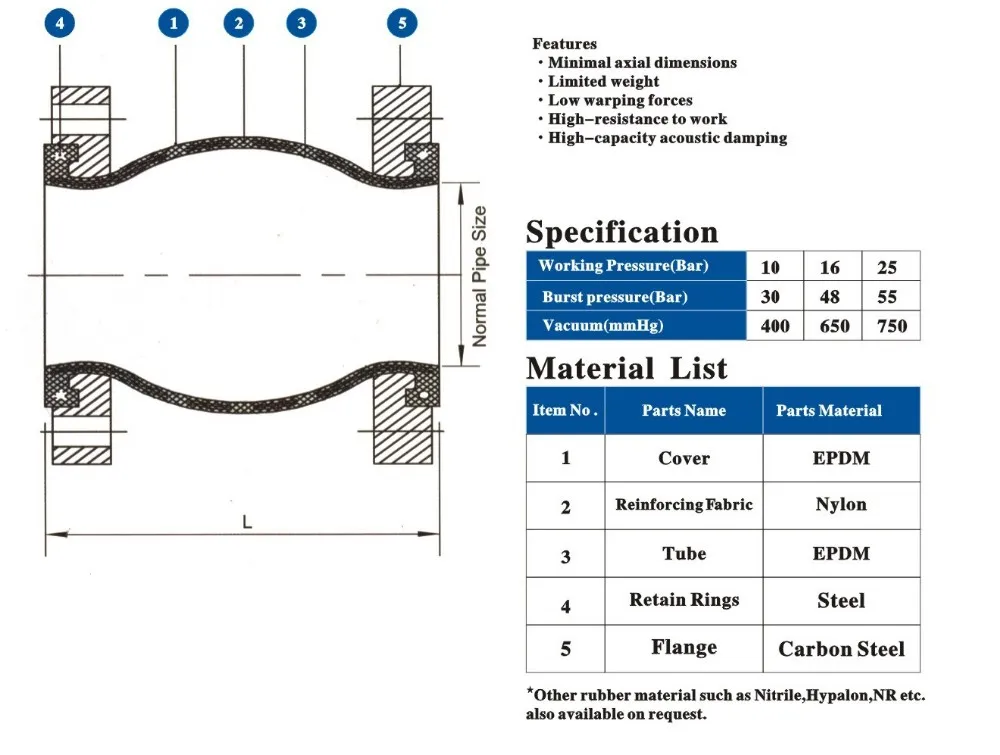

The form: this rubber expansion joint consists of rubber pipe, made of inner glue, multi-layer proofinf and cord fabric and outer glue abd metal woggle joint.

It is applicable for the connection of inlet and outlet pipes of various fancoil sets of air conditionings in the guest rooms of hotels and restaurants.



Rubber expansion joint advantage:

A: 15 minutes zinc plating, high pressure resistance, high temperature resistance, oil resistance, wear resistance, corrosion resistance, acid and alkali resistance.

B:Connect with pump, valve, fire fighting equipment, pipe which vibrate big, pipe which hot and cold change frequently.

C: Natural rubber content of forty-seven percent, can continue to use for 15 years without aging.








Nominal Diameter
Neutral Length
Movements
DN
NPS
L
Ext.
Comp.
Lateral.
Angular.(°)
32
1 1/4
95
6
9
9
15"
40
1 1/2
95
6
10
9
15"
50
2
105
7
10
10
15"
65
2  2/1
115
7
13
11
15"
80
3
135
8
15
12
15"
100
4
150
10
19
13
15"
125
5
165
12
19
13
15"
150
6
180
12
20
14
15"
200
8
210
16
25
22
15"
250
10
230
16
25
22
15"
300
12
245
16
25
22
15"
350
14
255
16
25
22
15"
400
16
255
16
25
22
15"
450
18
255
16
25
22
15"
500
20
255
16
25
22
15"
600
24
260
16
25
22
15"
700
28
260
16
25
22
15"
800
32
260
16
25
22
15"
900
36
260
16
25
22
15"
1000
40
260
18
26
24
15"
1200
48
260
18
26
24
15"


EPDM Single Rubber Joint Flange /galvanized rubber expansion joint

1. All  rubber expansion joints are finshed with retaining flanges, limit rod units are available on special request.
2. Pressures shows are recommended“operating”, test pressure is 1.5time“operating”, burst pressure is 3 time “operating”.
3. Vacuum rating is based on neutral installed length without external load. Products shall not be installed “elongated”on vacuum applications.
4. Do not weld near the expansion joints or weld the steel flanges to the piping after the expansion joints are installed. This will either burn or seriously damage the expansion joints. Huayuan Product Specifications in this catalogues for reference only. Huayuan reserve the right to change design construction, specification and materials without prior notice and without incuring any obligation. Any precise measurements, kindly contact with Huayuan technical service directly.

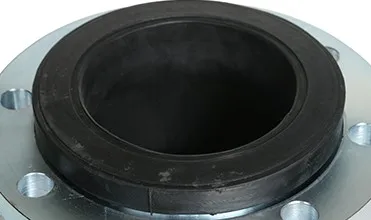

Product Details


EPDM Single Rubber Joint Flange /galvanized rubber expansion joint can be customized DN32-DN3000.

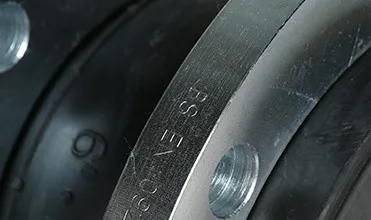

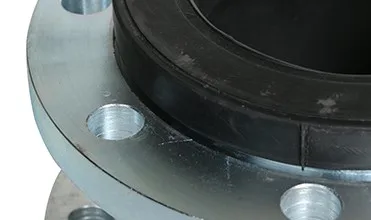

EPDM Single Rubber Joint Flange /galvanized rubber expansion joint all made of high-quality steel, large CNC machining galvanized surface.

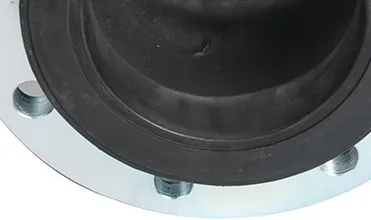

EPDM Single Rubber Joint Flange /galvanized rubber expansion joint raw materials all used in Malayasia and Indonesia's high quality rubber, natural rubber content reached 47%.




EPDM Single Rubber Joint Flange /galvanized rubber expansion joint after surface treatment and inspection of finished products.












About Us

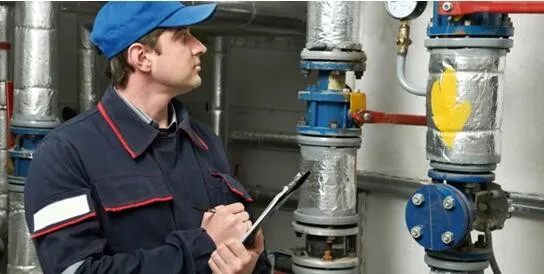

EPDM Single Rubber Joint Flange /galvanized rubber expansion joint has good comprehensive properties, it is widely used in chemical engineering, construction,  water supply, drainage, oil, heavy industry, freezing, sanitation, plumbing, fire protection, power and other basic projects.











Our raw material is imported natural rubber from Malaysia and Indonesia, with a content of fortyseven percent,according to the different materials, it can be made ofacid, alkali resistant, corrosion resistant, oil resistant, high temperature resistant, radiation resistant, wear-resistant, aging resistant and so on.


Certificate&Customer






FAQ


Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.

Q: What are your payment terms?
A: T/T (30% as despot, the rest 70% will be paid before delivery), L/C at sight

Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality.

Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.

Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests.

Q: Do you accept small quantity order?
A: Of course we do.

Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.

Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.

Q: And what's your packing?
A: Carton cases inside, export wooden cases outside.
