Steel Screw Thread Rebar Coupler Metal Building Materials Rebar Upset Forging Coupler
- Category: >>>
- Supplier: Baoding Jindi Machinery Co. Ltd.
Share on (60765027551):
Product Overview
Description
Products Description
Rebar Parallel Thread Splicing Coupler
1.It mainly connect HRB335, HRB400 and HRB500 hot rolled ribbed bars with diameter 12-50mm;
2.45# high quality carbon structural steel or 40Cr as material;

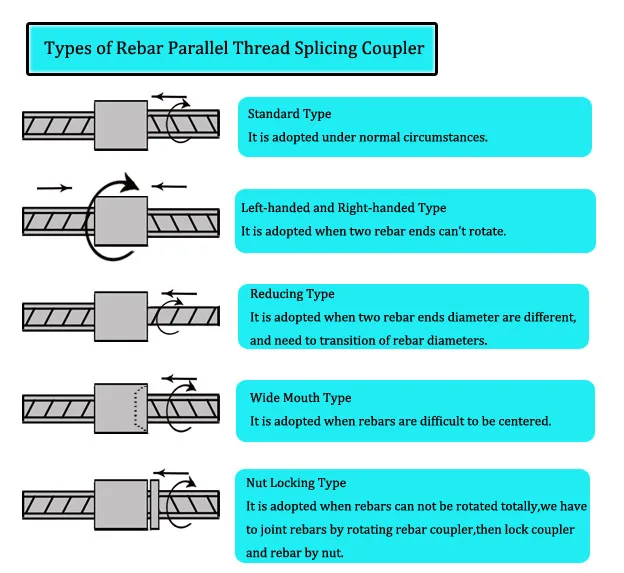

3. Standard type, left-handed and right-handed type, reducing type, wide mouth type, nut locking type, altogether more than one hundred types;
4. Satisfy the rebar splicing needs of longitudinal, traverse and slant ect in project of bridge, tunnel and other construction projects;
5.Taper thread coupler, double thread coupler, weldable coupler, upsetting parallel thread coupler or other type rebar coupler as per customer’s requirement.

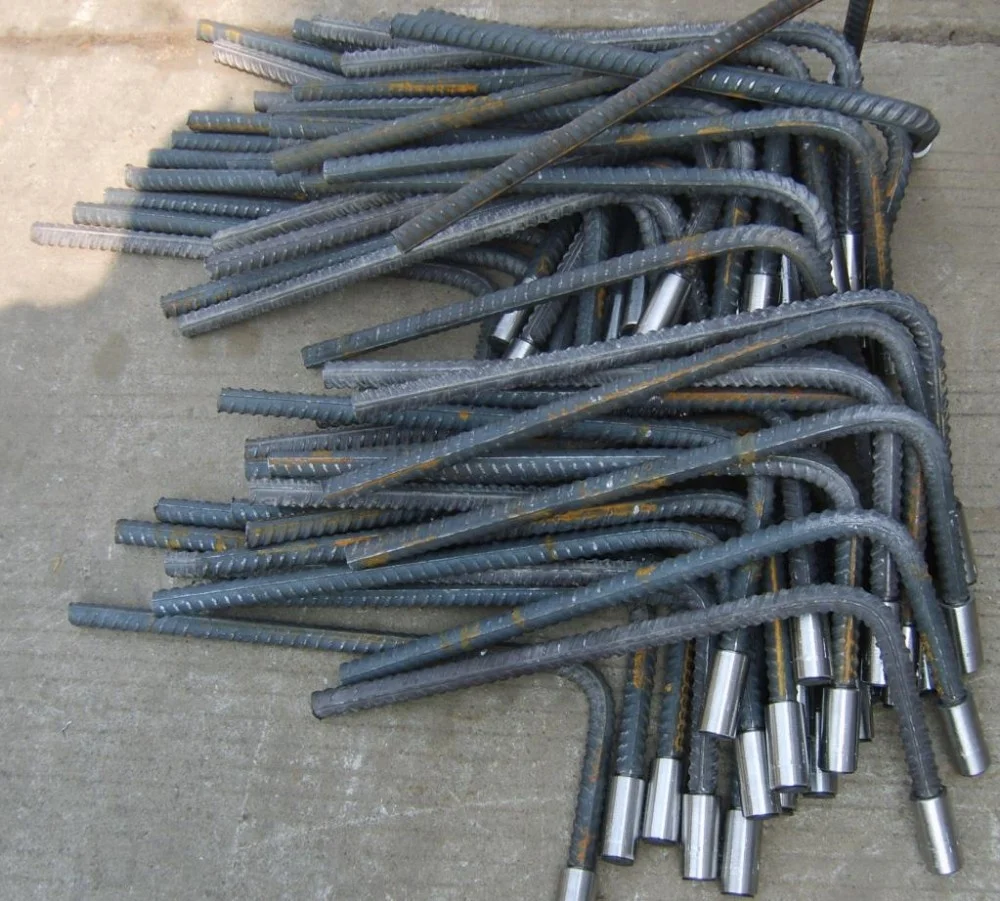

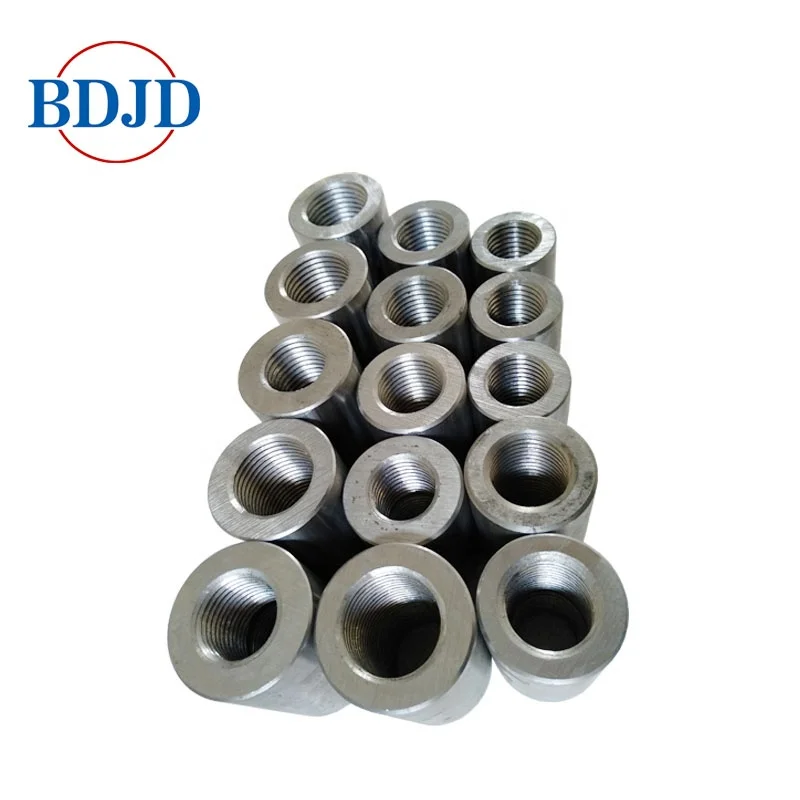

Product Show
Product Paramenters
Coupler Size | Outer Dia ±0.5mm | Inner Dia +0.25mm | Length +2mm | Thread Pitch (mm) | Thread Angle | Weight/Pc (kg) |
D14 | 21 | 12.55 | 38 | 2.5P | 60°/75° | 0.068 |
D16 | 24 | 14.50 | 43 | 2.5P | 60°/75° | 0.099 |
D18 | 27 | 16.35 | 48 | 2.5P | 60°/75° | 0.125 |
D20 | 29 | 18.45 | 53 | 2.5P | 60°/75° | 0.180 |
D22 | 33 | 20.35 | 58 | 2.5P | 60°/75° | 0.205 |
D25 | 37 | 23.15 | 63 | 3.0P | 60°/75° | 0.317 |
D28 | 41 | 25.95 | 68 | 3.0P | 60°/75° | 0.399 |
D32 | 47 | 30.15 | 80 | 3.0P | 60°/75° | 0.640 |
D36 | 54 | 33.85 | 83 | 3.5P | 60°/75° | 0.900 |
D40 | 59 | 37.55 | 88 | 3.5P | 60°/75° | 1.099 |

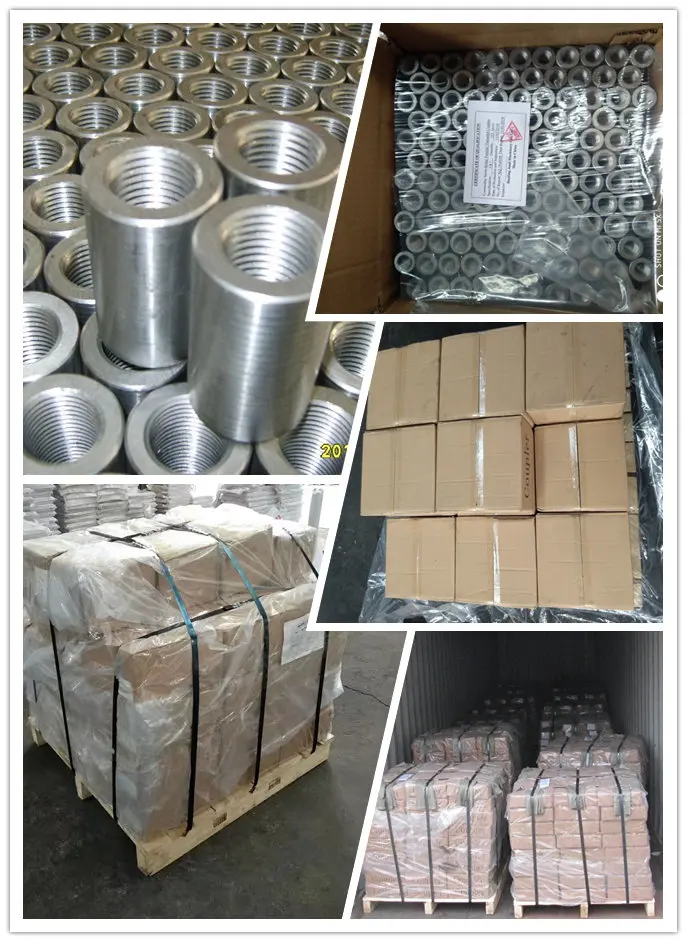

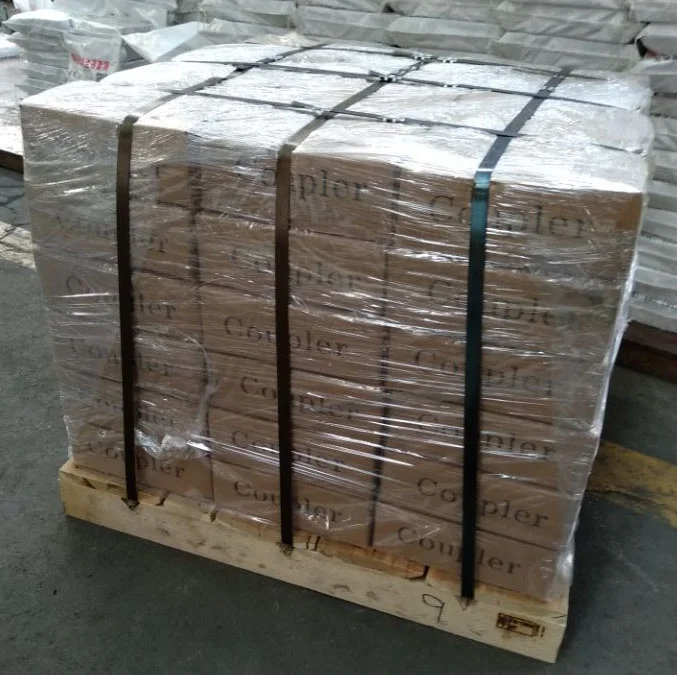

Product packaging

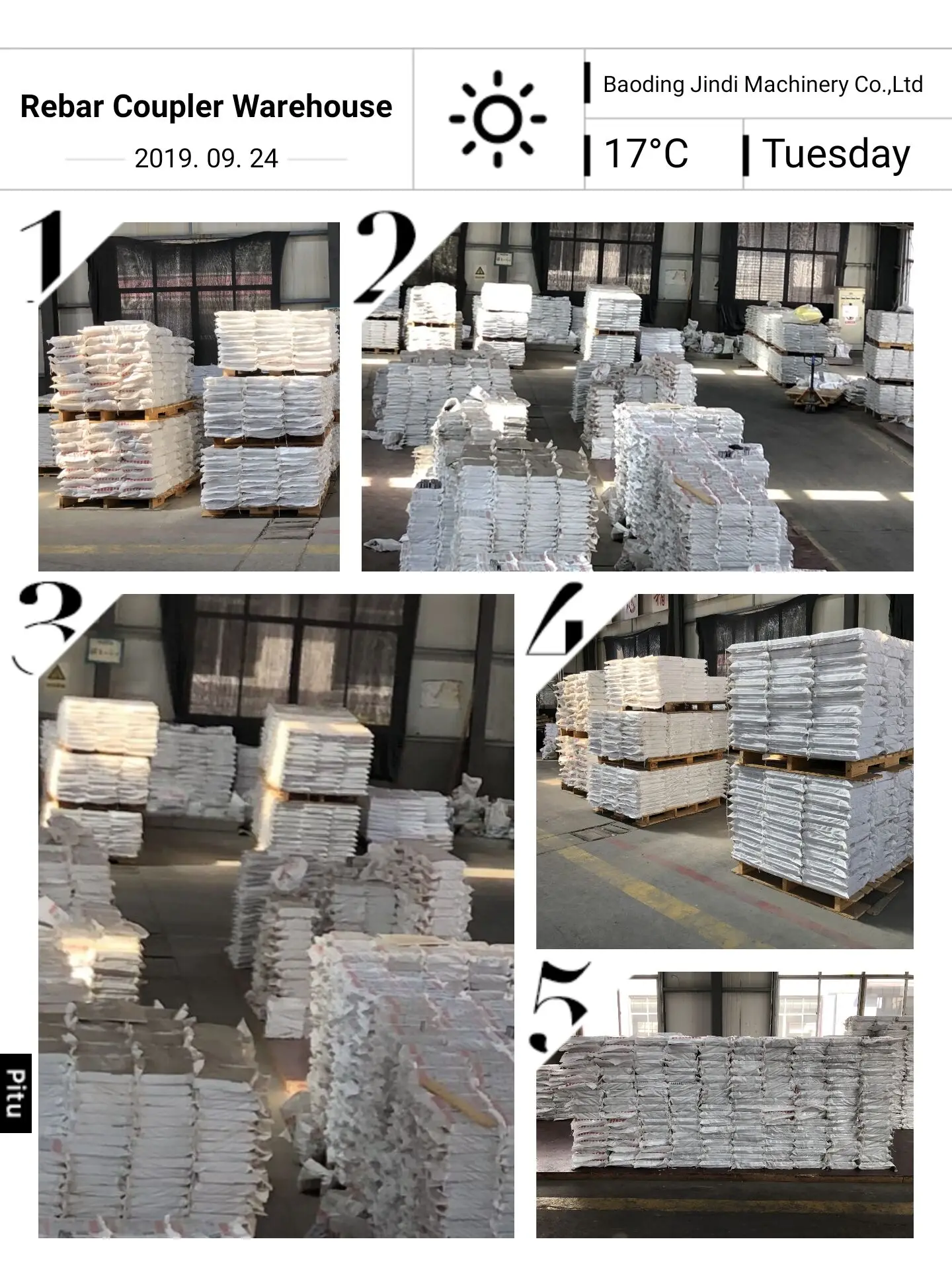

Workshop
