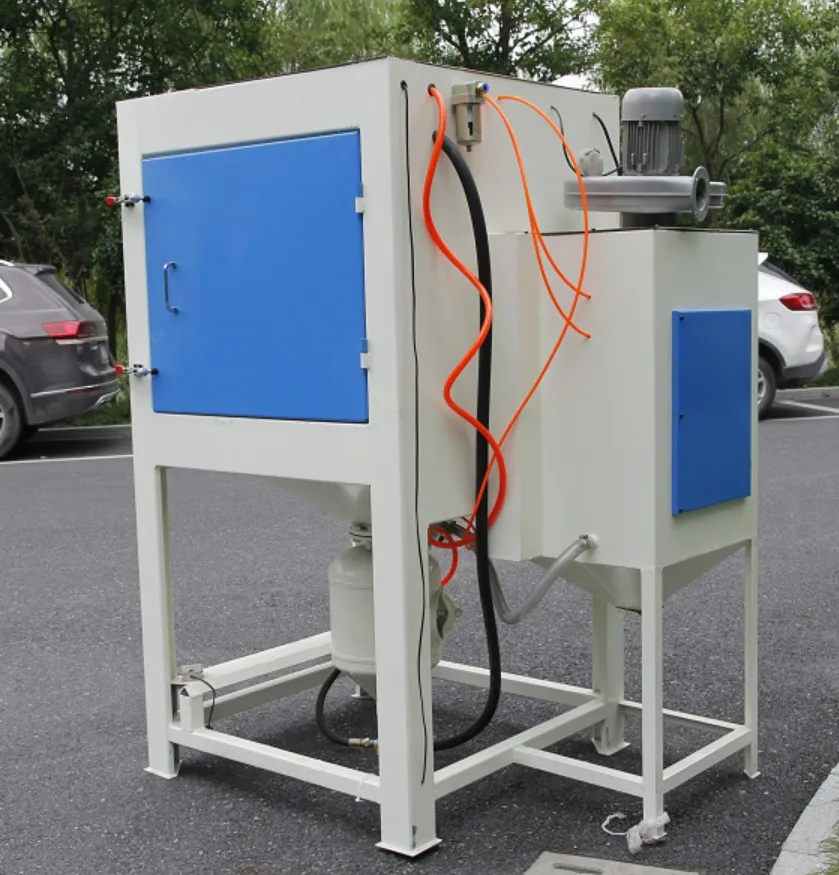

Special top quality super price high pressure sandblaster

 Specialized newest high quality factory produced add pressure blasting machine

Dimension size:900*1350(including dust box)*1900(mm)

Working chamber size: 900*800*800(L*W*H mm)

Dust box size: 430*430*1600(L*W*H mm)

Dusting fan power: 0.55kw

Dust removal method: bag pulse dust

Lighting: LED 18W lamp 1 pcs

Spray gun: high-pressure spray gun-1pcs

Nozzle: boron carbide nozzle-1pcs

Shell: 2.0mm cold-rolled steel plate welded

Observation window: 1230* 420(mm)

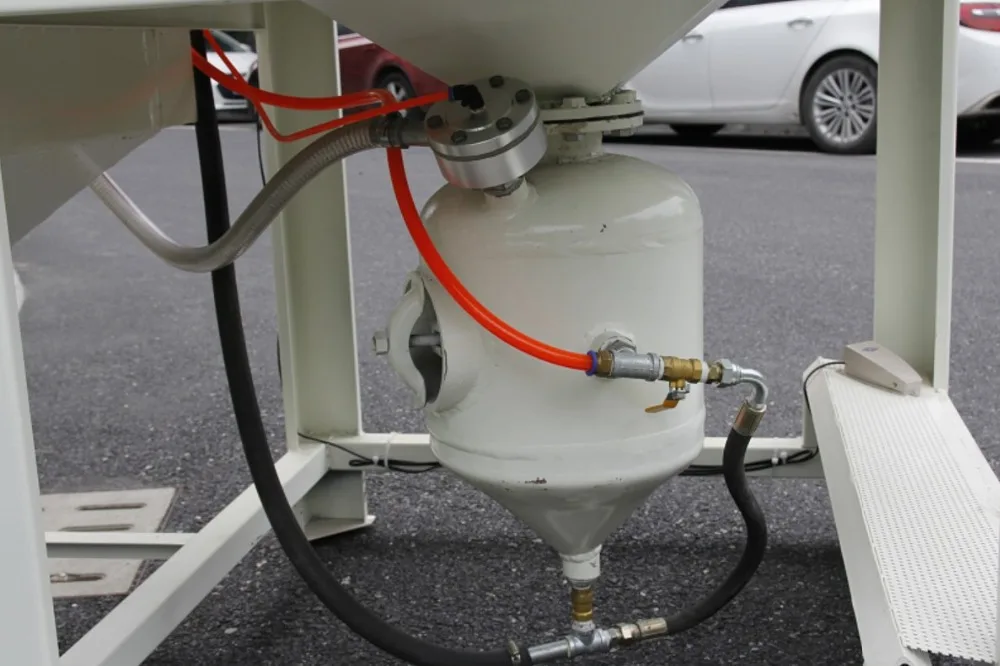

Pressure tank: diameter 350mm *high 450mm

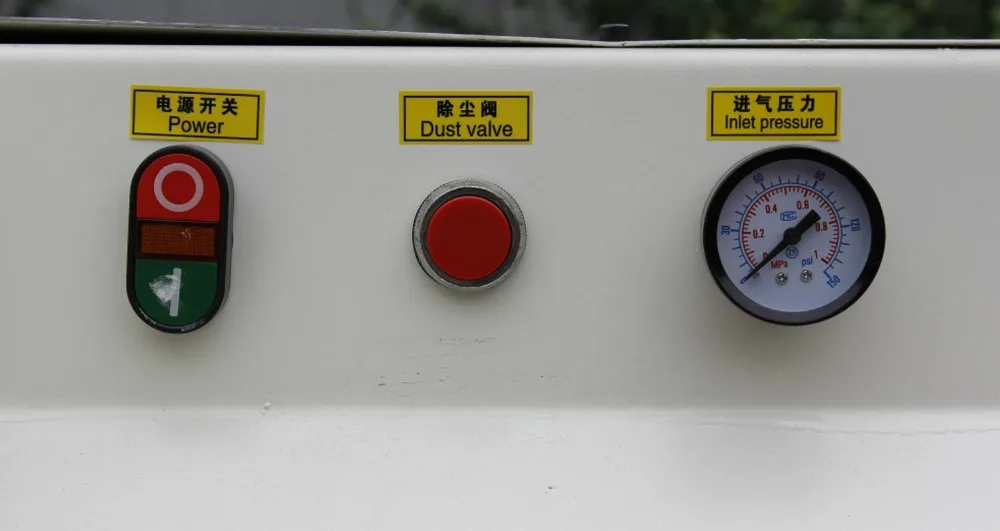

Pressure gauge: 2 pieces Regulator: 1 pcs 1 pcs

Dust valve: Working door size: 630mm * 630mm Air pressure requirements: 5 ~ 8bar (kg / cm2) must be greater than 2 cubic meters of air compressor supporting

Features:

Specialized newest high quality factory produced add pressure blasting machine uses cyclone separation automatic recovery of sand material, suitable for 30 # -180 # sand material used; Sandblasting efficiency, impact point deep, with instantaneous control system; Dust and sand separation, saving abrasive, environmental protection effect is good;

Scope of application:

For small and medium-sized, small and medium-sized general parts and high hardness of the workpiece rapid blasting.

Such As :

clean cast parts, heat treatment pieces, burrs, residues, you can light decorated its surface, pre-plating; Especially for sprayed steel grit, glass sand; do not recommend the use of steel balls, grit and other large intensity of the sandblasting material

High Pressure blasting machine working principle:

The high pressure sandblasting machine use abrasive as the working medium with compressed air as the driving forces ,abrasive and comressed air in the pressure tank pressured , and after the acceleration of the the sand valve the abasive ejector to sandblasting gun to inject into the surface of the workpiece to achieve the desired purpose of blasting.
