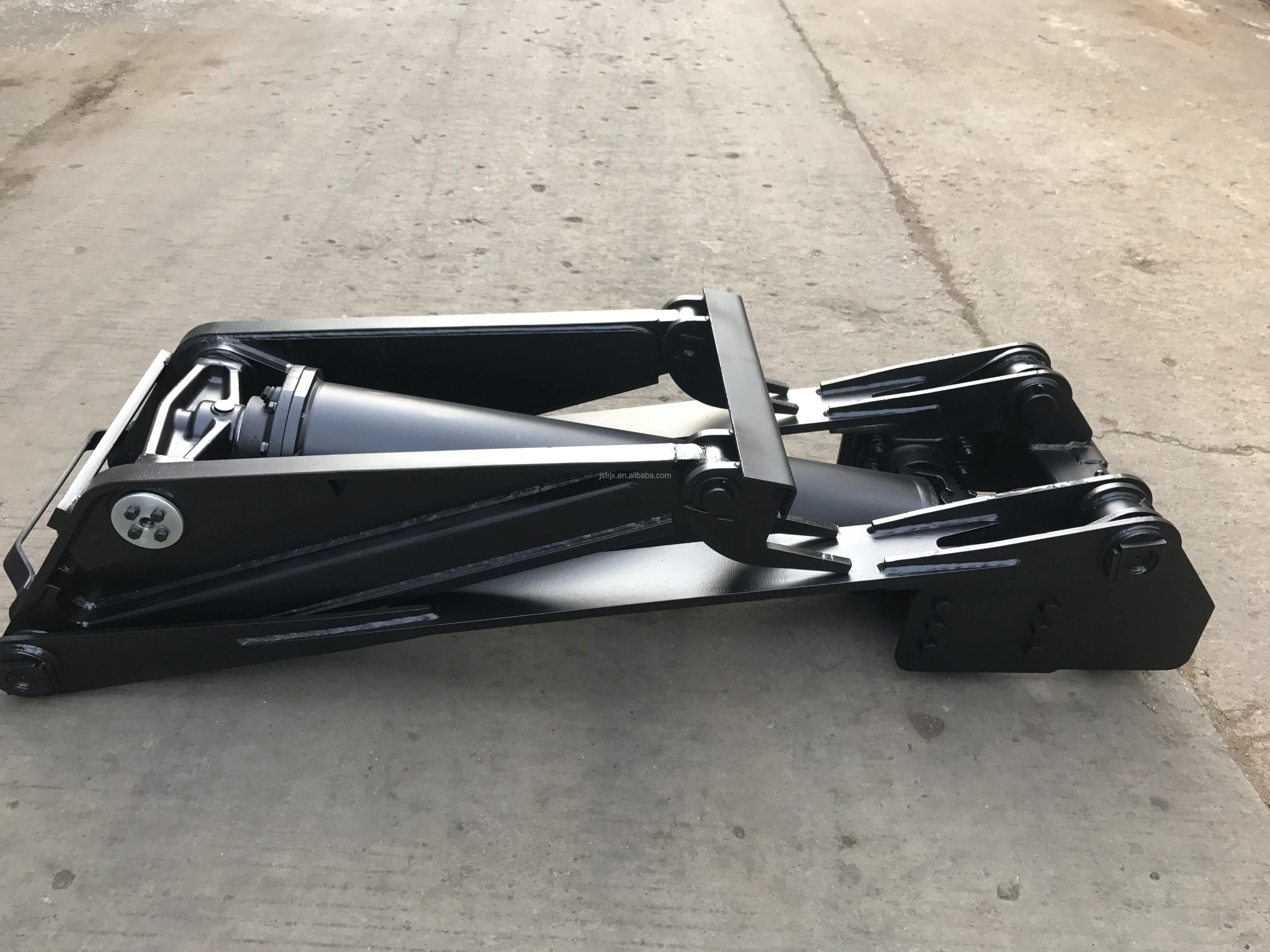

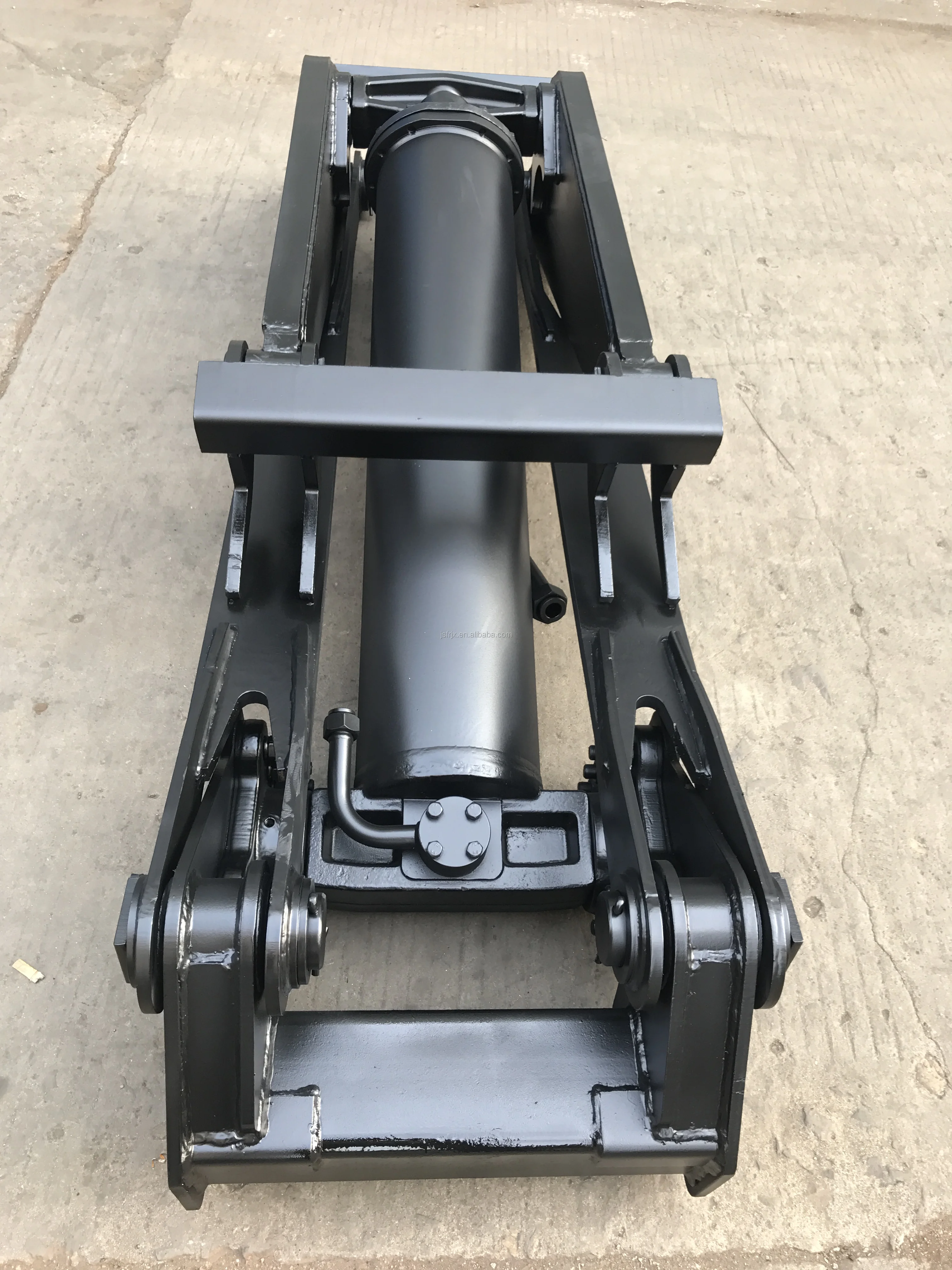

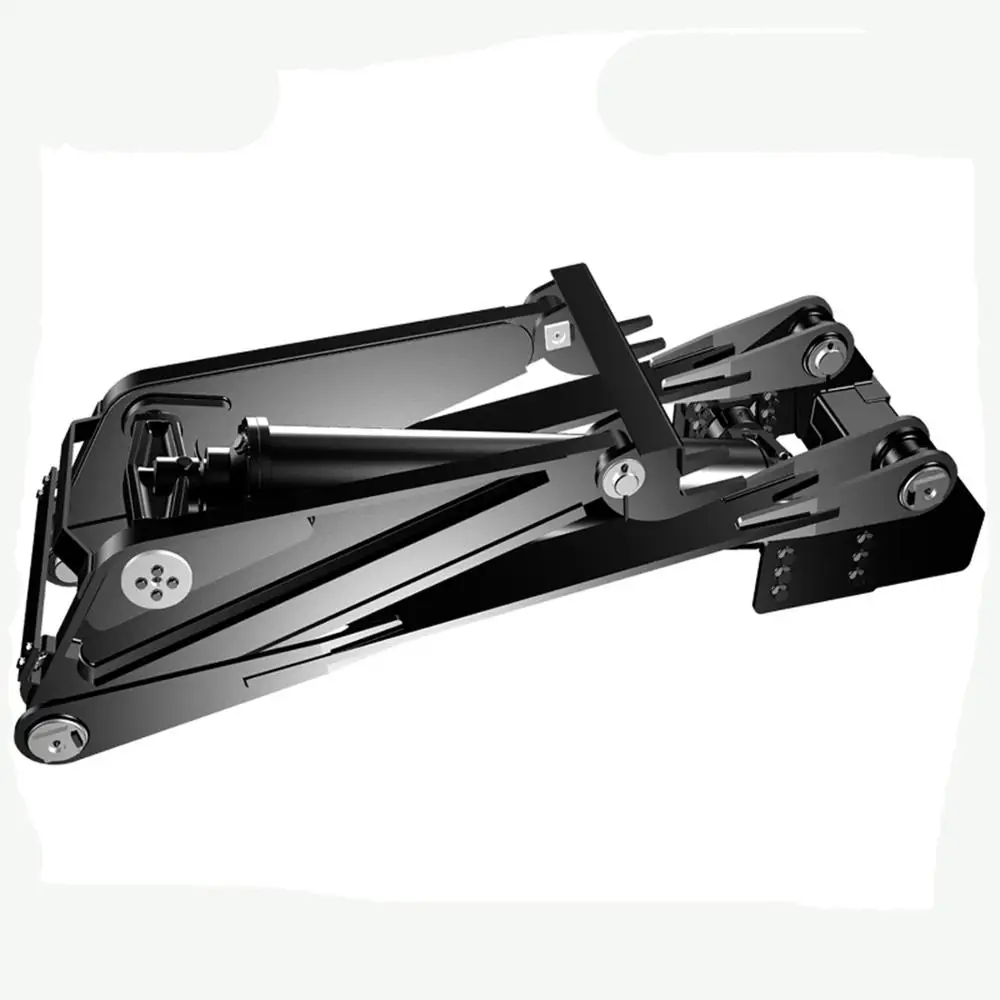

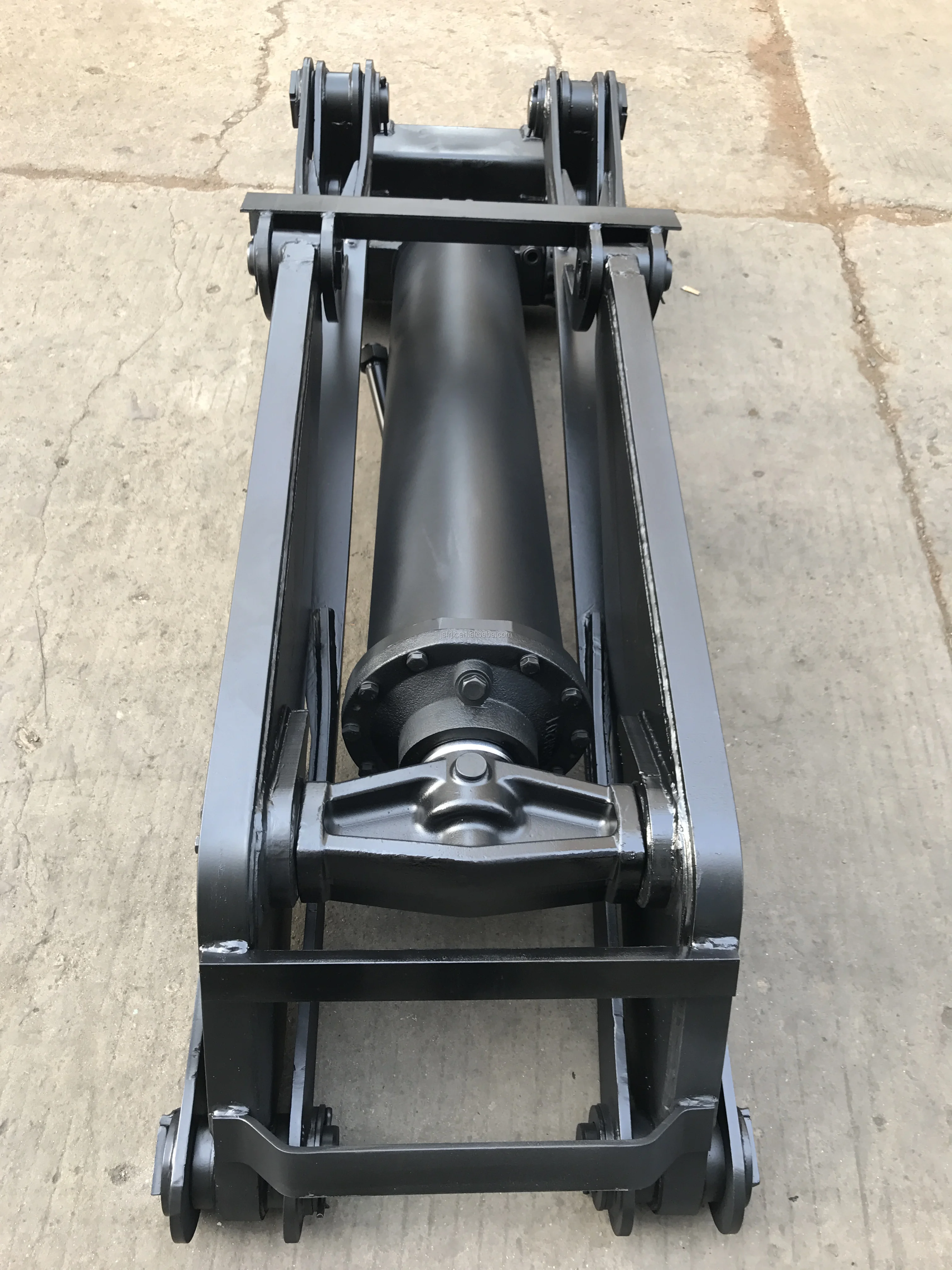

25 ton KRM201 dump truck hydraulic telescopic system dump hoist
- Category: >>>
- Supplier: Jiangsu Fangrui Machinery Co. Ltd.
Share on (60765116269):
Product Overview
Description
Product Overviews
25 ton KRM201 dump truck hydraulic telescopic system tipper jack hoist cylinder kit price
The hydraulic system dump hoist KRM201 used for dump truck,refixed trucks,truck cranes and other vehicles.
the underbody hoist is black and the triangle plates have steel bars to make the integration more firm.
the air viscosity is small, the resistance to less than the hydraulic oil.

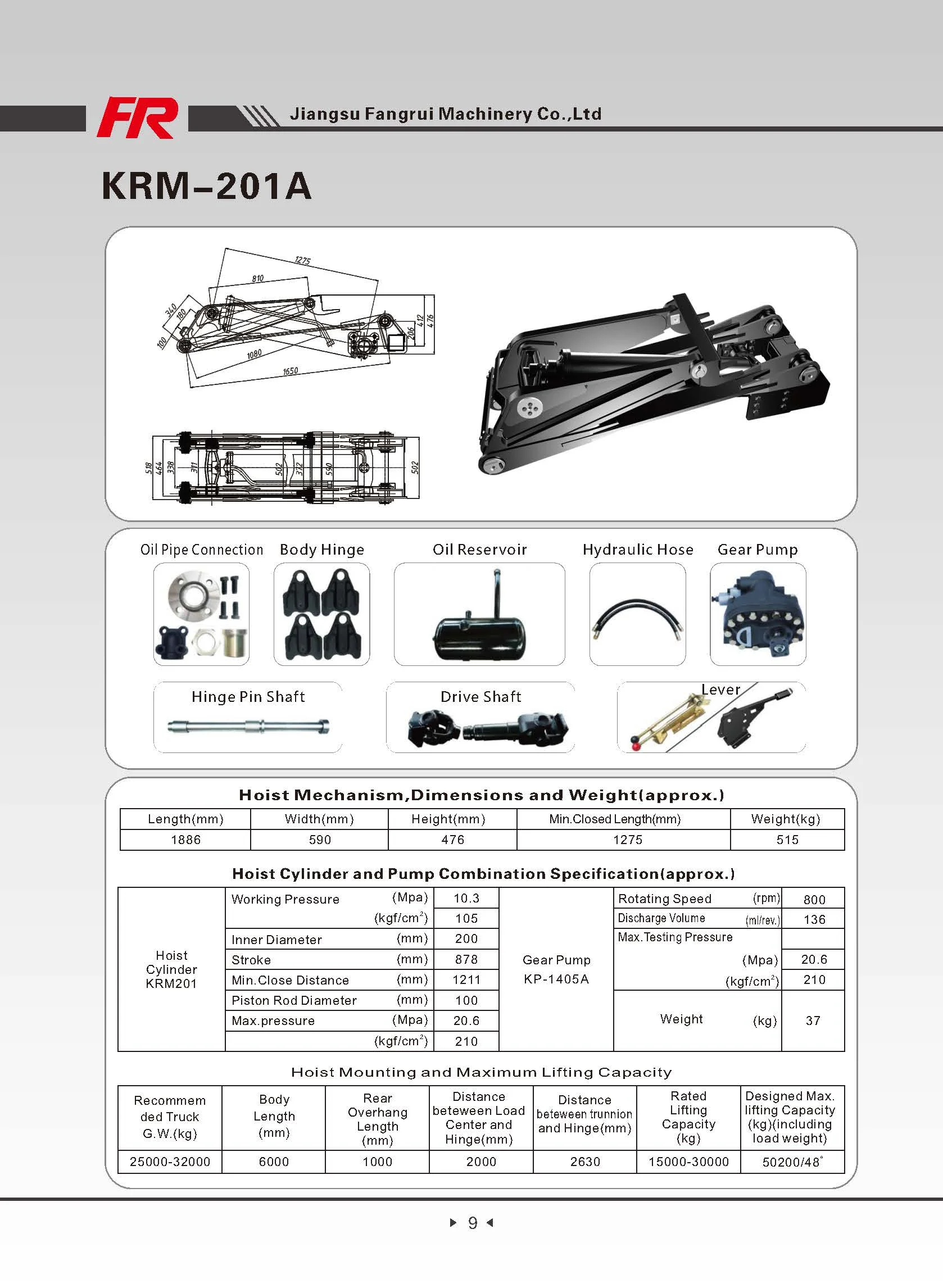

Cylinder specification(approx.)
| Model | Piston Rod diameter(mm) | Cylinder Inner diameter(mm) | Stroke(mm) | Weight(kg) | Working Pressure(Mpa) | Min.Close Distance(mm) |
| KRM-201A | 100 | 200 | 878 | 199 | 10.3 | 1211 |
Hoist Mechanism,Dimensions and Weight (approx.)
| Length(mm) | Width(mm) | Height(mm) | Min.Closed Length(mm) | Weight(kg) |
| 1886 | 590 | 476 | 1275 | 515 |
Gear pump specification(approx.)
| Model | Rotating speed(rpm) | Discharge Volume(ml/rev.) | Max.Testing Pressure(Mpa) | Weight(kg) |
| KP-1405A | 800 | 136 | 20.6 | 37 |
Hoist Mounting and Maximum Lifting capacity
| Recomended Truck G.W(kg) | Body Length(mm) | Rear Overhang Length(mm) | Distance between Load Center and Hinge(mm) | Distance between Trunnion and Hinge(mm) | Rated Lifting Capacity(kg) | Designed Max.Lifting Capacity including load weight(kg) |
| 25000-32000 | 6000 | 1000 | 2000 | 2630 | 15000-30000 | 50200/48° |
Our Services
We would come and get the product specifications
All of your reasonable designing demands can be accepted
We will send the sample you request within 7 days
