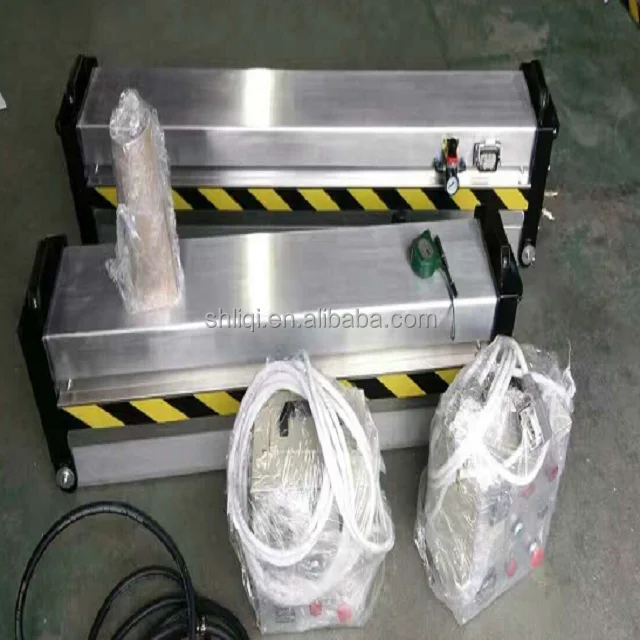

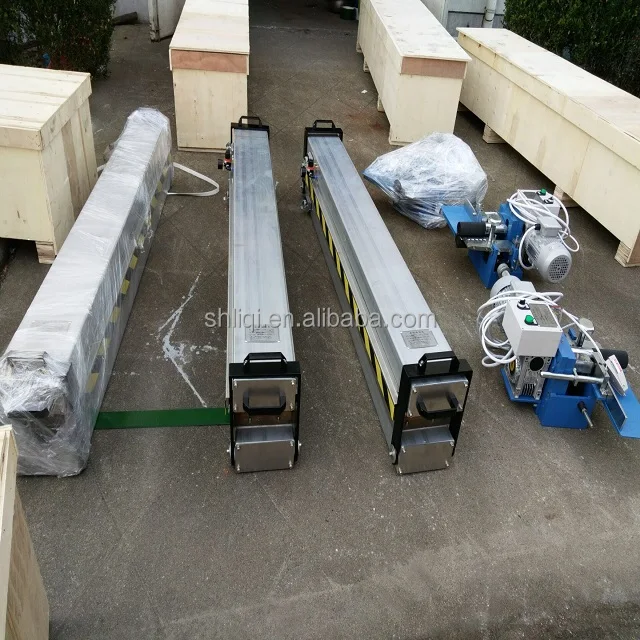

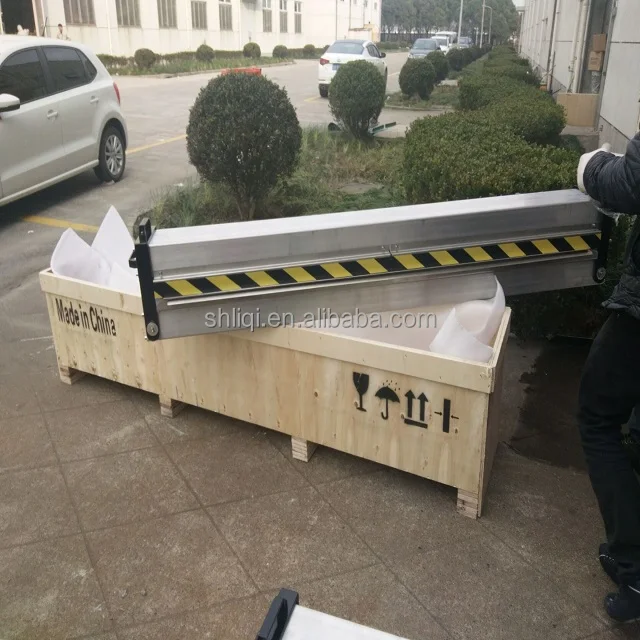

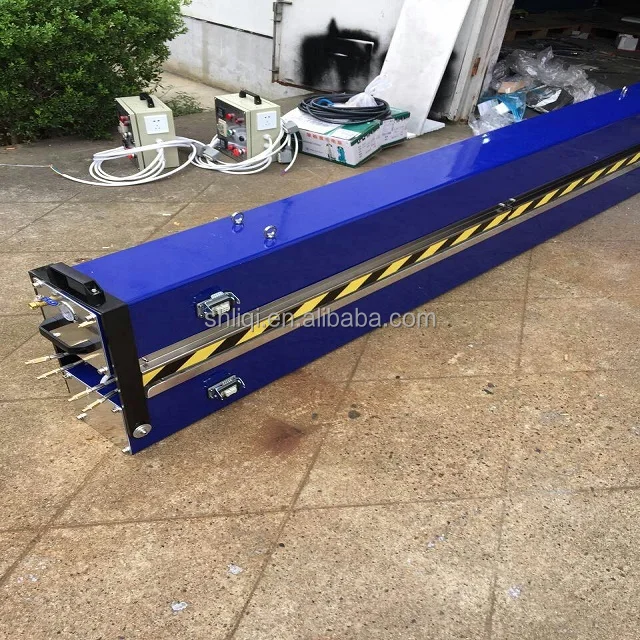

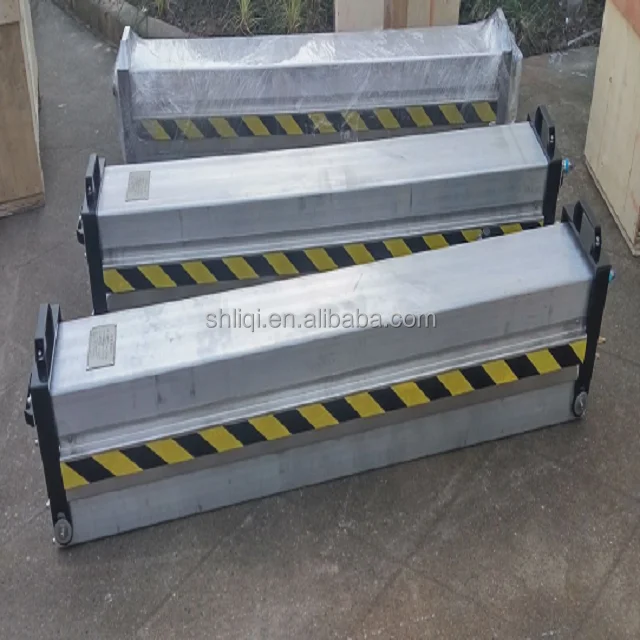

pvc pu conveyor belt hot press splice machine

Product Overview

Description



 Basic information of LQ hot press
Name function and brief introduction
The control buckle (2) regulates and fasten the upper and lower formwork. When hot pressing the belt, it needs to be stuck.
When the upper beam is connected to the belt, it plays the role of pressing the template. It is an important source of pressure for a machine.
Hook (2) in order to facilitate the rise and fall of the mold. It is also convenient to control the upper die lift by the lift.
The trachea (1) was given to the upper and lower templates with aeration and pressure.
The upper and lower formwork of the water pipe (4 machines) is equipped with 1 water inlet pipes and outlet pipes. When the machine needs to cool down, water is pumped into the machine to cool down, and the circulating water flows out through the outlet pipe.
The barometer shows air pressure data after the machine is ventilated, and it can refer to the barometric value of adjusting the upper and lower templates.
When the air pressure switch machine is heated, the air pressure switch must be opened to pressurize the two templates of the machine. Cooling off the switch and closing this switch
The handshake (2) is convenient for handling the machine while the two hands are respectively held at both ends of the rack.
The function of the press die when the lower beam is connected to the belt
The upper plate is also called a heating plate. The upper surface of the joint belt is heated and heated, and the lower layer of the board is an airbag.
The lower steel plate is also called the heating plate. The utility model has the effect of heating and heating on the lower surface of the joint belt. The upper layer of the steel plate is air bag. The general temperature is 5-10 degrees lower than that of the upper template.
The upper mold heavy loading connector corresponds to the upper mold power supply line connector of the electric control box. The upper die heating plate is heated by electricity.
The lower mold heavy duty connector bolts correspond to the lower die power cord connector of the electrical control box. The lower die heating plate is heated by electric heating.
