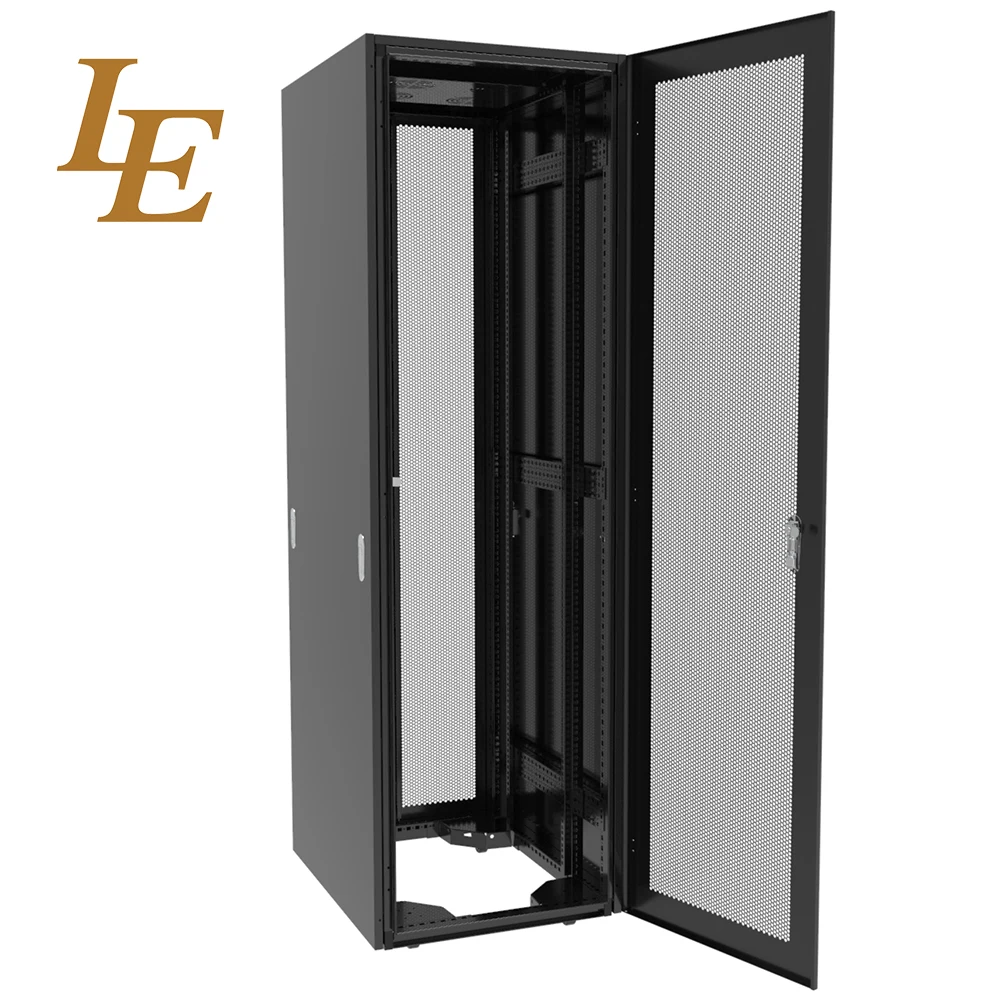

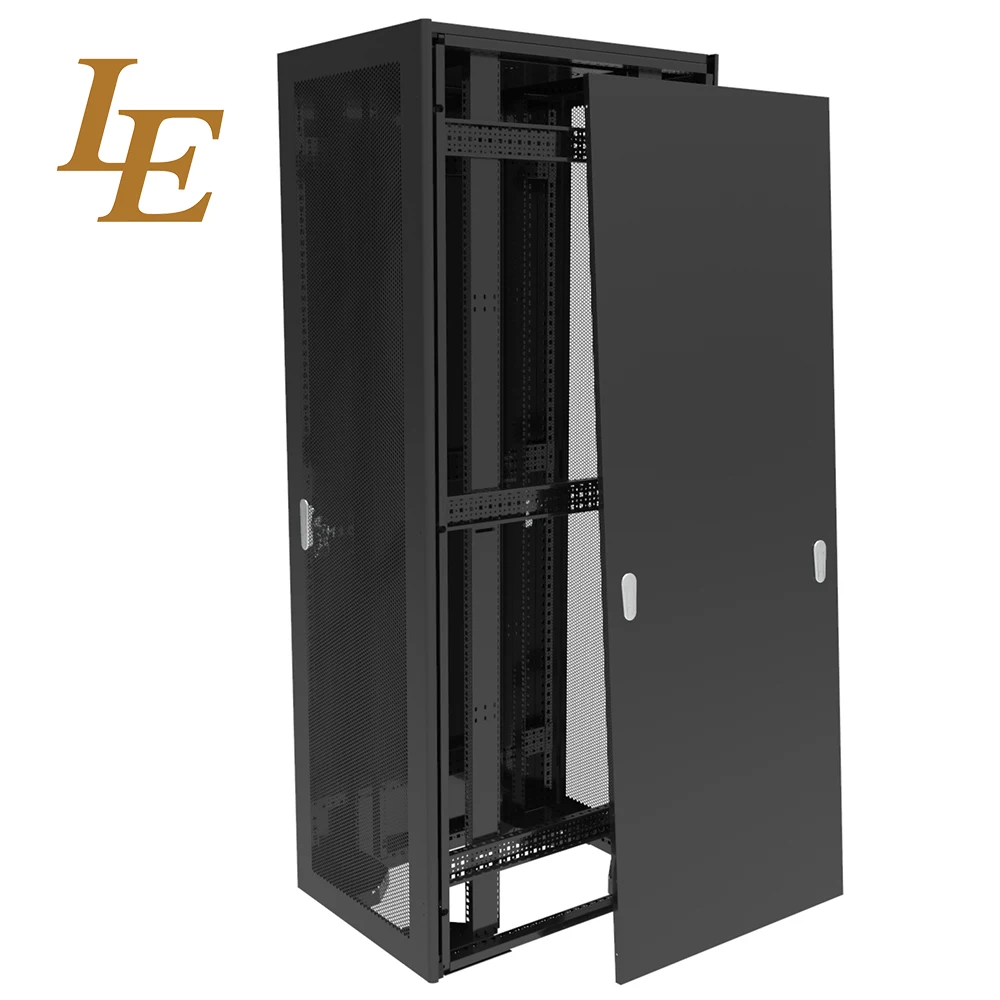

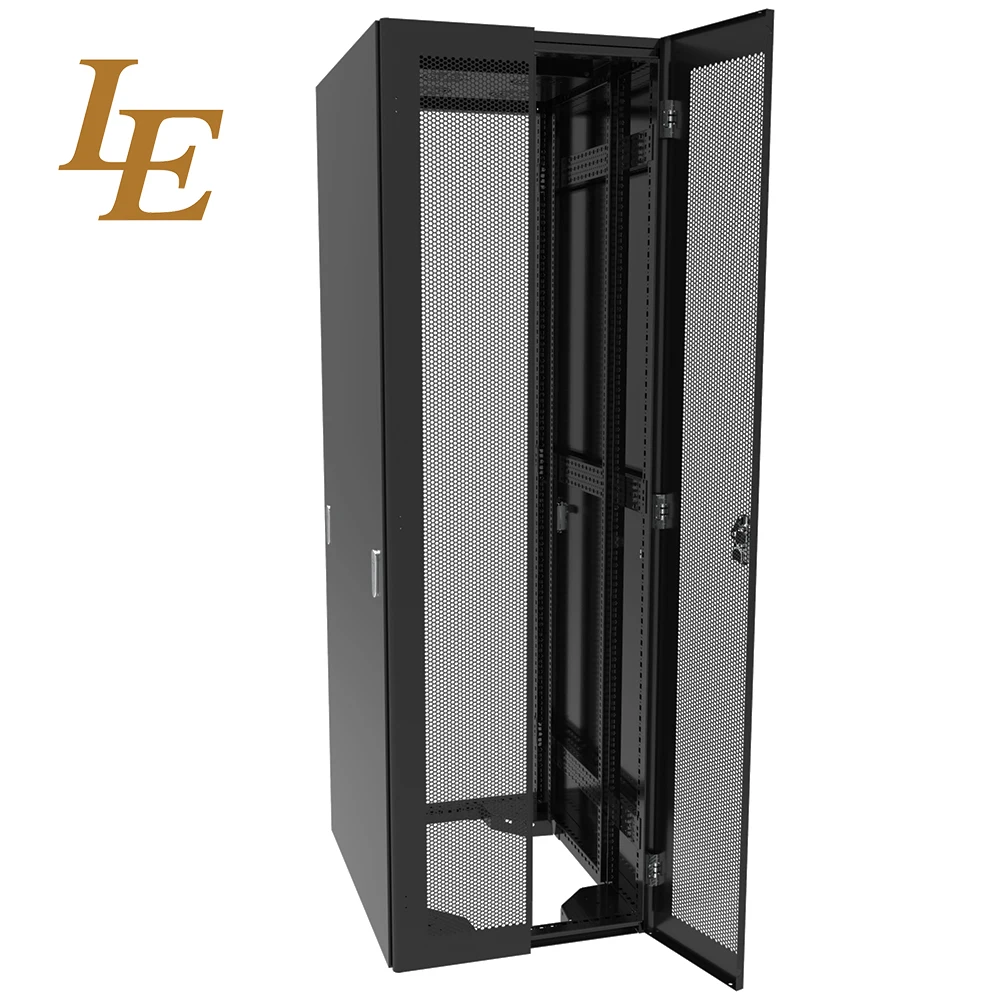

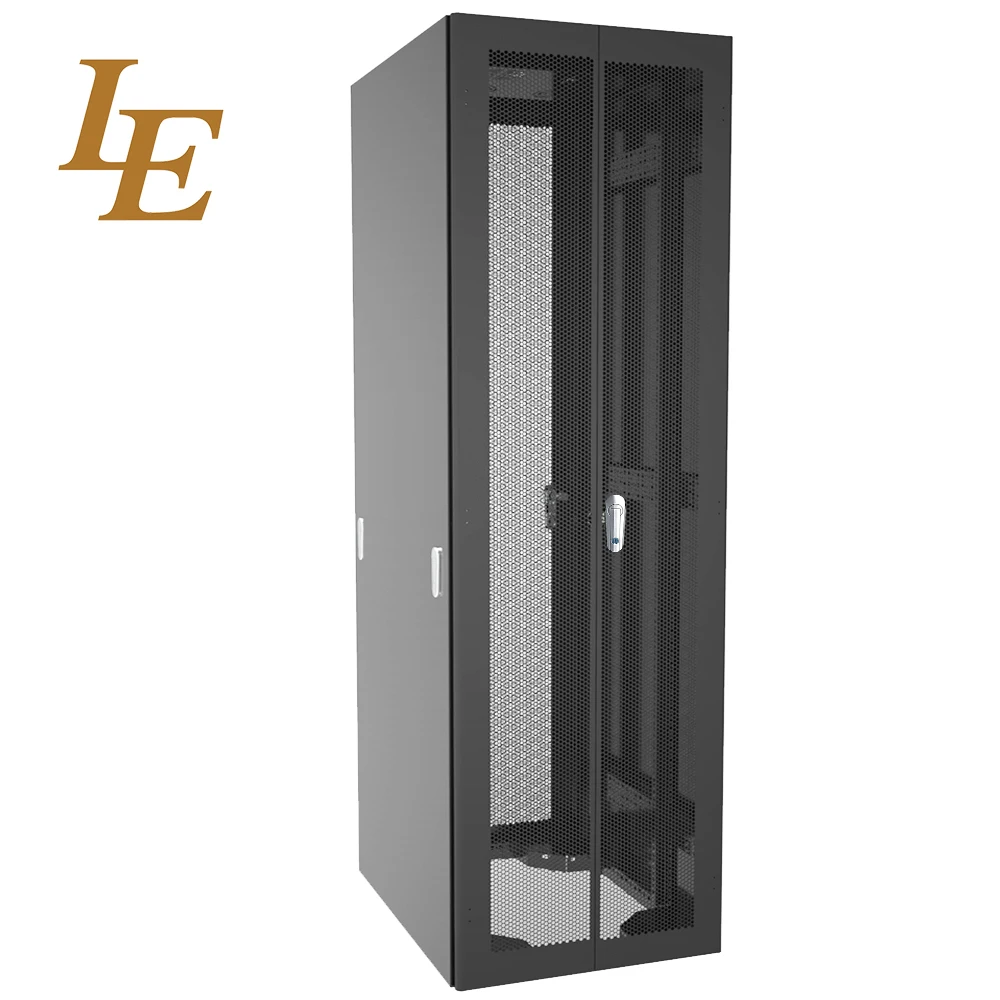

Low price 19 inch 42U 27U network cabinet server rack

Product Overview

Description

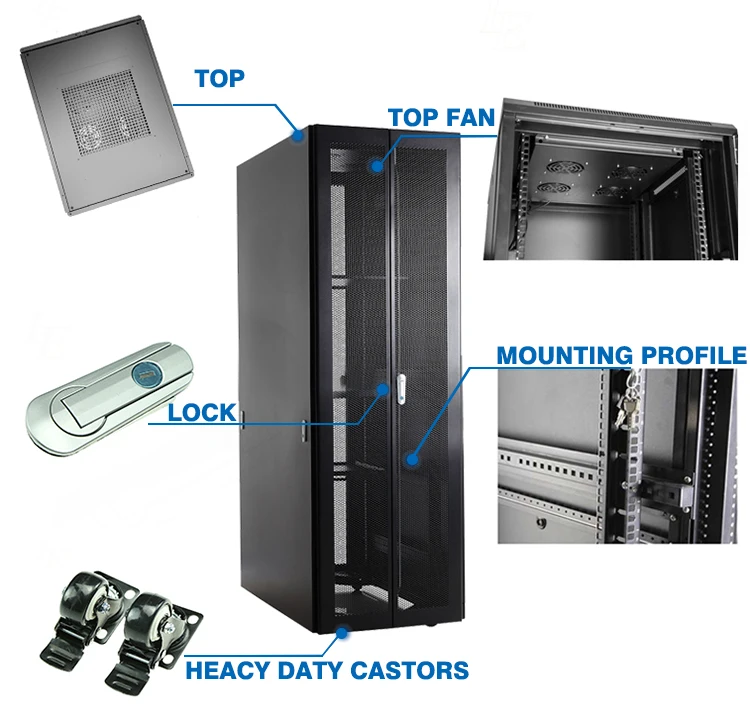

General description of 19 inch 800x1000mm network cabinet server rack

  1.Nine folded profile, welded frame with high density;
  2.High density perforated front door(single open) with over 180 turning degree;
  3.High density perforated rear door(dual open) enable equipment ventilation and reliable  operation with ventilation rate above 50% ;

  4.Connected by four corner to ensure the strength and stability;
  5.Adjustable feet and castors are available;

  6.Metal cable ring on the mounting profile for cable management;

  7.Supplied as welded structure;

  8.Various optional accessories for common using;



Standard	ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard
Material	SPCC quality cold rolled steel Frame: Nine-folded profiled (SPCC) Thickness:mounting Profile:2.0mm,Others:1.2mm
Loading Capacity	Static loading: 1000kg(on the adjustable feet)
Degree of protection	IP20
Surface finish	Degreasing,Pickling,Phosphating,Powder Coated
Product specification	18U-47U
Width	600mm,800mm
Depth	600mm,800mm,900mm,1000mm,1200mm
color	Ral9004; Ral9005; Ral7035





Our Advantages:
1. 100% MANUFACTURER.
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate more than 95%.
