2 3.2T 5 ton Europe suspension underslung single girder beam bridge EOT overhead crane with low Headroom type design price

Product Overview

Description

2 ton 3.2T 5 ton Europe suspension underslung single girder beam bridge EOT overhead crane with low Headroom type design price

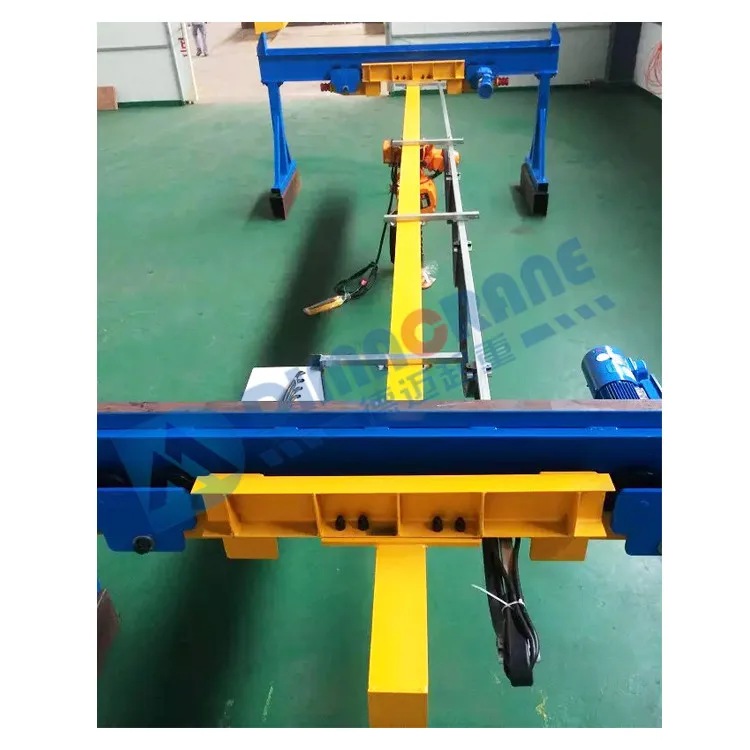

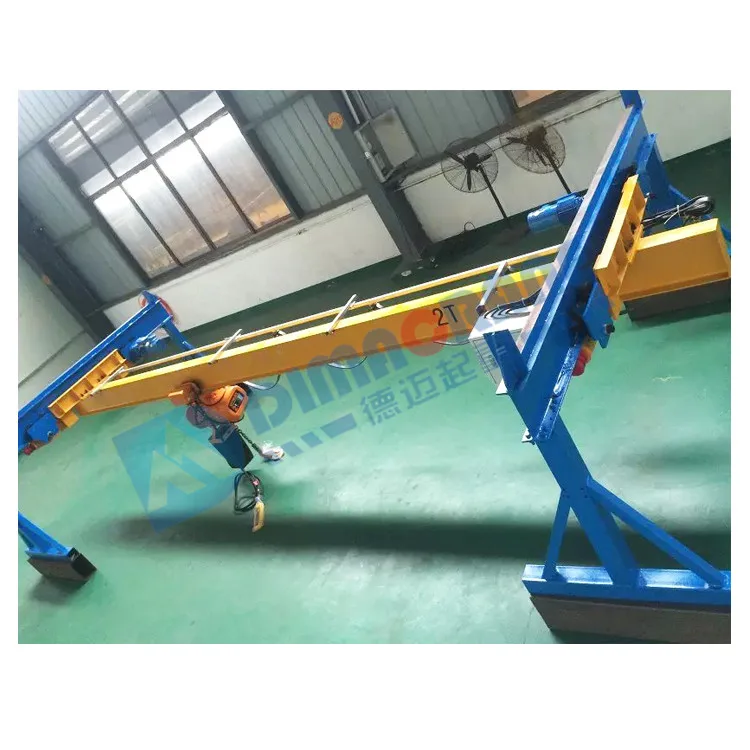

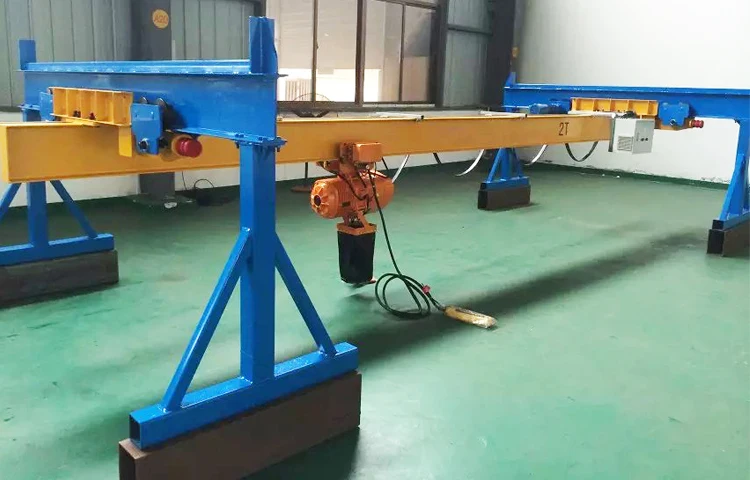

Product details2 ton 3.2T 5 ton suspension underslung single beam bridge crane with low Headroom

• Brief introduction

This overhead crane has a super low Headroom type design, which greatly increase the effective lifting height. It is Europe suspension style single girder bridge electric overhead traveling crane with ABM motorized electric hoist. which including 2 ton 3.2 ton 5 ton 8 ton 10 ton 12.5 ton and so on.

It is of advanced technology, whose design is based on international standard: FEM (Europe), DIN (Germany), ISO(International), equipped with many advantages such as: strong rigidity, light dead weight, low power, outstanding structure design etc.
The configurations are very advanced, such as Schneider electricals, ABM/Nord / SEW triple gear motor (three in one: motor, gear box, brake), galvanized high strength wire rope, self-adjusted disk brake, hard tooth reducer, programmable lifting limit switch, and so on.



• Technical parameters and drawings

Lifting capacity	Span	Lifting height	Work duty	Lifting speed	Dead weight
2T	6-18M	6-9M	M5/FEM2M	5/0.8m/min	1.2-1.3t
3.2T	6-18M	6-9M	M5/FEM2M	5/0.8m/min	1.3-3.8t
5T	6-18M	6-9M	M5/FEM2M	5/0.8m/min	1.6-4.5t
8T	6-18M	6-9M	M5/FEM2M	5/0.8m/min	2.5-5.9t
10T	6-18M	6-9M	M5/FEM2M	5/0.8m/min	2.6-6.2t



• Application


It is widely used in machinery manufacturing, metallurgy, petroleum, petrifaction, port, railway, civil aviation, food, paper making, construction, electronics industries workshop, warehouse and other material handling situations, esp. where needs precise positioning, large components precise assembly situations, etc.



• Unique advantages

1) high reliability, safety, free maintenance rate;
a) work duty: FEM2M, M5
b) Protection class: IP55
c) Insulation class: F
d) continuing rate: 60% ( for the high class motor)
e) Cooling rate: 30% than normal crane
f) Over temperature protection: 170℃
2) compact design, small size, low dead weight, low headroom;

3) Low noise;
4) Investment-saved---the workshop’s civil work cost, due to crane’s light dead weight and low wheel pressure;

5) Power-saved. The total motor power is much lower than normal design.

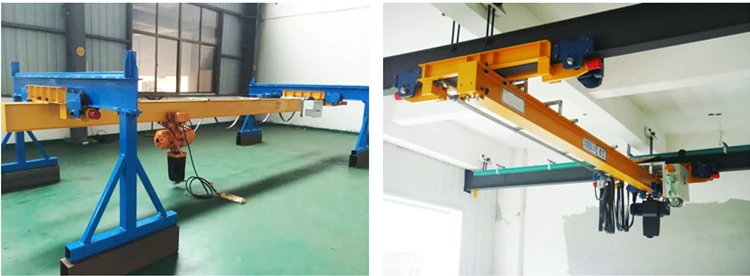

Other crane kits2 ton 3.2T 5 ton suspension underslung single girder overhead crane with low Headroom









Product Details2 ton 3.2T 5 ton suspension underslung single beam EOT crane with low Headroom type

		Electricals(Schneider  /Abb brand)

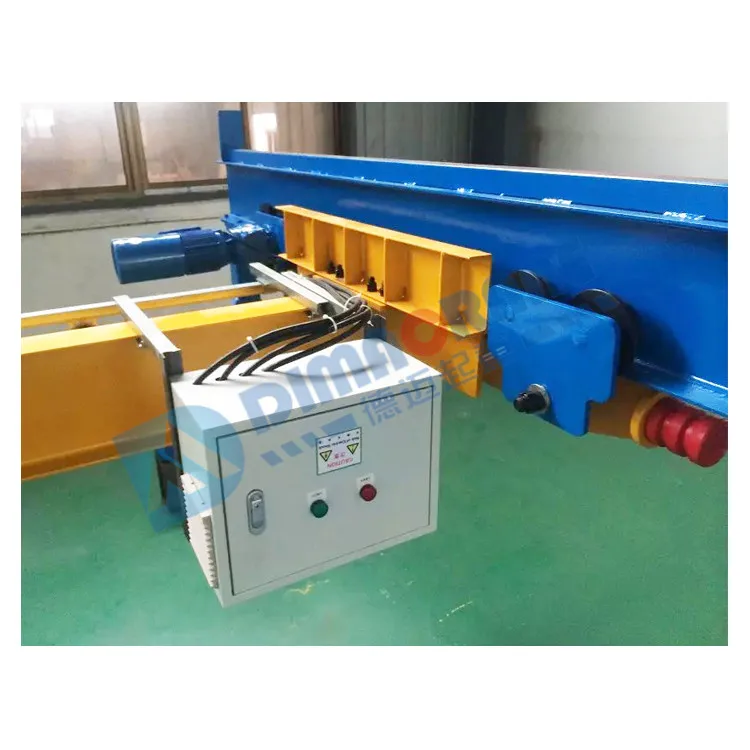

		Electrical box &  padent button
European type Electric Hoist for the single girder crane		Euro-style End carriages   For single girder  with SEW driver

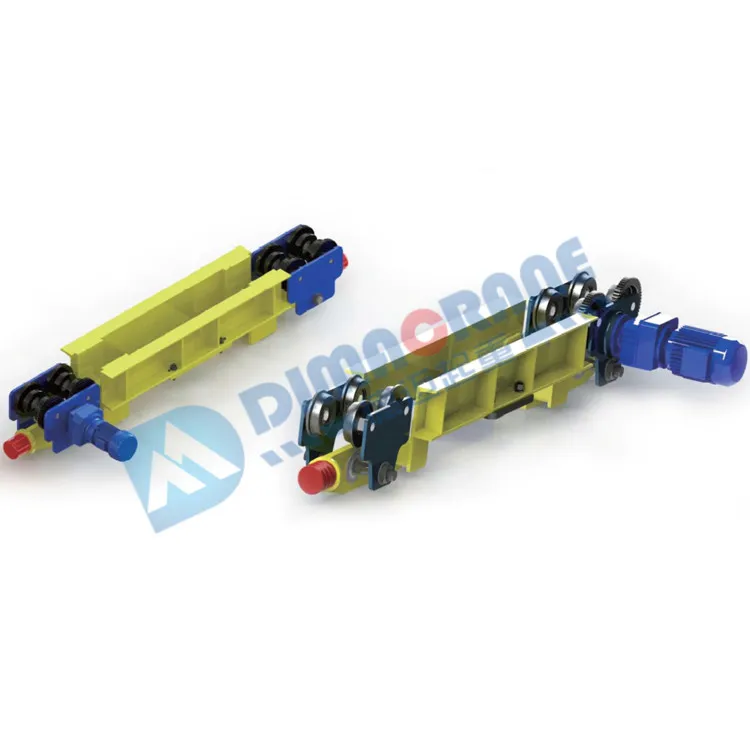

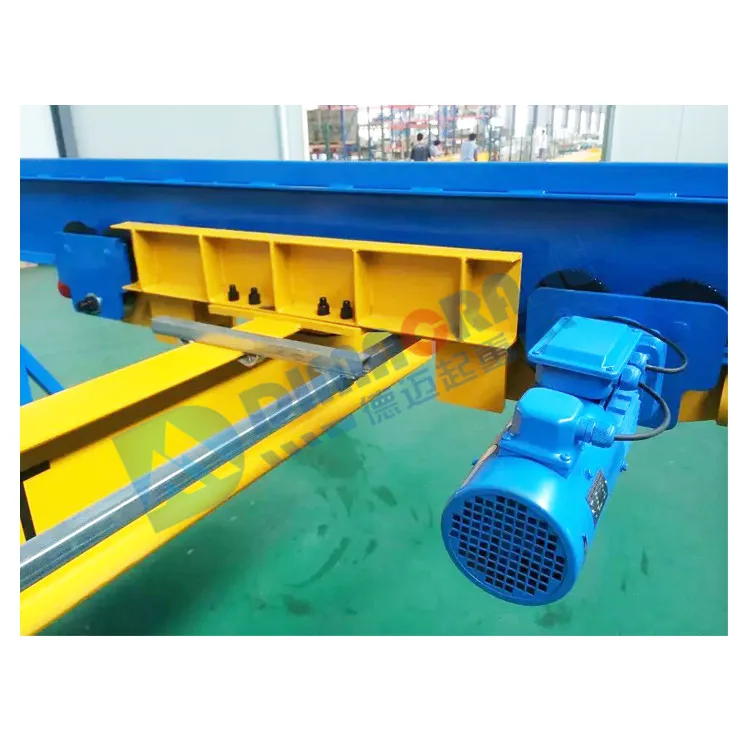

Euro-style End carriages

 1. Material use Q235B, or Q345B.
2. It is made of rectangular steel-pipe or steel plate by welding, the finished end carriage get 1-time positioning process on numeral control machine in order to ensure dimension accuracy and fit tolerance.
3. Each end carriage is supplied with wheels with double-wheel rim, buffer and anti-derailing protection device.
