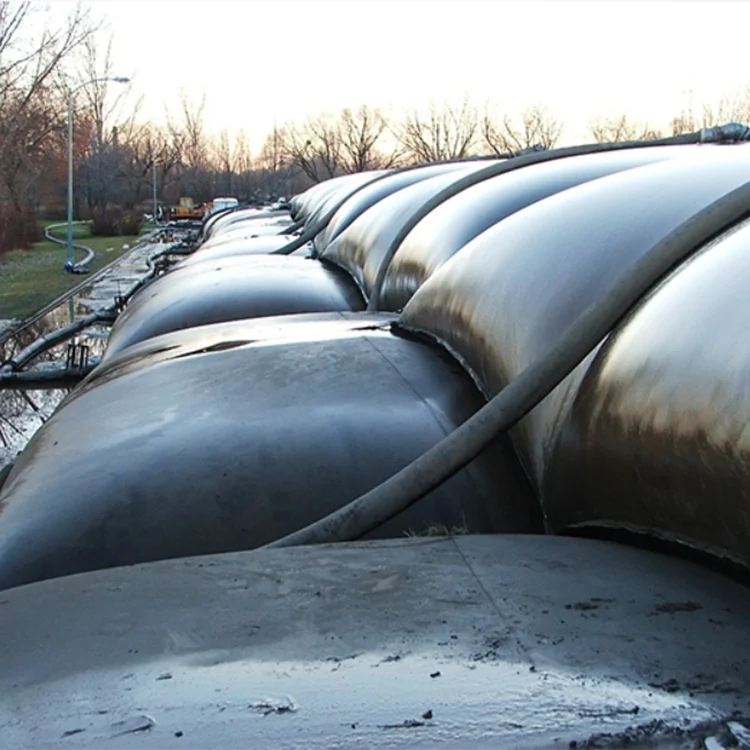

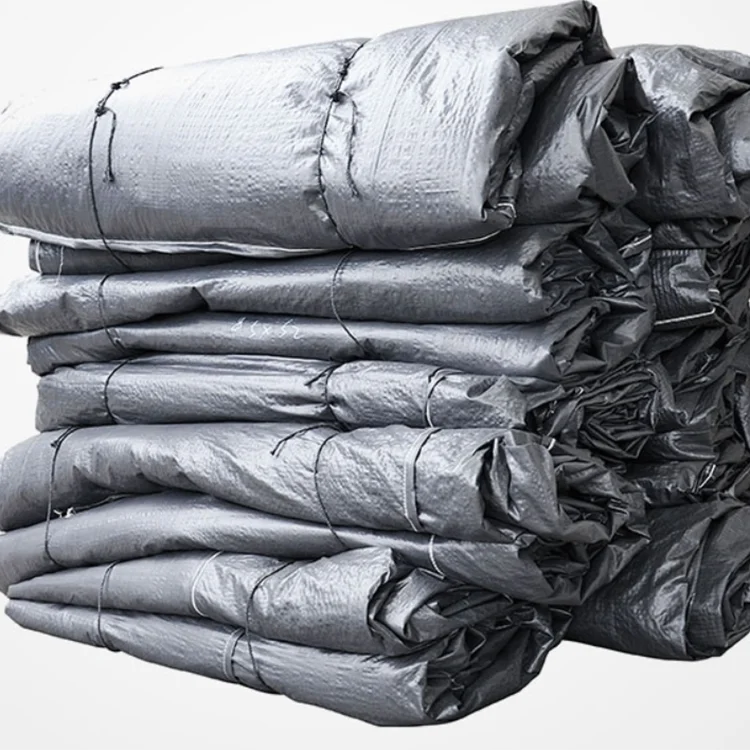

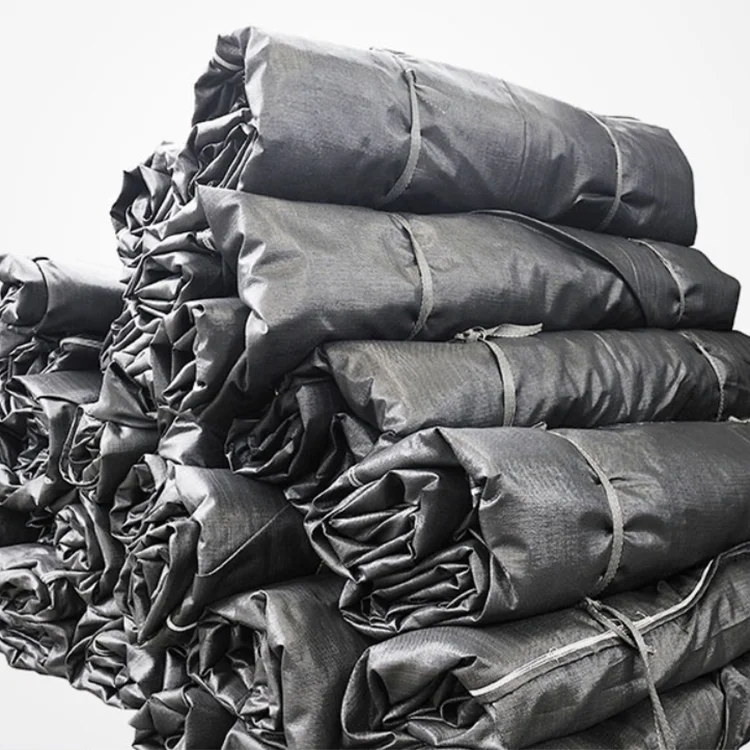

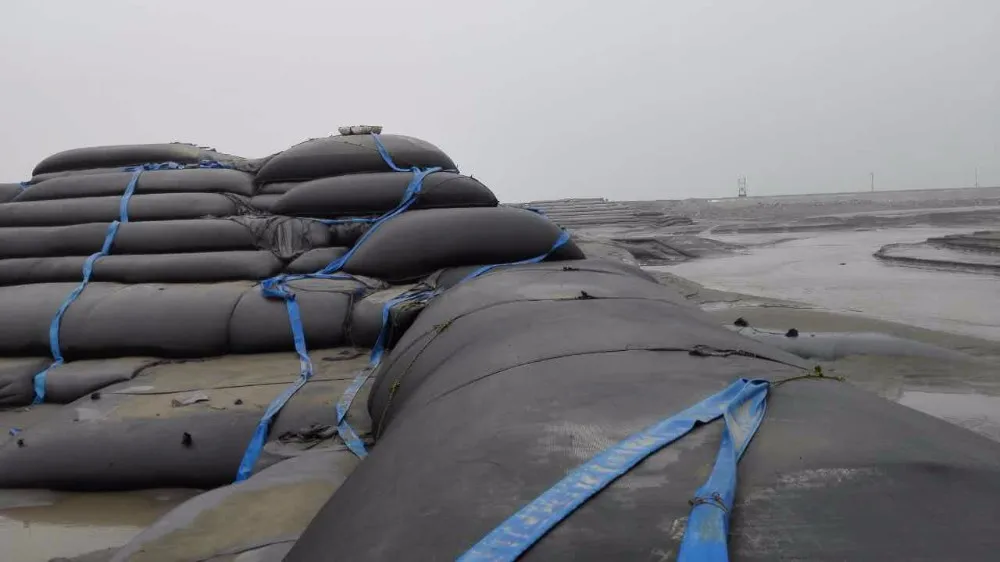

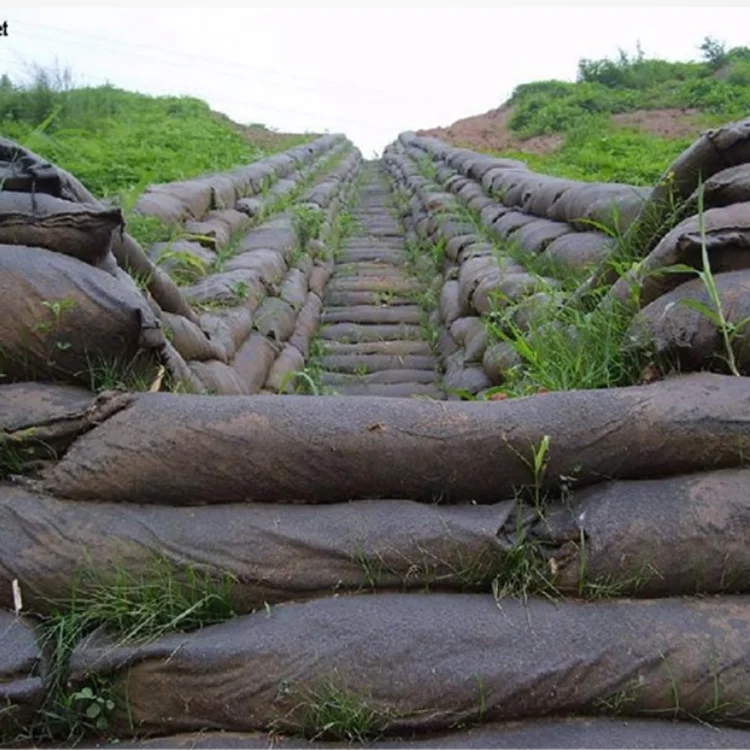

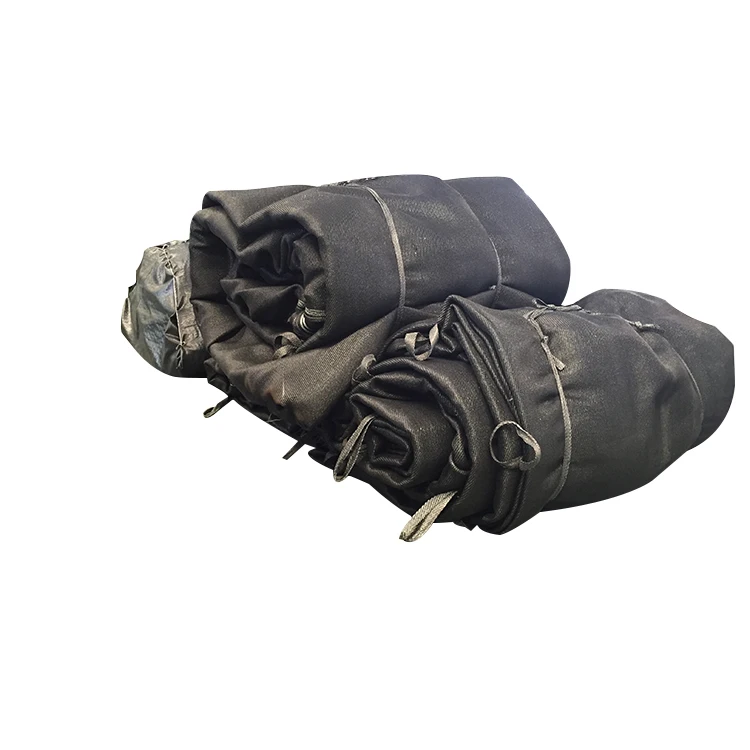

Low price geo textile bag geotextile membrane, geotextile sand bag dewatering geotube price
- Category: >>>
- Supplier: Ningbo Honghuan Geotextile Co. Ltd.Ningbo Ltd.
Share on (60765212013):
Product Overview
Description
Product Description
Woven Geotextile MWG®

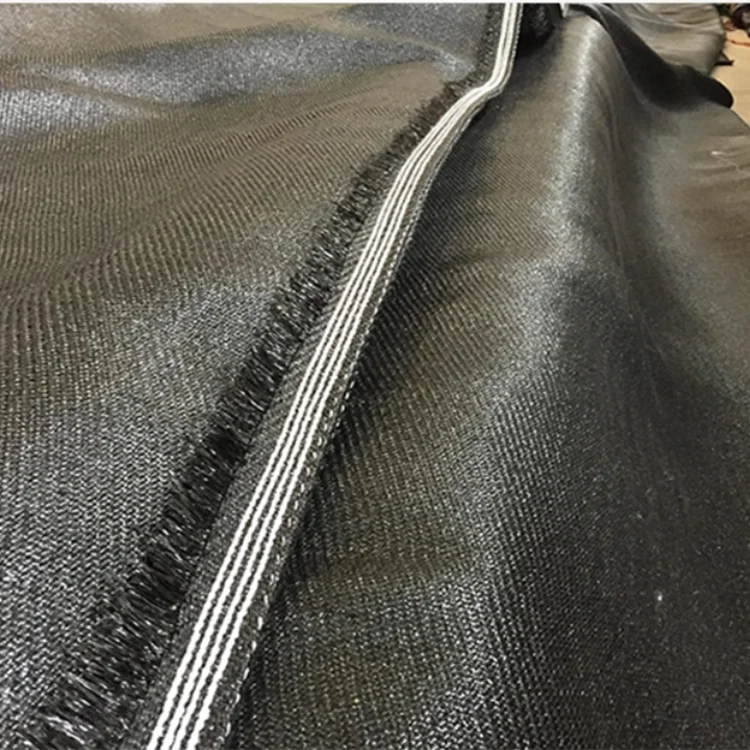

Mono-filament Woven Geotextile, which incorporate round strands that are extruded. It is composed of high-tenacity polypropylene yarns, which are woven into a network such that the yarns retain their relative position. Mono-filament woven geotextile is preferred for applications where both strength and filtration are a concern, such as shoreline rip rap applications.
Product Specifications
PROPERTIES | TEST METHOD | UNIT | MINIMUM AVERAGE VALUE | ||||
|
|
| MWG270 | MWG370 | MWG570 | MWG665 | MWG770 |
Tensile Strength , MD | ASTM D 4595 | kN/m | 38.5 | 52.5 | 70 | 70 | 105.1 |
Tensile Strength , CD | ASTM D 4595 | kN/m | 35.9 | 47.3 | 70 | 96.3 | 84 |
Elongation, MD | ASTM D 4595 | % | 25 | 25 | 25 | 25 | 25 |
Elongation, CD | ASTM D 4595 | % | 25 | 25 | 25 | 25 | 25 |
Tensile Strength at |
|
|
|
|
|
|
|
2%, MD | ASTM D 4595 | kN/m | 7 | 11 | 14 | 17.5 | 21 |
2%, CD | ASTM D 4595 | kN/m | 8.6 | 12.3 | 19.3 | 25 | 22.8 |
5%, MD | ASTM D 4595 | kN/m | 17.7 | 21.9 | 35 | 35 | 52.5 |
5%, CD | ASTM D 4595 | kN/m | 19.8 | 22.8 | 39.4 | 53 | 47.1 |
Factory Seam Strength | ASTM D 4884 | kN/m | 18.4 | 25.1 | 37.5 | 52.5 | 43.8 |
Apparent Opening Size | ASTM D 4751 | mm | 0.6 | 0.43 | 0.6 | 0.43 | 0.6 |

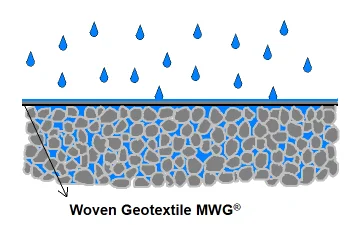

Permittivity | ASTM D 4491 | sec-1 | 0.7 | 0.9 | 0.4 | 0.26 | 0.04 |
Water Flow Rate | ASTM D 4491 | l/min/m2 | 2037 | 1630 | 1222 | 815 | 611 |
UV Resistance (% retained after 500 hours) | ASTM D 4355 | % | 80 | 80 | 80 | 70 | 80 |
NOTES:
·The values given are Minimum Average Values except elongation and UV resistance. Elongation is a Maximum Value and UV is a typical value.
·Mass per unit area has a tolerance of ±10%.
This information is provided for reference purposes only and is not intended as a warranty or guarantee. Ningbo HongHuan assumes no liability in connection with the use of this information. Specifications subject to change without notice.

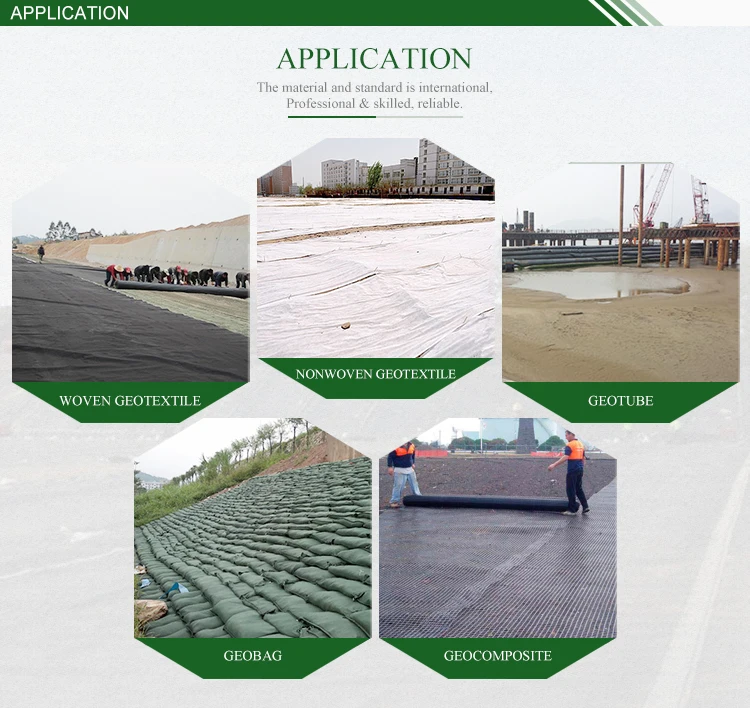

Applications
1. Weed block for landscaped garden beds
2. Permeable liners for planters (stops soil erosion)
3. Weed control under wooden decking
4. Geotextile for separating aggregate / soils under walkway blocks or bricks

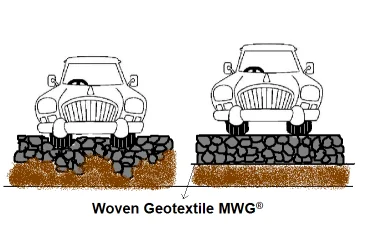

5. Assists in preventing paving from settling unevenly
6. Landscape fabric prevents soil erosion
more
