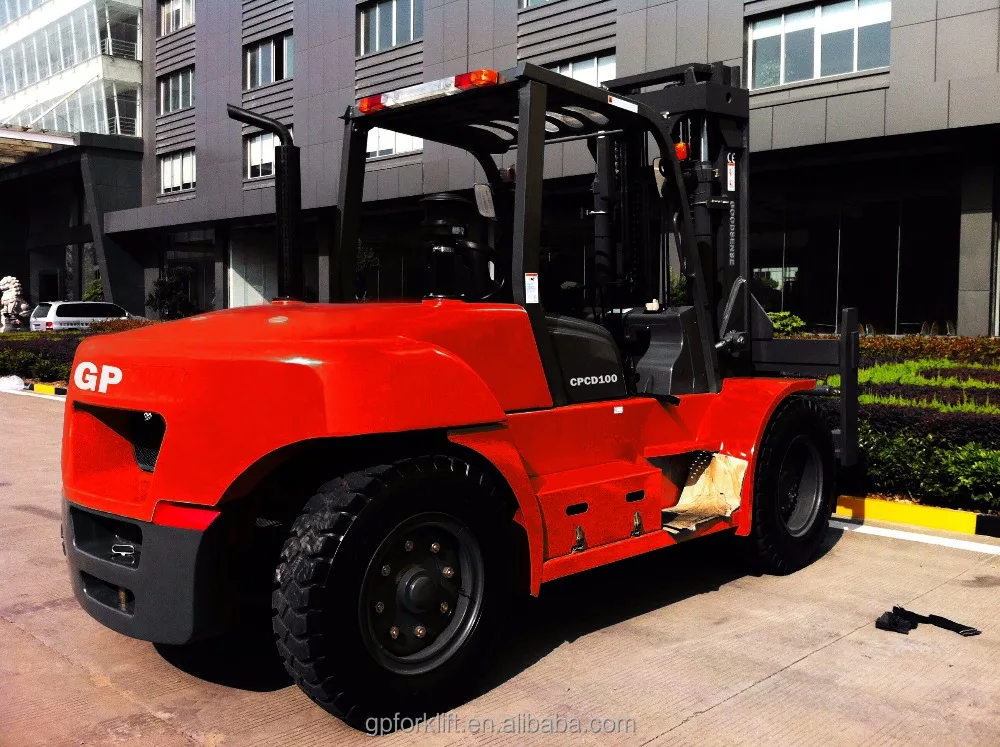

8Ton 3m lift height diesel forklift truck with ISUZU engine
8Ton 3m lift height diesel forklift truck with ISUZU engine
8Ton 3m lift height diesel forklift truck with ISUZU engine
8Ton 3m lift height diesel forklift truck with ISUZU engine
8Ton 3m lift height diesel forklift truck with ISUZU engine
8Ton 3m lift height diesel forklift truck with ISUZU engine
8Ton 3m lift height diesel forklift truck with ISUZU engine

8Ton 3m lift height diesel forklift truck with ISUZU engine

Share on (60765212426):


Price:

Quantity:


Product Overview

Description


5-8 Ton diesle forklifts  for Warehouse Transportation




Advantage



1. Three alternatives of engine: Imported Isuzu C240, Yanmar 4TNE92/94/98 engine, and domestic Xinchai 490/495. Economical but powerful enough.

2. Transmission: with TCM technology.

3. Man-machine engineering designs, including the floating shock absorber configured on the engine, the elastic linked steering axle, the redirector providing low tensional moment, the semi-floating bonnet with built-in heat and sound insulation, ensure the comfort of driving.

4. The optional imported engines meet EU stage-III mission control regulation and obtain EPA accreditation.










Specification:


















































































































































































































































































































General Manufacturer GP
1Model CPCD50CPCD60CDPCD70CPCD80
2Rated capacitykg5000600070008000
3Load centermm500500
4Gearbox change speed type Hydraulic/ Mechanical
5Power type Diesel
6Tire typeFront/Rear Pneumatic
7Fork outside spread Min/Maxmm280/1280280/1380300/1380
8WheelsFront/ Rear 2/2
Dimensions9Lift heightmm3000
10Free lift heightmm150155
11Fork sizeL*W*Tmm1070 x140x501070x140x501070x140x551070x150x55
12Mast tilt angle/Fwd/Bwddeg6/12
13Overall length (without fork)mm2935309130913125
14Overall widthmm14101485
15Mast height fork loweredmm22352390
16Overall height fork raisedmm42734275
17Overall height (overhead guard)mm21902250
18Turning radius (outside)mm280027902830
19SpeedTravel speedWith loadkm/h19/1815/14
20Without loadkm/h24/2222/20
21Lifting speedWith loadmm/sec19/1815/14
22Without loadmm/sec450/400480/450480/430
23Load distance (centerline of front axle to front face of forks)mm510562567
24Wheel basemm18602000
25TreadFrontmm11601180
26Rearmm11001190
27Min. Under-clearance (full load / no load )Bottom of mastmm 145/175
28Bottom of framemm 180/190
29Max. Drawbar pullKN>20>21
30Max. Gradeability%>=15>=20%
Weight31Self weightkg5380645067707050
Tyre32FrontSizeFront 250-15-16R300-15-18PR
33RearRear 7.00-12-12R7.00-12-12PR
 34BrakeBrakeServiceHydraulic-Foot pedal
35ParkingMechanical-Hand lever
Transmission36TransmissionBatteryVoltage / Capacity2-12V/80AH
37Internal combustion engineModel for option1. XINGCHANG 498BPG/495BPG ; 2. WEICHAI ; 3. LUOCHAI ; 4. ISUZU ; 5. YANMAR; 6. PERKINS ; 7. KUBOTA; 8. Mitsubishi
38TransmissionTypeHydraulic
39shift (Fwd/Rvs)2/1















































































































































































































































































































































































































































General Manufacturer GP
1Model CPCD20CPCD25CPCD30CPCD35
2Rated capacitykg2000250030003500
3Load centermm500
4Gearbox change speed type Hydraulic/Mechanical
5Power type Diesel
6Tire typeFront/ Rear Pneumatic
7WheelsFront/ Rear 2/2
Dimensions8Lift heightmm3000
9Free lift heightmm140145
10Fork sizeL*W*Tmm1070x120x401070x120x451070x125x451070x130x45
11Mast tilt angleFwd/Bwddeg6/12
12Overall length (without fork)mm2510258027202775
13Overall widthmm11501225
14Mast height fork loweredmm205020802230
15Overall height fork raisedmm40404272
16Overall height (overhead guard)mm20602090
17Turning radius (outside)mm2170224024602540
18Load distance (centerline of front axle to front face of forks)mm484489494500
19Travel speed (full load /no load )(Hydraulic)km/h17/1918/19
20 Mechanical)shift 1km/h8.5/98.8/9
21  shift 2km/h18.5/1918.5/20
22Wheel basemm16501700
23TreadFrontmm9701000
24 Rearmm970
25Min. Under-clearance (full load / no load )Bottom of mastmm85/105110/135
26 Bottom of framemm115/120135/140
Performance27SpeedTravel speedWith loadkm/h1718
28  Without loadkm/h19.519.5
29 Lifting speedWith loadmm/sec470430400
30  Without loadmm/sec600500450
31Max. Drawbar pullWith/ without loadkg1250/8501250/8501100/10001304/1190
32   1650/8501650/8501350/10001696/1190
33Max.GradeabilityWith/ without load% (fan)20/2017/1815/1815/18
    21/2218/1919/2015/18
34Max.Gradeability %2015
Weight35Self weightkg3550388043804750
36Weight distributionWith loadFrontkg4730548064557320
37  Rearkg590700825930
38 Without loadFrontkg1520146517202040
39  Rearkg1800221525602710
Tyre40TyreSizeFront 7.00-12-12PR28x9-12-12PR28x9-15-14PR
41  Rear 6.00-9-10PR6.50-10-10PR
Brake42BrakeService Hydraulic-Foot pedal
43 Parking Mechanical-Hand lever
Transmission44BatteryVoltage /CapacityV/AH12/100
45Internal combustion engineModel for option 1. XINCHANG ; 2. ISUZU ;3. YANMAR; 4. DEUTZ
46TransmissionType Hydraulic/Mechanical
47 shift (Fwd/Rvs) 1/1 (2/2)
 48Work pressureMpa17.5




Picture:

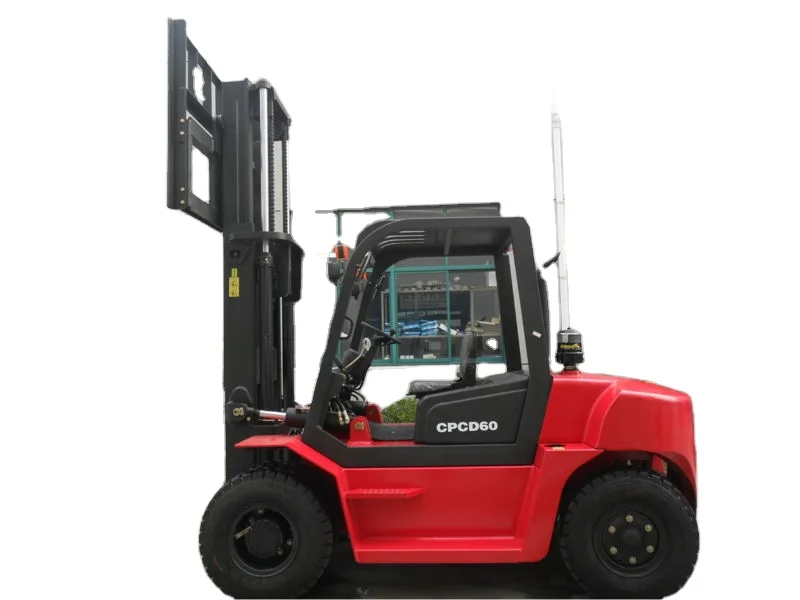

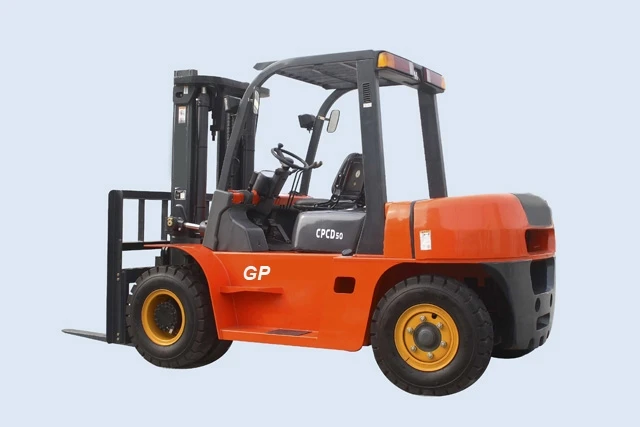

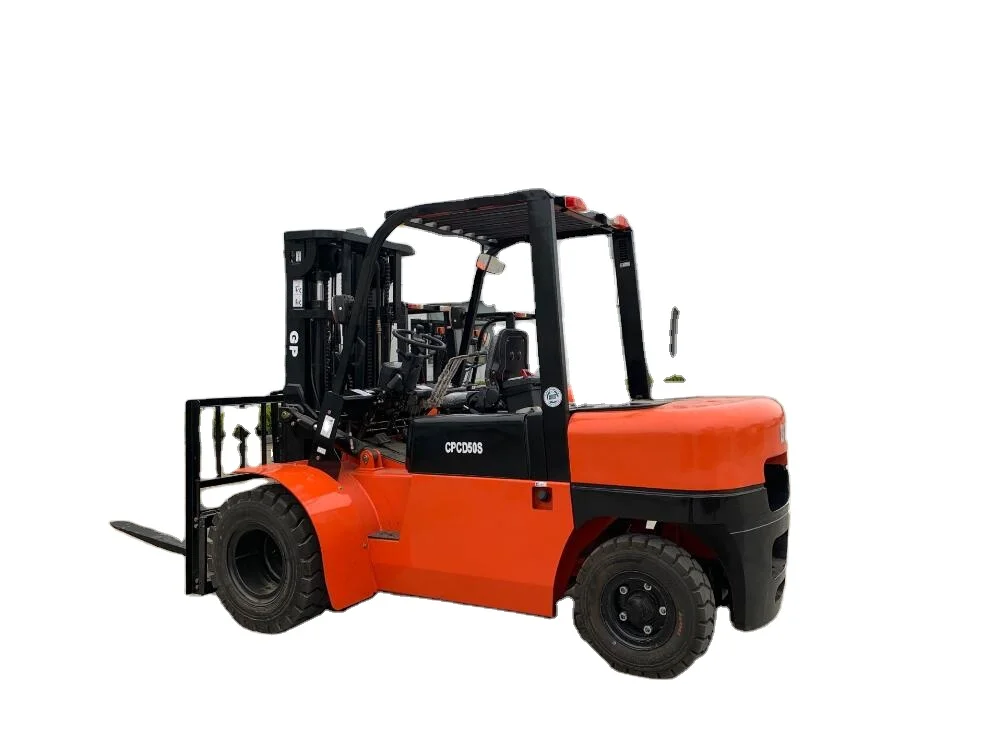

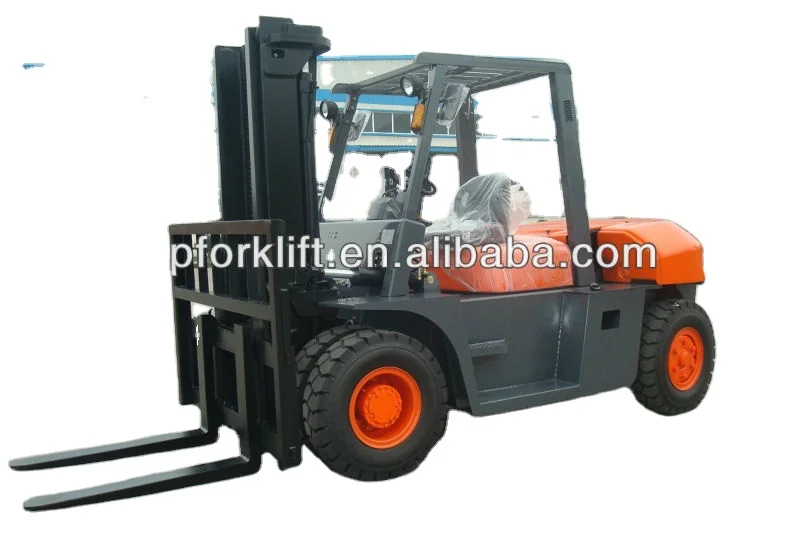

CPCD80CPCD50S CPCD60CPCD60CPCD80.jpgCPCD40.jpg1-1 (9).jpgCERTIFICATE.jpgcustomer.jpgEXHIBITION.jpgJS factory.jpgMAIN PRODUCTS.jpgPacking&Transportion.jpgSH GROUP.jpgteam.jpg.png
