Product Overview
Description
Product Description

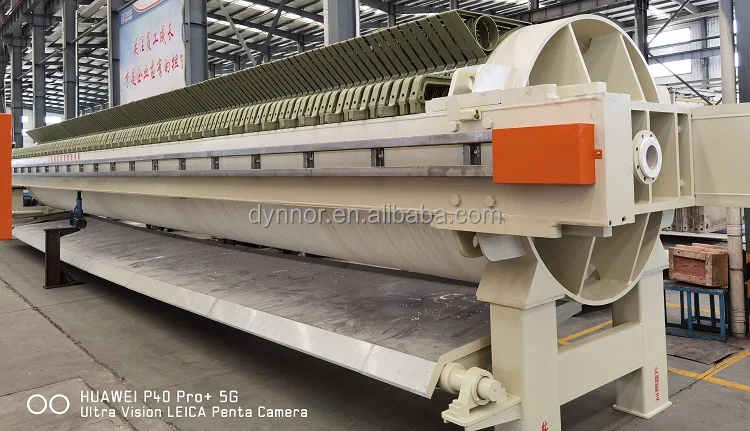

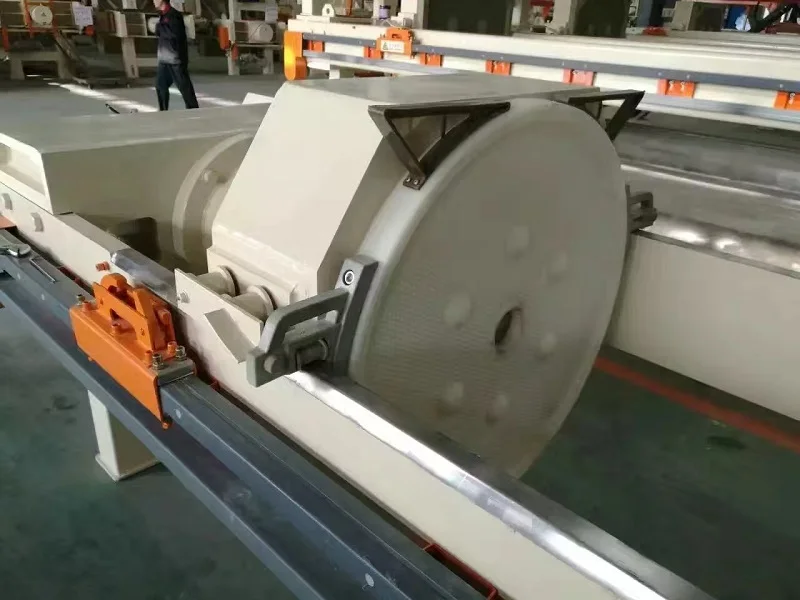

Our Ceramic filter press is specially designed with higher pressure to dewater ceramic raw materials. this filter press features round filter plate,which can realize much higher filtration pressure than standard square-shaped plate filter press, thus residue cake moisture can be reduced to minimum content. It is mainly used for stone machining wastewater, ceramics, kaolin, construction materials, etc..
Typical Technical Data
| Model | Filter area (m2) | Plate size (mm) | Cake thickness (mm) | Chamber volume (L) | Number of plates (pcs) | Filtration pressure (MPa) | Total weight (kgs) | Overall dimension LxWxH (mm) |
| XY20/800-25 | 20 | OD:800 | 25 | 255 | 20 | 1.0-3.0 | 3346 | 3300x1100x1060 |
| XY30/800-25 | 30 | 377 | 30 | 3590 | 3780x1100x1060 | |||
| XY40/800-25 | 40 | 499 | 40 | 4554 | 4300x1100x1060 | |||
| XY50/800-25 | 50 | 621 | 50 | 5150 | 4820x1100x1060 | |||
| XY60/800-25 | 60 | 753 | 60 | 9710 | 5340x1100x1060 | |||
| XY70/800-25 | 70 | 875 | 70 | 5760 | 5860x1100x1060 | |||
| XY80/800-25 | 80 | 1000 | 80 | 6860 | 6200x1100x1060 | |||
| XY90/1000-30 | 90 | OD:1000 | 30 | 1350 | 66 | 1.0-3.0 | 6848 | 7709x1311x1399 |
| XY100/1000-30 | 100 | 1500 | 74 | 7072 | 8229x1311x1399 | |||
| XY110/1000-30 | 110 | 1650 | 81 | 7268 | 8684x1311x1399 | |||
| XY120/1000-30 | 120 | 1800 | 88 | 7464 | 9591x1311x1399 | |||
| XY130/1000-30 | 130 | 1950 | 96 | 7688 | 10111x1311x1399 | |||
| XY140/1000-30 | 140 | 2100 | 103 | 7884 | 10566x1311x1399 | |||
| XY250/1600-35 | 250 | OD:1600 | 35 | 4387 | 71 | 1.0-3.0 | 18480 | 10843x2300x1910 |
| XY300/1600-35 | 300 | 5265 | 85 | 20030 | 11893x2300x1910 | |||
| XY350/1600-35 | 350 | 6142 | 99 | 21580 | 12943x2300x1910 | |||
| XY400/1600-35 | 400 | 7020 | 113 | 23130 | 13993x2300x1910 | |||
| XY450/1600-35 | 450 | 7897 | 127 | 24680 | 15043x2300x1910 | |||
| XY500/1600-35 | 500 | 8775 | 141 | 26230 | 16093x2300x1910 |
| Global Brands Using Our Filter Press |

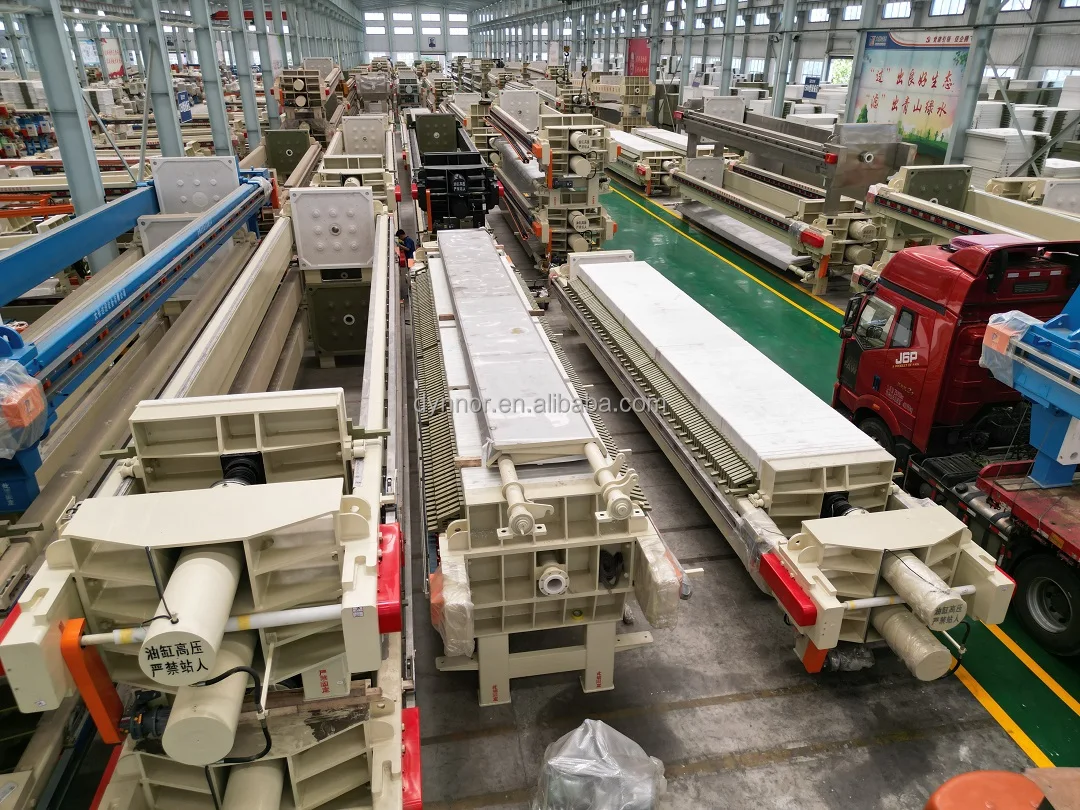

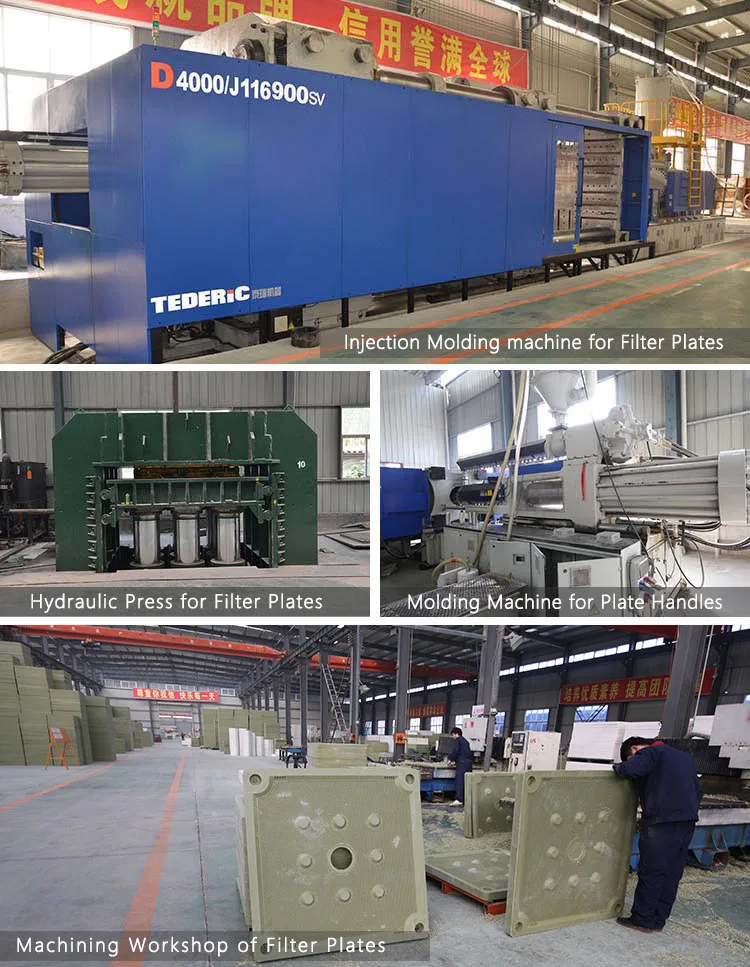

| Our Workshop & Facility |
