Product Overview
Description
Steel Sheet Roof Sheet Roll Forming Machine With Pre-shearing 7.5KW Motor
Product Description
Metal Roof Design Drawing
Description
Xiamen Bogong is the factory for Steel Sheet Roof Sheet Roll Forming Machine With Pre-shearing 7.5KW Motor our factory is professional in the design, development and manufacturing of good quality and customized roll forming machine made in China for over 20 years, welcome to try our good service.
Steel Sheet Roof Sheet Roll Forming Machine With Pre-shearing 7.5KW Motor is suitable for industrial and civil buildings, warehouses, special buildings, long-span steel housing roofs, walls panel, interior and exterior decoration. it has good advantage with light weight, high strength, rich color, construction convenient, seismic, fire, rain, life Long, maintenance-free features.
Technical Parameter
| Machine Component | Specification | ||
| 5Tons Manual Deocoiler | Coil Inner-diameter=510±30mm. Coil Outer-diameter Max. 1300mm; | ||
| Taper wedge expanding system | |||
| Load Capacity: Max. 5 Tons; Coil Width Max. 1250mm; | |||
| Steel Sheet Roof Sheet Roll Forming Machine With Pre-shearing 7.5KW Motor | Gear/Sprocket driving; 18 stations roll forming | ||
| Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated, fine polished. | |||
| Shafts Diameter=75mm, recision Machined, fine Polished | |||
| Main motor =7.5KW, Frequency speed control | |||
| Max Line speed of roll Former: Approx. 10-20m/min | |||

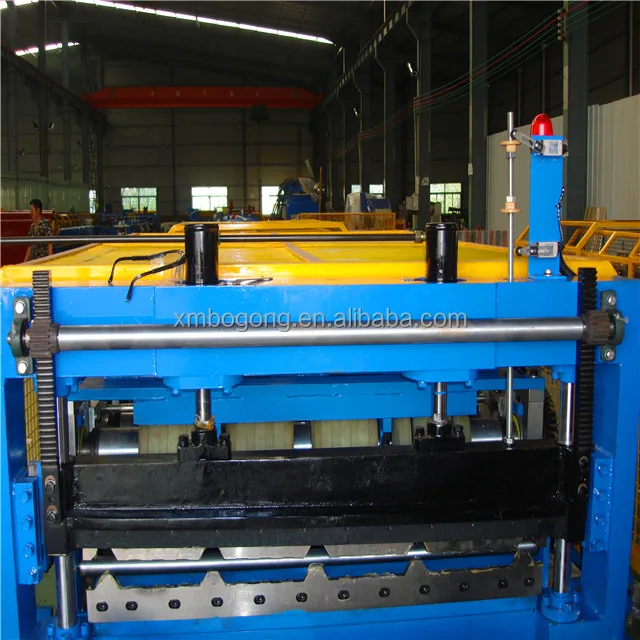

| Hydraulic Cutting Device | Stop to cut, Post cut | ||
| Cutting tool material: Cr12, Heat treatment | |||
| Hydraulic unit, Pump motor =3KW | |||
| PLC Control System | Control the quantity & cutting length automatically | ||
| Combined with: PLC (Delta), Touch Screen (Delta), Encoder (Omron), etc | |||
| Cut-to-length tolerance≤±2mm | |||
| 24V Control voltage | |||
| Controller with forward/backward/emergency stop buttons | |||
| Product Rack | Un-powered, 3 units | ||

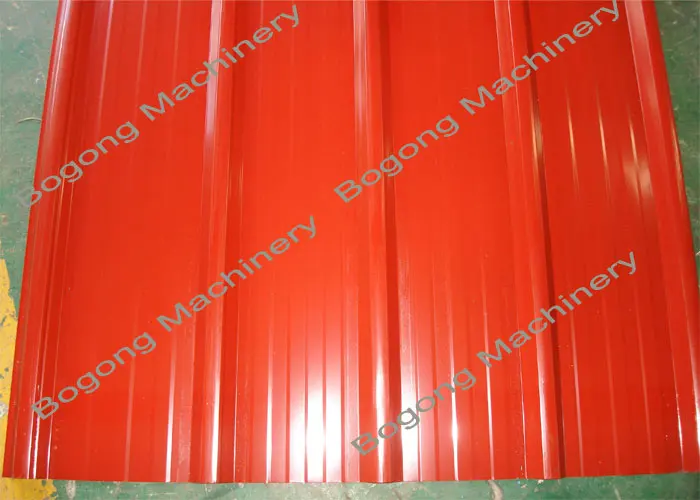

Pre-painted Roof Sheet Sample
See from our roof sheet sample produced by Steel Sheet Roof Sheet Roll Forming Machine, whole roof sheet surface is smooth, there is not any wave or dot on two sides, the dimensions are also reaching on design drawing as well as required

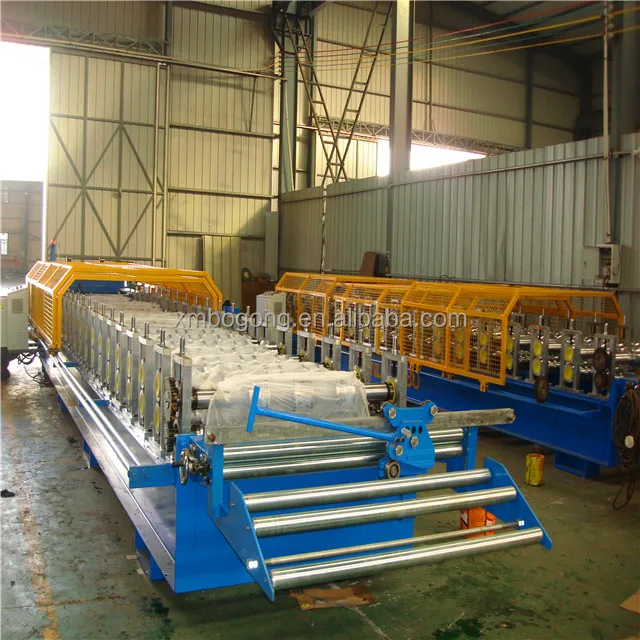

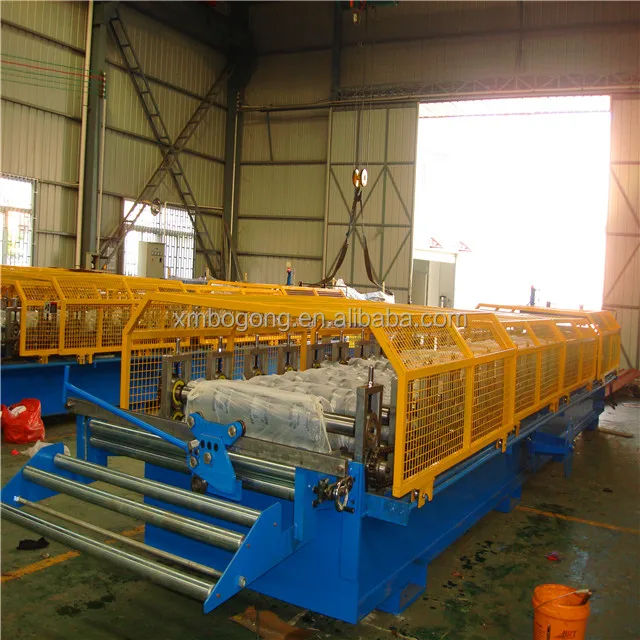

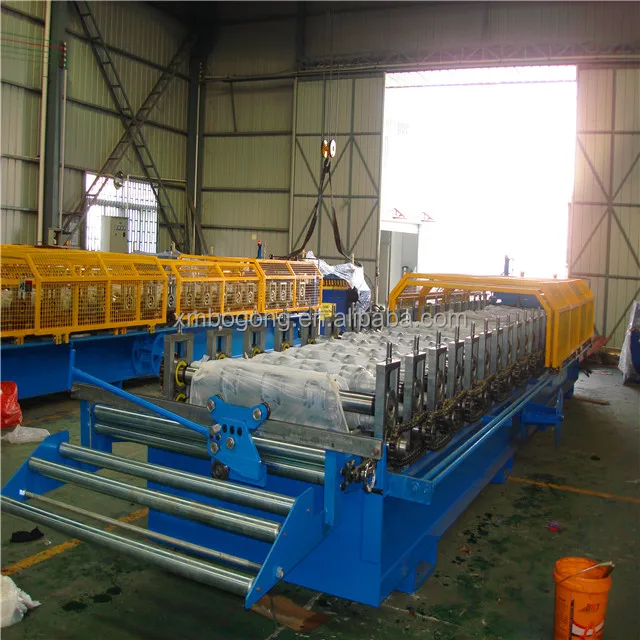

Whole roof sheet roll forming machine with safety cover, it is more safe for operator, the pre-shear is used for cutting the waste material head, it is manual but good for deal the waste mateial head. For this roof roll forming machine, we also designed entry bench for feeding steel material more smothly.
Technical process
De-coiler→ Feed with guide→ Roll forming→ Hydraulic cutting unit→ Run-out table→ PLC control system
Application
Metal roof is popular used for steel construction wall and roof, warehouse material, high speed road safetyguard and steel house roof etc.
