Vertical swing barrier gate is an ideal pedestrian access management product. It well solved transit inconvenience of tripod turnstile and provide fast lane for passengers especially those with luggage and the disabled.It is mainly used in high-end residential building, store, supermarket and etc.
Technic Date
Name
Automatic Access Control Vertical Swing Gate Swing Turnstile Gate
Body Material
304 stainless steel material
Working Voltage
AC220V±10V, 50HZ or AC110V/60Hz
Control type
IC/ID/Barcode control etc....
Rated Power
60W
Working mode
one directional or bi-direcitonal
Working temperature
-20°C--+70°C
Operating humidity
≤90% non-condensing
Operation life
≥3 million times
Passing speed
20-25 person/min
Open style
Retractable
Relative humility
≤95%, no-condensation
Operating places
Government agency, Residential area, School,etc
Features and advantages:
1. With function of self-examine and alarm,it is convenient for maintain and use
2. Being able to program operation state by the small keyboard in the main board.
3. The swing arm will stop moving when it is blocked, which prevents pedestrians from being nipped and from hurt
4. Arms are automatically locked until opening signal is received
5. Arms synchronization(adjustable)
6. Light and sound alarm is generated when the illegal invasion and the tail followed.
7. Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable.
8. automatically open the gate when power off and automatically closes when power on
9. Being compatible with card, sensor, push button and etc.
10. It can be directly controlled and managed by remote computer
FAQ
1. Does the bi directional Swing gate design come with a RS485 PC software? The turnstile itself doesn’t come with a RS485 PC software,you need purchase the RS485 door access control and card reader. But we suggest you purchase TCP/IP door access control and card reader by yourself.Causing it can directly communicate with a computer compared with RS485 door access control,It is more convenient and transfer speed much faster .
2.Can I communicate the bidirectional swing turnstile design direct with a PC?
No,you can’t communicate the turnstile directly with a pc,because the main board just out put low level signal,but pc can not receive low level signal,so the turnstile must connect a door access control then can connect with a pc.
3.They come with the complete command manual (if we want to develop our own software)? For normal passage control,we have compete command manual for you.Many clients from different countries use our software,don’t need second develop.If your company has the ability to develop your own software, we can provide SDK to you.
4.If I want each bidirectional tripod turnstile design is bi-directional, do I need 2 sets card reader in it? Yes,if you need bi-directional,you need set 2 sets card reader inside the turnstile.
Other questions, welcome to contact us freely and directly, thanks.

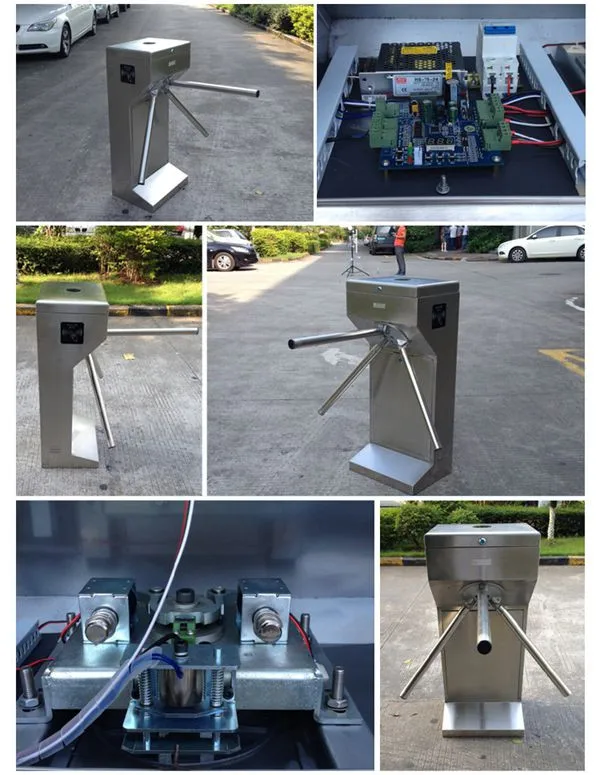

Applications for related products:
Packaging & Shipping
All wooden packages for our turnstiles and barrier gates:
Company Information
Company information and service:
1.Quick delivery(1-2days for sample order),cauing we have factory in shenzhen 2.100% QC inspection Before Shippment. 3. CE approved,competitve price. 4. Flexiable working mode, sample order is acceptable, OEM&ODM is welcome too.
Warmly welcome to contact us for details, thank you!
