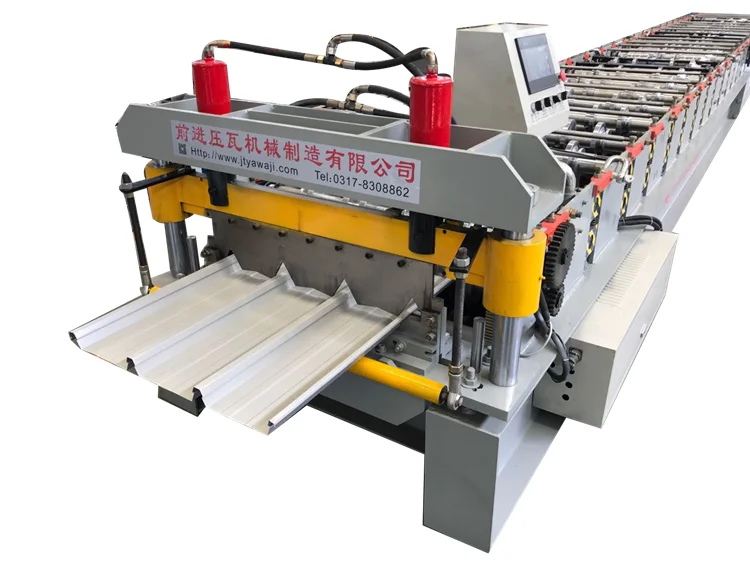

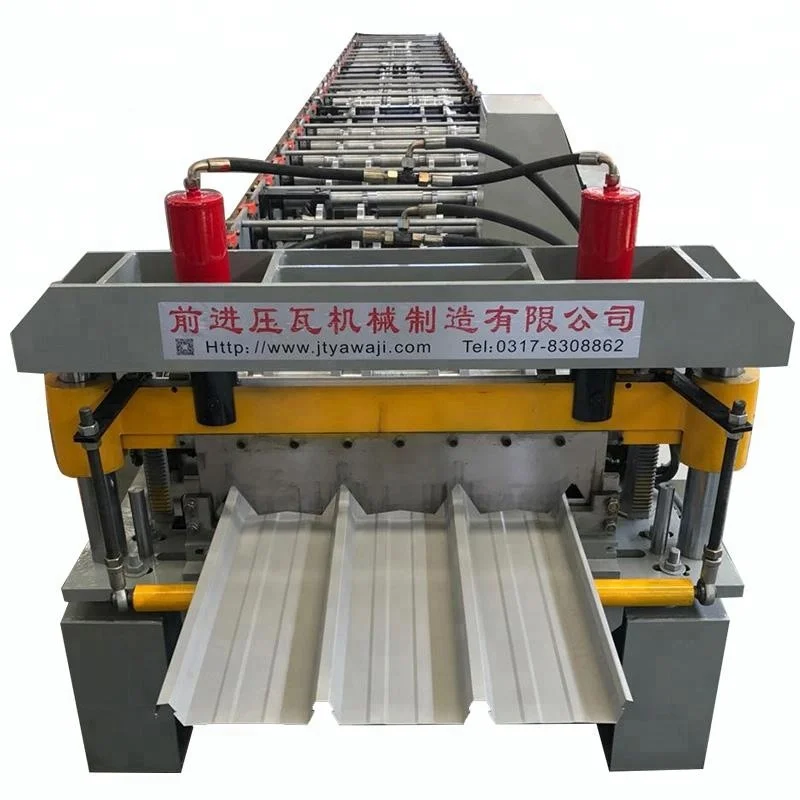

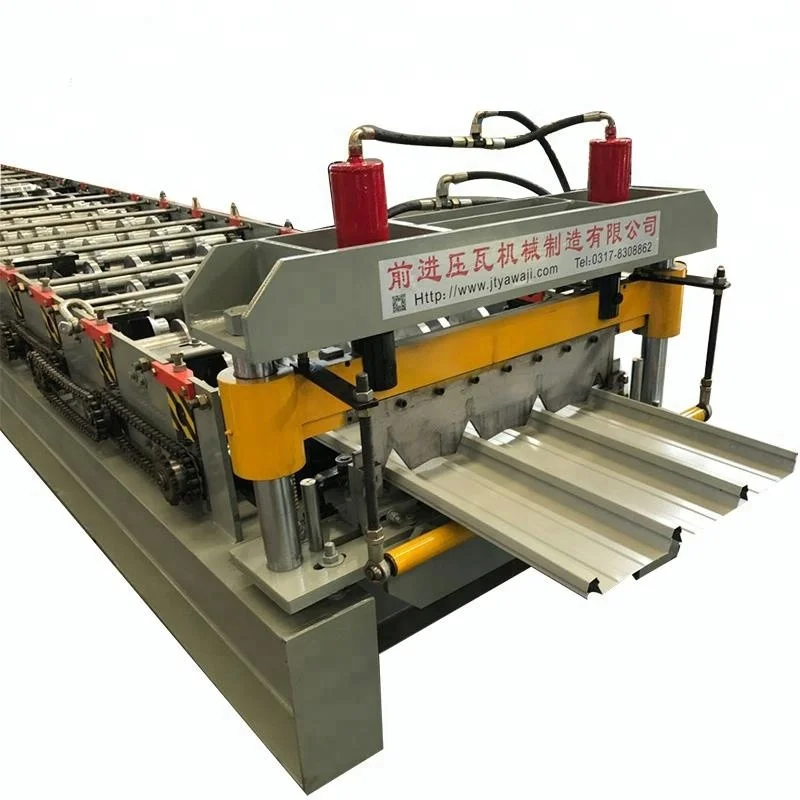

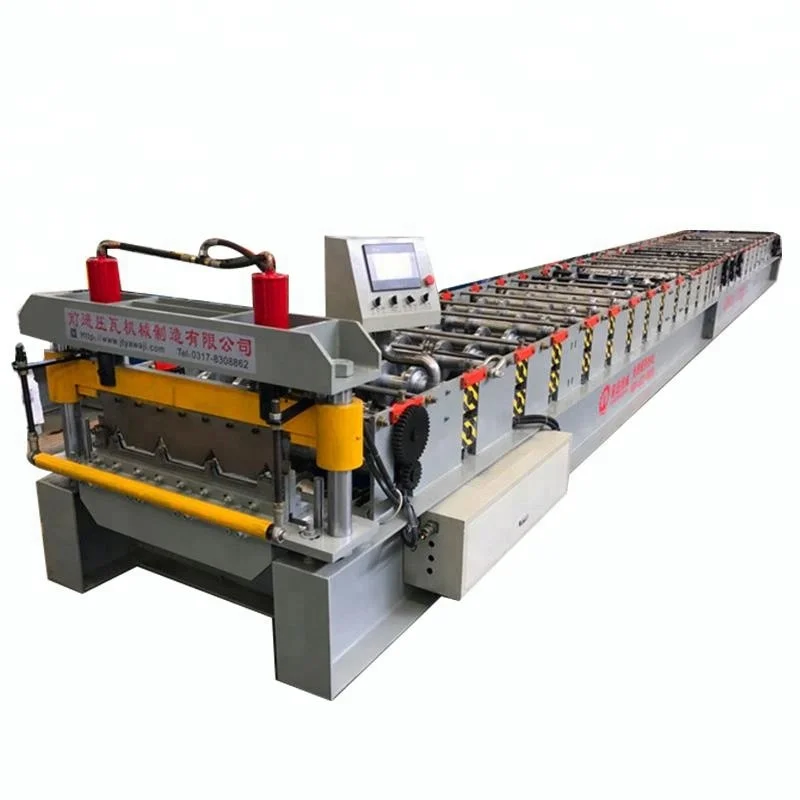

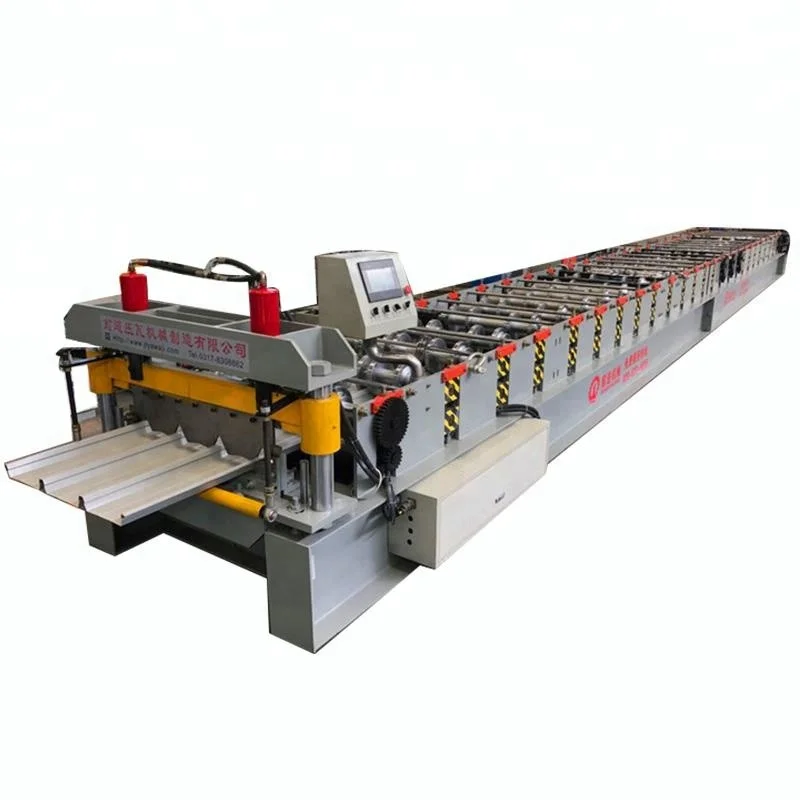

Long Span Aluminum Roofing Sheets Roll Forming Machinery

The finished product of Long Span Aluminum Roofing Sheets Roll Forming Machinery is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.

• Main Technical Specifications:

Name of Roll Forming Machine	Long Span Aluminum Roofing Sheets Roll Forming Machinery

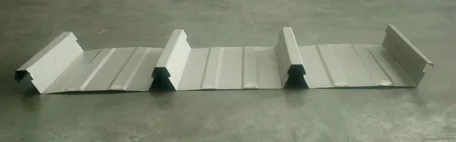

Profile Drawing or Sample Picture
1	Suitable raw material	PPGI/PPGL/GI/GL Steel Coils
2	Thickness of coil sheet	0.3-0.8mm
3	Feeding Coil width	914mm
4	Effective width	685mm
5	Under frame	400H-beam
6	Diameter of Soild shaft	70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway
7	Roller	High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,  hard chrome coated 0.05-0.07mm
8	Thickness of middle plate	16mm

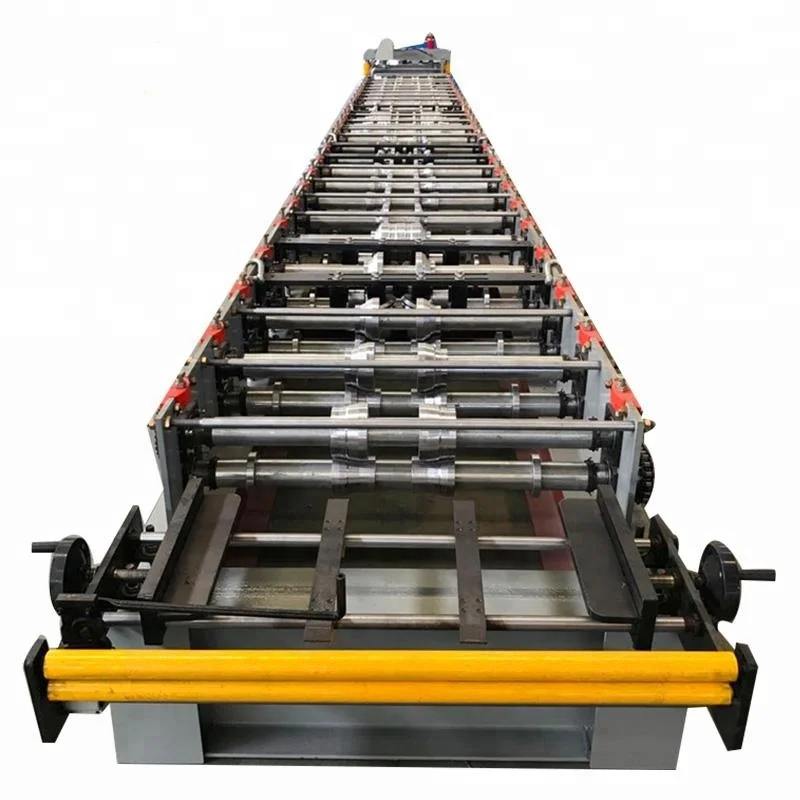

9	Forming stations	25
10	Drive type	By chain(1.0 inch) link bearing model 6210
11	Power of main motor	7.5kw with Cycloidal reducer, Lichao, Shanghai
12	Power of pump station	4kw, Lichao, Shanghai
13	Forming speed	About 15-20m/min
14	Hydraulic cutting	Controlled by PLC
15	PLC	DELTA, TAIWAN / Mitsubishi, Japan
16	Material of cutting blade	Cr12Mov, quenching 58-62℃
17	Frequency converter	It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm).
18	Switch	CHNT
19	Transducer	SAJ

Hebei Forward Science & Technology Co.,Ltd

is the manufacturer specialized in cold bending roll forming equipment and automatic production line. The new company was establised due to the need of the rapid development of international trade. Main products are color steel roll forming machine, classical glazed tile forming machin, C/Z purlin machine for light steel structure building, floor deck forming machine, sandwich panel production line, fast guardrail roll forming line and various kinds full-automatic cold bending roll forming equipment.

We have approved certification of CE&ISO9001, THE CONCEPT “control every process and perfect all products” is curved in everyone’s mind. Each machine will be via load carrying test before leaving factory, problem machines will never be delivered to customer.

We have many years experience of export and know very well about the different requirements of customers from both in developing countries and developed countries, and provide a large number of customers with satisfactory design plan.Now our products have been exported to more than 50 countries and regions of the world and established a long-term cooperative relationship with clients.

We do firmly believe a true partnership never ends with the delivery of the goods and satisfactory after-sales service can make a great difference. We sincerely hope: you and i hand in hand, create the glorious future altogether!

Thanks for your kind view. If you have any questions, please don't hesitate to contact us ! More detailed technical service will be provided for you in time !
