cylinder mould for kraft paper/fluting paper/tissue paper machine

1.Size: φ1500×2350×2800 Sheet winding cylinder mould

2. Material:

(1)Main shaft: φ219×25 seamless steel tube,axle head φ150mm,45# carbon steel, thermal refining

(2) Spoke: Inside and outside is 13 pcs in all. The material is carbon iron. The inside spoke is inlayed δ=3×22mm stainless steel belt.

(3) Wire face: stainless steel sheet δ=1.5×12mm, space 10mm (material: 304), stainless steel bar φ10×70 pcs(material: 304)

There are Decay resistance glass steel spacer sleeve between the two spokes.

(4) With bearing box and bearing block. The bearing no is 3618.

3.Technical requirement:

 (1). The detailed size of the cylinder mould is according to the drawing.

 (2).The inside and the outside of the spoke is installed on the main shaft, which should be fastened by M16 bolt.

(3). The after assembled cylinder mould should be machined and reach the required data.

 (4). The external diameter of the cylinder mould work face is±2mm and wire face flatness degree is not more than 0.15mm. Wire face circular run-out is not more than 0.1mm and static balance equilibrium amount is not more than the 0.1% of the self weight.

  (5). Axiality of the two side bearing stand≤0.02mm

Detailed Images:

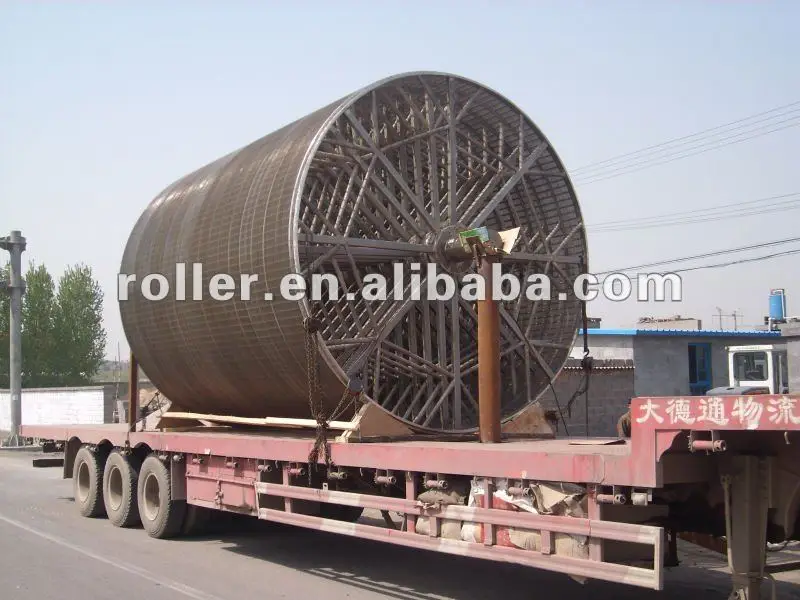

cylinder mould for kraft paper/fluting paper/tissue paper machine

Our products are packaged by wooden or steel box,the main characteristics of the products and which way our customs required will be the factor that we think about when we choose the way to package.Following are more details.

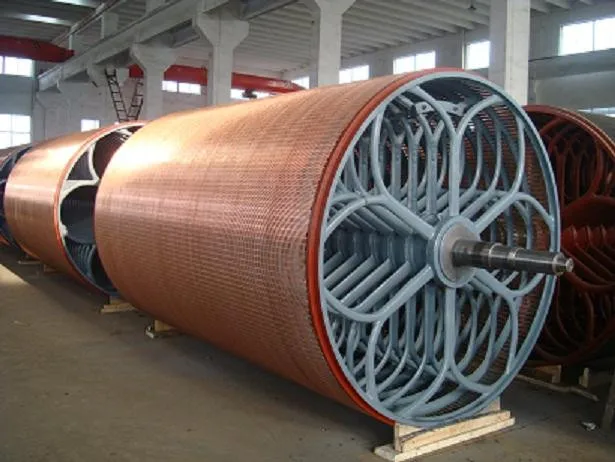

cylinder mould for kraft paper/fluting paper/tissue paper machine

Covering layer thickness detection⇒ π Ruler outside diameter test⇒ Roughness test⇒ Dynamic balancing test⇒ Bearing installation inspection⇒ Hardness test⇒ Chamfering test⇒ Internal whorl test

Certification&Qualification :

cylinder mould for kraft paper/fluting paper/tissue paper machine

Pre-sales Service<>
Offering comprehensive technical and business consultation services;
Proposing the most suitable scheme and equipment for our clients;

Highly inspecting equipments in every working procedure, quality comes first;

Designing and fabricating targeted products according to the special requirements of clients;

After-sales Service<>
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Regularly visit clients to solve production problems;
Providing good maintenance service;
Fast & Safe Delivery;

   cylinder mould for kraft paper/fluting paper/tissue paper machine

    Shandong Zhangqiu Daxing Paper-making Machinery Co.,Ltd is professional paper machinery manufacturer,since we founded in 1978,we focused on roller design & research and development & manufacutre,won a number of design patents.Now we are the managering director of Shandong Light Industry Machinery Association.

     Daxing is the leading one in the area of roller manufacture in China,the No.1 in Shandong province.
     Each set of rollers has been rigorously produced,tested and packaged,and also simulate the operation of the roller on the matching paper machine to ensure the normal operation.
Based on customer's paper machine also according to the rollers design and technoloy,we suggest the suitable felt and doctor blade to make each component's perfect fit so that achieving full play to the role of each component.
     Up to now, Daxing provides service for paper industry,steel industry,Printing and dyeing, textile, glass and other industries,business scope includes paper machine modification (The core idea is to improve the paper machine speed, improve the quality of paper, improve production capacity, increase benefit), felt,roller,blade manufacture,also we can supply pulp machinery and finish equipments.
