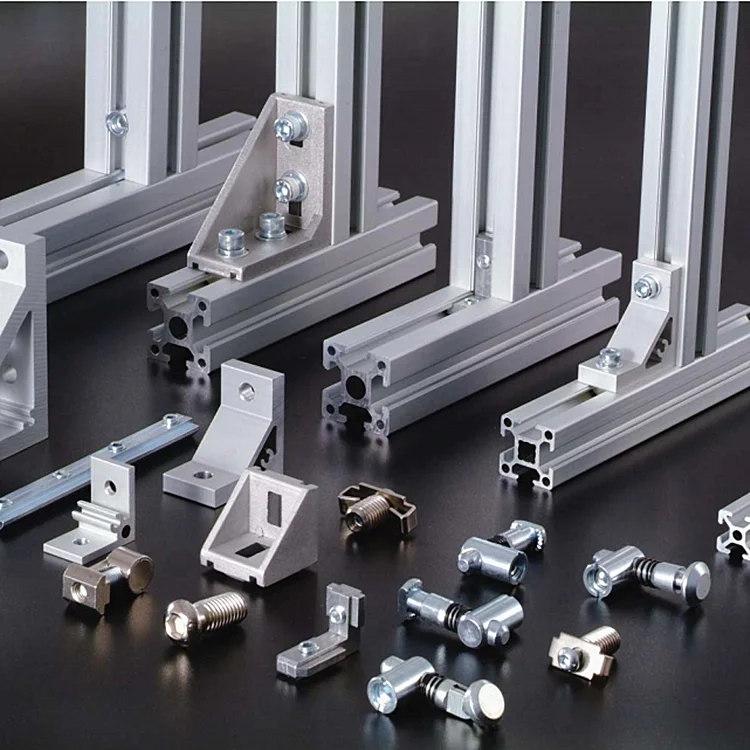

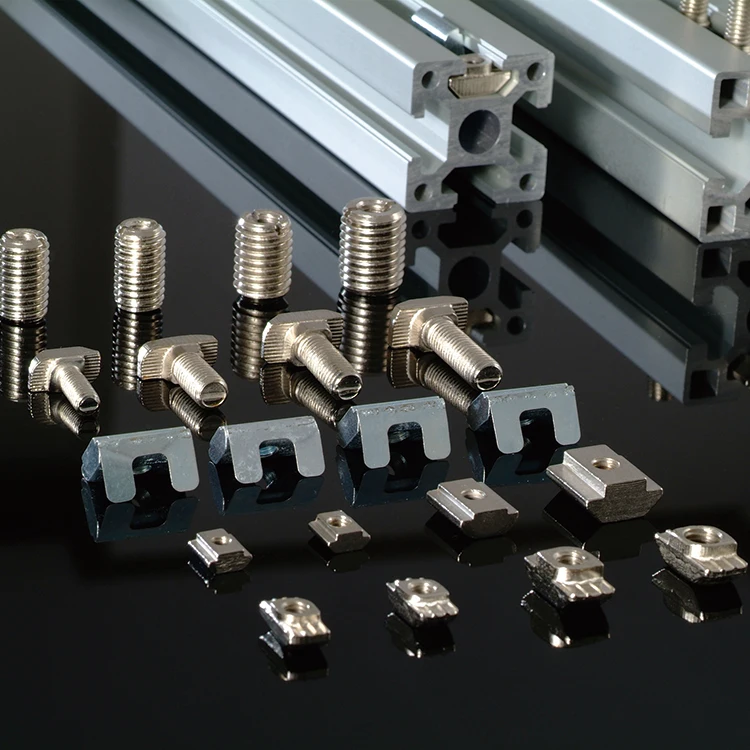

Structural t slot aluminum extrusion 3090 with multipin connectors
- Category: >>>
- Supplier: Dalian Modular Assembly Technology Co. Ltd.
Share on (60765394825):
Product Overview
Description
Free Sample
Specification
| T Slot Symbol | Cross Section (mm) | Core Hole (Φ) | Slot Width (mm) | Slot Depth (mm) | Wall Thickness (mm) | Profile Group |
 |  | 10.0 | 8.2 | 8.0 | 2.2 | PG30 |
PG30 30x60 6 slots | PG30 30x90 8 slot | PG30 30x120 10 slots |
 |  |  |
PG30 60x60 8 slots | PG30 60x60 L 8 slots | PG30 60x120 12 slots |
 |  |  |
| PG30 15x90 7 slots | ||
 | ||
| Description | Moment of Inertia lx(cm4) | Moment of Inertia ly(cm4) | Moment of Resistance Wx(cm3) | Moment of Resistance Wy(cm3) | Mass (kg/m) | Part No. |
| Strut Profile PG30 30x60 6 slots | 5.3 | 19.9 | 3.5 | 6.7 | 1.6 | 1.11.30.030060.06 |

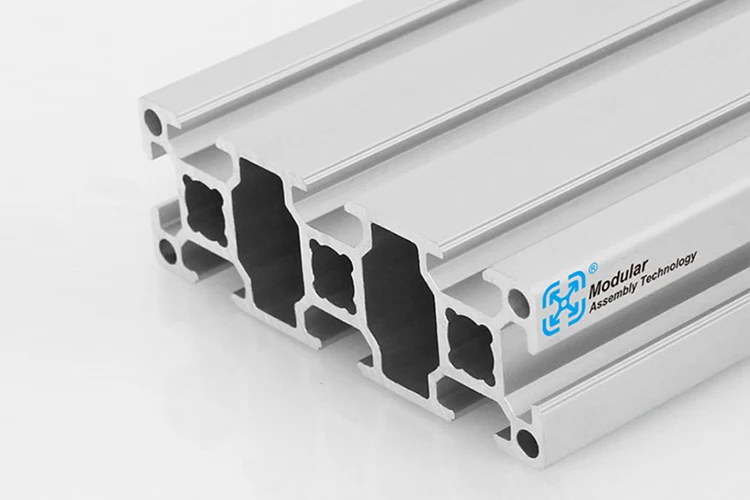

| Strut Profile PG30 30x90 8 slots | 7.7 | 62.0 | 5.1 | 13.8 | 2.2 | 1.11.30.030120.10 |
| Strut Profile PG30 30x120 10 slots | 10.1 | 139.9 | 6.7 | 23.3 | 2.9 | 1.11.30.030120.10 |
| Strut Profile PG30 60x60 8 slots | 35.3 | 35.3 | 11.8 | 11.8 | 2.5 | 1.11.30.060060.08 |
| Strut Profile PG30 60x60 L 8 slots | 35.2 | 17.6 | 8.5 | 5.0 | 2.3 | 1.11.30.060060L.08 |
| Strut Profile PG30 60x120 12 slots | 74.7 | 252.6 | 24.9 | 42.1 | 4.8 | 1.11.30.060120.12 |
| Strut Profile PG30 15X90 7 slots | 1.4 | 40.4 | 1.9 | 9.0 | 1.5 | 1.11.30.015090.07 |
Packaging & Shipping
FAQ
FAQ to save your precious time!
Q1: What’s the standard length of your profiles and tube?
A: The standard length of profiles and tube are 5800mm to suit for small container, and we also can cut to specific length, however a surcharge of machining and material scrap cost will be charged accordingly based on each individual invoice.
Q2: What’s your MOQ?
A: we have no MOQ for our new customers, however a surcharge of USD80 will apply for all orders less that USD 1000 for custom handing cost purpose.
Q3: what is your payment terms?
A: The payment terms we accept is T/T or irrevocable L/C at sight, T/T preferred.
Q4: What’s the lead time for small order and mass production?
A: 1-3 working days for small order, and 3-10 working days for mass production of material, and the final lead time will be subject to each individual invoice.
Q5: What certification do you have?
A: We have ISO 9001:2008 certificate.
