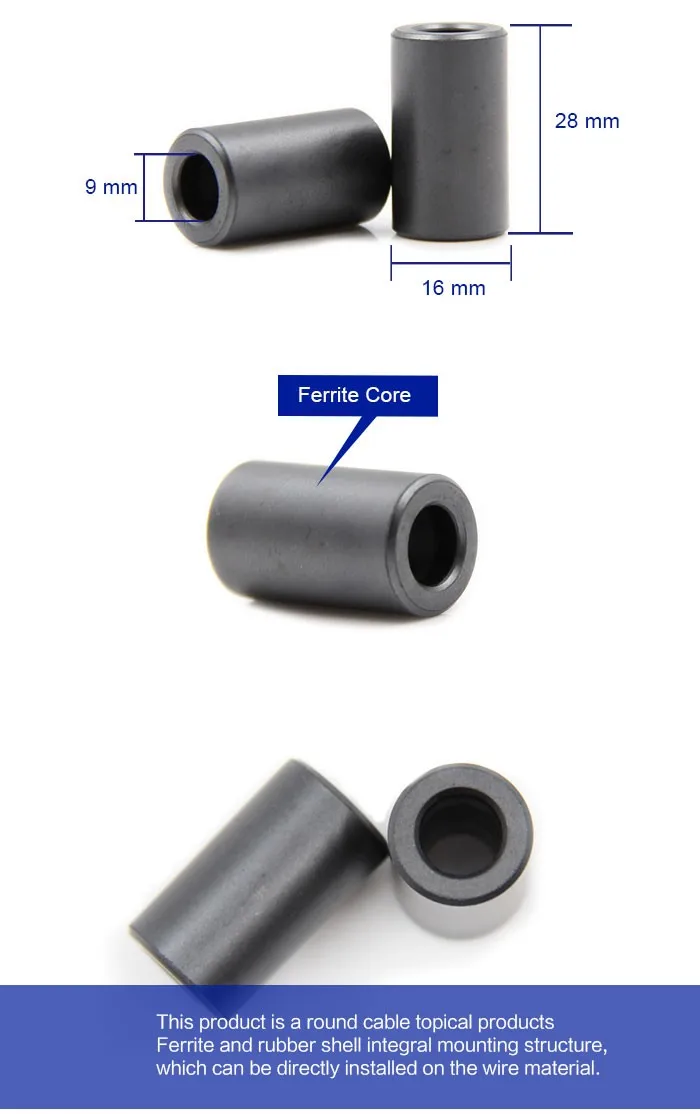

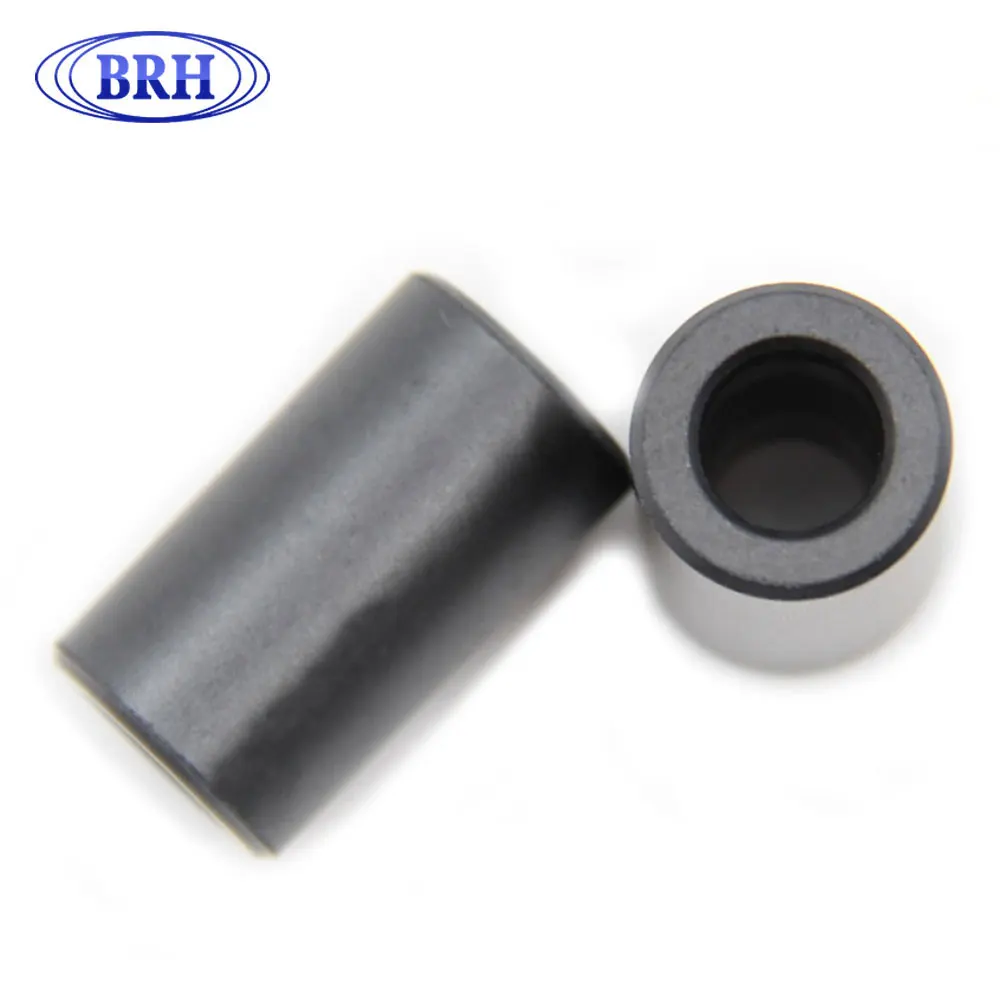

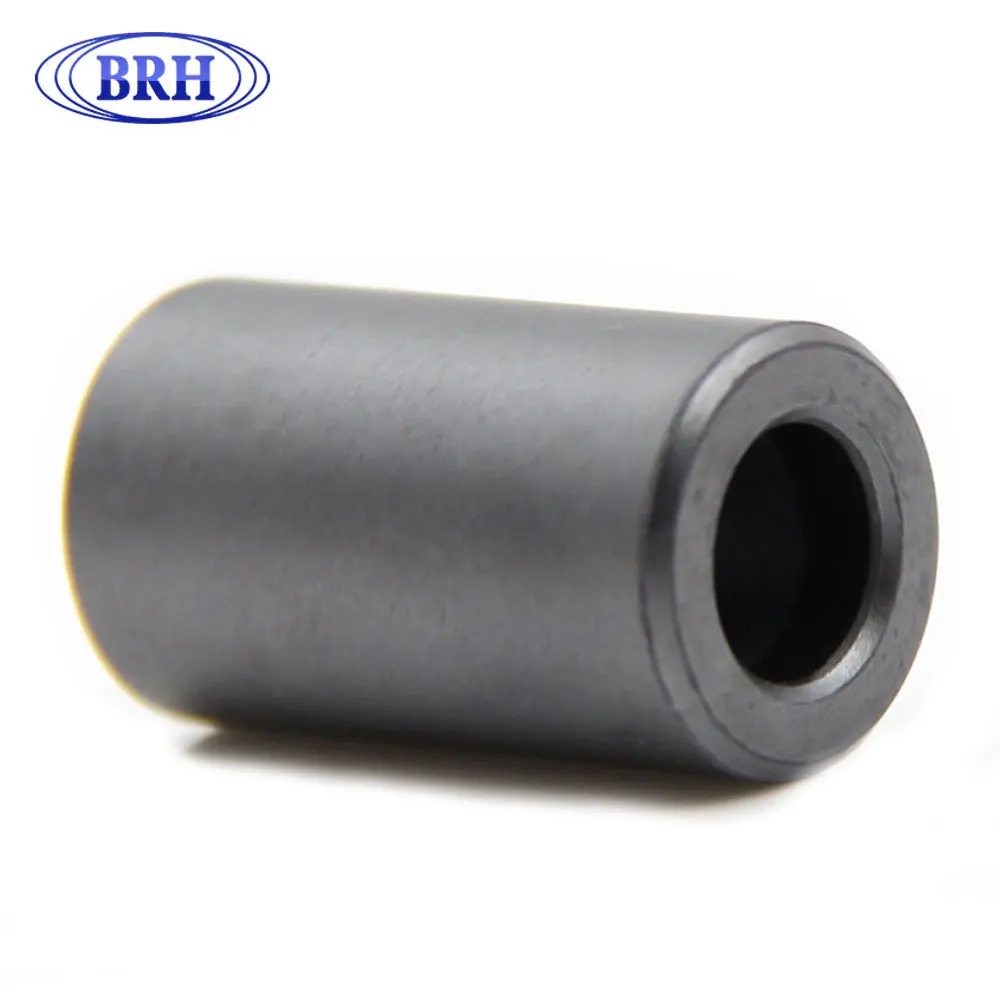

SIZE CODE （mm)
A
B
C
A2 RH 16*28*9
16.0±0.50
28.0±0.70
9.0±0.50

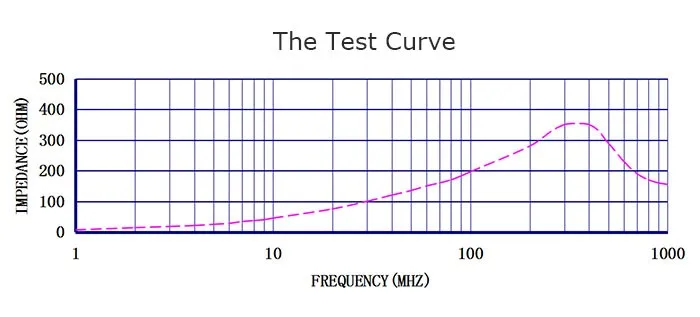

Parameter
Electrical Requirements
SIZE CODE （mm)
A2 RH 16*28*9
25 MHz
70Ω MIN
100 MHz
150Ω MIN
TEST INSTRUMENTS
HP 4191A
LCR METER
HP 4286
WIRE
0.65T.C.W*100m/m 1/2Ts
TEMPERATURE
15℃ to 35℃
HUMIDITY
25% to 85% RH
Test Datas For Pre Production Samples
MEAS.
 Item
Ω
 AT 25MHz
Ω
 AT 100MHz
A
 m/m
B
 m/m
C
 m/m
Suggest
70Ω MIN
150Ω MIN
16.0±0.50
28.0±0.70
9.0±0.50
1
87.40
197.40
15.97
27.79
9.06
2
89.60
196.80
15.99
27.91
9.14
3
88.40
197.20
15.99
27.90
9.12
4
89.60
197.10
15.87
27.93
9.15
5
89.80
197.20
15.86
27.90
9.20
6
87.40
196.60
16.03
27.90
9.22
7
87.60
196.40
16.00
27.92
9.10
8
87.60
196.80
15.97
27.95
9.04
9
88.10
196.50
15.92
27.85
9.05
10
89.90
197.20
15.80
27.86
9.12





X-bar
88.54
196.92
15.94
27.89
9.12
R
2.50
1.00
0.23
0.16
0.18
The above test data for reference，Actual results may differ due to different production batches
