Factory Supply Shock Absorber Linear Travel Sensor with Rod End Joints

Product Overview

Description

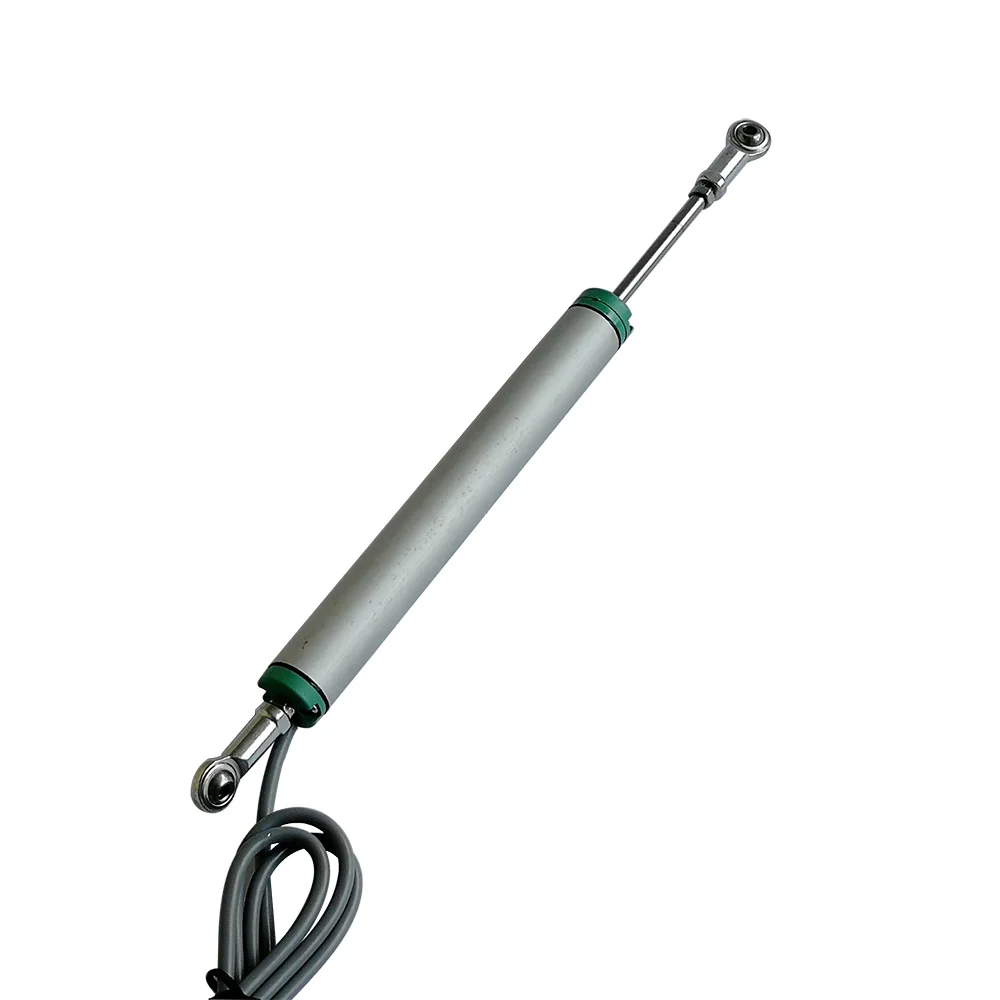

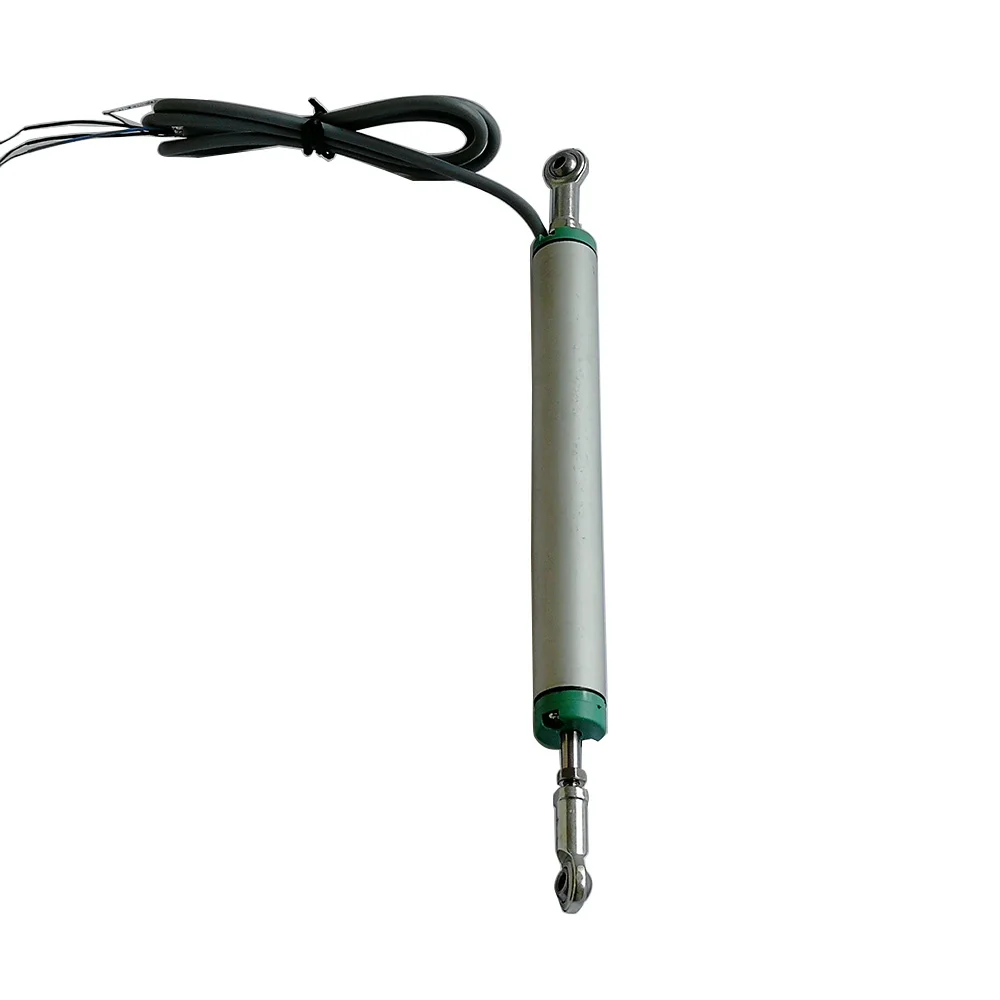

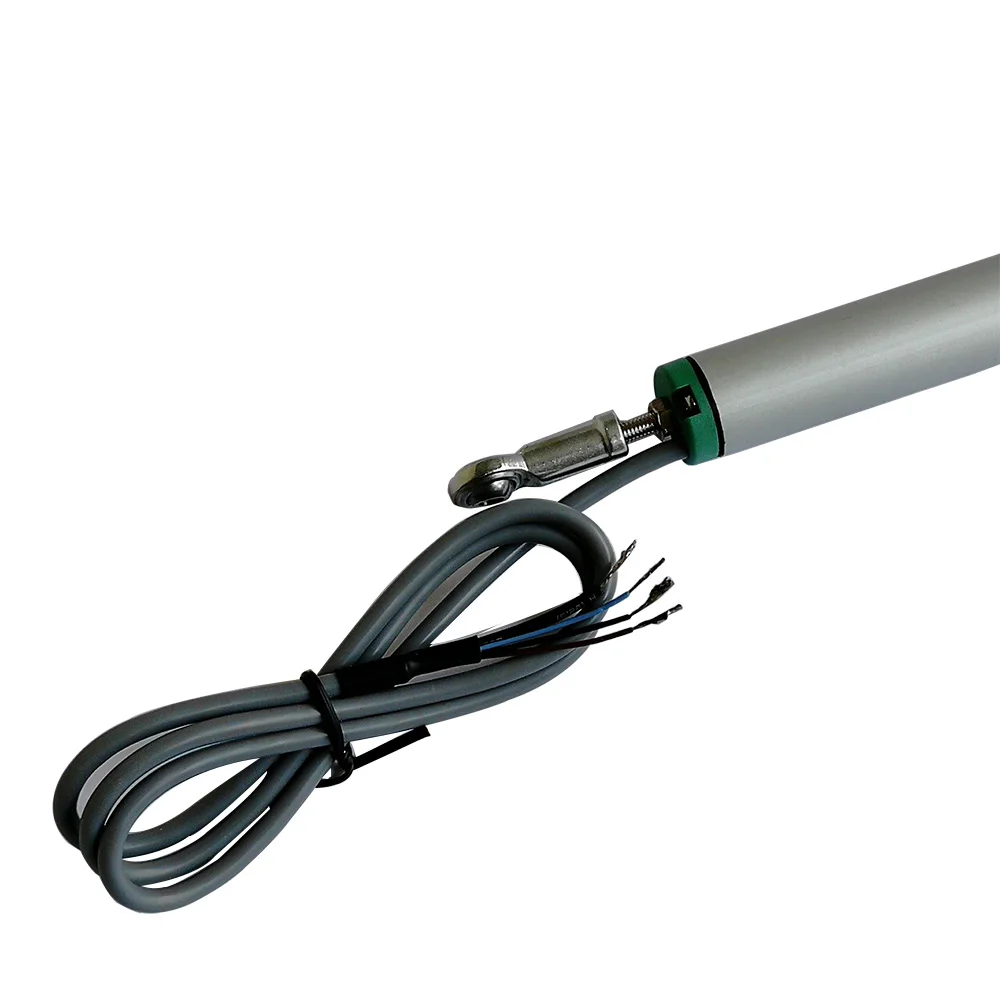

Shock Absorber Linear Travel Sensor with Rod End Joints



The KPM linear transducer with Rod Ends Joints is used to measure and track the linear motion or position of a target. The potentiometer position sensor is carried out with a high-resolution conductive plastic resistive element. The displacement encoder has a very long lifetime and high accuracy due to its good linearity.



The compact linear transducers are designed for applications with harsh environmental conditions. The transducer with ball joints compensates movements transversely to the push rod, so that non-linear movements can also be coupled simply and without stress. The mechanical detection of linear movement is done by a front guided push rod.



Features:

• Compact displacement sensor


• For harsh environmental conditions - protection class IP65


• Mounting by ball joints, mounting brackets


• Long lifetime and high accuracy


• Measuring lengths from 10 mm to 300 mm



Datasheet: (parts of sizes)

KPM Series	175	200	225	250	275	300	Unit
Strokes	175	200	225	250	275	300	mm
Electrical Stroke	176.5	201.5	226.5	252	277	302	mm
Resistance ±5%	5						KΩ
Linearity	0.05	0.05	0.05	0.05	0.05	0.05	± %
Mechanical Stroke	181.5	206.5	231.5	257	282.5	307	±2mm
Length (A)	227	252	277	302	327	352	±2mm
Resolution	infinite
Repeatability	0.01						mm
Working speed	≤5						m/s
Protection class	IP65 DIN405000/IEC529
Lifetime	> 20 x 106						cycles
Vibration	5~2000, Amax=0.75, amax=20						Hz/mm/g
Working current	≤1						uA
Max Current	10						mA
Max Voltage	42						V
Input Voltage & Output Voltage Temperature Rate	5  (Typical)						ppm/K
Insulation Resistance	≥10 @ 500V, 1bar, 2s						MΩ
Insulation Intension	≤100 @ 500VDC,50Hz, 2s,1bar						uA
Temperature Range	-40 ~ 120						℃



Structure & Dimension:

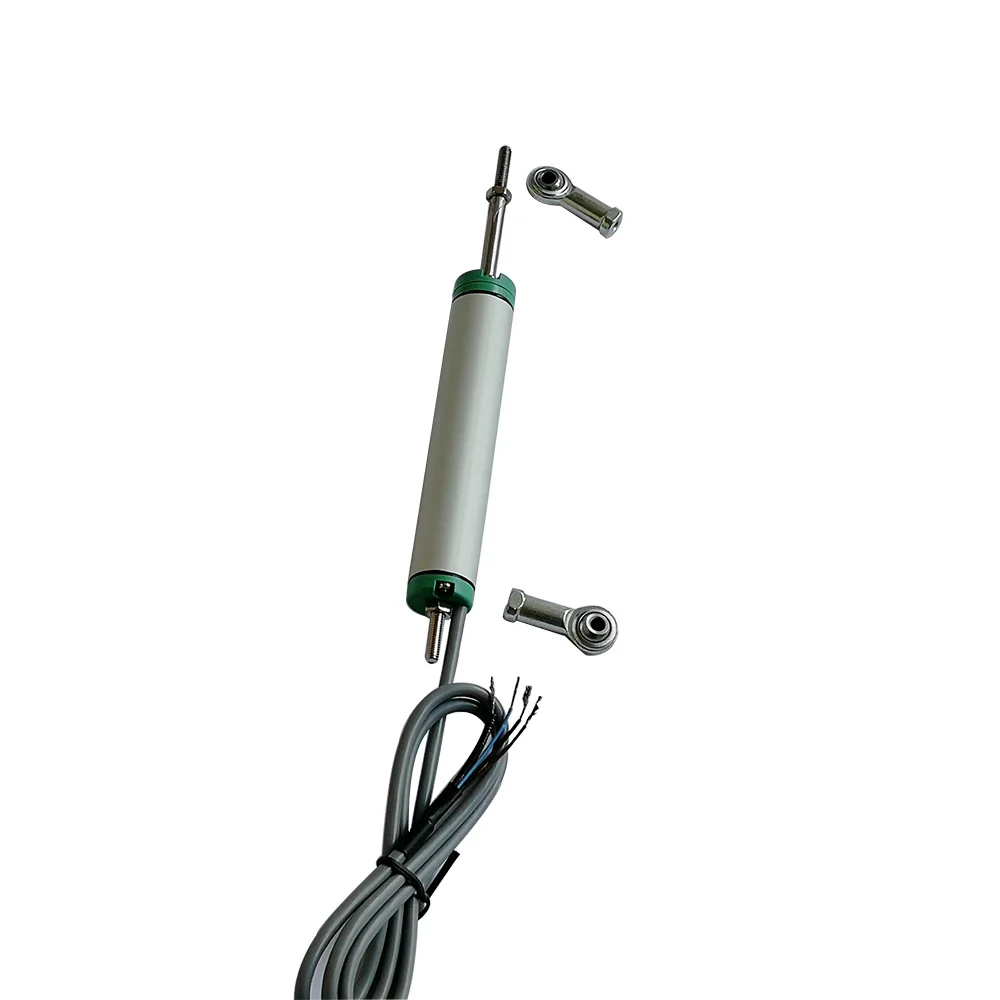

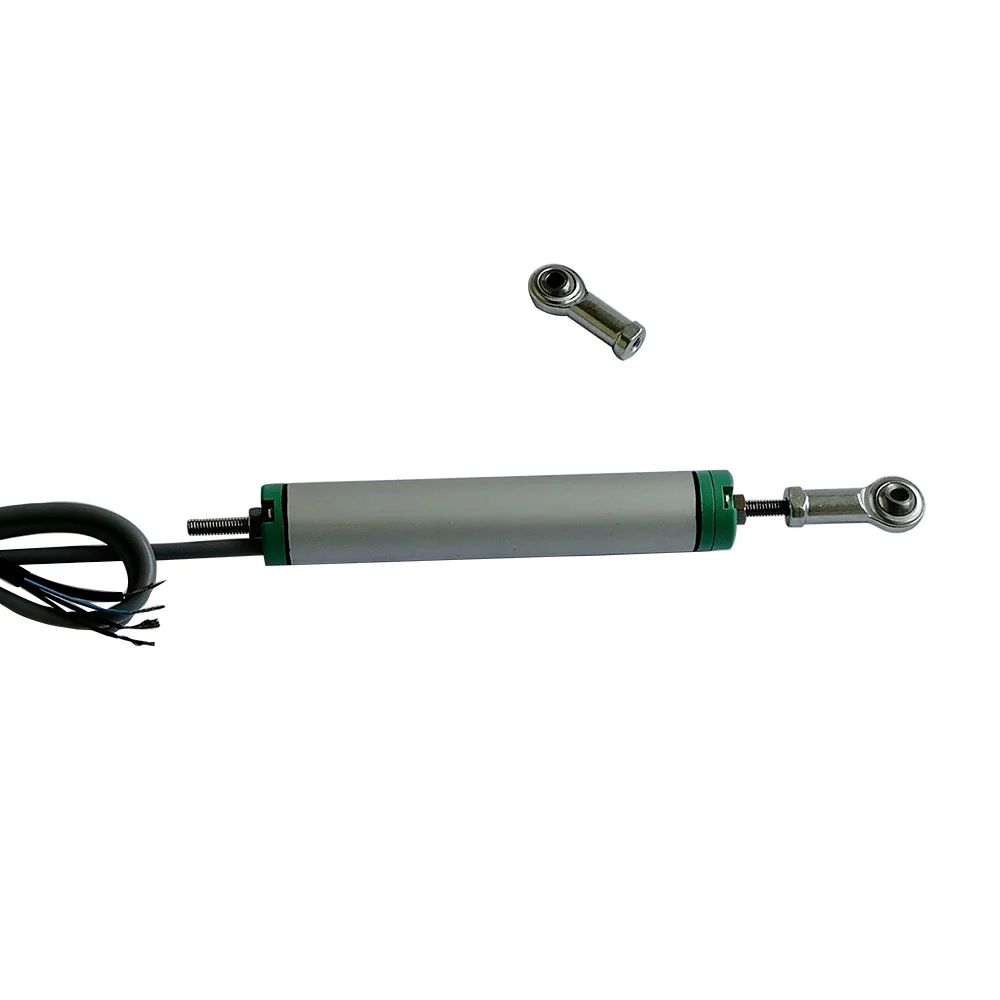

KPM Linear Transducer with Both Rod Ends Joints Package Included:

• 1 x KPM Linear Transducer


• 2 x Rod Ends Joint Bearings

Stardard Package: Cylindrical paper tube

Shipment Methods:

• Express (recommended) , eg: DHL, FedEx IP, FedEx IE and UPS...

Apart from express delivery, we can also accept other shipping methods, please let us know if any special request.

As a leading position sensor manufacturer, we have a good variety of models and sizes to meet your different needs.

Customer First and Quality First push us do better.

• Factory directly supply with competitive price


• Fast production time and delivery time


• Strict quality control before shipment


• Rapid reply your inquiries and questions within 24 hours


• Accept trade assurance order on Alibaba


• Considerate after-sale service

SOP is a professional factory specialized in position sensors, our main products are linear position sensors and draw-wire encoders/sensors.



With many years of development, the brand of SOP is more and more popular with people. Due to premium products and considerate service, we have won support and trust from customers through the world.



SOP is just for you!

Our Company

Our Workshop

Exhibitions 2018

Q: Can I have a sample to test?

A: Sure. As a leading sensor factory, samples are welcome and acceptable.



Q: Can you offer 4-20mA output sensor?

A: Yes. Apart from resistance output, the sensor is also available with integrated signal converter with 4-20 mA output or 0-5/0-10 VDC output



Q: What's the diameter of housing?

A: It's Φ18mm.
