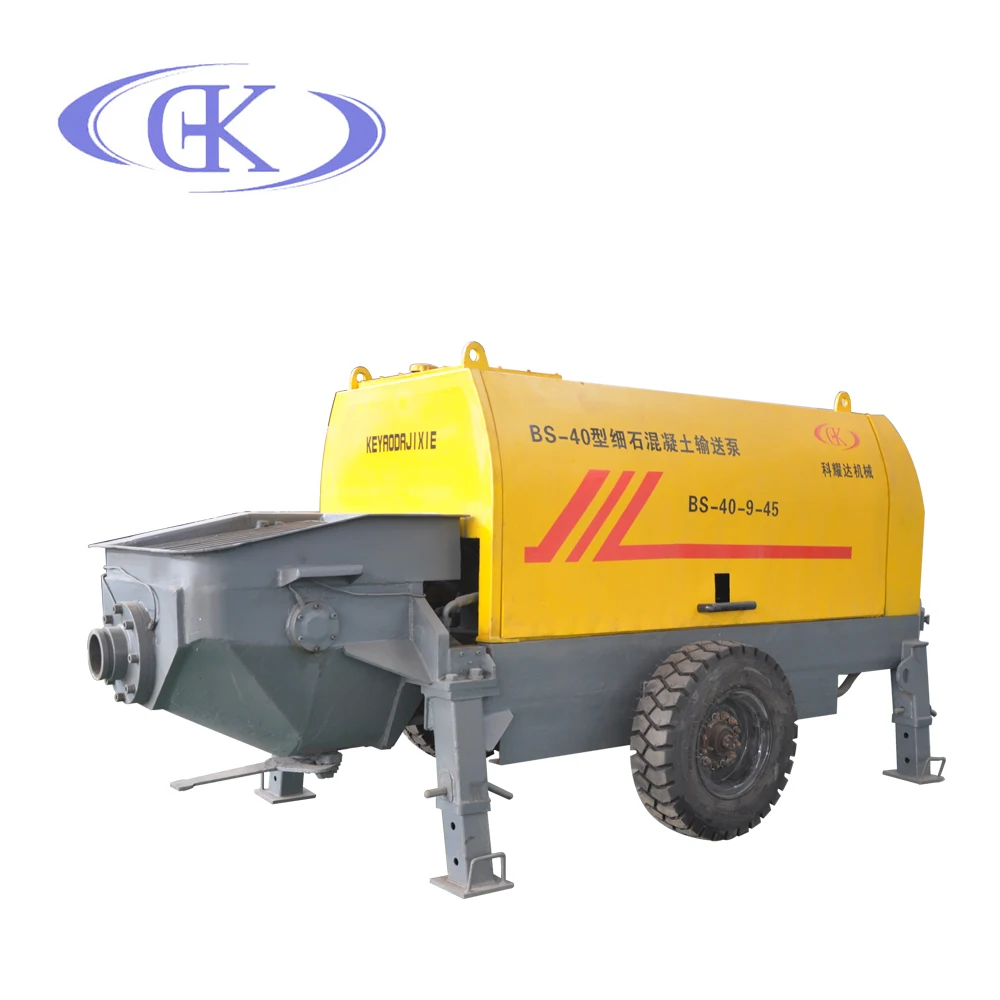

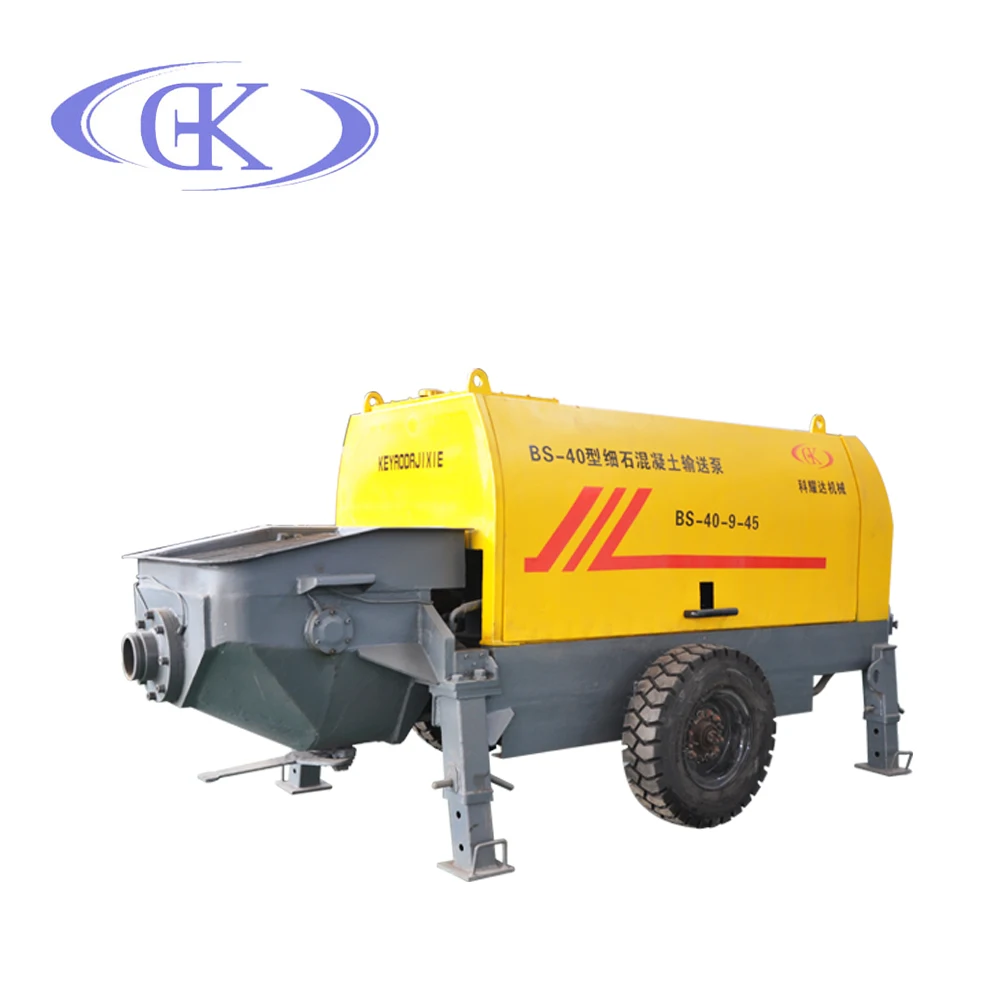

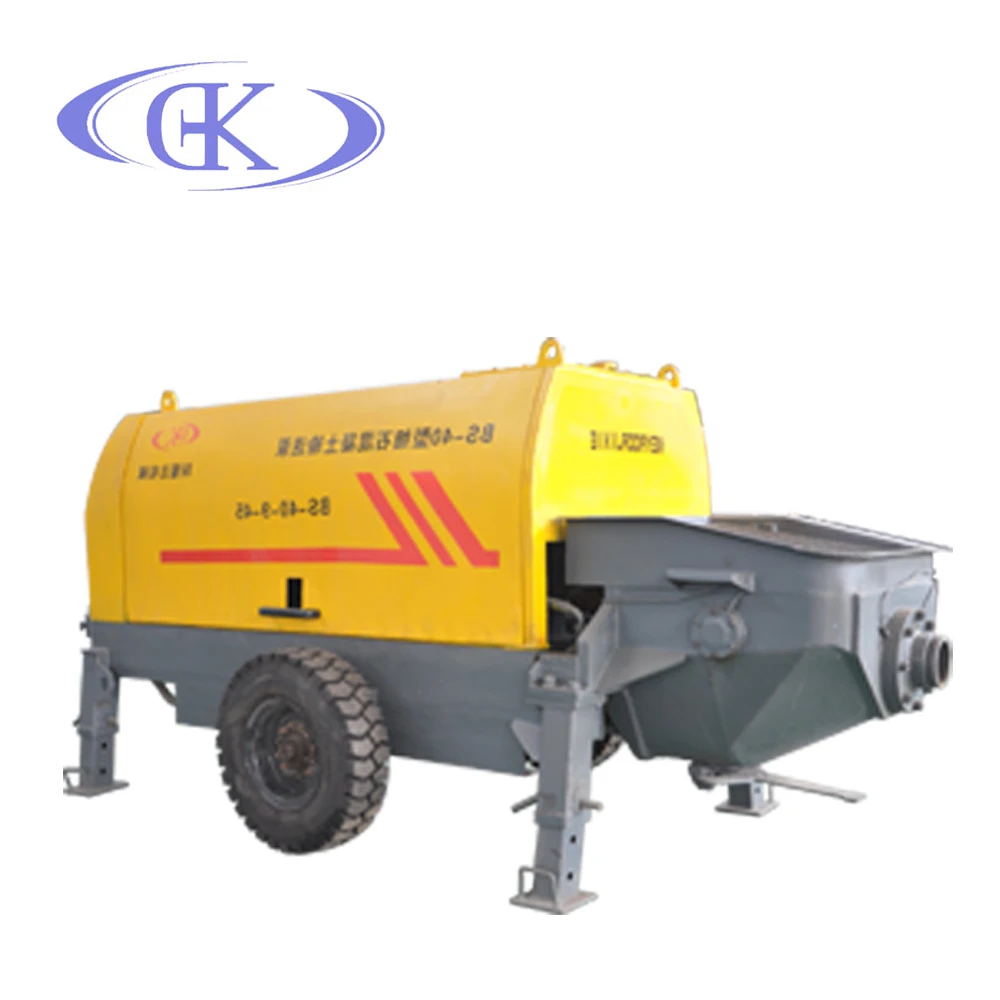

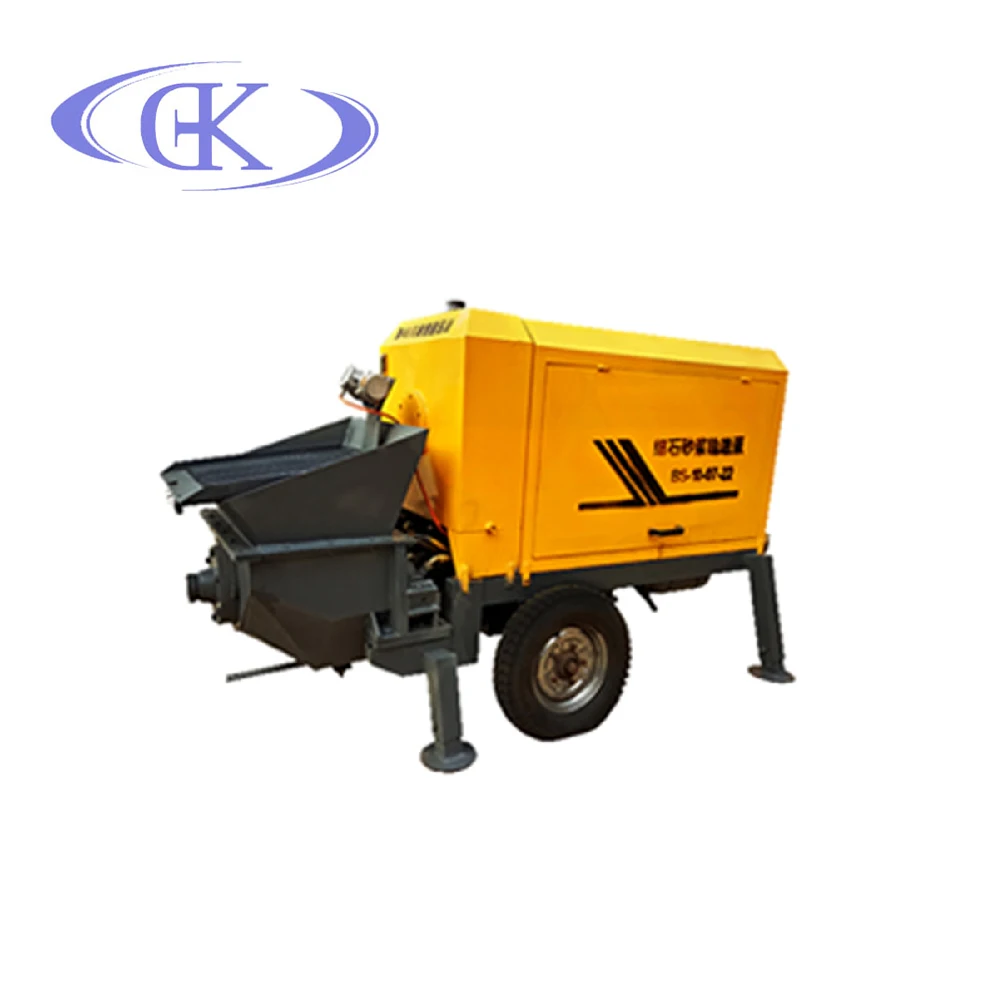

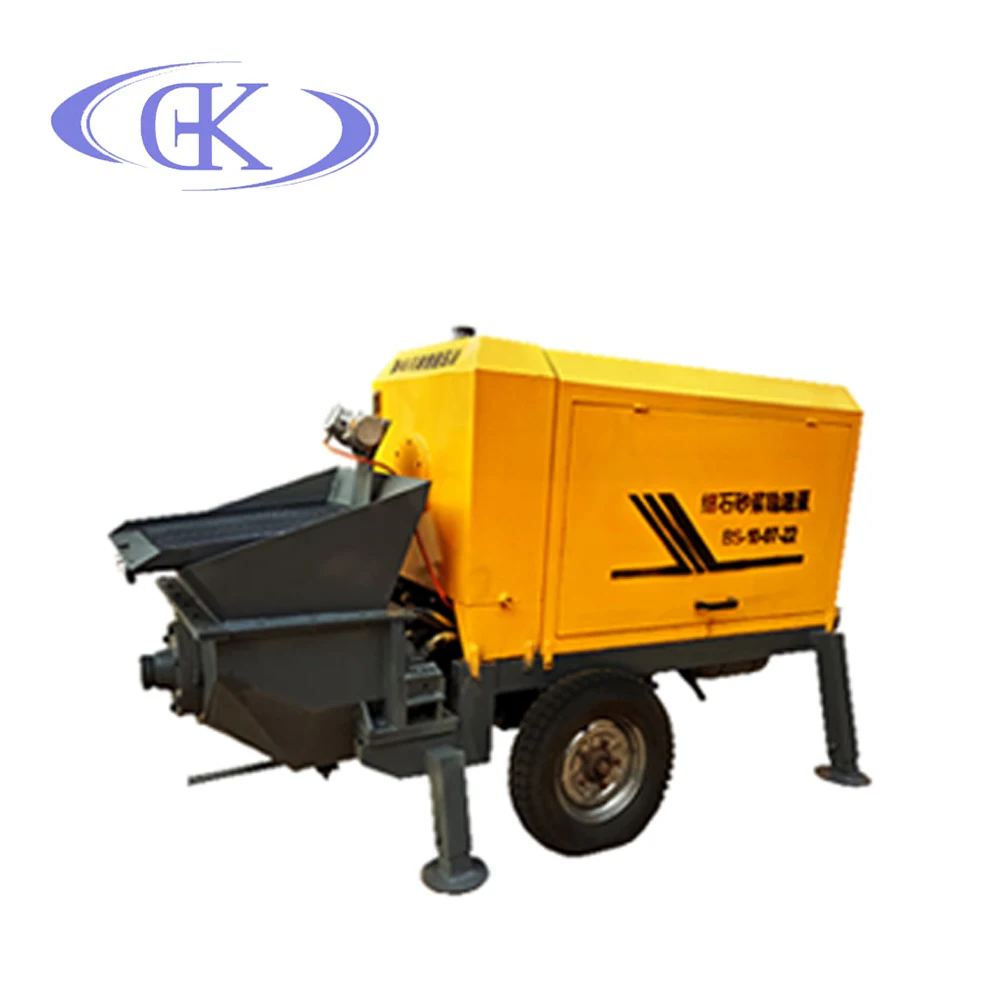

Putzmeister portable schwing concrete pump

Share on (60765509328):


Price:

Quantity:


Product Overview

Description


Putzmeister portable schwing concrete pump_01.jpg

Specification List




Technical
Parameters
 BS-10BS-20BS-30BS-40BS-50
The output10m³/h10-15m³/h25-30m³/h30-35m³/h35-40m³/h
Distribution
valve form
S pipe valveS pipe valveS pipe valveS pipe valveS pipe valve

Maximum

theoretical
delivery

pressure

7Mpa10Mpa10Mpa20Mpa11Mpa

Horizontal
delivery

distance

100m80m230m250m300m

Vertical
conveying

distance

30m60m80m60m80m
Motor power22kw30kw37kw45kw55kw
The largest
grain size
0.5-1cm0.5-1.5cm0.5-2cm0.5-3cm0.5-3.5cm
weight750kg1820kg2600kg3400kg3600kg
Size

2100x800

x1400mm

3100x1200

x1350mm

3600x1500

x1600mm

4300x1500

x1800mm

4600x1800

x1600mm

Product Show

 _04.jpgBS series of concrete pump truck is specially developed for the warm floor construction of fine aggregate concrete conveying equipment.It is suitable for large-scale and high-efficiency construction of fine-grained concrete filled layer or mortar filled layer in the floor heating project.



They can be used for construction, tunnels, mines and other projects in the fine aggregate concrete or mortar transport.



If this machine incorporates spray accessories, it can also be used as a spray pump for the spraying and sprinkling of concrete, mortar, refractory and green soil._06.jpg_07.jpg

Production Process


Product application

HUB3.0_09.jpg1, for fine stone concrete pump delivery

2. Large-scale and high-efficiency construction of fine-grain concrete filling layer or mortar filling layer in floor heating engineering.

3. Used for transportation of fine aggregate concrete or mortar in construction, tunnels, mines, etc.

4. If this machine is equipped with a spray attachment, it can also be used as a spray pump for spraying and spraying concrete, mortar, refractories and green soil._11.jpg

Packaging & Shipping



Company Information


Related products
FAQ

_15.jpg1,Is it a productive factory?

Yes,it is.

2,Where is the factory?

Donghuangzhuang village, xingjiawan town, ren county, xingtai city, hebei province ,Kao da machinery manufacturing co. LTD

3,How can I get your price list?

You can telephone us or send emails to us,we will tell and send price list to you.

4,Can you have our logo or company name to be printed on your products or the package?

   Yes,you can.we can supply the service.

5,How can we get your monthly new products annoucement?

   Please join our mailing list or you can directly ask us in telephone.

6,Can you arrange the transportation for us?

Yes,we can arrange sea and courier transportation.

7,How to place an order?

  Please send us your purchase order by email or fax.Or you can ask us to send a proforma invoice for your order.We need to know the following information for your order:

   Shipping information-company name,street address,phone number,fax number,destination sea port.

   Product information-model numbers, quality,unit price

   Delivery time required.

8,What`s the warranty of your products?

    In 12 months._17.jpg
