Hot sales Zebra Roller Blinds Fabric Cutting Machine
- Category: >>>
- Supplier: Lanxi Baolong Finished Machinery Co. Ltd.
Share on (60765621072):
Product Overview
Description
Product Description
Product Application

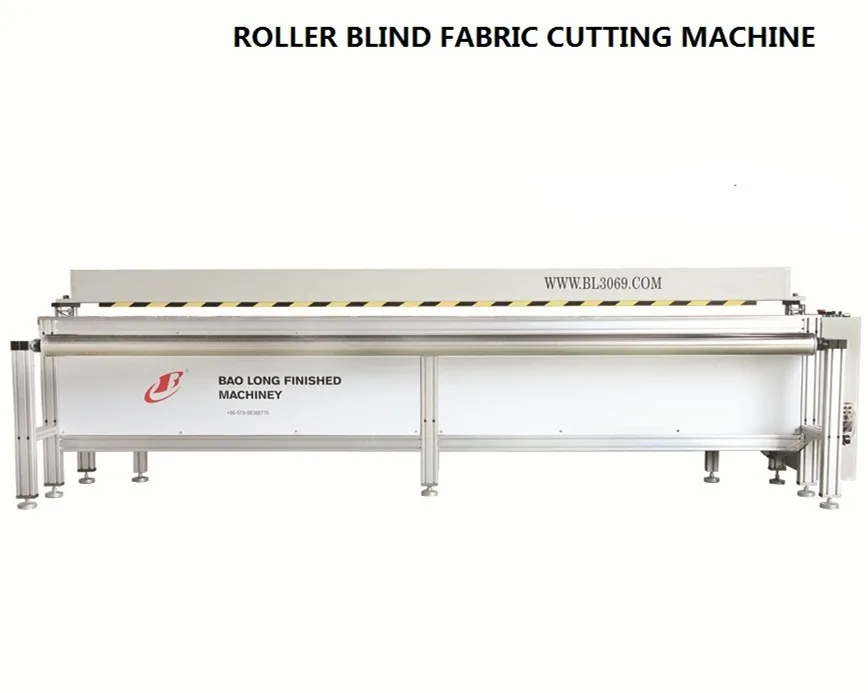

BL-PF320 Roller Blind Cutting Machine is semi automatic cutting by HSS cutting knife with no bur effect in cutting edge as well as sealing function,which has infrared sensor for security device to protect human.roller blind cutting machine is workable for mostly blind fabric cutting,such as roller blind,zebra blind,sunshine blind,shangri-la and so on....For remote control of cutting indication is available by our remote control bottom.
SPECIFICATIONS FOR BL-PF320 Roller Blind Cutting Machine | ||||||
Main Features
1) Cutting Fabric without bur,smoothly cutting edge
2) Universal fabric material application
3) Automatic cutting by HSS cutting knife
4) Has human safety system unit to protect during cutting
5) Cutting width of our roller blind machine 3.26m
6) CE certificated with lasting stable working
7) Has remote control of cutting bottom for your more convenient working
8) Cutting table frame aluminum profile could be matched from us
Certifications
Detailed Images

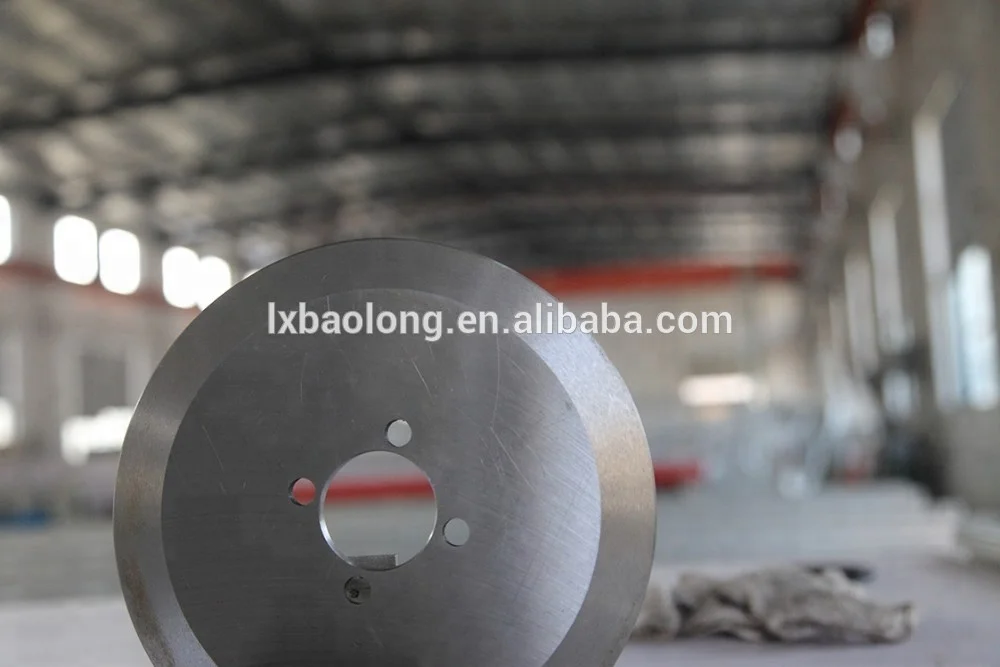

Cutting knife
Function: cutting
Available usage: roller,zebra,shangli-la,soft curtain,sunshine fabric
Cutting Advantage: with sealing material edge
BL-PF320 fabric roller blind cutting machine has the cutting knife which has smoothly & excellent cutting work without bur,with sealing fabric, HSS cutting blade allow mostly material fabric application.which allows two layers of materials,more higher cutting serving life are recommended.

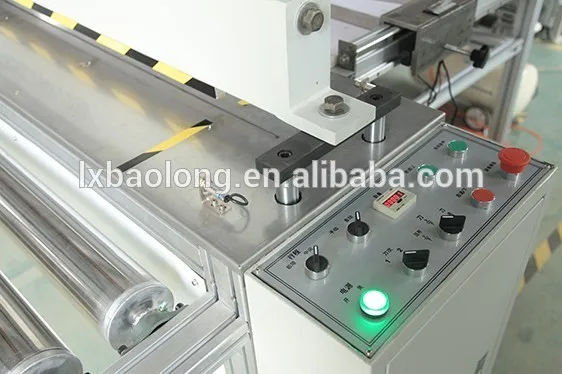

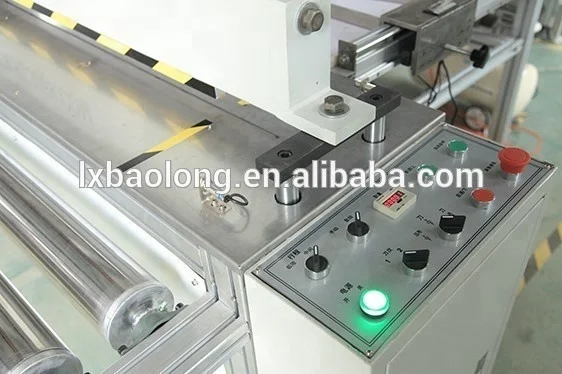

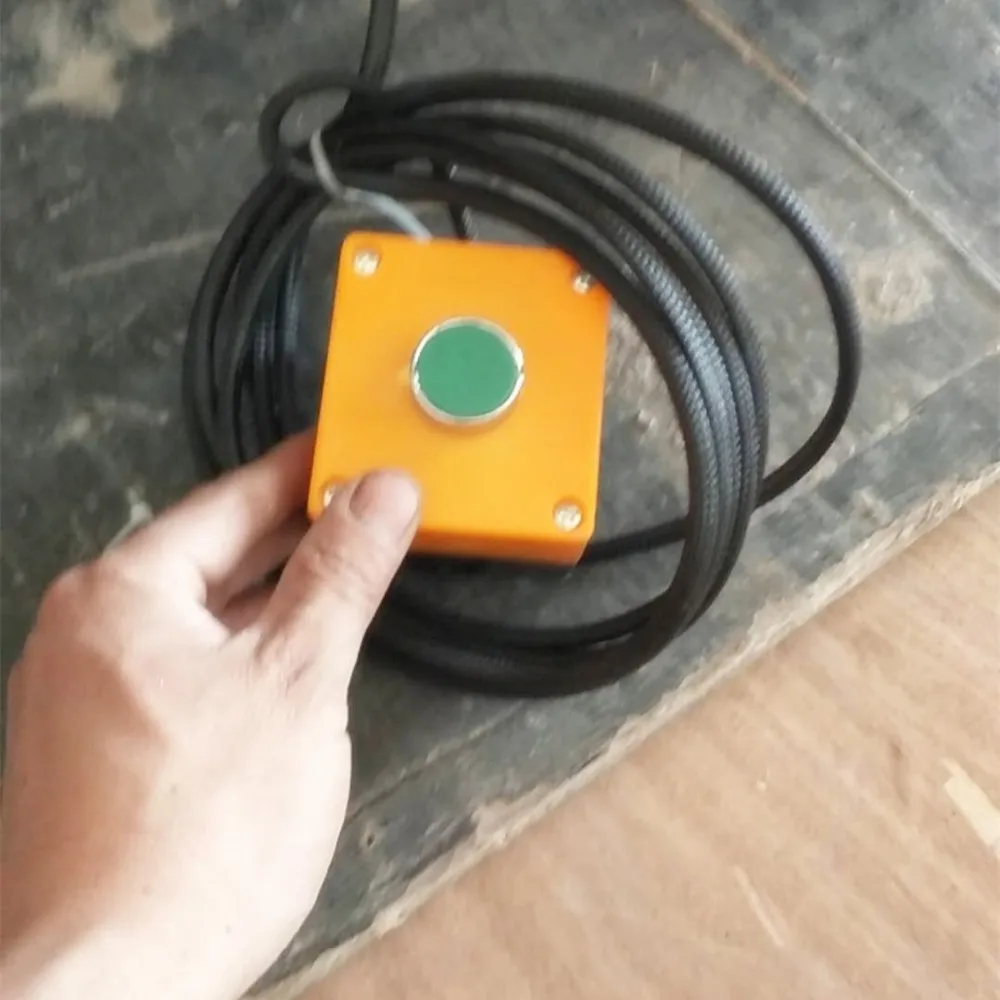

Remote Control Bottom
Function:Remote control of cutting working
Advantage: More convenient to achieve cutting indicate
Position: can be put in another place nearby cutting table
Easy operation and more humanized design

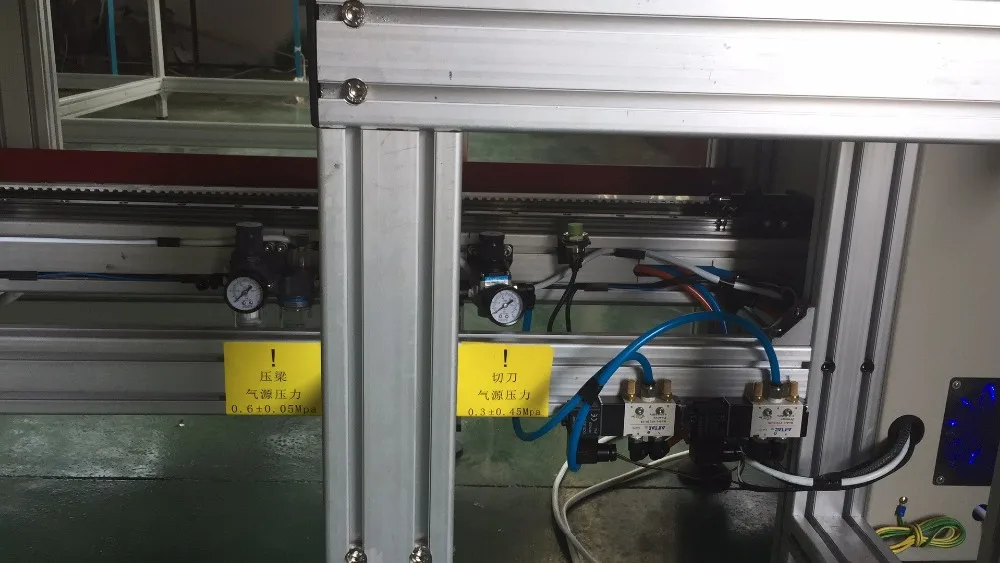

Air source pressure control
Function: Adjust the pressure according to different fabric
Pressure control: 0.3-0.45Mpa+-0.02Mpa
Warning: should adjust the pressure according to diffrerent fabric
Adjust the pressure according to different fabric, Thin fabric 0.3Mpa is enough. Thick fabric need 0.4-0.45Mpa pressure.
Our Service
Pre-Sales Service
* Inquiry and give solution advise.
* Give videos to better know roller blind machine features.
* View our Factory.
After-Sales Service
* Training how to install roller blind machine, training how to use the machine.
* For machine maintenance and adjustment,we will support you on line and video teaching
Packing & Delivery
Packaging | ||
Size | 4300 (L) * 710 (W) * 1070(D) | |
Weight | 0.7T | |
Packaging Details | The Inner of Roller Blind Cutting Machine BL-PF320 is packed in PE material and outer package is normal wooden box. If for export,the outer packing will be plywood. | |
Packaging | ||
Size | 4350 (L) * 910 (W) * 1180 (D) | |
Weight | 0. 83T | |
Packaging Details | Fabric Cutting Table with out glasses (standard 3m*3m) matched for Roller Blind Cutting Machine BL-PF320 can be available from us,and cutting table can be customized in cutting length,we will insert into the machine package as well | |
