factory supply IFR32600 lifepo4 battery cell 3.2v 3500mah
- Category: >>>
- Supplier: Shenzhen Zhuoguang Power Co. Ltd.
Share on (60765627205):
Product Overview
Description

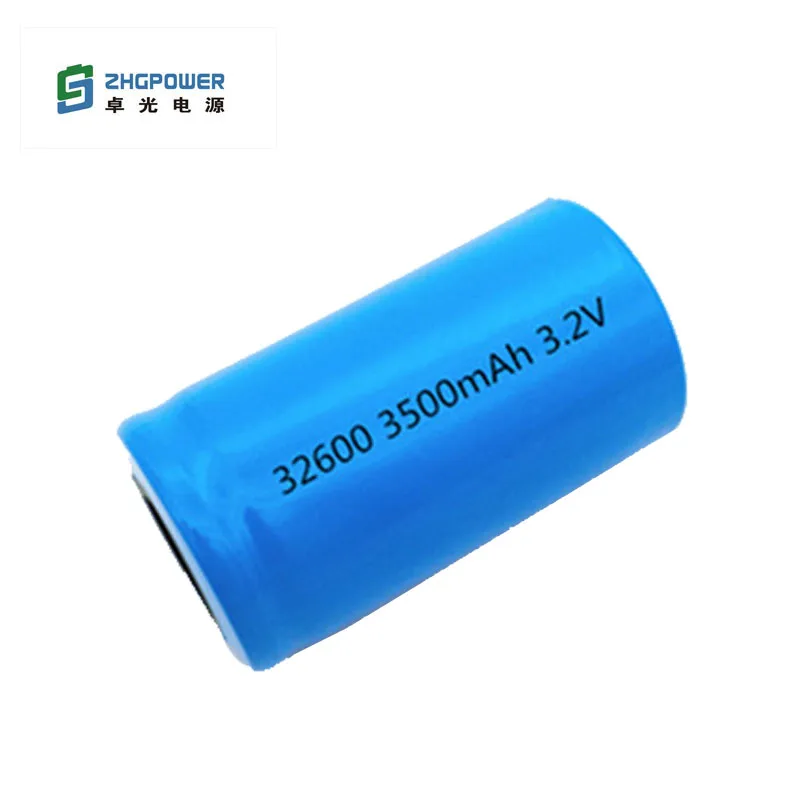

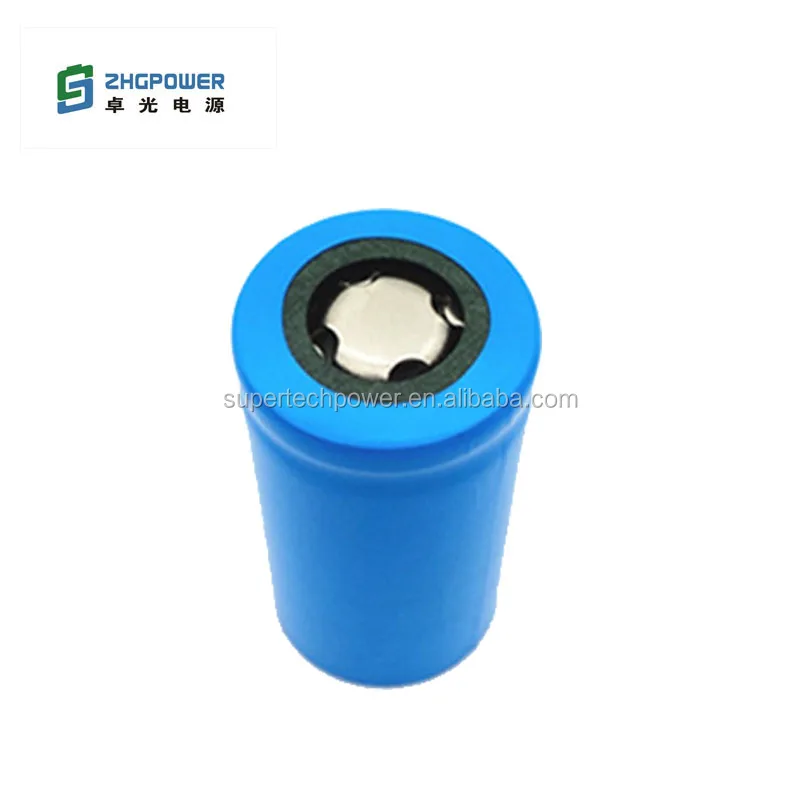

China factory customized 3.2V 3500mAh LiFePO4 IFR32600 Rechargeable Battery

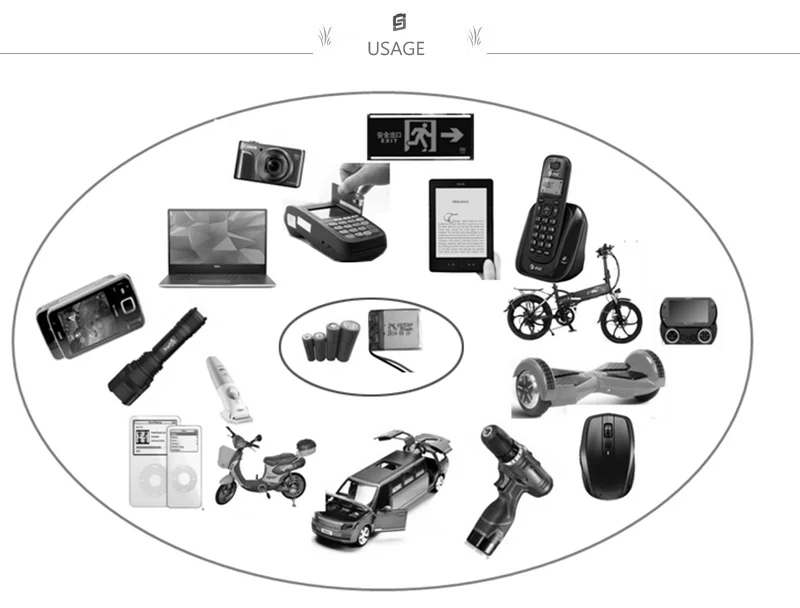

Application
1.Telecommunication: cellular phone, web phone, interphone, earphone.
2.Portable office devices: Notebook, PDA, portable electrograph, portable printer.
3.Video devices: GPS, digital camera,camcorder, portable DVD, portable television, MP3, MP4.
4.Portable exchange devices: POS, Handy,Fingerprint machine, portable stock machine.
5.Illuminate devices: miner lamp, searchlight.
6. Ebike or electrical motorbike, Industrial instrument
No. | Items | Criteria | Remarks |
3.1 | Typical Capacity | 1400mAh | Discharge:0.2CmA cut-off voltage:2.5V |
Minimum Capacity | 1350mAh | ||
3.2 | Energy | 4.48Wh |
|
3.3 | Nominal Voltage | 3.20V |
|
3.4 | Open Circuit Voltage | ≥3.3V |
|
3.5 | Load Voltage (33Ω) | ≥3.2V |
|
3.6 | Internal Impedance | Battery : ≤60mΩ | AC 1KHz after standard charge |
3.7 | Charge voltage | 3.65V |
|
3.8 | Standard charge current | 280mA | 0.2C |
3.9 | Max. charge current | 700mA | 0.5C |
3.10 | Standard discharge current | 280mA | 0.2C |
3.11 | Max. discharge current | 1400mA | 1C |
| Max. instant discharge current | 7000mA | 5C |
3.12 | Discharge cut-off voltage | 2.5V |
|
3.13 | Operating Temperature | 0~+80℃ | Charging |
-20~+80℃ | Discharging | ||
3.14 | Storage Temperature
| -10℃~+50℃ | Less than 6 month |
-10℃~+30℃ | Less than 12 months | ||
3.15 | Weight | 50g |
|
| Model | Dimension (mm) | Nominal voltage (V) | Nominal capacity(mAh) | Standard charge current (mA) | Fast charge current (mA) | Standard discharge current (mA) | Max. discharge current (mA) | Charging cut-off voltage (V) | Discharging cut-off voltage (V) | Weight (g) |
| IFR10130E/30 | Ø10.3×13.2 | 3.2 | 30 | 6 | 30 | 6 | 90 | 3.65 | 2 | 5 |
| IFR10440E/200 | Ø10.3×44.2 | 3.2 | 200 | 40 | 200 | 40 | 600 | 3.65 | 2 | 7 |
| IFR14430E/250 | Ø14.2×43.3 | 3.2 | 250 | 50 | 250 | 50 | 750 | 3.65 | 2 | 11 |
| IFR14430E/300 | Ø14.2×43.3 | 3.2 | 300 | 60 | 300 | 60 | 900 | 3.65 | 2 | 12 |
| IFR14430E/400 | Ø14.2×43.3 | 3.2 | 400 | 80 | 400 | 80 | 1200 | 3.65 | 2 | 13 |
| IFR14500E/250 | Ø14.2×50.2 | 3.2 | 250 | 50 | 250 | 50 | 750 | 3.65 | 2 | 14 |
| IFR14500E/400 | Ø14.2×50.2 | 3.2 | 400 | 80 | 400 | 80 | 1200 | 3.65 | 2 | 15.5 |
| IFR14500E/500 | Ø14.2×50.2 | 3.2 | 500 | 100 | 500 | 100 | 1500 | 3.65 | 2 | 16 |
| IFR14500E/600 | Ø14.2×50.2 | 3.2 | 600 | 120 | 600 | 120 | 1800 | 3.65 | 2 | 18 |
| IFR14650E/800 | Ø14.2×65.3 | 3.2 | 800 | 160 | 800 | 160 | 2400 | 3.65 | 2 | 21 |
| IFR16340E/300 | Ø16.2×34.2 | 3.2 | 300 | 60 | 300 | 60 | 900 | 3.65 | 2 | 13.5 |
| IFR16340E/400 | Ø16.2×34.2 | 3.2 | 400 | 80 | 400 | 80 | 1200 | 3.65 | 2 | 15 |
| IFR18500E/1000 | Ø18.5×50.2 | 3.2 | 1000 | 200 | 1000 | 200 | 5000 | 3.65 | 2 | 32 |
| IFR18500E/600 | Ø18.5×50.2 | 3.2 | 600 | 120 | 600 | 120 | 1800 | 3.65 | 2 | 26 |
| IFR18500E/750 | Ø18.5×50.2 | 3.2 | 750 | 150 | 750 | 150 | 2250 | 3.65 | 2 | 28 |
| IFR18500E/900 | Ø18.5×50.2 | 3.2 | 900 | 180 | 900 | 180 | 4500 | 3.65 | 2 | 30 |
| IFR18650E/1200 | Ø18.5×65.3 | 3.2 | 1200 | 240 | 1200 | 240 | 6000 | 3.65 | 2 | 40 |
| IFR18650E/1300 | Ø18.5×65.3 | 3.2 | 1300 | 260 | 1300 | 260 | 6500 | 3.65 | 2 | 42 |
| IFR18650E/1400 | Ø18.5×65.3 | 3.2 | 1400 | 280 | 1400 | 280 | 4200 | 3.65 | 2 | 42 |
| IFR22430E/1100 | Ø22.5×43.3 | 3.2 | 1100 | 220 | 1100 | 220 | 5500 | 3.65 | 2 | 45 |
| IFR22430E/1200 | Ø22.5×43.3 | 3.2 | 1200 | 240 | 1200 | 240 | 3000 | 3.65 | 2 | 47 |
| IFR22650E/1800 | Ø22.5×65.3 | 3.2 | 1800 | 360 | 1800 | 360 | 5400 | 3.65 | 2 | 60 |
Company Information
Factory view
Certifications
FAQ
Q1: How can I buy the right battery?
A: Battery is a compatible product with application products. we must design and produce right battery for you according to your application products and its power, battery's continuous discharge current, maximum instantaneous discharge current, charging current, size limit, etc.
Q2: Is your battery quality approved?
A: Yes, we guarantee that all cells from our factory, And we will have full inspection of each cells and grouping them before assembling batteries. And all finished batteries will be under a full inspection before shipment. There are 10 steps testing during the whole production.
Q3: Can I make a smaple order?
A: Yes, sure. We are willing to send our samples to you for testing and comparison, and let you know our high character ratio batteries. But free samples are not available at beginning.
Q4: How can I pay? What are the terms of payment?
A: T/T, L/C, Paypal, Western Union, Trading Assurance Order, etc.
Q5: How about the lead time?
A.Generally delivery time in 7-15 days, but will be changed according to the quantity or other things.
Q6: What is the mode of transportation?How about the time limit?
A: Small quantity batteries by DHL, UPS, FedEx express, it will take about 5 -7 days; Bulk goods by train or by air or by sea, transportation time depends on the distance.
Q7: Can you accept OEM and ODM service?
A. Yes, we can supply OEM and ODM services according to clients requirement.
Q8: Which certificates do you have?
A: We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q9: How about warranty of battereis?
A: Different batteries have different warranty, for general, up one year.
