Automatic 1400mm Width Aluminum Strip Winder Transformer Foil Winding Machine
Introduction
Automatic 1400mm Width Aluminum Strip Winder Transformer Foil Winding Machine BRJ1400-2 is used to wind coils made of copper or aluminum foil. This machine can handle one or two layers of conductor foil and one or two layers of insulation material (such as paper or similar). Bus bars are welded with TIG welding process. The automatic foil edge alignment will make sure that the coil edges are straight and smooth. Programming of this machine is done by means of a touch screen user interface.
Main Components
1.Main frame
2.Winding unit
3.Foil decoiler
4.Insulation decoiler
5.End-fill strip feeder
6.Cleaning system
7.Cutting system
8.Foil deburring system
9.Edge alignment system
10.Automatic welding unit
11.Electronic control system
12.Pneumatic system
Technical Parameters
Typical standard specifications of BRJ1400-2 are shown below, these can be easily modified as reqeusted.
Axial Length (foil width): | 1,400mm |
Max. OD. of Finished Coil: | 1,000mm |
Max. ID. of Finished Coil: | 130mm |
Conductor Foil Material OD.: | 1,000mm |
Conductor Foil Material ID.: | 500mm |
Number of Conductor Decoiler: | 2 |
Max. Coil Weight: | 2,500KG |
Insulation Material OD.: | ≤400mm |
Insulation Material ID.: | 76mm |
Insulation Decoiler shaft: | Expandable (pneumatic open/close action) |
Edge Alignment System: | Photoelectric sensing automatic rectifying deviation |
Rectification Precision: | ±0.5mm |
Counting Turns Range: | 0 - 9999.9 |

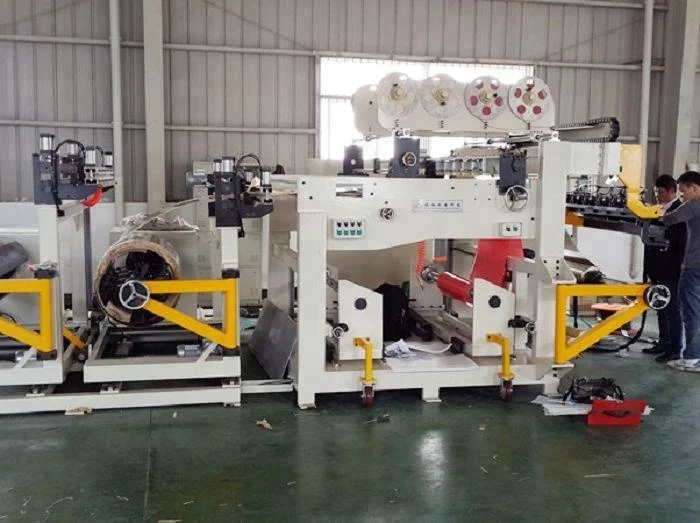

Figure 1:Automatic Transformer Aluminum Foil Making Machine BRJ1400-2's full view

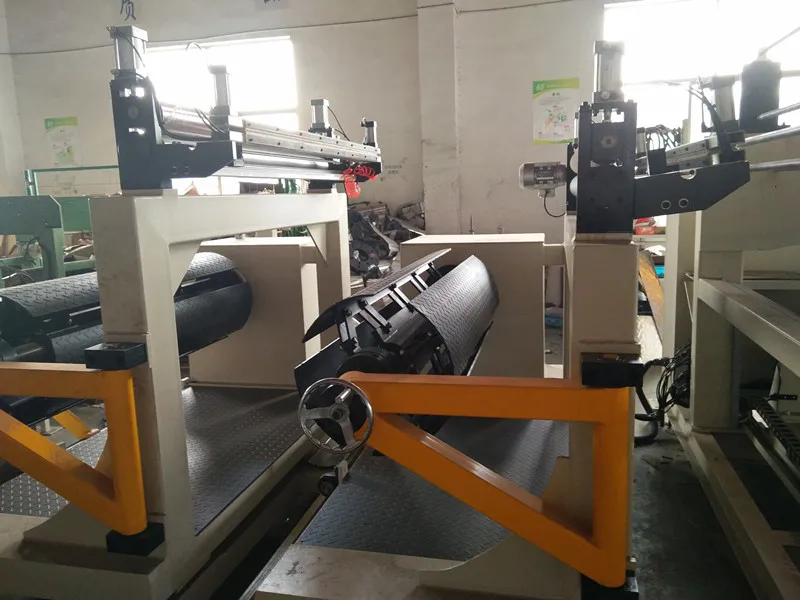

Figure 2:Automatic Transformer Aluminum Foil Making Machine BRJ1400-2's foil decoiler
