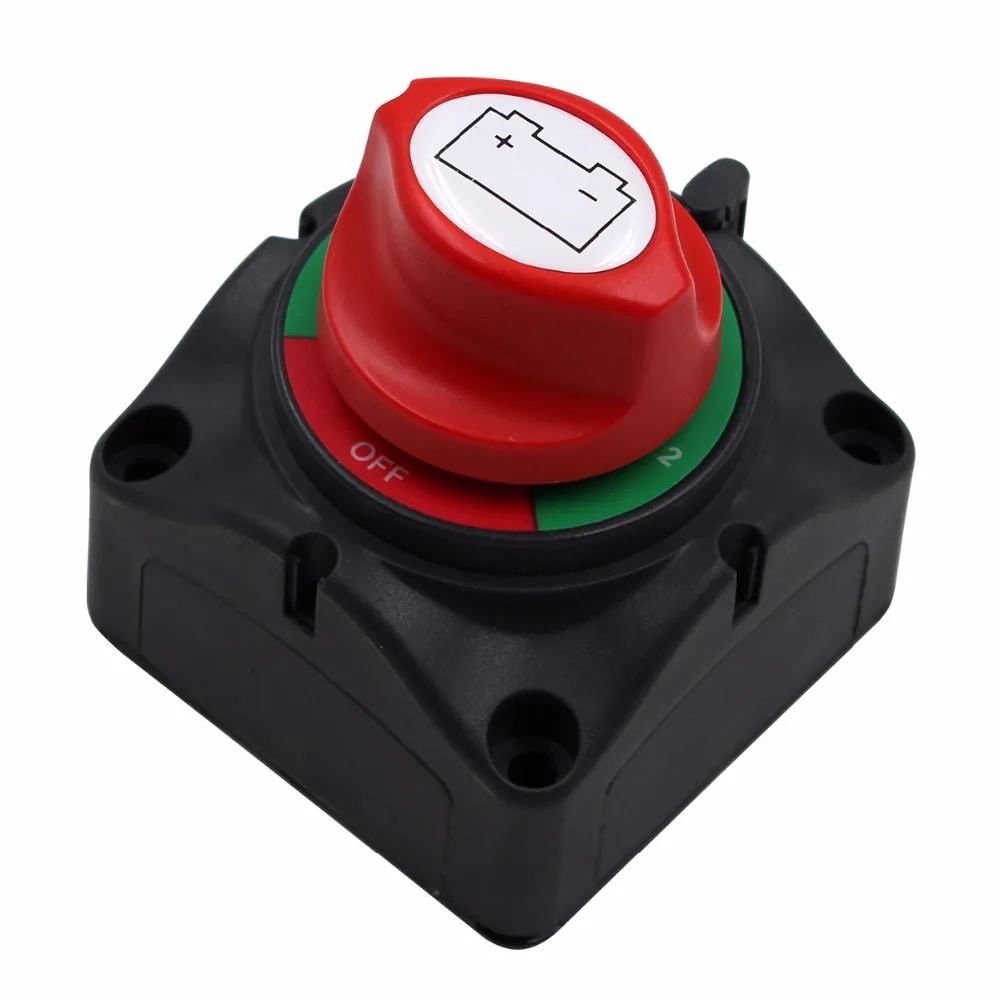

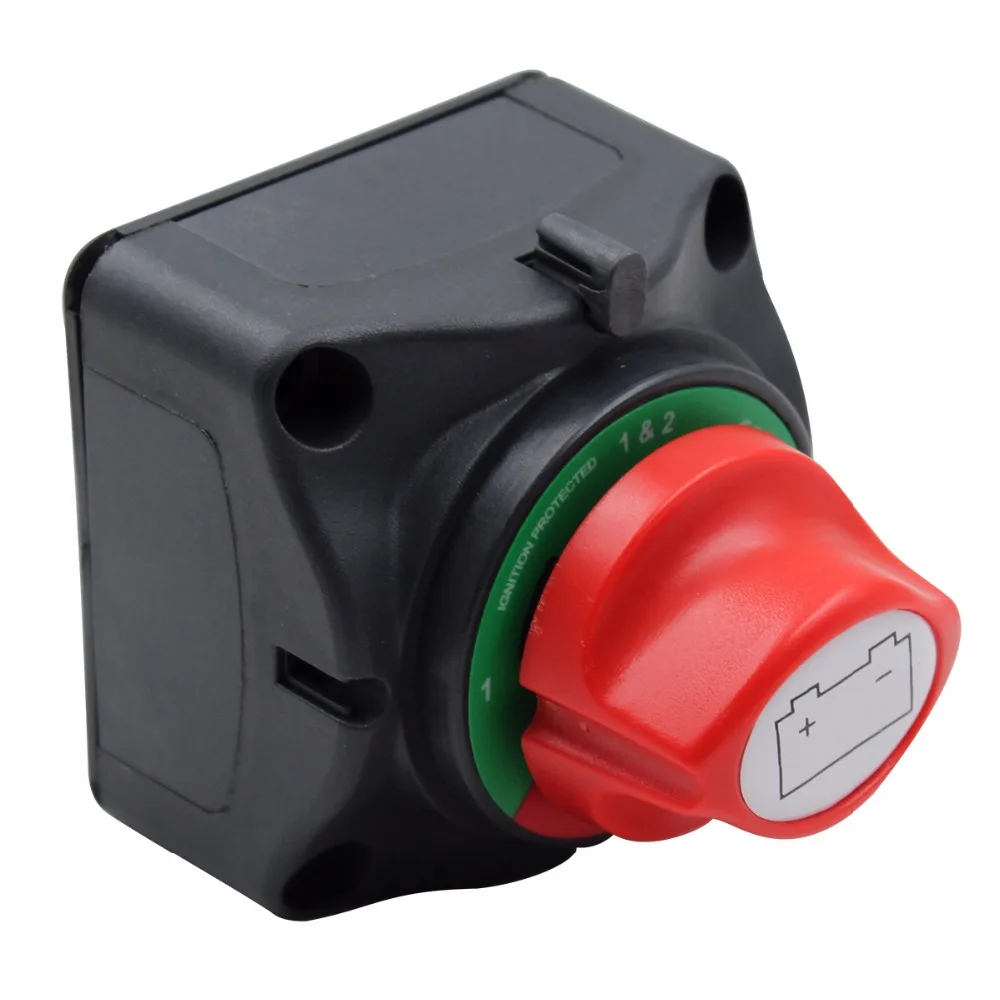

Battery Selector Switch for Marine Boat Rv Vehicles

Product Overview

Description

BEP Marine Master Battery Switch/ Electrial Selector Battery Switch 2 on off



1. Specifications

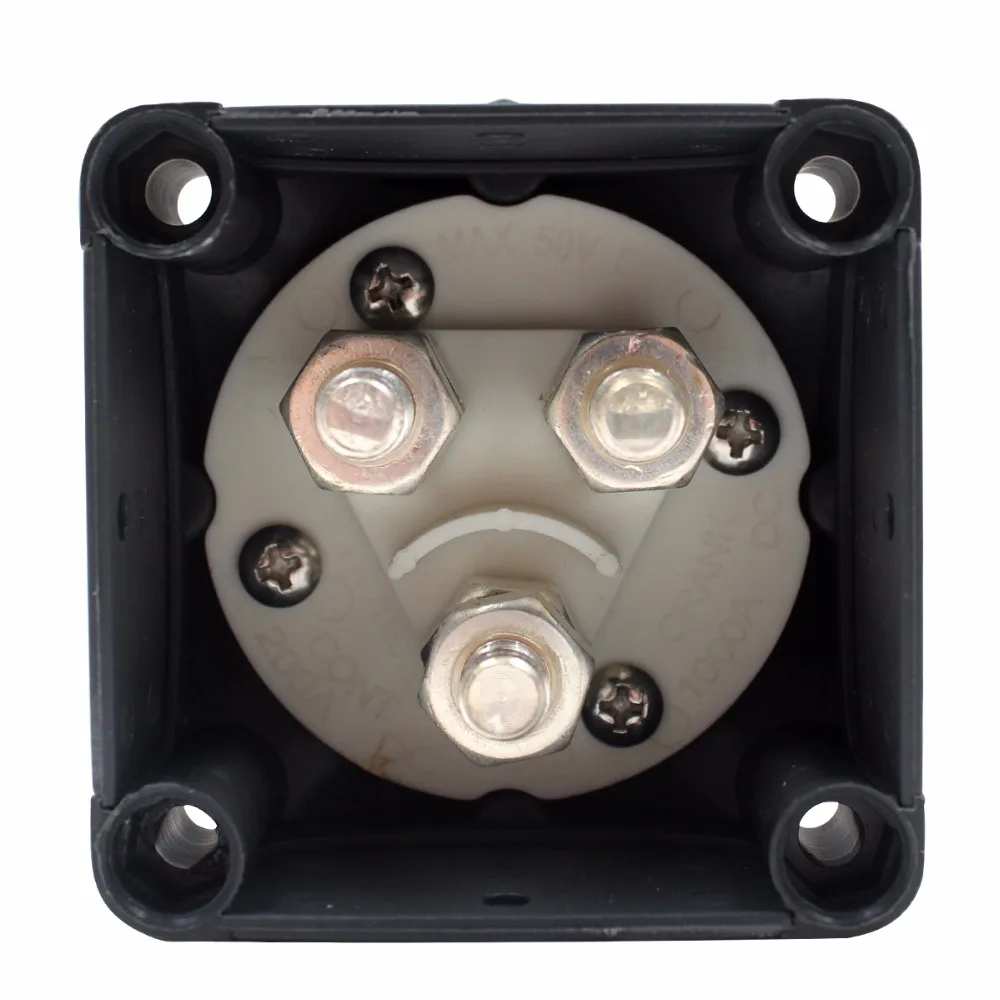

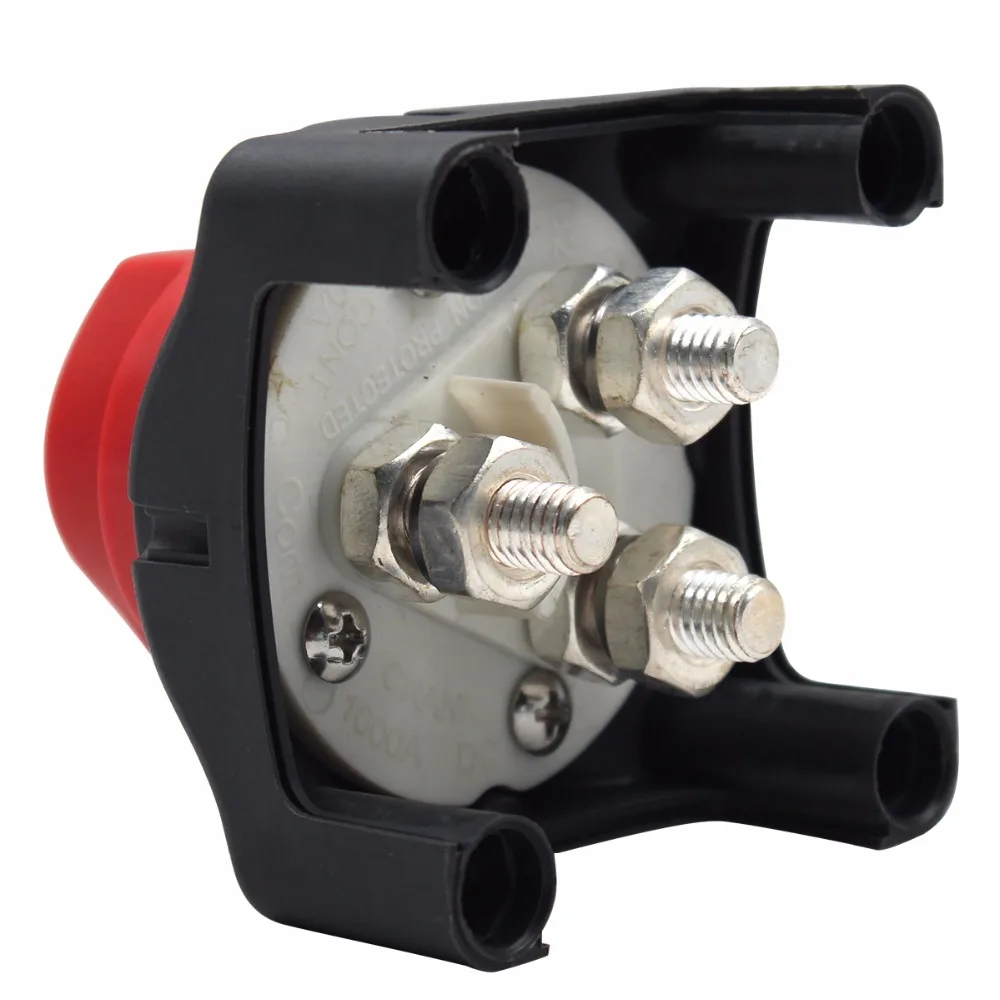

The 701-S is the most compact selector switch available on the market. Housed in the same manner as the 701 and includes the same removable side plates and back cover. This ignition protected battery selector switch offers a simple and economical way to separating two batteries. 3 x 5/16" terminal stud is tin-plated copper. Suitable for recessed or surface-mounting.

1. Continuous Rating: 200 Amps DC
2. Intermittent Rating: 300Amps DC
3. Cranking Rating: 1000 Amps DC
4. Voltage Rating: 48 Volts DC
5. Operation: 1-2-both-off
6. Mounting: Recessed or surface
7. Ignition protected

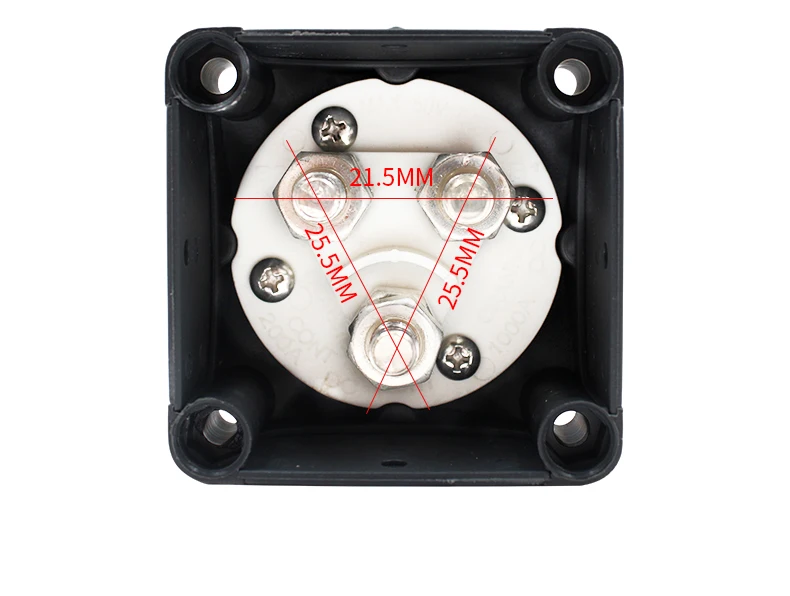

8. Termination Stud Size: 2 x 10 mm (3/8")

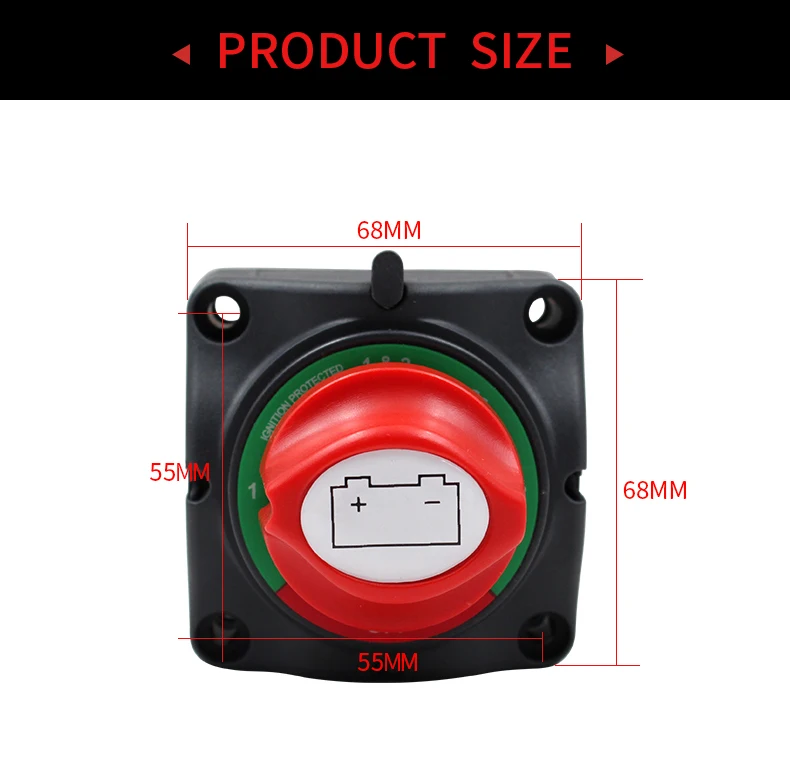

9. Dimensions: 69 x 69 x 75h mm (2.75" x 2.75" x 3")
10. Tin-plated copper studs and nuts

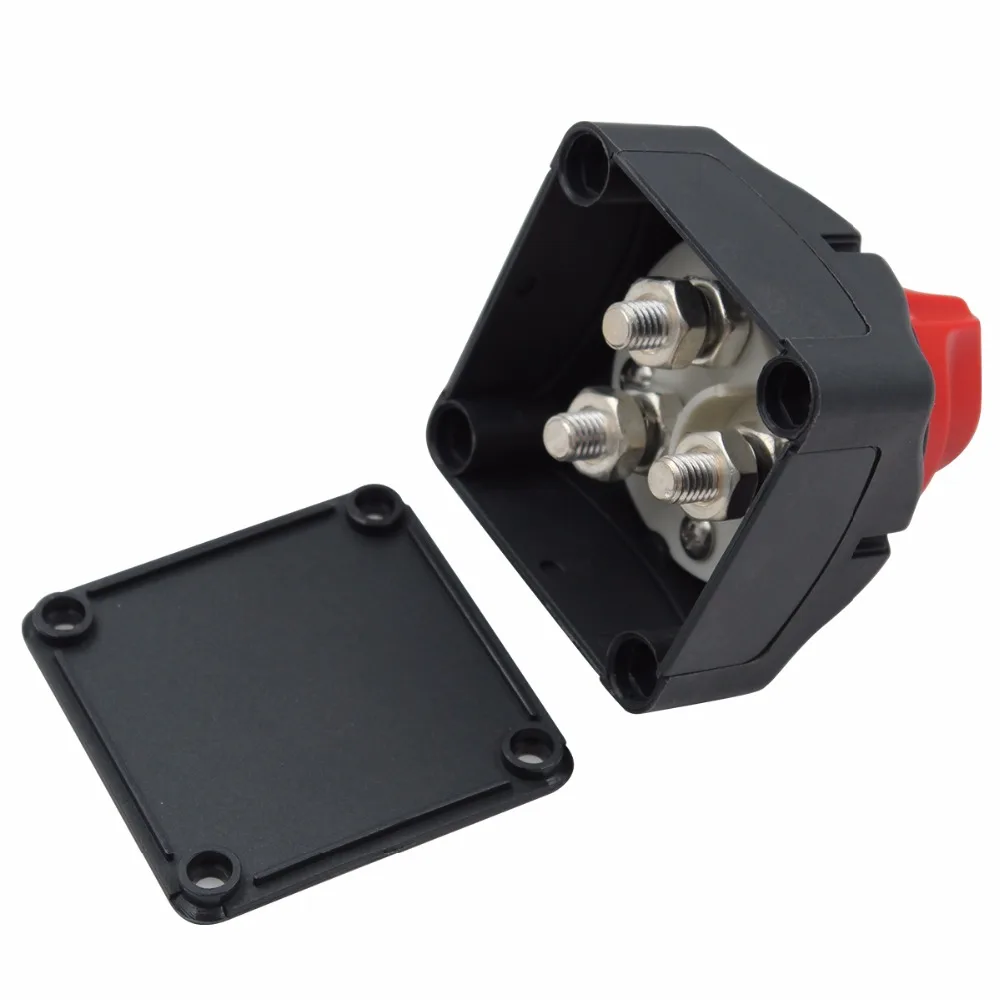

11. Removable side plates and back cover

About operation 1-2-both-off

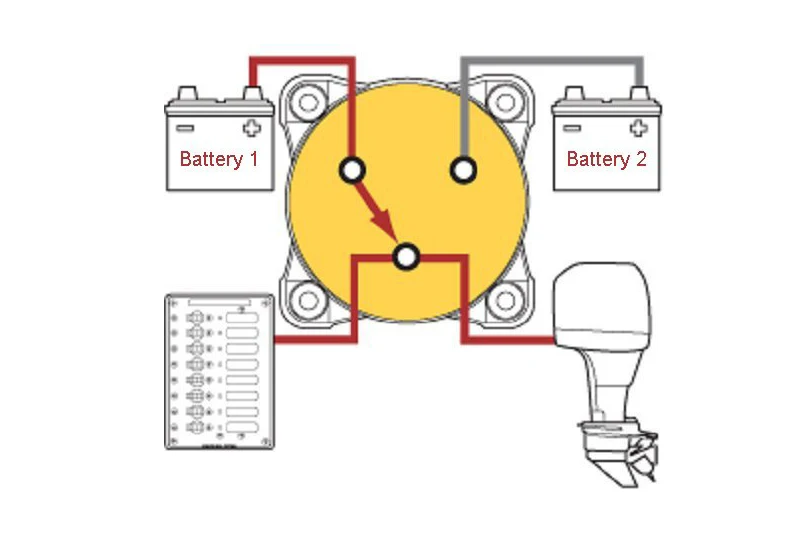

• - Use power from battery 1 only

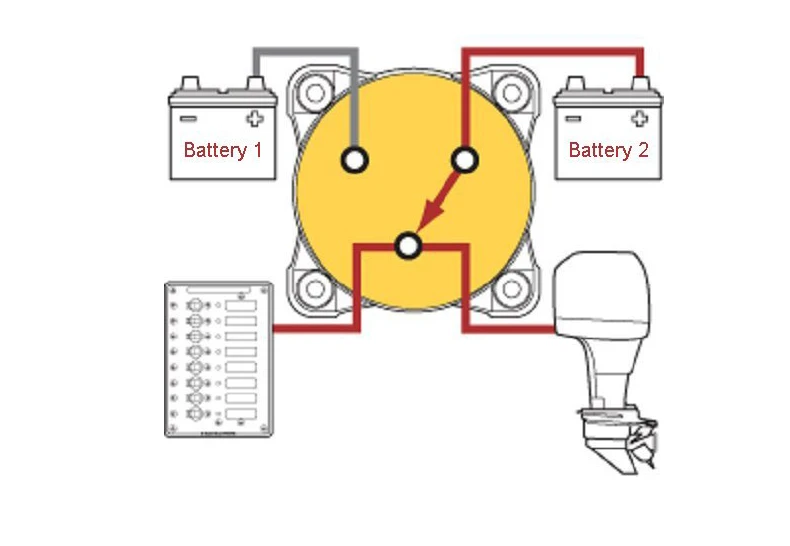

• - Use power from battery 2 only

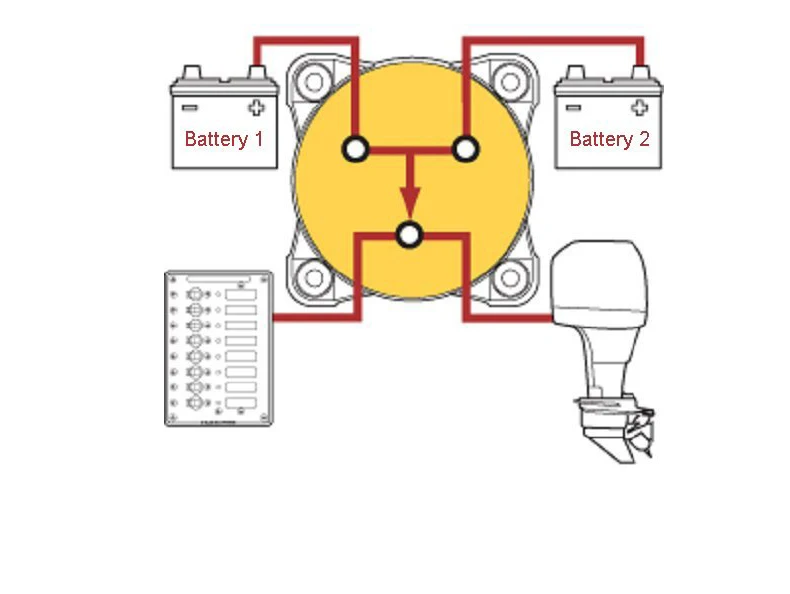

• - Use power from battery 1+2 together
• - Disconnect power from both battery together
