Frozen Green Peas Packaging Machine Manufacturer
- Category: >>>
- Supplier: Foshan Ocpack Packaging Machinery Co. Ltd.
Share on (60765695279):
Product Overview
Description
Features Show:
Machine Features

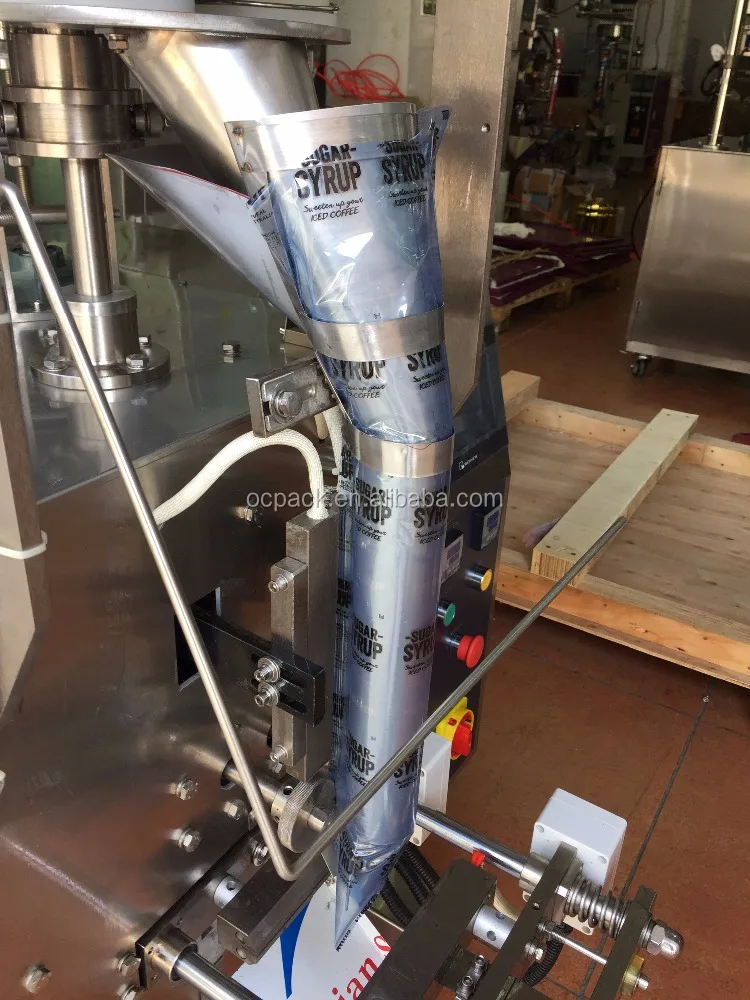

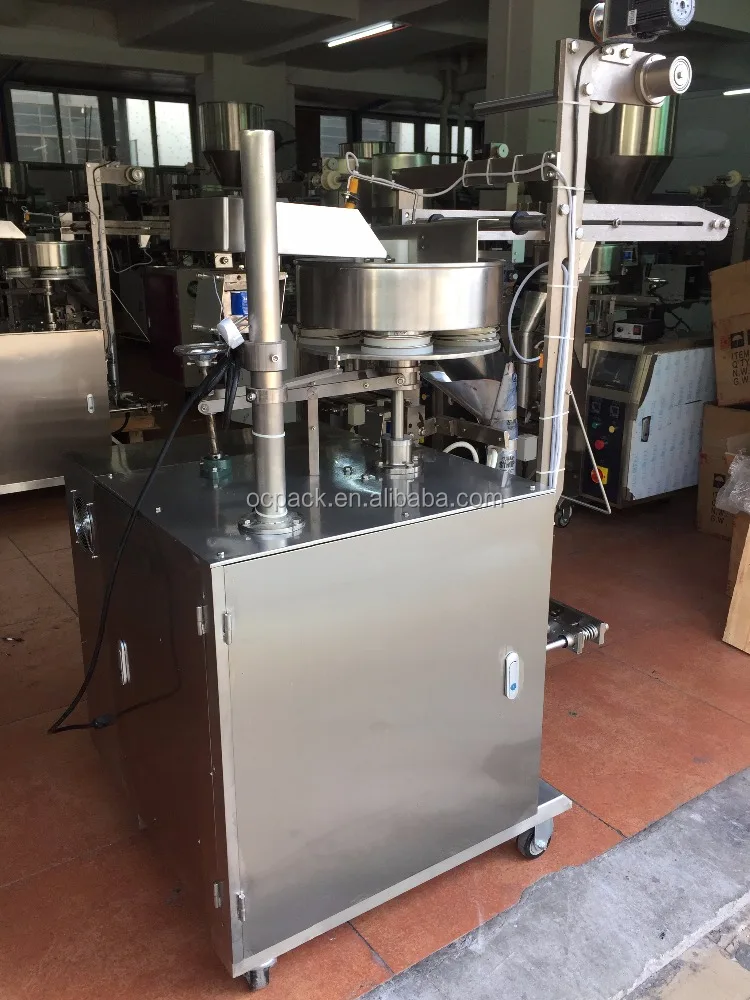

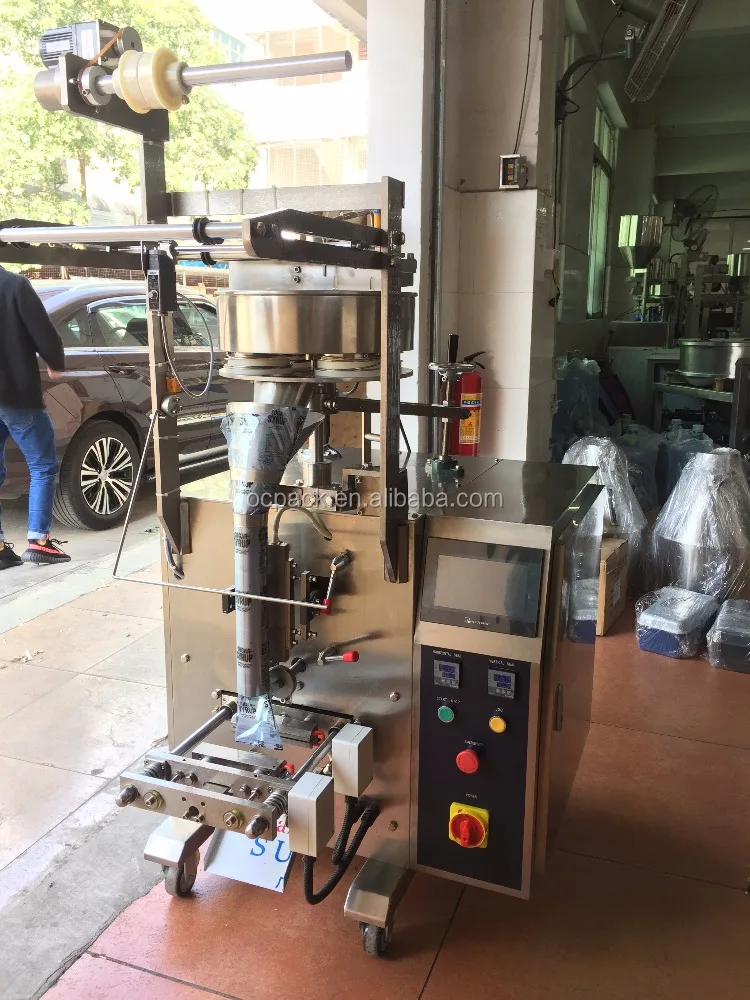

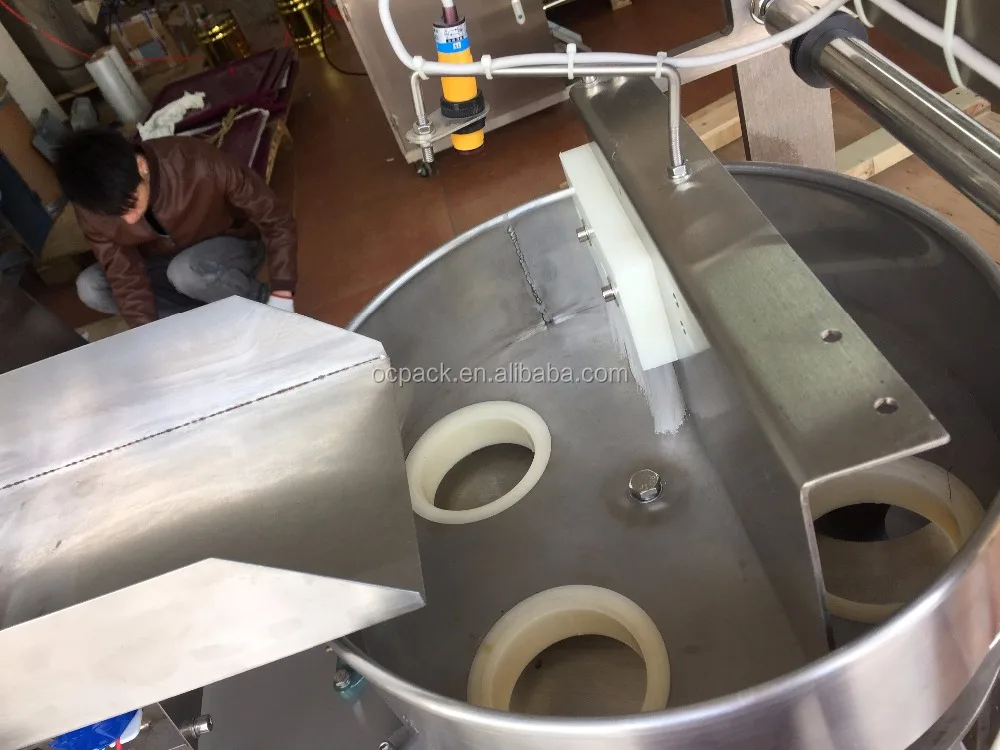

1. The cup volume packaging machine can automatically complete the products of fasteners conveying, measuring, filling, bag making, date printing, heat sealing and cutting etc.
2. Stepper motor driving system is adopted in the packaging machine.
3. To ensure the same lengthe of each bag, high sensitive electro-optical sensor system is provide to the realize automatic a lignment on the packing film.

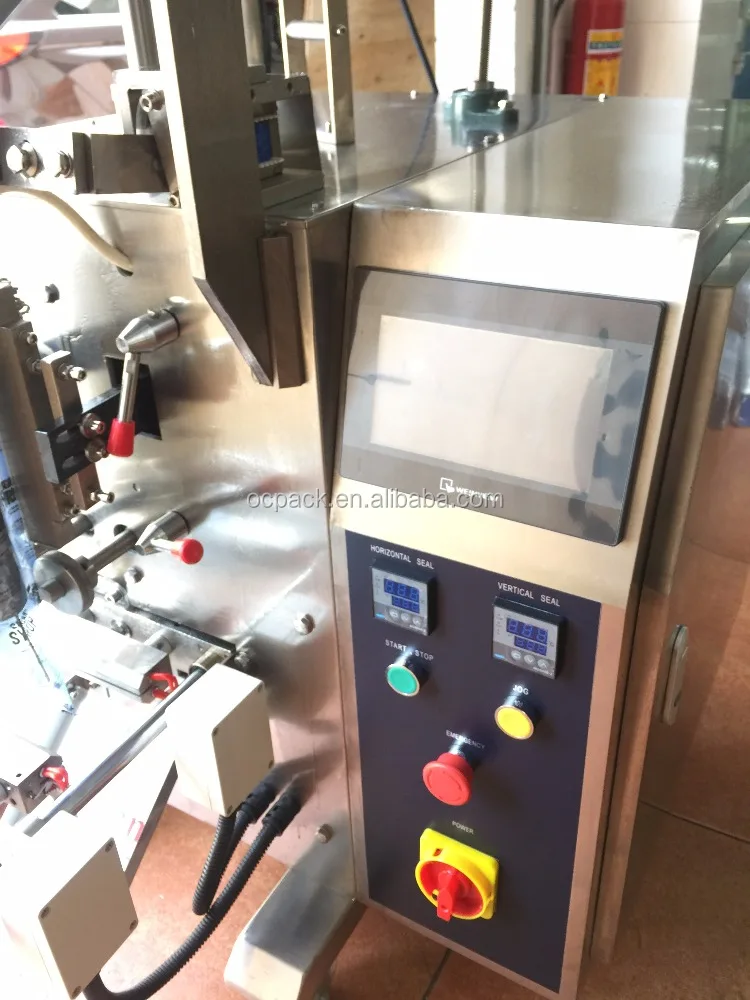

4. The packaing machine is equuipped with a computer control system.
5. We have installed constant temperture heating system ensuring stable temperture and keep temperature is +/-1°c.
6. The electroic and pneumatic components of the machine are all supplied by reliable supplier copperating with us for several years, which can ensure the quality of machine and save the cost of purchese meantime.
7. The bag size and packaging number can be customized by customers.

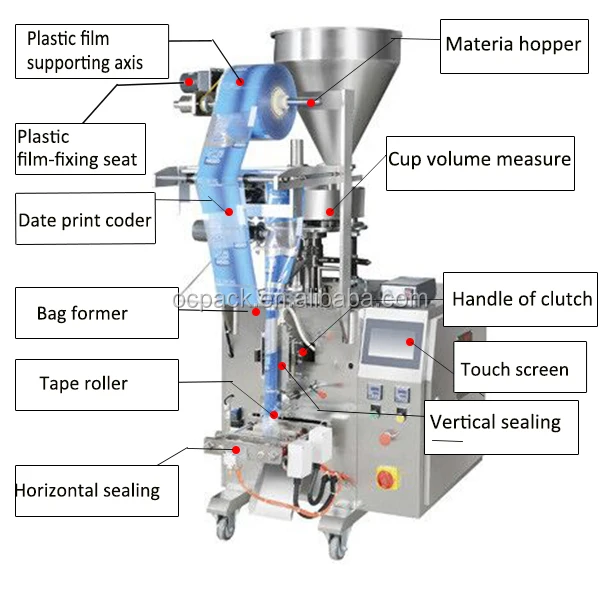

Packing Machine Form
Application rang of packaging:
Suitable for puffed food, snack, peanut, melon, seed, rice, salt, seeds, monosodium glutamate, white sugar, beans, corn, biscuit, screw, hardware, nail, nut and bolts and other granule, soliad material packaging.
Technical Parameters
| Machine Type | OC-200A | OC-320A |
| Film roll width | 30-200mm | 30-320mm |
| Bag length | 50-150mm | 50-150mm |
| Measurment rang | 50-250ml | 50-500ml |
| Packing speed | 30-80bags/min | 30-80bags/min |
| Roll fim Diameter | Max.300mm | Max.300mm |
| Packaging film thickness | 0.04-0.08mm | 0.04-0.08mm |
| Powder | 220-380v, 50/60HZ, 2.2KW | 220-380v, 50/60HZ, 1.2KVA |
| Machine weight | 300kg | 350kg |
Packaging Materail: Laminated heat-sealing plastic film.
Like OPP/CPP,OPP/CE, PET/PE ETC.
Bag type: Pillow back sealing,3/4 sides sealing, hole punch, bag linking, easy tear etc.
Optional Device: Date Coder, Air-Filling Device, Puching Device. Linking Bag Device.

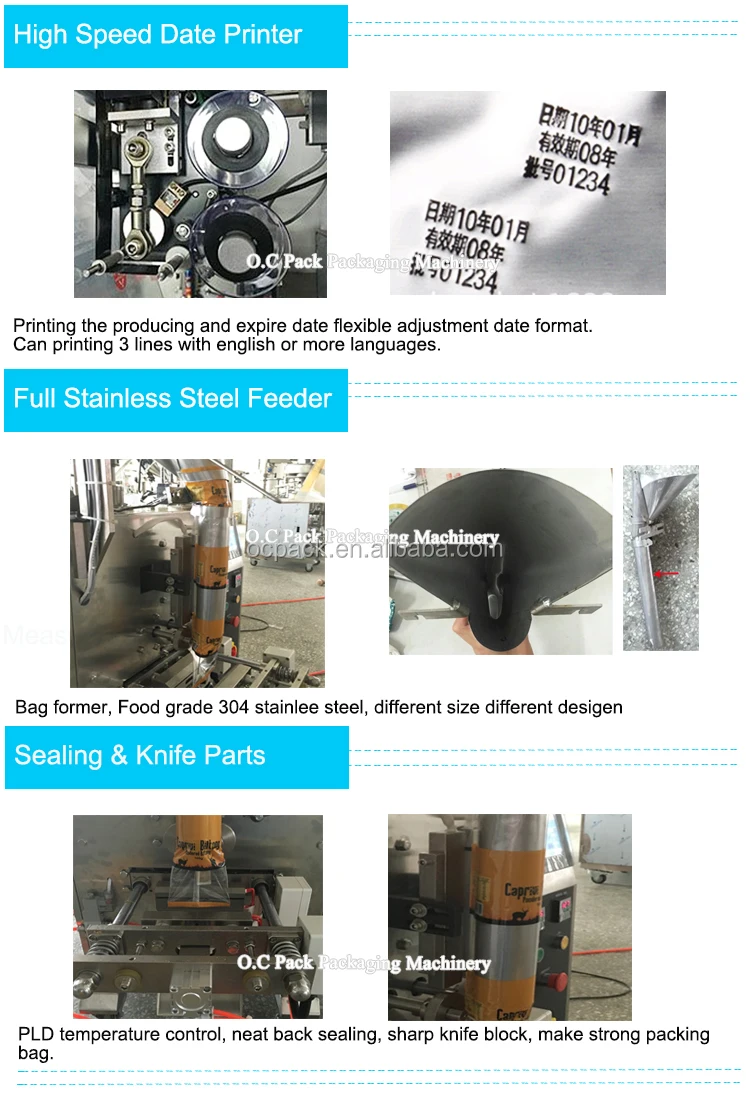

More Quality Show

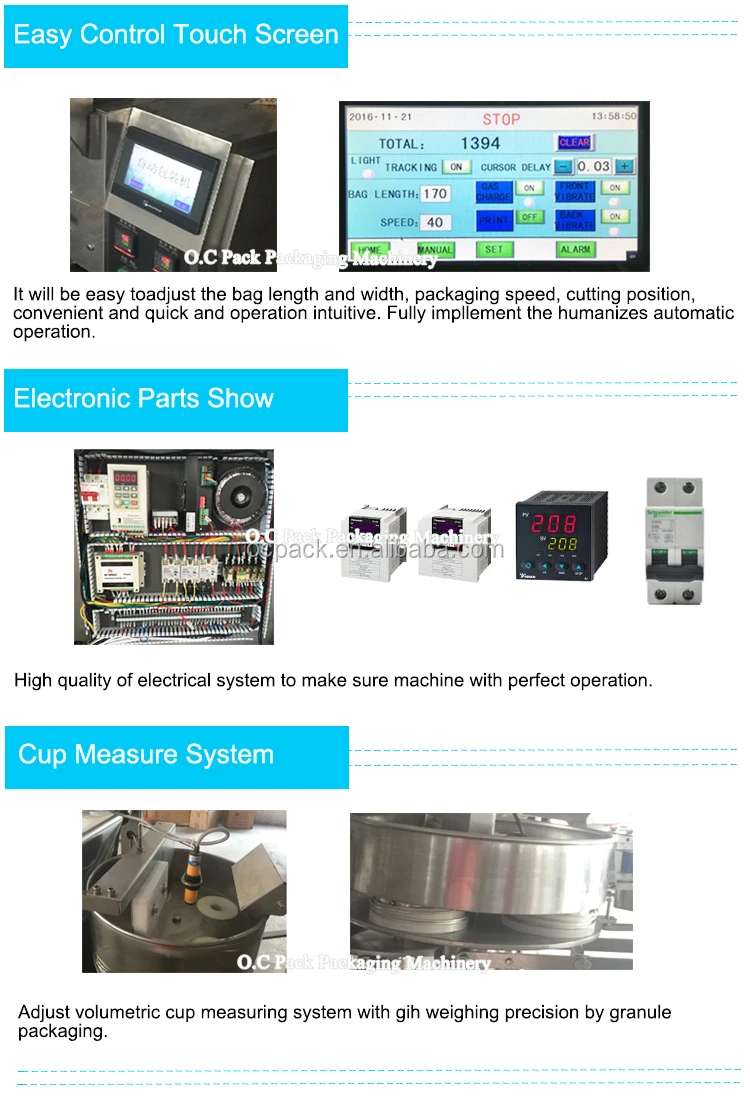

Origin of each components:
| Item | Brand | Origin |
| Touch screen | Siemens | Germany |
| PLC controller | Siemens | Germany |
| Servo motor | TECO | Taiwan |
| Relay | Omron | Japan |
| Solid phase | Schneider | France |
| Switch series | Schneider | France |
| Module | Siemens | Germany |
| Inverter | Schneider | France |
| Date printer | Dikai | Shanghai |
Our Service
Our Service
>>Pre-sale Service
We will confirm customers' requirement clearly before giving suggestions to customers to make sure the suggestion we give you is match your requirement. Then will give you good quotation.
1. Pick the client in hotel and airport or station to visiting our factory.
2.Before your order also learn how to using machine.
>>In-sale Service
After placing order to our produce department, we will follow well your orders and inform you the production status. We will supply you photos.
Let me show you what is the production process of packaging machine.
>>After-sale Service
1. We can provide training your technicians, their accommodations will be free.
2. We will make the training VCR and send them to you to help your customers.
3. If there is any problems and wrongs on your machine, we will give you a quick reaction and solution once we receive the information from you. We will try our best at the earliest time.
4. Local service agent is available, in order to better support our local end-users, we can arrange our local agent to make installation, commission and training. Of course, if needed, we can arrange our servicemen to service you according to our company oversea service standard.
5. We guarantee the whole machine for 24 months, except the fragile parts, starting from the day which the machine is dispatched plus one month. e.g. If the machine leaves our factory on June.1st, 2018, the warranty will end on July 1st, 2019.
6. Within warranty, both mechanical and electronic parts could be replaced free of charge. All damages caused by improper use are excluded. Customers are required to send back the damaged parts no later than one month.
7. Out of warranty period, free spare parts will no longer provided.
8. Offer you 24-hour technical support.
Company History:
Company Advantage
1. Factories area with over 6000 square meters.
2. Worker more then 300 peoples, has a professional production R7D team, can provide customized services and OEM production services.
3. 16 years automatic packaging machine design and manufacturer experience.
4. Export to 50 countries, Hope our packaging machine can be found all over the world
5. 2 years warranty of electronic parts and Lifetime maintenance.
Payment & Packaging
Packaging Detail
Upon receipt of payment , delivery date will be in 10-25days,
By Air, by Sea or by Express (DHL etc)
Shipment cost will depend on the destination, shipment way and the weight of the goods.
Payment Term
We are accept T/T, L/C, CASH, WESTERN UNION OR TRADE ASSURANCE.
How to get the packing machine?
Export Manger: Lana
Tel/whatsapp:008613928606931
Skype:008613928606931
Any question please feel free contacts us.
Thanks & Begards.
Contacts Us
Kindly Reminder
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
1. Product details or picture
2. Bag/film width and length
3. Bag shape or Photo
4. Packing film material
5. Machine Modle or products link
Send your Inquiry Details in the Below, Click "Send" to get Quotation Now!
Export Manger: Lana
Tel/whatsapp:(0086)13928606931
Skype:(0086)13928606931
Any question please feel free contacts us.
