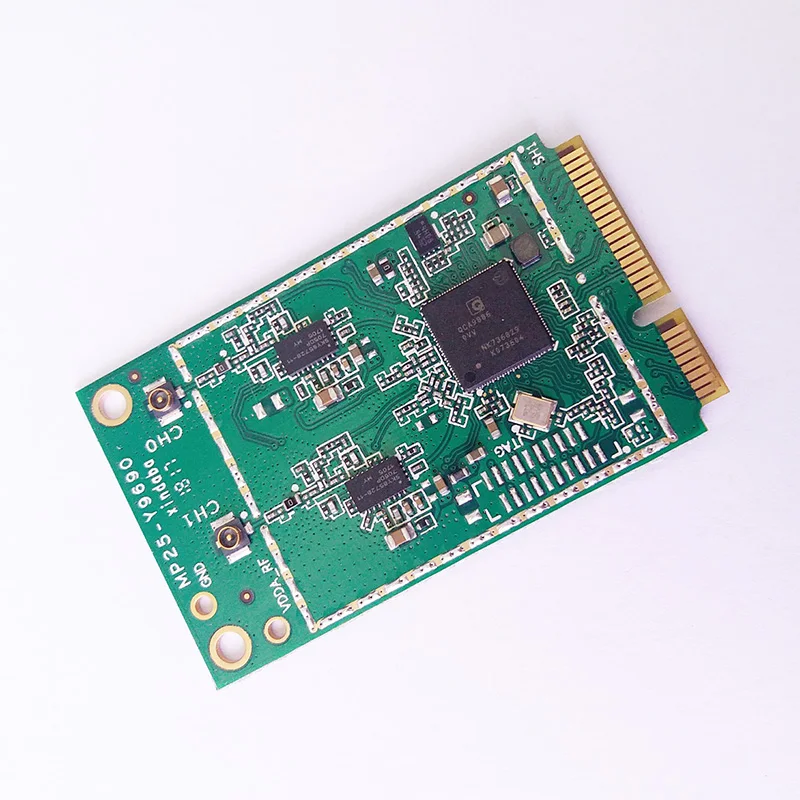

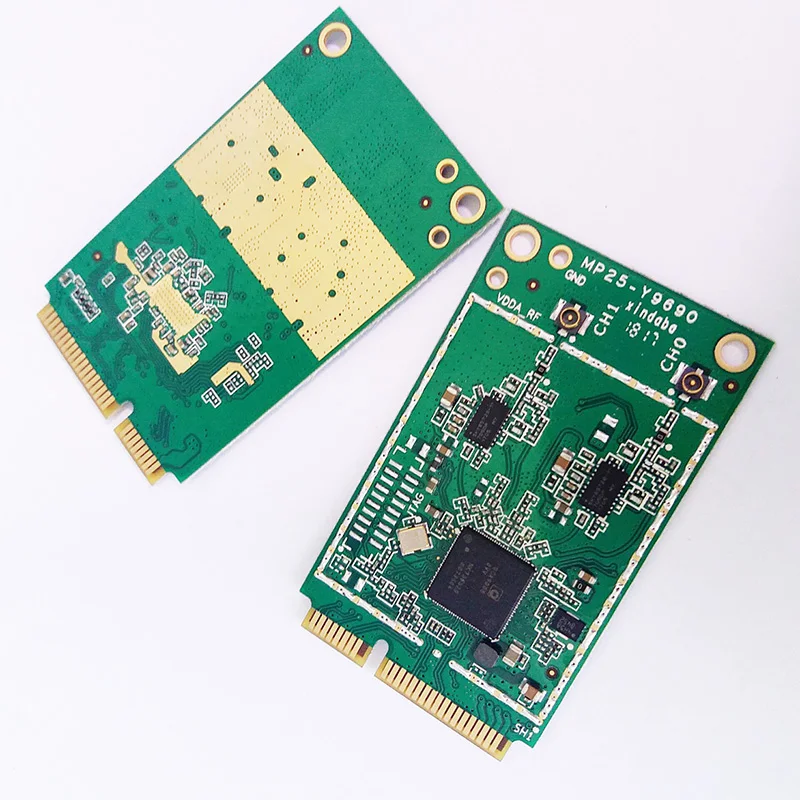

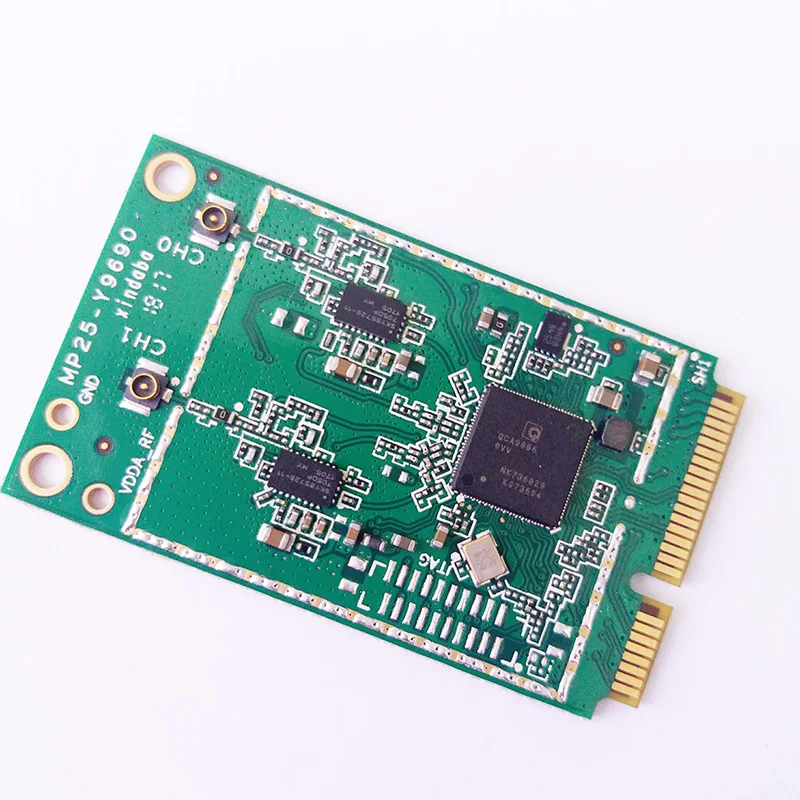

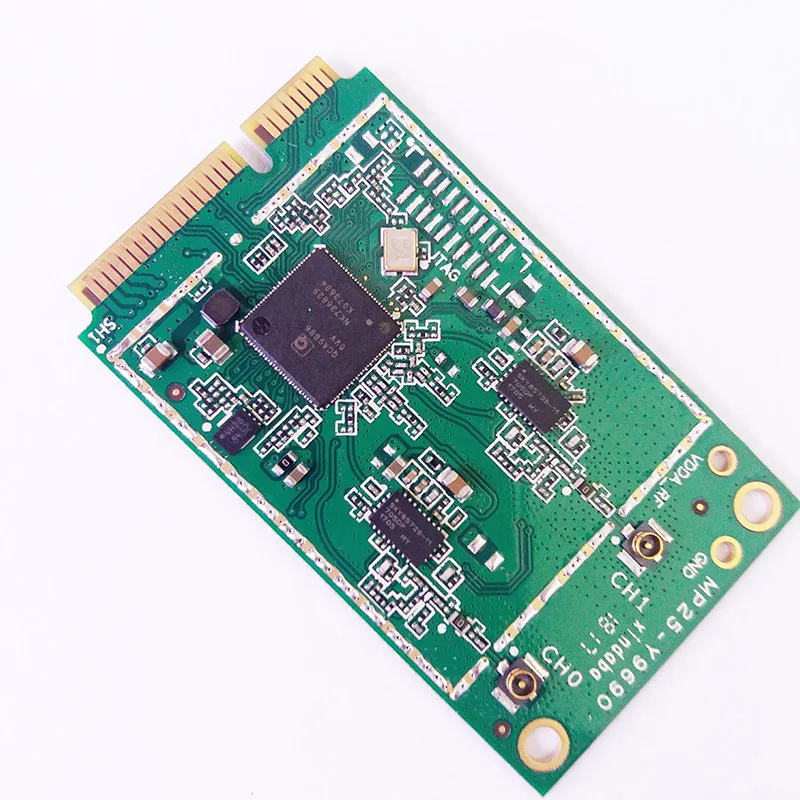

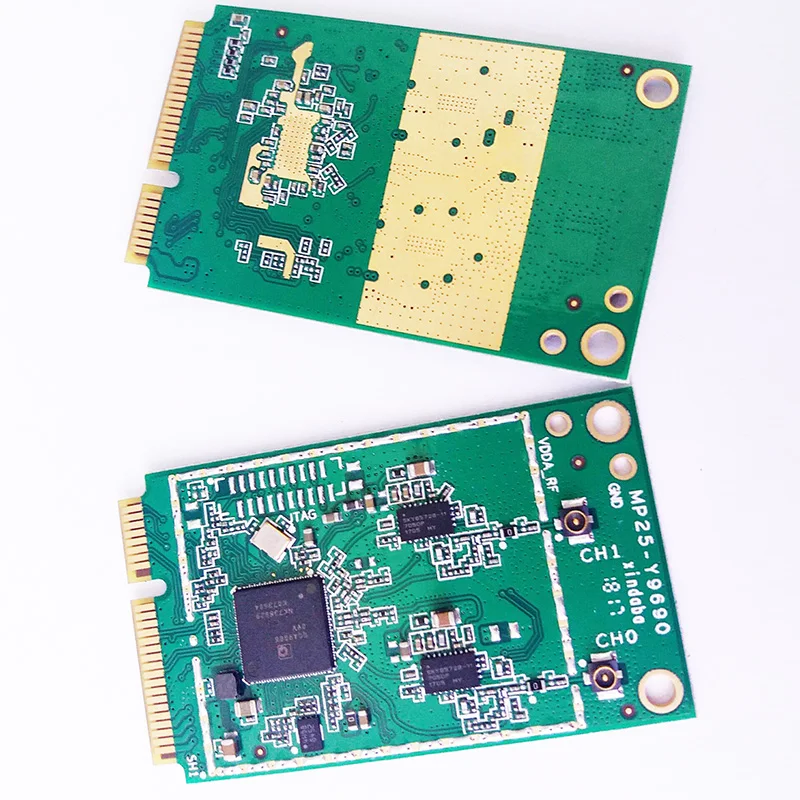

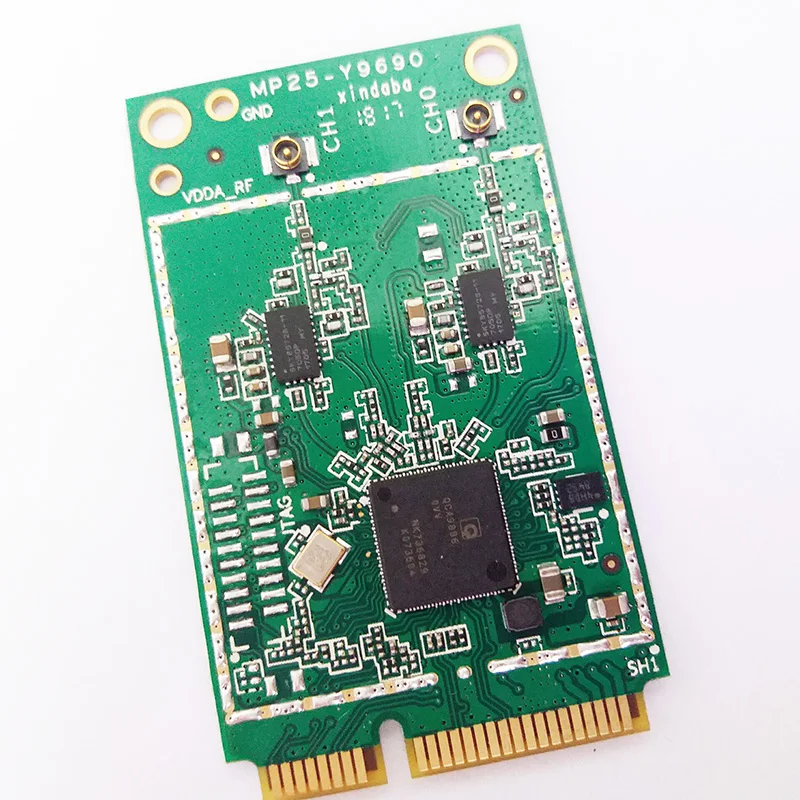

qca9886 high power 802.11ac PCIE low cost mini wifi direct module with built in antenna
- Category: >>>
- Supplier: Shenzhen Xindaba Electronics Co. Ltd.
Share on (60765710161):
Product Overview
Description
qca9886 high power 802.11ac PCIE low cost mini wifi direct module with built-in antenna
Product Description
Product Description of QCA9886 4g lte cpe industrial wifi router
The PQI20 with QCA9886 is a highly integrated wireless local area network ( WLAN ) system for 5GHz 802.11ac WLAN applications. The QCA9886 implements half-duplex OFDM, CCK, and DSSS PHY, supporting 867Mbps for 802.11ac 80MHz channel operation in 5GHz mode and IEEE 802.11a/n/ac data rates. The QCA9886 supports 802.11 wireless MAC protocol, 802.11i security, Wi-Fi offload, error recovery, and 802.11equality of service (QoS).
The QCA9886 supports up to two simultaneous spatial streams integrating two Tx and two Rx chains forhigh throughput and extended coverage. Tx chains combine PHY in-phase (I) and quadrature (Q) signals, convert them to the desired frequency, and drive the RF signal through external power amplifiers (PAs). Rxchains receive from antennas through external LNAs. The frequency synthesizer supports 1-MHz steps to match frequencies defined by IEEE 802.11a/n/ac specifications. The QCA9886 supports frame data transfer to and from the host using a PCIE interface that supports interrupt generation and reporting and status reporting
A major feature of this module is its high power, you can connect extra 5V for the module, then more stable signals and wider coverage are obtained. Another feature supports the MMCX connector. This will make your use experience even better.
Overview:
1. QCA9886 2*2 MIMO 5GHz WiFi 802.11 a/n/ac
2. 32K EEPROM
3. Integrated CPU for Wi-Fi offload with memory and On-chip OTP memory.
4. Support for up to two spatial streams
5. Supports 20/40/80 MHz at 5 GHz
6. Data rates of up to 867 Mbps in 802.11ac 80 MHz channels using reduced (short) guard interval (GI)
7. Multi-user MIMO (MU-MIMO) beam former
8. 802.11ac explicit transmit beam forming (TxBF) and legacy implicit TxBF for both beam former and beamformee
9. Supports spatial multiplexing, cyclic-delay diversity (CDD), low-density parity check (LDPC), maximal ratio combining (MRC), Space Time Block Code (STBC)
10. Support for locationing (RSSI and RTT-based, 802.11REVmc compliant)
11. AES-CCMP at 128/256 bits; AES-GCMP at 128/256 bits; WEP, TKIP hardware encryption; WAPI hardware encryption
12.1*PCI Express 1.1 interface(Used by QCA9886)
13. 11*GPIOs
14. Extra 5V for the module
15. supports the MMCX connector
16. Size:30.0 mm* 51.0 mm.

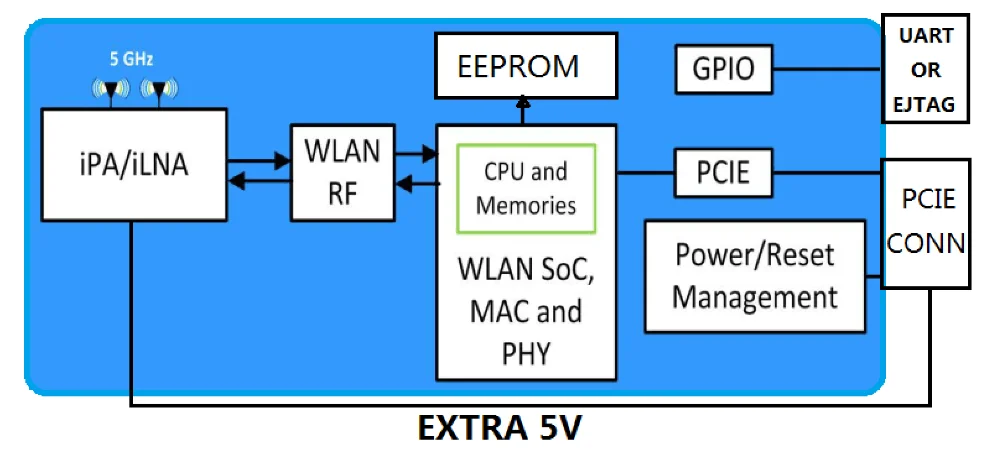

Functional block diagram
The general Hardware architecture is shown below Figure:
Application
It can adapt to different working environment, and make it easily access the wireless network for laptop, MID Tablet PC, mobile phones, network cameras, set-top boxes, GPS and other wireless networking devices .
