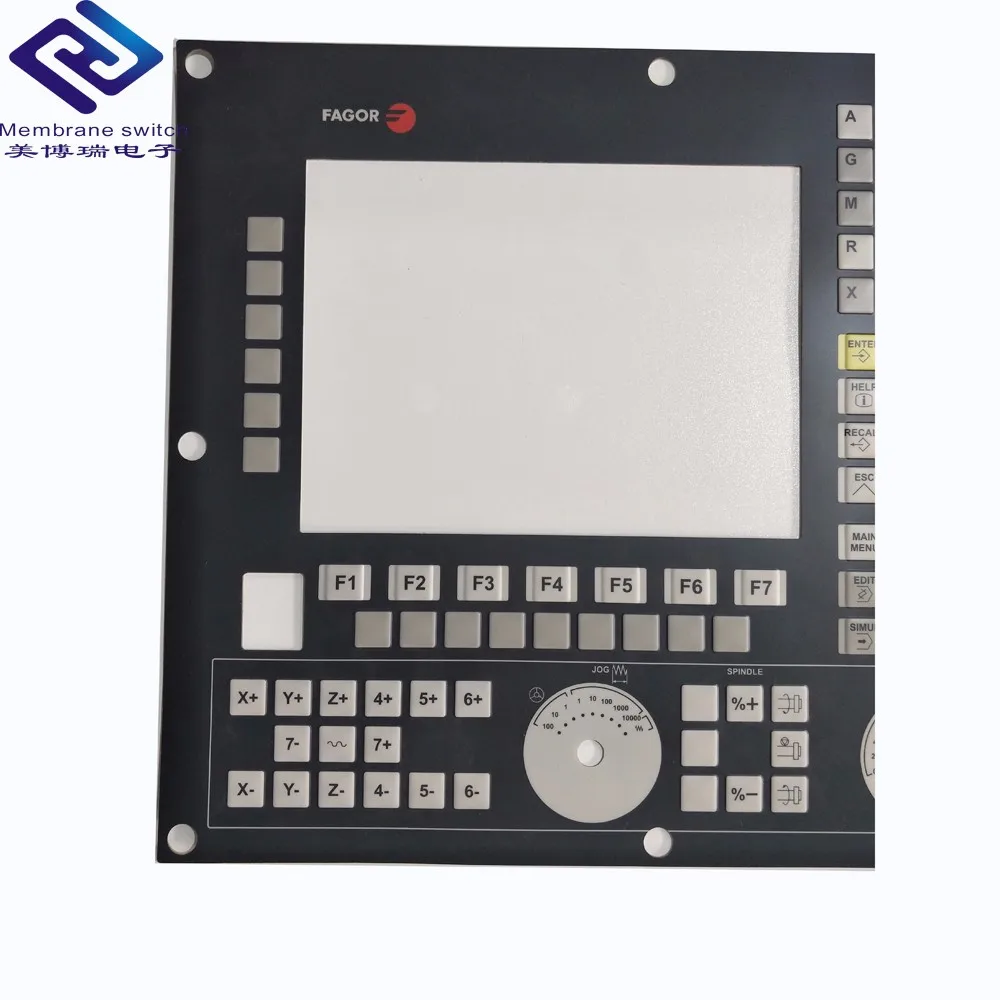

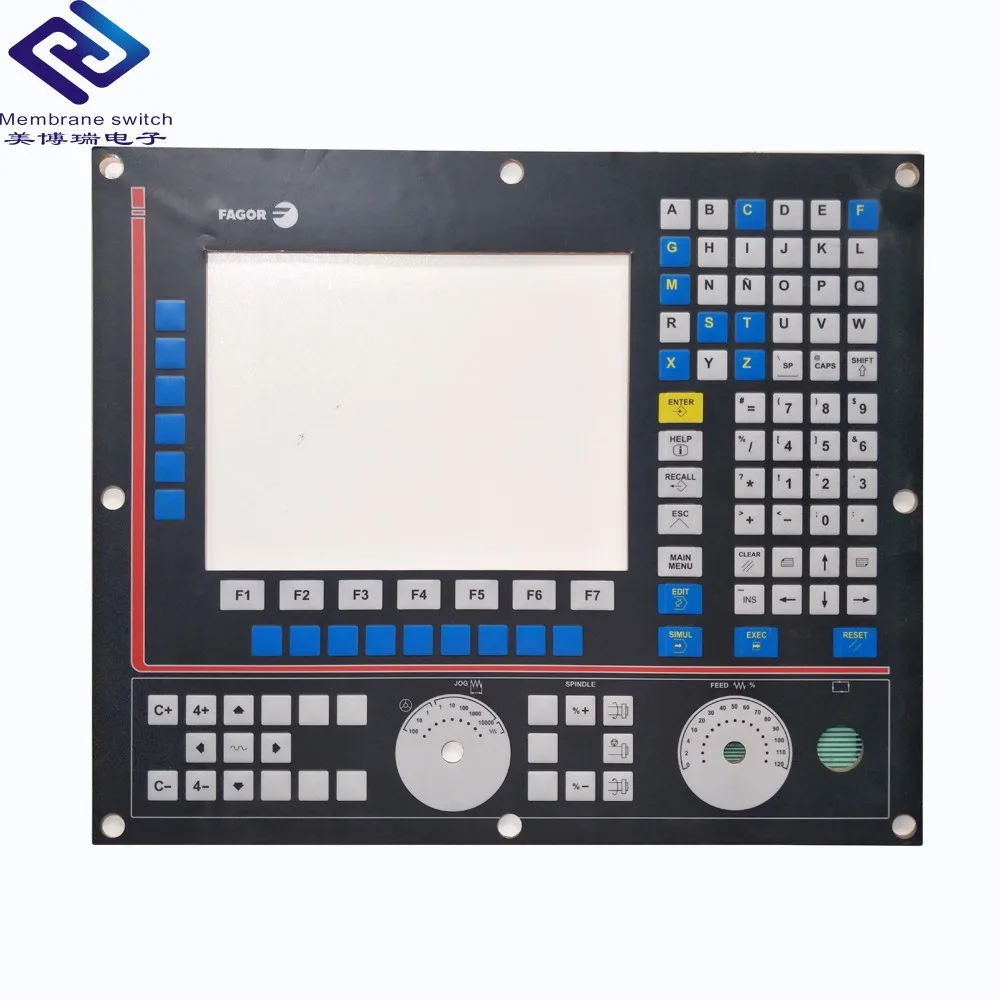

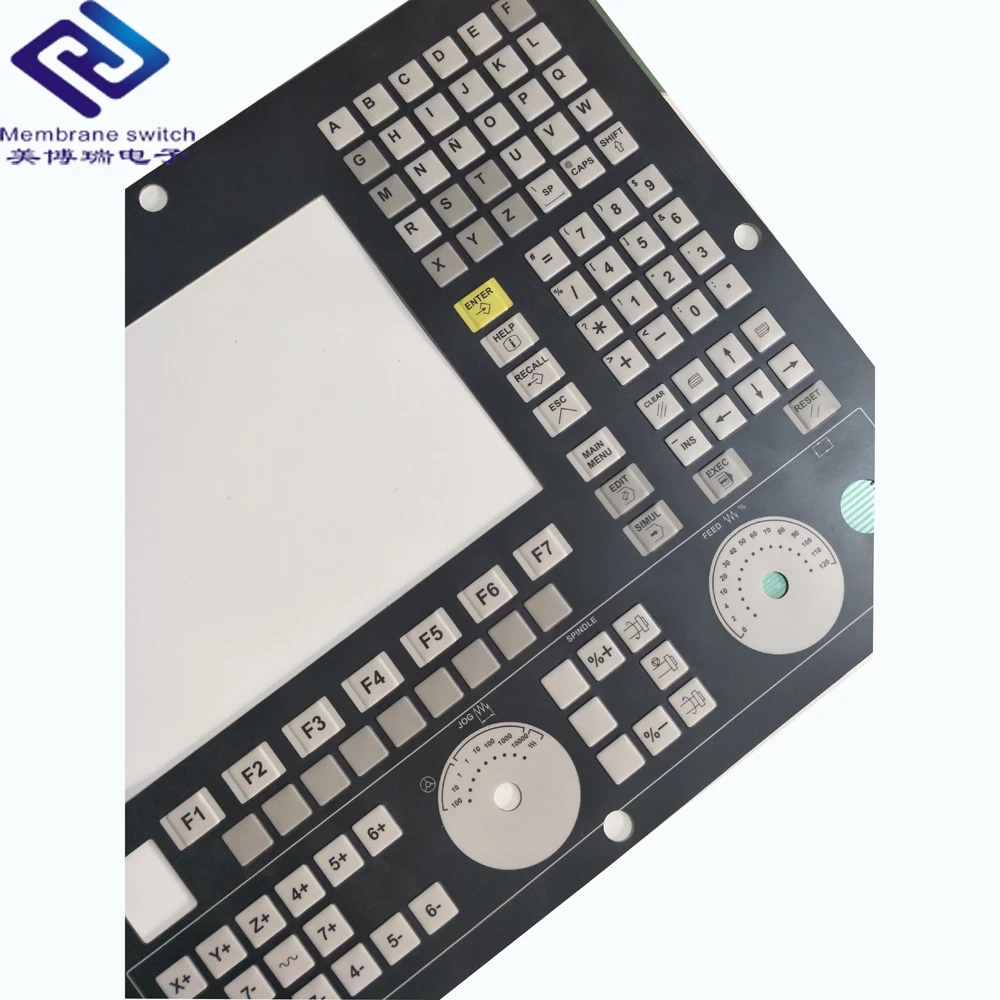

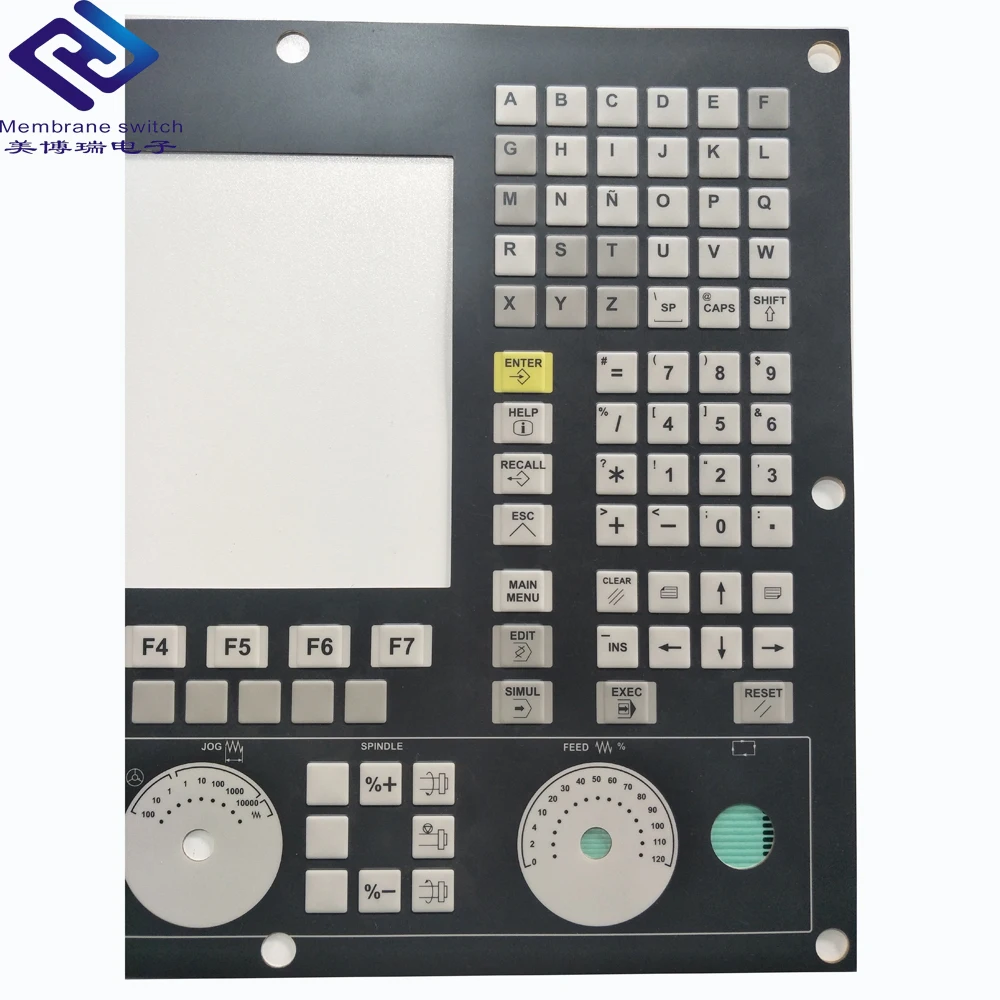

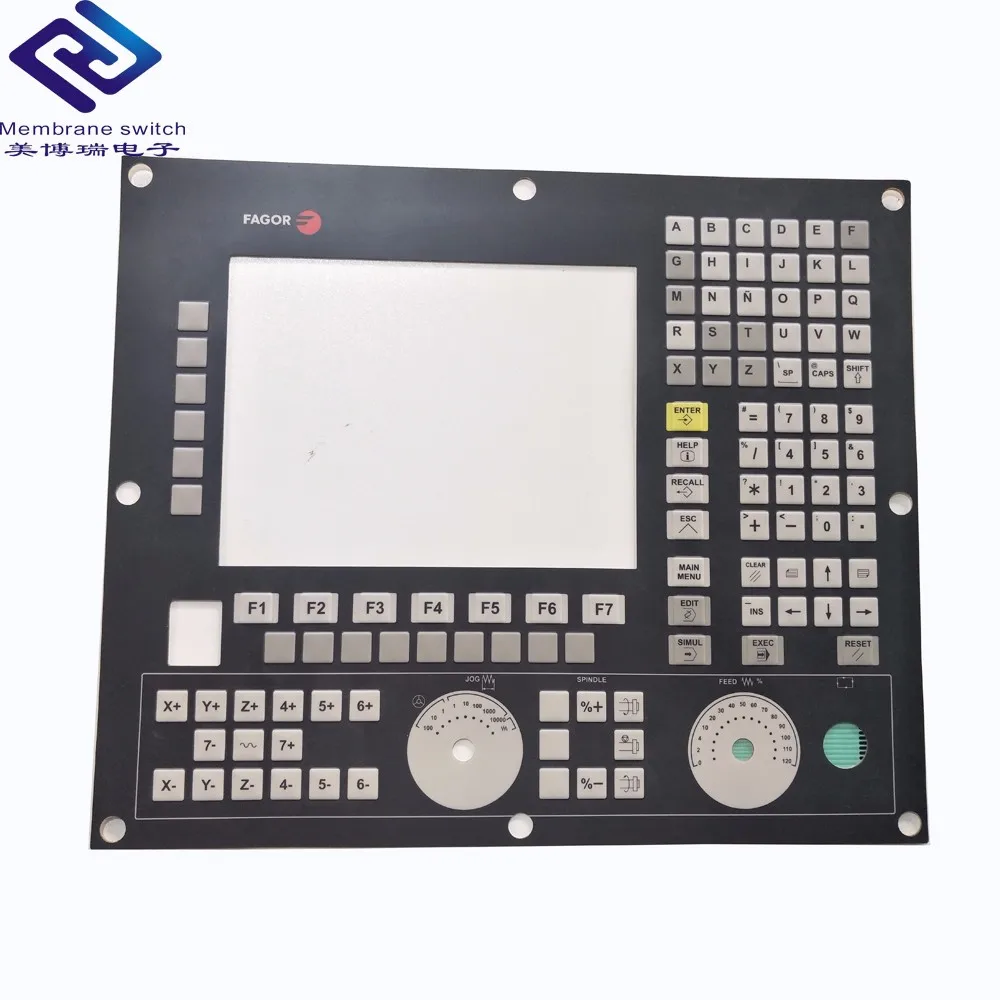

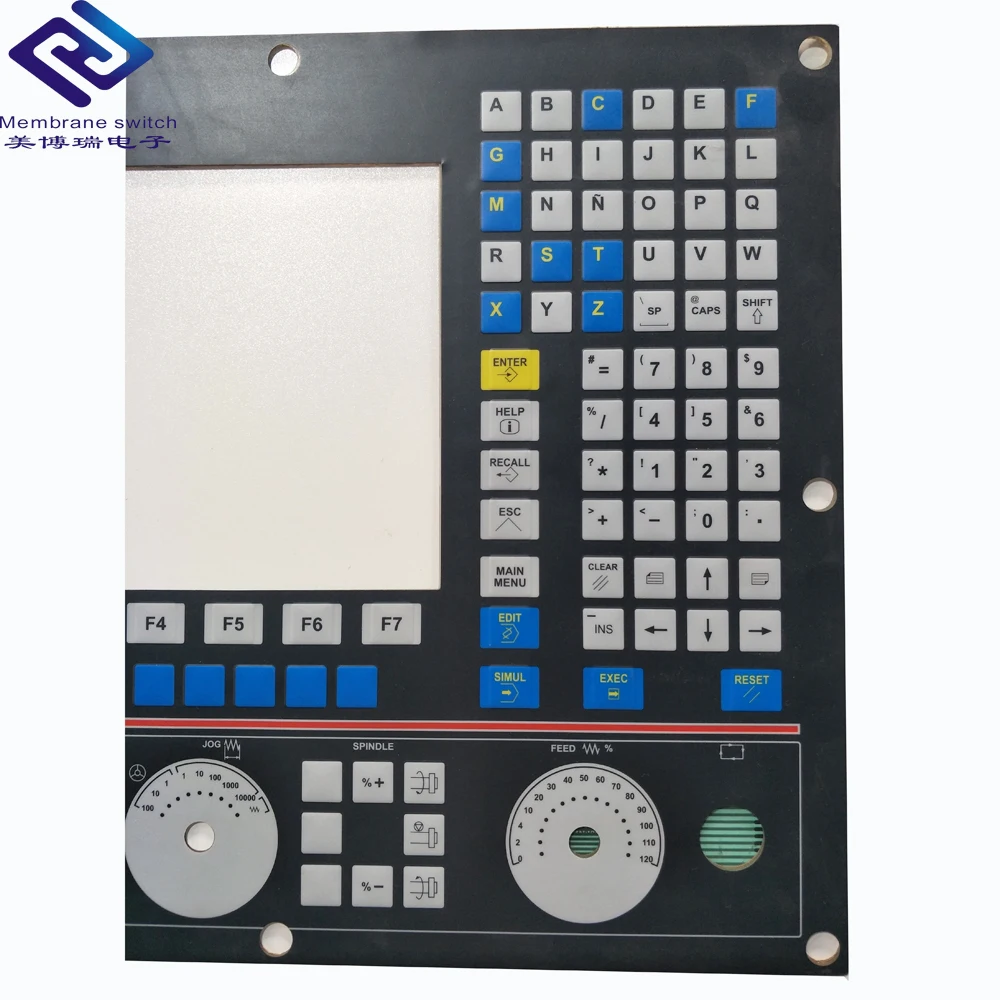

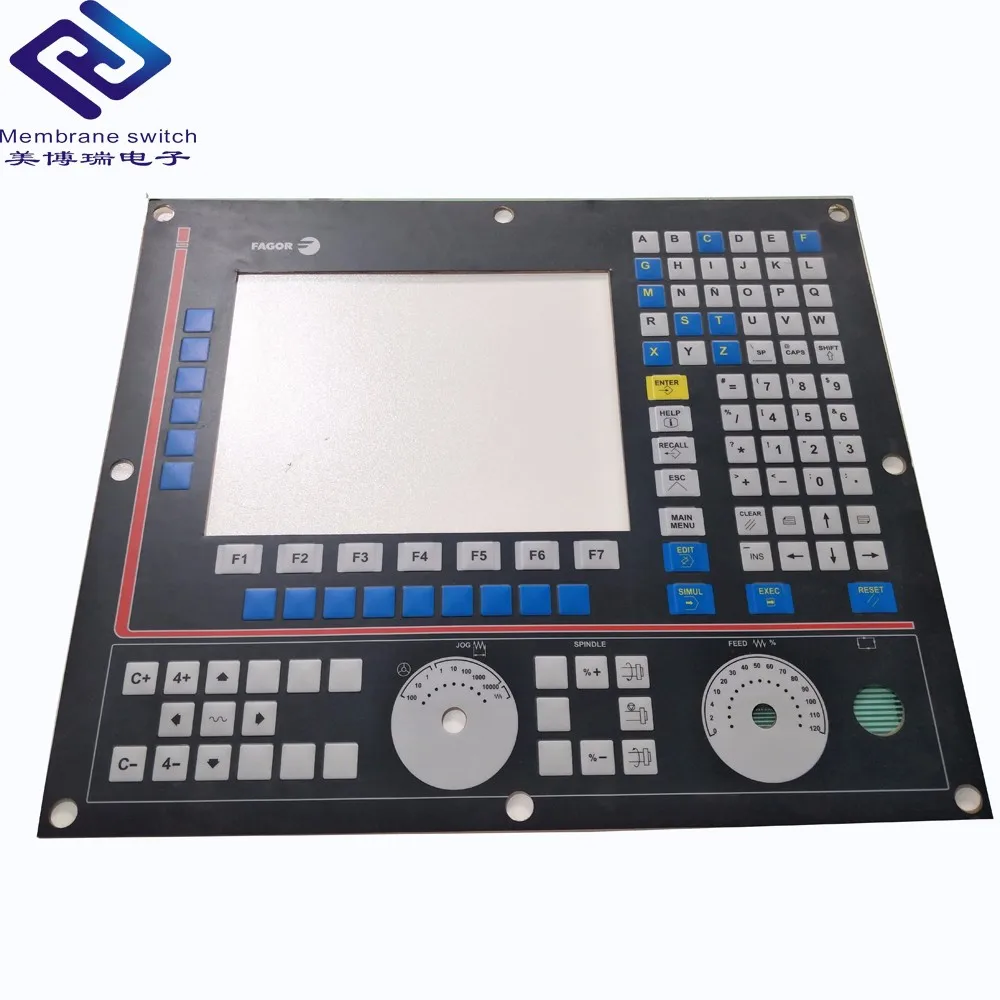

CNC milling machine keypad membrane control panel for industrial CNC panel
- Category: >>>
- Supplier: Meiborui (xianghe) Electronic Information Technology Co. Ltd.
Share on (60765719808):
Product Overview
Description
Specification
Setting Information | ||
material | PET/PC | |
Printing | Screen Printing | |
Color | Pantone ,RAL, OEM | |
temperature | -40°C to+230°C | |
Function | ON-OFF-ON, logical control | |
Button Type | flat/embossed | |
Material | Polyester, Polycarbonate, Conductive inks | |
Product Description
1,Product Details
1.Graphic Overlay – PET/PC is usually the material of choice due to its superior chemical resistance and flex life . MEIBORUI can either digitally print, screen-print, or employ a combination of both methods to ensure you get the right colors, textures and finishes your design requires.
2,Product Details
2.Circuit Spacer – This layer separates the top circuit from the bottom circuit so the switch remains normally open until the keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides.
3,Product Details
3.Lower Circuit Layer – This layer is a 0.1mm--0.25mm heat stabilized polyester printed with silver-filled electrically conductive inks and also dielectric inks. This layer terminates as a flexible tail that serves as the interconnect to controller PCBs or other electronics.
4,Product Details

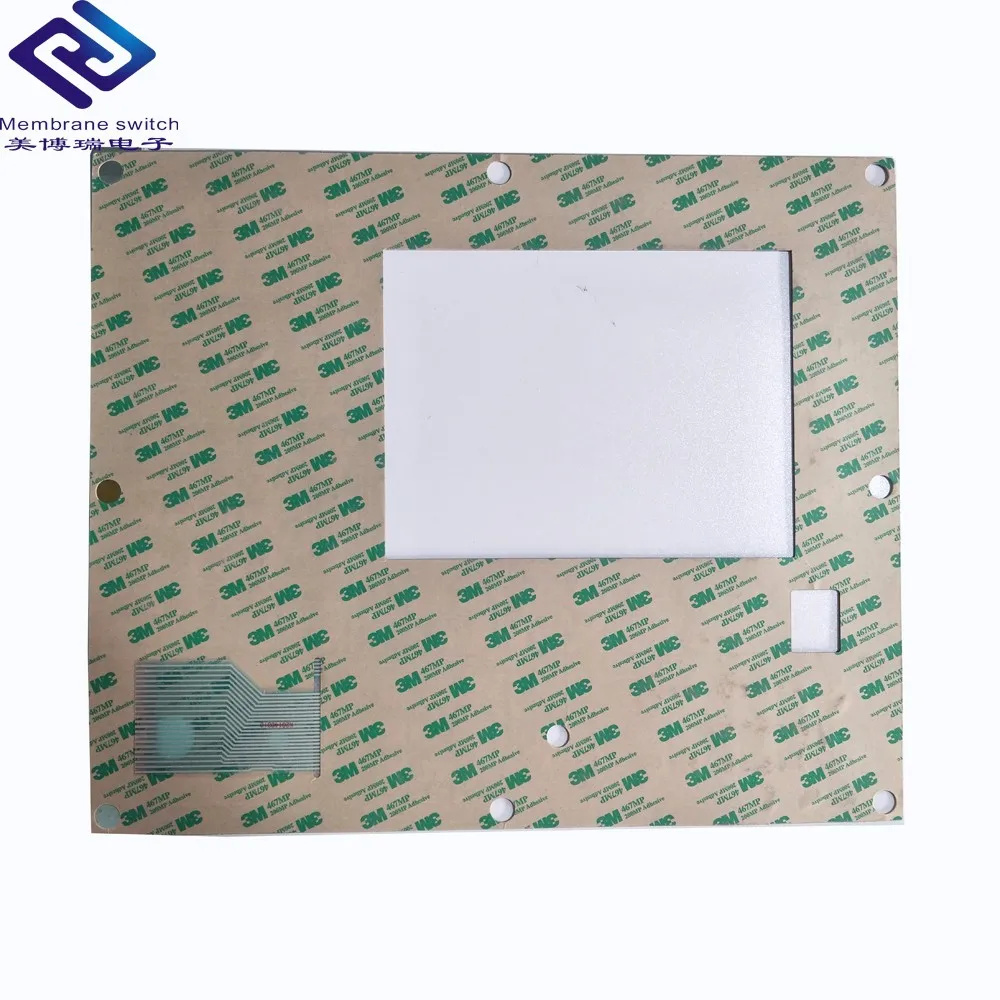

4.Rear Adhesive Layer – This adhesive layer bonds the entire membrane switch package to the product enclosure, housing, or to a rigid support panel. MEIBORUI can specify the appropriate adhesive type and thickness to bond your membrane keypad to your equipment.
MBR Keyboards has over 35 years of experience specializing in the integration of the below technologies into complex user
interface
turnkey keypad assemblies which has made us the one stop shop for all HMI turnkey interface solutions and front panel input
interface assemblies and modules that incorporate electronic components. Our broad product line and engineering expertise allows
for us to design and manufacture fully integrated interface solutions at a lower cost and better flexibility for the customer.
Customers all over the world rely on MBR Keyboards’ expertise to design, manufacture, and assemble the whole turnkey user
interface.From membrane keypads and elastomer rubber assemblies, to touch screens and touch panels integrated with displays, MBR
Keyboards
specializes in designing and fully integrating a variety of components and customized parts into a complete custom turnkey keypad
assembly and user interface for your company. We can take your concepts and bring your product to fruition providing you with the
complete plug and play keypad package from one dependable and experienced source.
Advantages of an HMI Assembly
By providing the entire value-added assembly, MBR not only minimizes the amount of moving parts for our customers but also overall
time and cost. It also allows our customers the ability to place one single purchase order under one single part number for the
entire interface. Our longstanding supplier relationships and over 35 years of manufacturing and assembly expertise provides
increased control and lower costs for your company.
Some Typical Features of an HMI Assembly
Value-Added Membrane Switch Panel and Turnkey User Interface
Fully Loaded PCBs (printed circuit boards)
Integrated Touch Screens
Integrated Displays
Optical bonding and adhesive bonding for touch screen + display solutions
G10 BackersG10
Metal Backers
* Flexible Circuits
Enclosures and Housings
Bezel Integration and Assembly
Connectors
Cable Assemblies
EMI / ESD / RFI Shielding EMI / ESD / RF
Barcode scanners
Integrated Touch Screen and Display Solutions MBR Keyboards’ Integrated Touch Screen and Display Solutions are second to none,
combining our many technologies and utilizing our
interface expertise to meet your specific product requirements. MBR is able to provide a full all in one, turnkey touch screen
assembly incorporating the touch panel, display, and controller integrated into a bezel, open-framed design, panel mount, or
keypad. Using optical bonding or adhesive bonding, MBRKeyboards can provide a fully integrated touch screen + display solution to
meet your medical requirements.
Our touch screen solutions can be integrated with a graphic overlay, membrane keypad, rubber switch, or bezel for a complete value
added assembly. MBR interfaces are carefully designed and built to survive in any environment. Our touch screen solutions can be
sealed to prevent moisture and contaminant ingress and are designed to withstand repeated use and chemical cleaning. Applications
include medical, POS, industrial, kiosks, military, retail, gaming, office automation, transportation, and commercial.
interface
turnkey keypad assemblies which has made us the one stop shop for all HMI turnkey interface solutions and front panel input
interface assemblies and modules that incorporate electronic components. Our broad product line and engineering expertise allows
for us to design and manufacture fully integrated interface solutions at a lower cost and better flexibility for the customer.
Customers all over the world rely on MBR Keyboards’ expertise to design, manufacture, and assemble the whole turnkey user
interface.From membrane keypads and elastomer rubber assemblies, to touch screens and touch panels integrated with displays, MBR
Keyboards
specializes in designing and fully integrating a variety of components and customized parts into a complete custom turnkey keypad
assembly and user interface for your company. We can take your concepts and bring your product to fruition providing you with the
complete plug and play keypad package from one dependable and experienced source.
Advantages of an HMI Assembly
By providing the entire value-added assembly, MBR not only minimizes the amount of moving parts for our customers but also overall
time and cost. It also allows our customers the ability to place one single purchase order under one single part number for the
entire interface. Our longstanding supplier relationships and over 35 years of manufacturing and assembly expertise provides
increased control and lower costs for your company.
Some Typical Features of an HMI Assembly
Value-Added Membrane Switch Panel and Turnkey User Interface
Fully Loaded PCBs (printed circuit boards)
Integrated Touch Screens
Integrated Displays
Optical bonding and adhesive bonding for touch screen + display solutions
G10 BackersG10
Metal Backers
* Flexible Circuits
Enclosures and Housings
Bezel Integration and Assembly
Connectors
Cable Assemblies
EMI / ESD / RFI Shielding EMI / ESD / RF
Barcode scanners
Integrated Touch Screen and Display Solutions MBR Keyboards’ Integrated Touch Screen and Display Solutions are second to none,
combining our many technologies and utilizing our
interface expertise to meet your specific product requirements. MBR is able to provide a full all in one, turnkey touch screen
assembly incorporating the touch panel, display, and controller integrated into a bezel, open-framed design, panel mount, or
keypad. Using optical bonding or adhesive bonding, MBRKeyboards can provide a fully integrated touch screen + display solution to
meet your medical requirements.
Our touch screen solutions can be integrated with a graphic overlay, membrane keypad, rubber switch, or bezel for a complete value
added assembly. MBR interfaces are carefully designed and built to survive in any environment. Our touch screen solutions can be
sealed to prevent moisture and contaminant ingress and are designed to withstand repeated use and chemical cleaning. Applications
include medical, POS, industrial, kiosks, military, retail, gaming, office automation, transportation, and commercial.
Company Information
MMeiborui was established in 1990 with a history of almost 27 years. We mainly engaged in manufacturing and researching membrane switches, membrane panels as well as other correlate products. Our products are widely used in industrial control, household application, instruments and apparatus. Our company is located in Xianghe County Langfang City Robot Industrial Harbor, Building C10 with 5 floors and the floor space is about 2300 square meters. Total asset reaches to twenty million Yuan. We have 200 staffs and annual sales has reached to 30 million Yuan.
Meiborui has been a golden member of Alibaba Trade Pass for more than 15 years which is the first company in the same industry. Early in 2003, MEMBRANE passed the international ISO 9001 certifications and we have been a member of it till now. We have built our processing foundation in Xianghe County, Hebei Province and Huizhou City of Guangdong Province. Furthermore, we have our individual counter in Saige Electronic Market which is the biggest market in Asia. Recently we enjoyed the high reputation and the certificate of Small and Medium High-tech Company of Hebei Province was awarded by the Science and Technology Office of Hebei Province.
Our Workshop
Certifications
FAQ
After price confirmation, you can require for samples to check our quality. If you need the samples, we can send you the samples by free( depends on the kind and qty of samples) or you can pay for sample cost, and it can be refundable after order confirmation when your quantity of the order is bigger than our MOQ.
2. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
3. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.
4. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.
