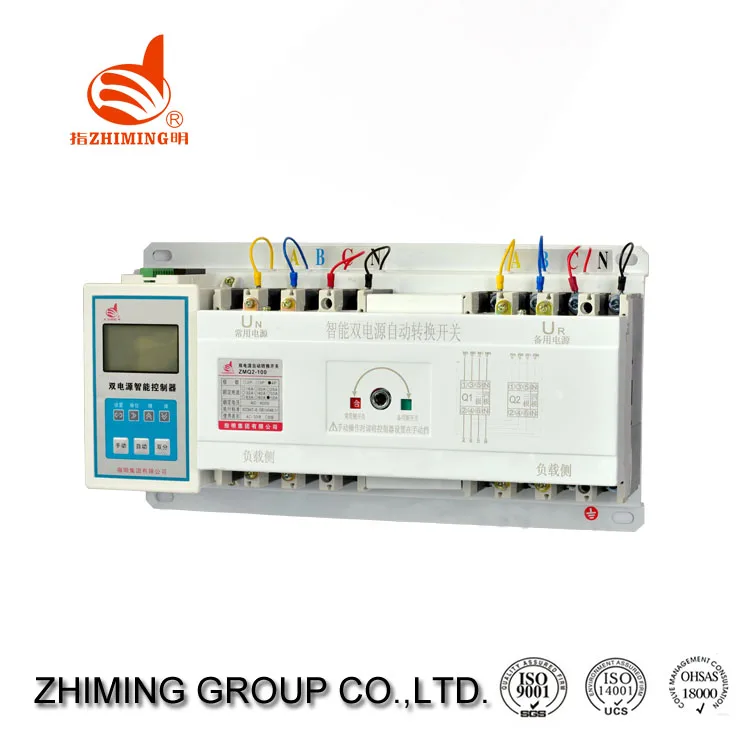

Zhiming 25 Years Supply ZMQ2E Electronic Change Over Switch 63a 40A,32A
Product Description
Application
ZMQ2E Dual power auto transfer switch , is suitable for operating in the power system of AC50Hz/60hz, rated operating voltage 400V, rated current 63A and below, to perform the shift between two power supply according to the requirement. The product has the protection functions of overload, short circuit, under-voltage and etc, meanwhile provides firefighting, dual OFF and output the signal of closing. It is especially suitable for the illuminating circuits of commercial building, marketplace, bank, high buildings where need firefighting function.

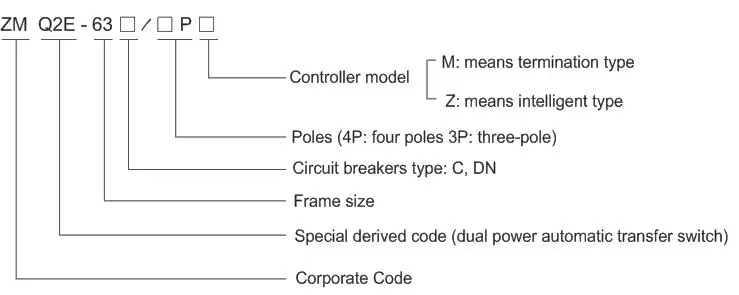

Model
Main Technical data
| Description | Specifications |
| Standards | GB/T 14048.11 |
| ATS Electric Level | Class CB |
| Use Category | AC-33iB |
| Rated work Voltage | AC220V - AC400V |
| Rated work frequency | 50HZ/60HZ |
| Rated work current | 6A,10A,16A,20A,25A,32A,40A,63A |
| Switch control voltage | AC220V |
| Rated insulation voltage | AC690V |
| Transfer action time | <3S |
| Electrical life time | 1500times |
| Mechanical life time | 6000times |
| Rated short-circuit connect capacity | 7.5kA |
| Rated short-circut breaking capacitor | 5kA |

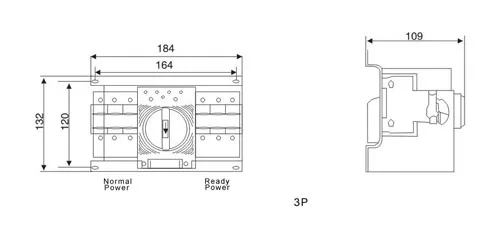

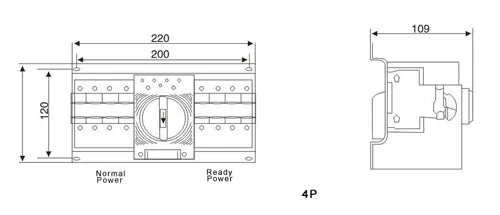

Product Size
Company Information
FAQ
1.Can you OEM for our company?
-- Yes, we can supply OEM package and OEM labels.
2.Can you supply the sample before real order?
-- Yes, Samples are no problem.
3. Can you custom-made products for us as our samples?
-- Yes, Our engineer will it for you.
4. How can I place the order now?
-- Just read this contact information and ask for service.
