DN25 DN65 electric control motorized valve modulating
- Category: >>>
- Supplier: Shaoxing Honglin Controls Co. Ltd
Share on (60765779138):
Product Overview
Description
Product Description

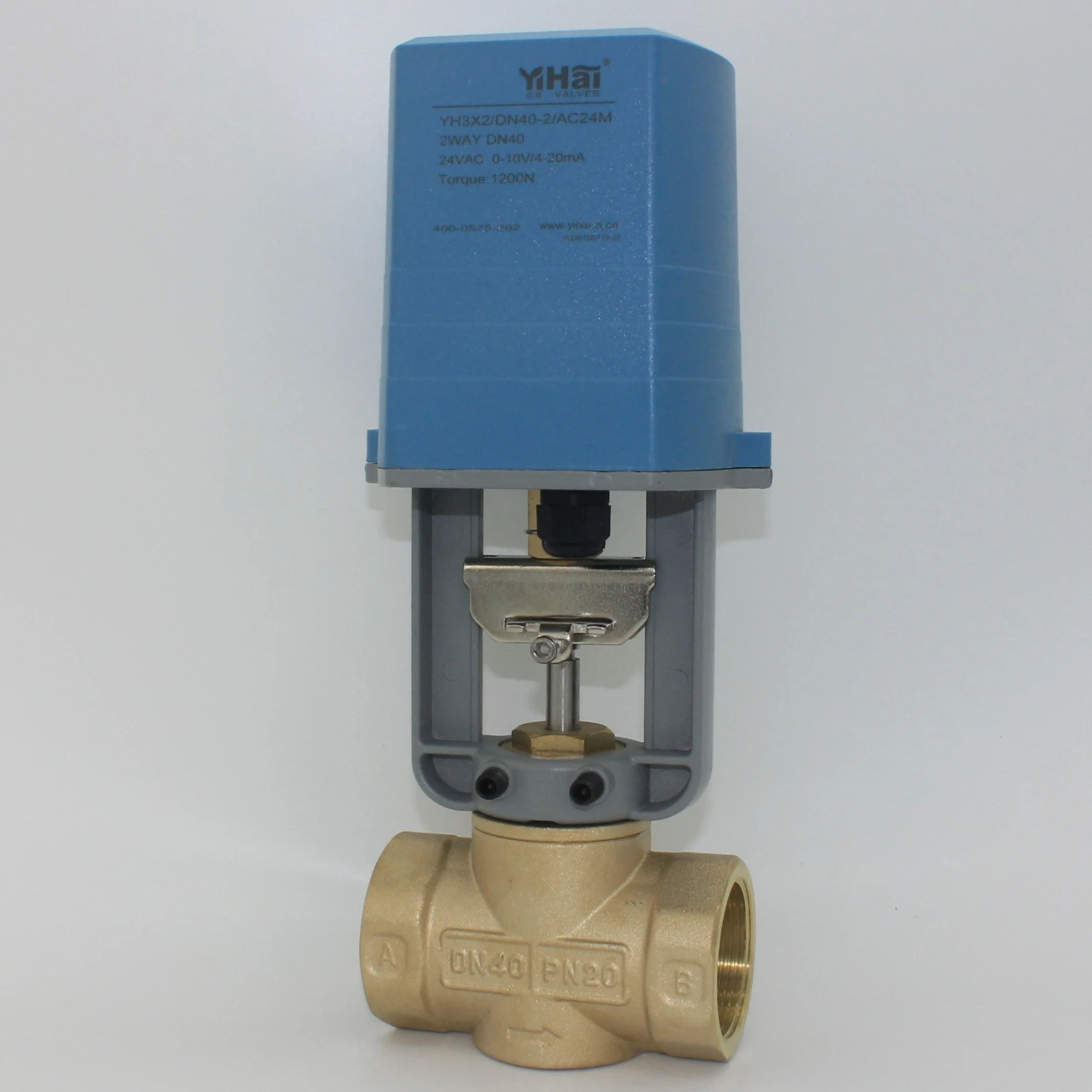

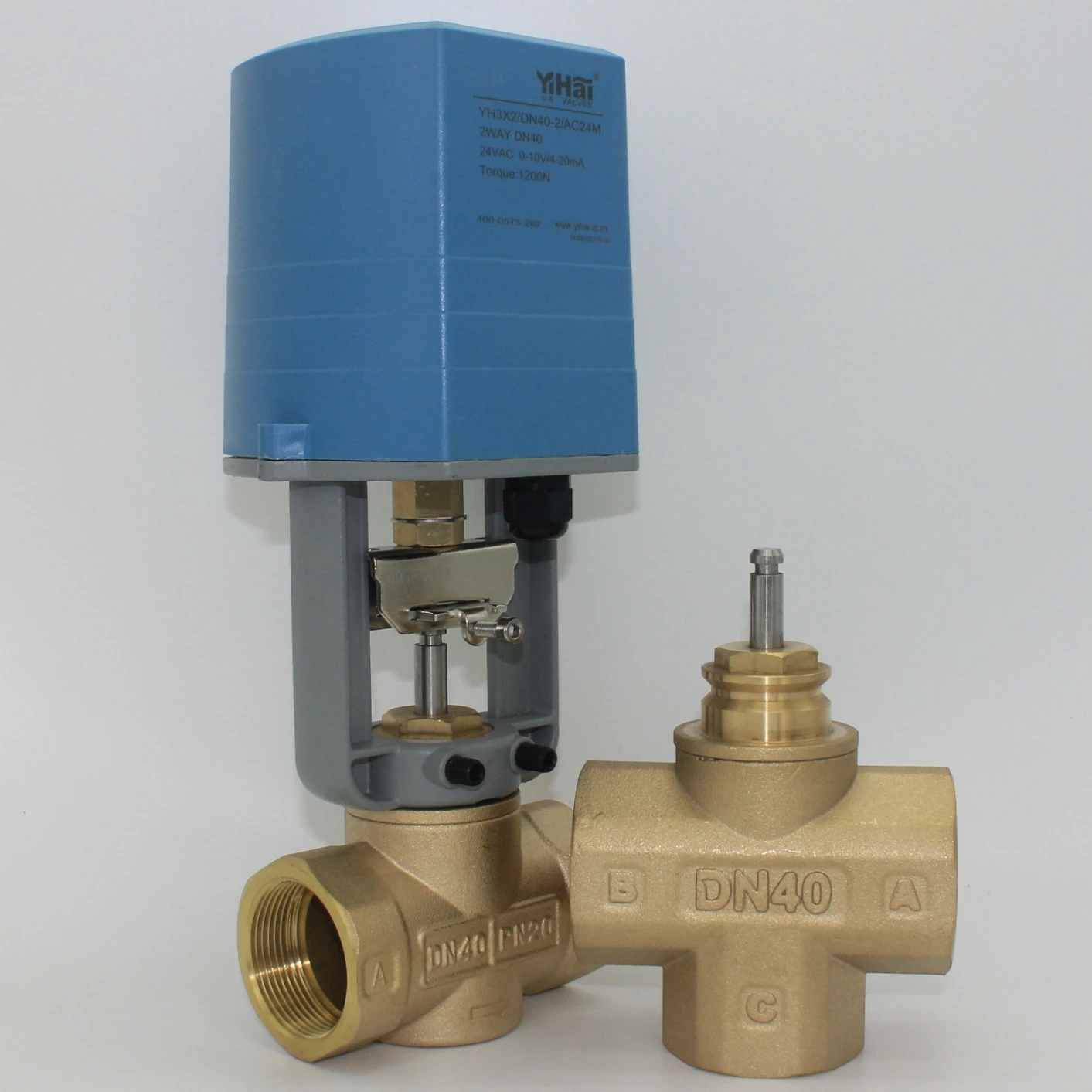

YH3X2 Electric Control Valve
YH3X2 series Electric Control Valve assemble with 1200N actuator with manual lever and valve body size from DN20 to DN65, widely used in air conditioning, heating and building automation system, which can adjust the medium flow precision, achieved goal to keep constant temperature, humidity, pressure and energy saving.
Specification
item | value |
Warranty | 1 year |
Type | Globe Valves |
Customized support | OEM, ODM, OBM |
Place of Origin | China |
Zhejiang | |
Brand Name | yihai |
Model Number | YH3X2 |
Application | General |
Temperature of Media | Normal Temperature |
Power | motor |
Media | Water |
Port Size | DN25-DN65 |
Structure | Control |
Standard or Nonstandard | Standard |
Name | Control Valve |
Connection | BSP thread |
Size | DN25-DN65 |
Body material | Forged Brass |
Type | 2 way and 3 way |
Control Signal | on/off or 0-10VDC modulating |
manual lever | available |
Actuator
Size | YH3X2CKB12 | YH3X2AK12 | YH3X2AM12 | ||
Action Control | On/Off | Floating | Modulating | ||
Voltage | AC220V 50/60Hz | AC24V 50/60Hz | AC24 50/60Hz | ||
Motor | AC Synchronous Motor | ||||
Force | 1200N | ||||
Control Signal | On/Off | 3-point | 0-10VDC or 4-20MA | ||
Feedback Signal | ------ | ----- | 0-10VDC or 4-20MA | ||
Power | 6.5VA | ||||
Max. Stroke | 22mm | ||||
Act Speed(mm/s) | 0.23mm/s at 50Hz | ||||
Working Temp. | -5—55℃ | ||||
High(mm) | 230 | ||||
Weight(Kg) | 2.0 | ||||
Working Humidity | 10%--90% RH Non Condensation | ||||
Wiring
Company Profile
Installations
1. Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition.
2. Check the ratings given in the instructions and on the product to make sure the product is suitable for your application.
3. Installer must be a trained, experienced service technician.
4. The valve should be installed somewhere easy to install and maintain.
5. Horizontal installation, that means the motor should be in the above of valve body to avoid humidity.
6. 2-way and 3-way flow as flowing.
2. Check the ratings given in the instructions and on the product to make sure the product is suitable for your application.
3. Installer must be a trained, experienced service technician.
4. The valve should be installed somewhere easy to install and maintain.
5. Horizontal installation, that means the motor should be in the above of valve body to avoid humidity.
6. 2-way and 3-way flow as flowing.
Honglin is a high technology company, specialized in designing, developing, producing and marketing energy saving products for central air conditioning, HVAC as well as energy saving systems for them, not only to supply high quality low price products, but also to provide "constant temperature, constant humidity, fresh air, purification, energy saving, efficient" overall solution for large building and personal residence.
Honglin is one of the most powerful manufacture in domestic energy saving and controls industries.
Honglin center air conditioning energy saving controls products: room thermostat, two way and three way motorized valve, two way and three way ball valve, motorized dynamic balancing valve, modulate valve, motorized damper and butterfly valve etc.
Honglin HVAC energy saving products: intelligent heating thermostat, intelligent manifold, mixing water temperature controls center, thermo-electric valve.
Honglin owns 15000 square meters production base and products test center, advanced CNC machine, thermostat automation assemble line.
Honglin has distinguished management person and high education staff, adhere to quality products is survival foundation, improve product innovation is business mindset, developing technical and human resource superiority to strive for the first-class brand in auto control industry.
Honglin is one of the most powerful manufacture in domestic energy saving and controls industries.
Honglin center air conditioning energy saving controls products: room thermostat, two way and three way motorized valve, two way and three way ball valve, motorized dynamic balancing valve, modulate valve, motorized damper and butterfly valve etc.
Honglin HVAC energy saving products: intelligent heating thermostat, intelligent manifold, mixing water temperature controls center, thermo-electric valve.
Honglin owns 15000 square meters production base and products test center, advanced CNC machine, thermostat automation assemble line.
Honglin has distinguished management person and high education staff, adhere to quality products is survival foundation, improve product innovation is business mindset, developing technical and human resource superiority to strive for the first-class brand in auto control industry.
