Best Price 2.5G Optical Transmission Network SDH Equipment

Brief Introduction

1

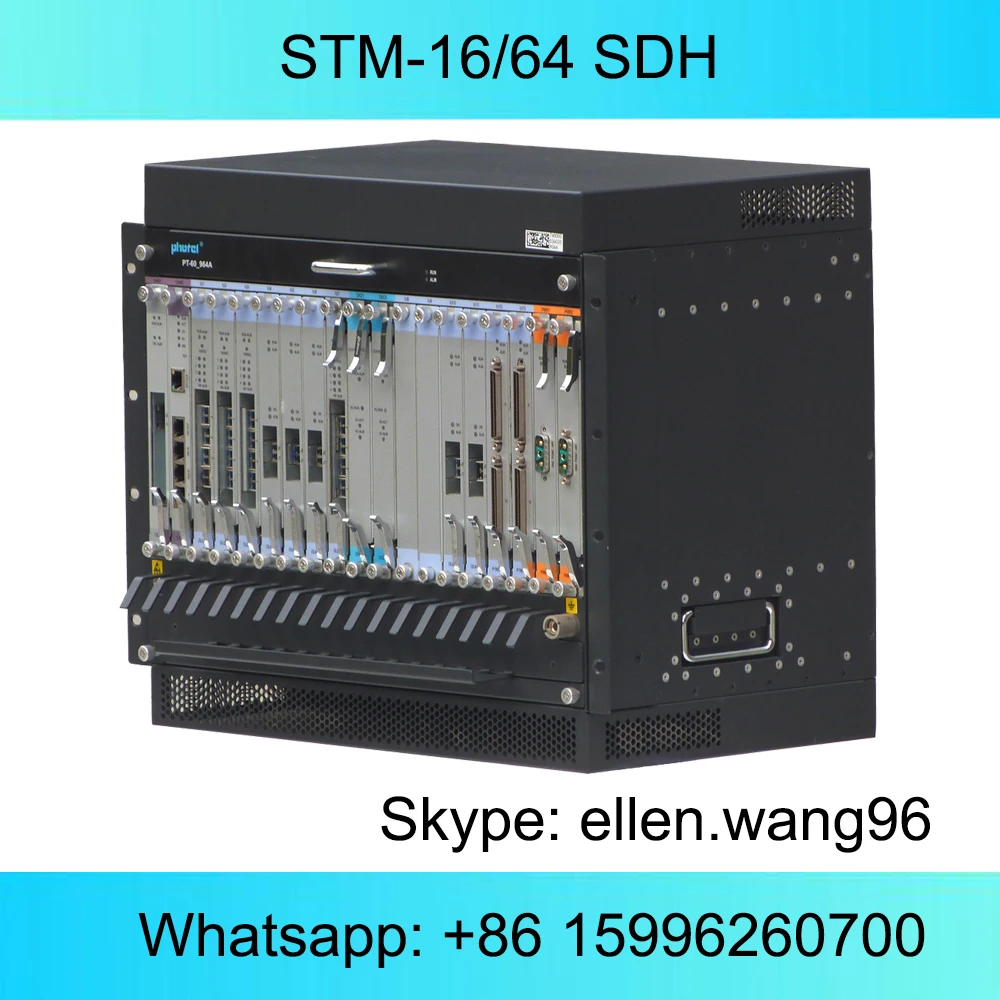

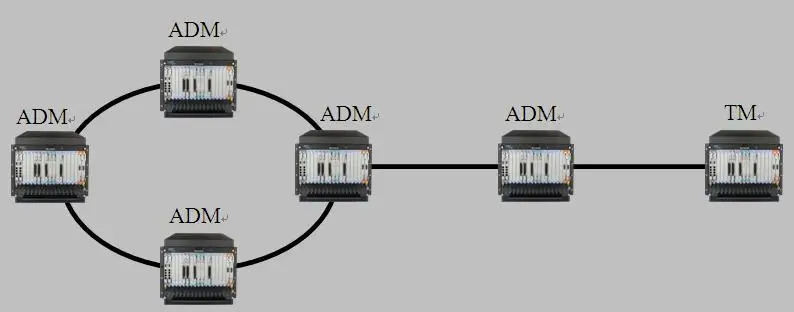

PT-60 STM 16 STM 64 2.5G/10G SDH/MSTP MUX Equipment is a new generation intelligent MSTP, it offers a complete solution for traditional ADM services, broadband data service access, aggregation, transmission.

2

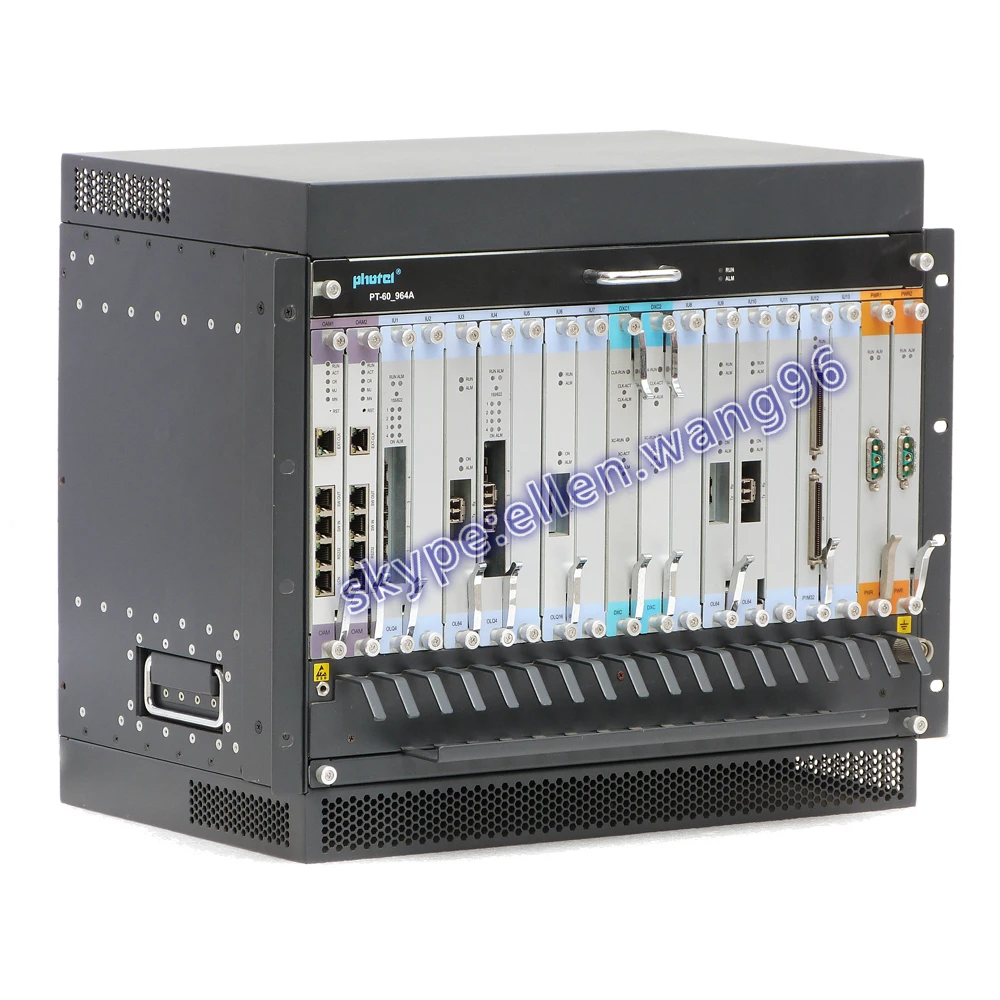

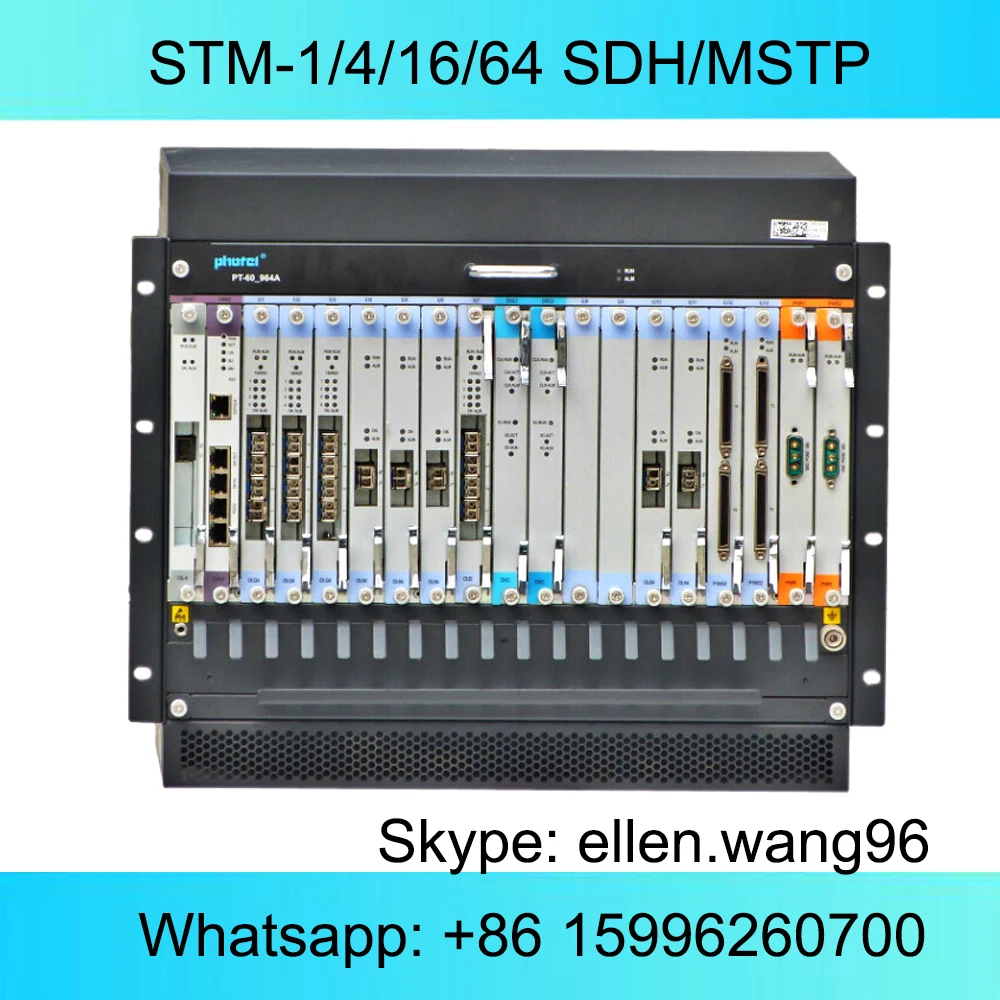

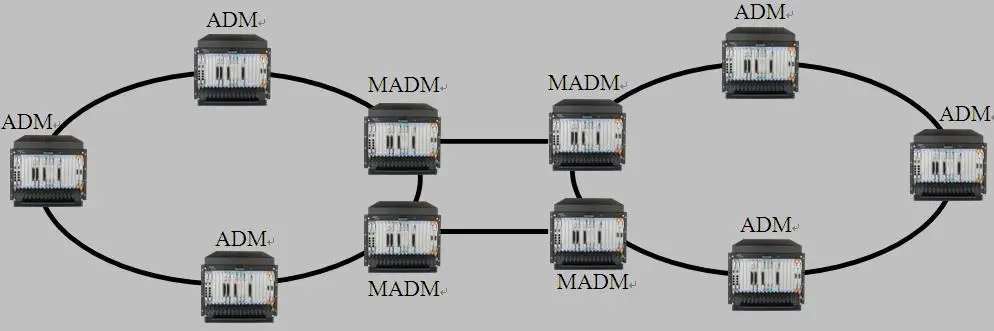

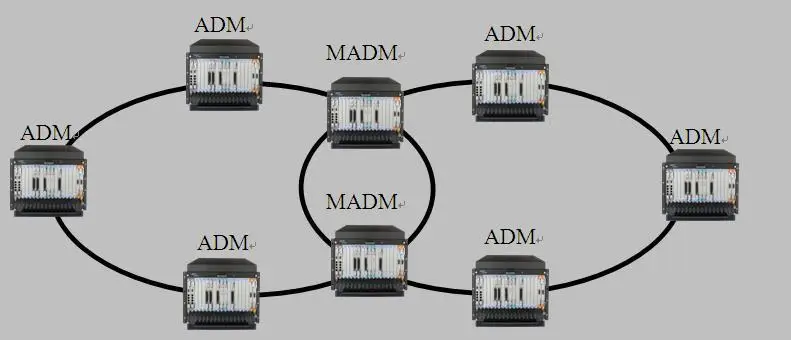

PT-60 9064 is STM-1/4/16/64 SDH/MSTP equipment, it has powerful functions, abundant interfaces, high service capacity, and flexible networking ability, it can flexibly distribute network bandwidth, it can be suitable for service aggregation center node in the transmission network.

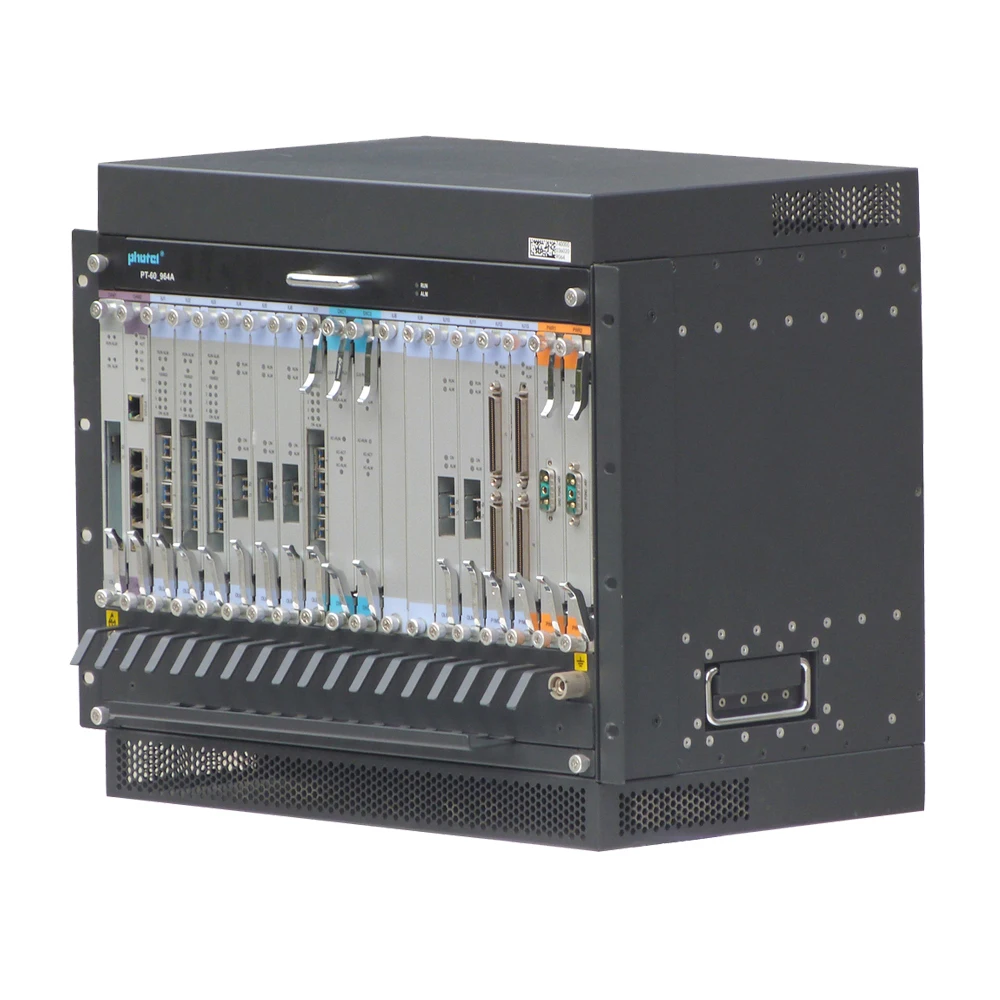

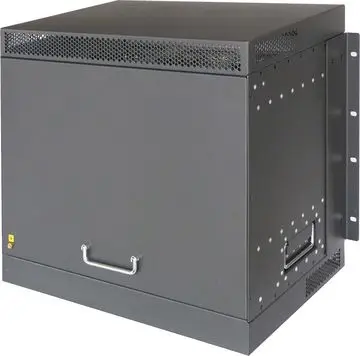

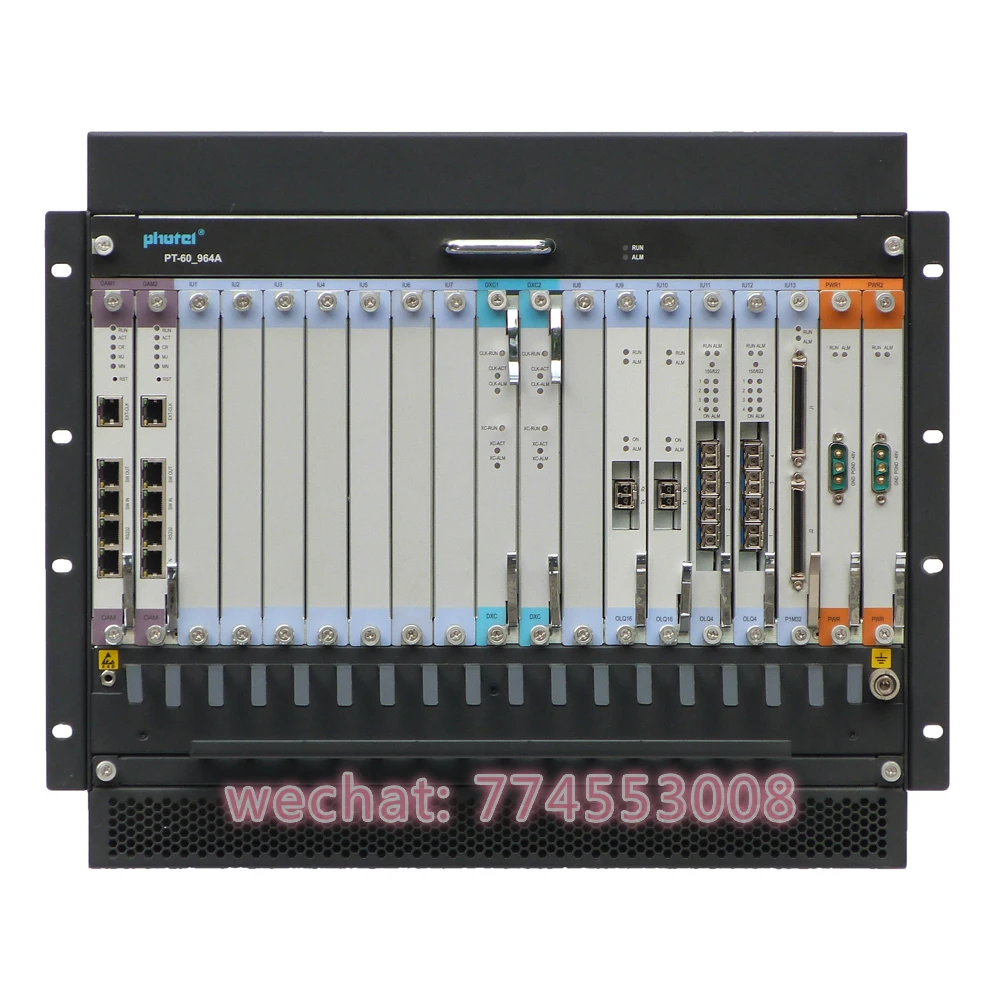

The equipment is standard 19 inch 9U height.

Technical Specification

SDH optical interface

STM-1(155Mbps),STM-4(622Mbps),STM-16(2.5Gbps),STM-64(10G)

Electrical interface

75 and 120Ω for 2Mbps.

Ethernet:

FE Ethernet and GE Ethernet

10/100BASE-TX and 1000BASE-SX/LX

Network protection

SNC/I,SNC/N ,1+1 MS

Hardware protection:

1+1 cross connection board protection, 1+1 power board protection; 1:6 TPS protection;

Cross connection

VC-12, VC-3 and VC-4 single direction, dual direction and broadcast.

Synchronization clock

2048 kbit/s or 2048 kHz external clock

System power

DC-48V, dual power supply;

Input voltage

DC–38.4V DC ~ DC–60V.

Maximum system power consumption

600W

Dimensions

440(L)×280(W)×394(H)mm.
