30mm Axial Fan 30x30x7mm DC 5V 12V Cooling Fan
- Category: >>>
- Supplier: Shenzhen Cooling Technology Co. Ltd.
Share on (60765826579):
Product Overview
Description
Product Description
30mm Axial Fan 30x30x7mm DC 5V 12V Cooling Fan
This fan can be customized the voltage 3.7v,5v,12v on your requirement.
It can be made 2 wires,3 wires and 4 wires (FG, RD or PWM function)
It is hydraulic bearing, long life expectancy.
It can be made 2 wires,3 wires and 4 wires (FG, RD or PWM function)
It is hydraulic bearing, long life expectancy.
Specification
Model Part Number | Voltage (volt) | Current (Amp) | Power (Watt) | Speed (rpm) | Air Flow (CFM) | Air Pressure (mmH2O) | Noise (dB-A) |
CLD3007L05 | 5 | 0.14 | 0.72 | 6000 | 1.99 | 1.71 | 25.5 |
CLD3007M05 | 5 | 0.17 | 0.84 | 8000 | 2.66 | 2.70 | 27.4 |
CLD3007H05 | 5 | 0.19 | 0.96 | 10000 | 3.46 | 4.13 | 30.1 |
CLD3007HH05 | 5 | 0.22 | 1.08 | 11000 | 3.78 | 4.94 | 32.0 |
CLD3007VH05 | 5 | 0.24 | 1.2 | 13000 | 4.25 | 8.25 | 34.9 |
CLD3007L12 | 12 | 0.06 | 0.72 | 6000 | 1.99 | 1.71 | 25.5 |
CLD3007M12 | 12 | 0.07 | 0.84 | 8000 | 2.66 | 2.70 | 27.4 |
CLD3007H12 | 12 | 0.08 | 0.96 | 10000 | 3.46 | 4.13 | 30.1 |
CLD3007HH12 | 12 | 0.09 | 1.08 | 11000 | 3.78 | 4.94 | 32.0 |
CLD3007VH12 | 12 | 0.1 | 1.2 | 13000 | 4.25 | 8.25 | 34.9 |

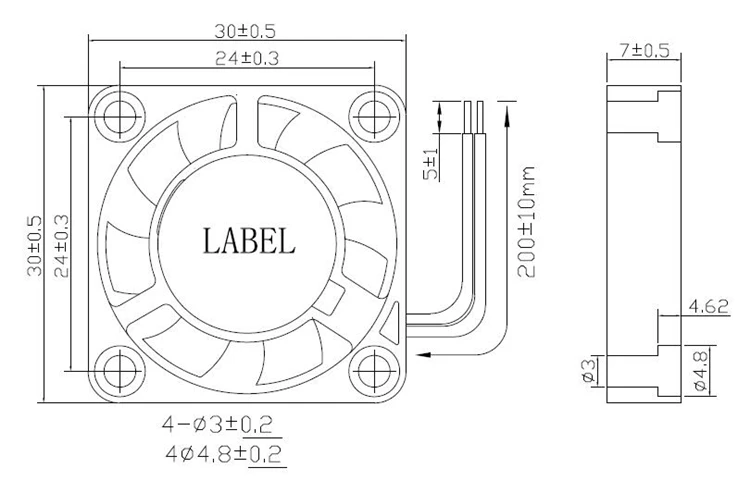

Product Drawing
