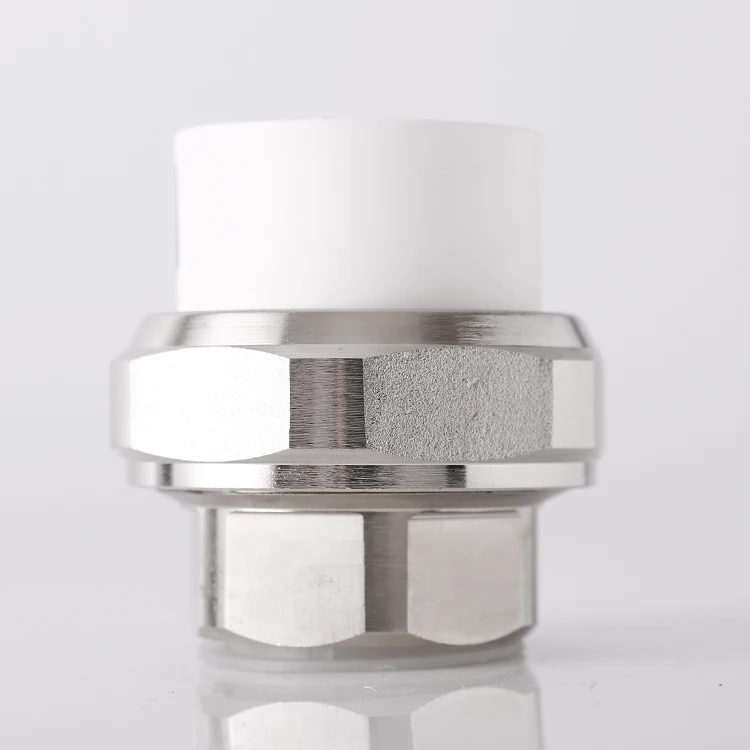

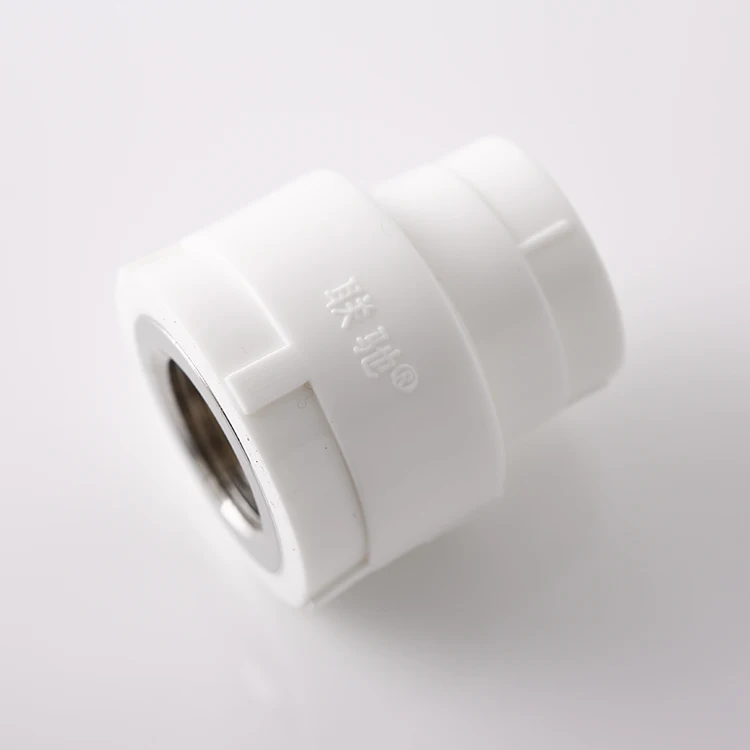

Union PPR pipe fittings Female adapter copper connector plumbing produced Compression Brass thread customizable

Featured by excellent cleanness, cost effectiveness, applicability and advantage in safety, PPR pipe is currently considered as the most favorable pipe material for cold (PN10) and hot (PN20) water system, water purifying engineering, underground heating system for wooden floor, chemical pipe works and so on. Under normal work pressure and condition, the life of Pipe system can reach 50 years at least.

The products are commonly applied at buldings' water flowing systems, such as hotels, hospitals, office and school buildings, residentials and many more. Applying PP-R can bring so many advantages for the users such as low cost of maintanance, 100% free of corrossion and many more (see detailed advantages below). The product is specially manufactured to meet the highest international standard requirement.

Fields of Applicaiton for PP-R Pipes :

- Potable water pipe networks for cold and warm water installations

- Pipe networks for rainwater utilization systems

- Pipe networks for compressed air plants

- Pipe networks for swimming pool facilities

- Pipe networks for solar plants

- Pipe networks in agriculture and horticulture

- Heating pipes for residential houses

- Pipe networks for industry

- Transport of liquid foods


How to Join PPR pipe:

1.Heating the Fusion Tool and Preparing the Pipe
1)Place the right-sized sockets onto the fusion tool.
2)Plug in the fusion tool to begin heating the sockets.
3)Trim your pipe to length with a smooth, clean cut.
4)Clean the PPR pieces with a cloth and the recommended cleaner.
5)Mark the welding depth on the joining end of the pipe.
6)Confirm that the fusion tool is fully heated.

2.Heating the Pipe and Fitting on the Fusion Tool

1)Protect your skin from the very hot fusion tool.
2)Press the PPR pieces straight into/onto their respective sockets.
3)Start the heating timer, if your model has one.
4)Pull the PPR pieces straight off/out of the sockets.

3.Fusing the Pipe and Fitting into One Piece
1)Push the pipe and fitting straight together immediately.
2)Hold the fused pipe pieces in place for 30 seconds.
3)Put the pipe into service after it cools completely.
