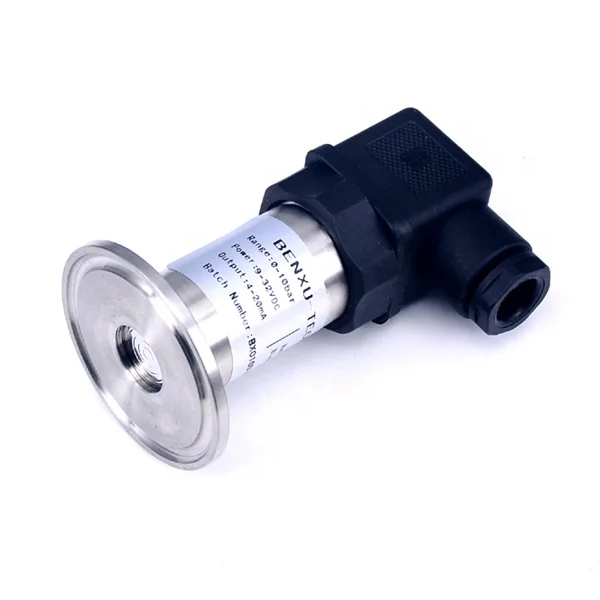

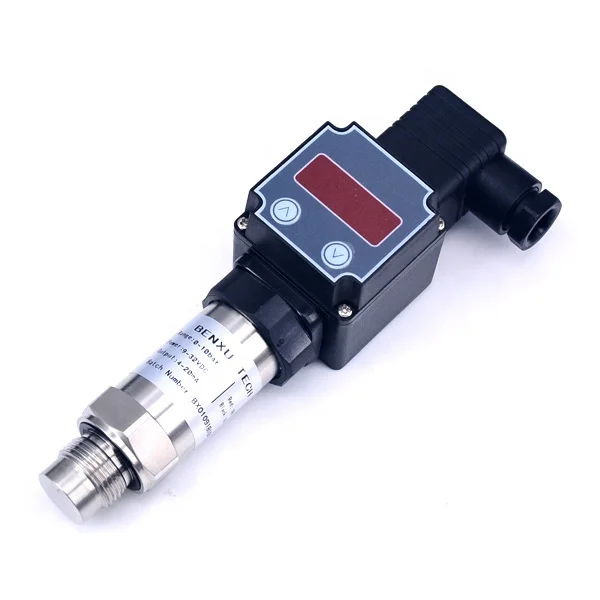

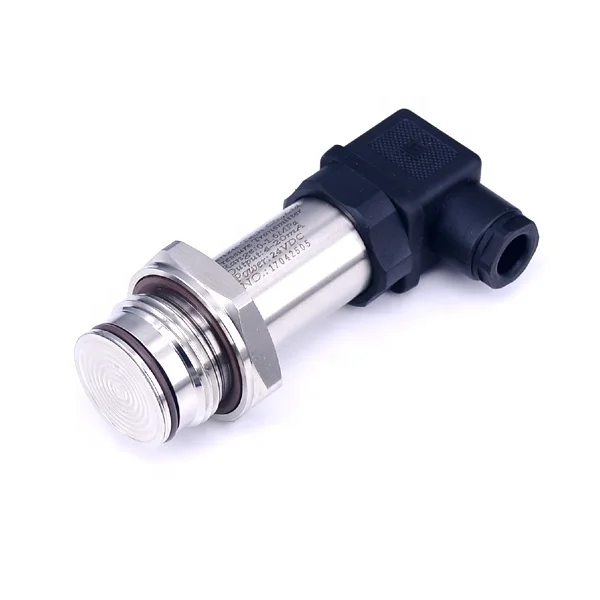

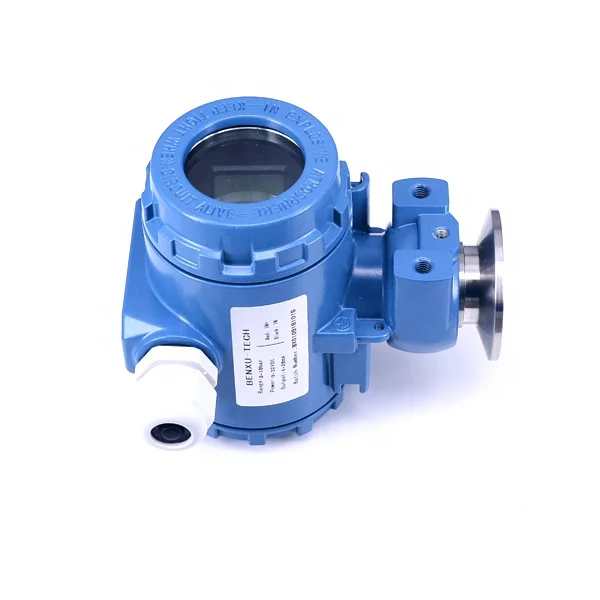

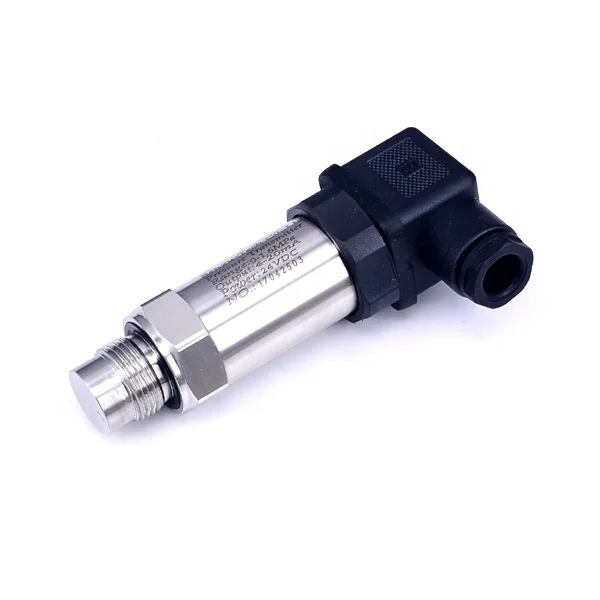

Widely Range High Density Liquid Flush Diaphragm Pressure Transmitter
- Category: >>>
- Supplier: Shanghai Benxu Electronics Technology Co. Ltd.
Share on (60765851929):
Product Overview
Description
Our Advantages
Why choose BENXU?
♦ Focus on Sensor Production all the time
♦ The Best Quality with Reasonable Factory Directly Price
♦ Have Passed CE,RoHS etc Certificates
♦ 18 Months Quality Guarantee Starting from the Date of Delivery
Do you care about followings after place an order?
♦ Quality problem?
BENXU signs the 18 months warranty of quality with you.
♦ Price problem?
If think price is higher at same top quality by comparison with others,we will refund you.
♦ After sale problem?
Artificial damage:will offer technical support.
Quality problem:will do repair or offer replacement without any cost within 18 months.
♦ Can’t deliver in time or some other problems?
Go ahead with Trade Assurance Online:
Product Description
Description:
This pressure transmitter applies to the sensor with special and high precision process technology,together with high reliability,precision amplifier circuit,superb all-welded packaging technology and perfect the assembly process to ensure high quality products and excellent performance and also meet international 3A sanitary standards.Widely use in various industries,
especially for food,pharmaceutical and beverage process,bio-product,Chemical glue,construction machinery and tunnel mining and other industries.
Features:
High Cost Performance
Wide Range of Measurement Medium
High Stability and Sensitivity
Various Output Signal and can adjust zero and full scale
The Protection of Reverse Polarity and over-voltage and over-circuit
Fully Stainless Steel Structure
Clean Film Diaphragm
Applications:
Sanitary Pressure Pipe; Food and drinking process
Sewage Treatment; Mud Pump Equipment
Pressure Measurement of the mixture solid and liquid
Technical Parameters:
Range | -1~0.1bar to 0~600bar... |
Accuracy | ±0.5%FS,±0.25%FS |
Overload Capacity | 2~4times |
Pressure Medium | Gas or liquid which is compatible with stainless steel |
Supply Voltage | 9~32VDC |
Output | 4~20mA,0~10V,1~5V,0~5V |
Overload Resistance | ≤[(Supply Power-6.5V)/0.02A]Ω |
Long-term Stability | Less than 0.2%FS/year |
Working Temperature | -30~+100℃, -40~+125℃ |
Compensated Temperature | -20~+80℃ |
Temperature Effect on Zero | Typical:0.02%FS/℃; Maximum:0.05%FS/℃ |
Temperature Drift on Sensitivity | Typical:0.02%FS/℃; Maximum:0.05%FS/℃ |
Pressure Type | Gauge Pressure |
Vibration Resistance | ≤±0.01%FS(X,Y,Z,200Hz/g) |
Response Time | ≤1ms |
Insulation Resistance | >100MΩ 500VDC |
Weight | 0.5kg |
Electrical Connection Types | DIN plug-in unit; fixed cable;aerial plug |
Pressure Connection | G1/2 ;G1;M20*1.5; M30*1.5 and so on |
Housing Material | Stainless Steel |
Protection Type | Din(IP65); Cable Type(IP67); IP68 |
Blast Proof Type | ExiIICT6 |

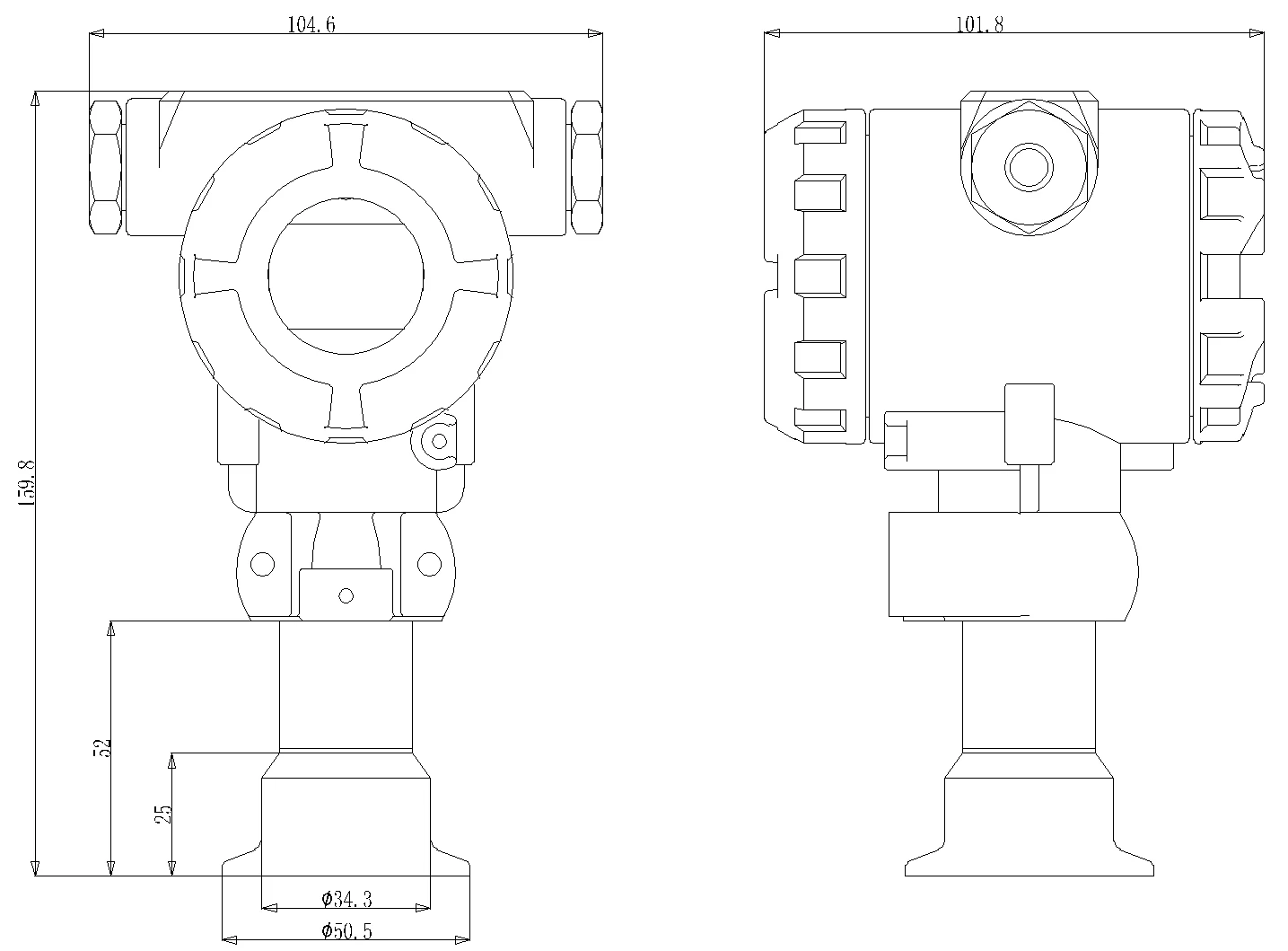

Dimensional Drawing(unit:mm):
Company Information
BENXU—a technical corporation with own research and development team,focus on production and sales for quality products of pressure/level/weighing/temperature measurement all the time.
FAQ
1:What detailed information do I need to provide if I want to place an order?
application,measured medium,work temp.,test range,output,screw port,electrical connection etc.
2:How long will get the reply?
Contact you in 6 hours during working days or talk online through TradeManager,Skype,Wechat.
3:Could I get samples?
Any quantity samples are available for you to test our quality.
4:Could you provide me the shortest lead time?
We have materials in stock,we will put your order ahead of schedule if need in rush.
5:Could I visit your factory?
Of course,we warmly welcome you to visit our factory.
6:What’s the terms of payment?
Paypal or Western Union for samples,TT or LC for bulk order.
7:How could you control the quality?
100% incoming quality control for materials,process inspection when produce,and then do long-term test for temperature compensation,aging test,long-term stability performance etc if need,and then final inspection before leaving the factory.
8:Can we use our logo on the products?
Yes,we can provide OEM/ODM service and make your laser logo.
9:What's the means of transport?
DHL/FEDEX/UPS/EMS/TNT/China Post/Sea etc. Freight prepaid or Freight collect.
