Waterproof low price electronic gauge pressure switch
Product Description
Product brief introduction
REMOND pressure instrumentation hardware used the precision electronic components, strong anti-interference and reliable stable patent integrated circuit design, which are widely used in aerospace, automotive,military and other high-tech fields, simple operation and rich interface software instrumentation system, make the detection signal is more accurate and stable, the current products have been widely used in metallurgy ,electric power, pharmaceutical ,chemical, oil, water treatment, food and other industries.

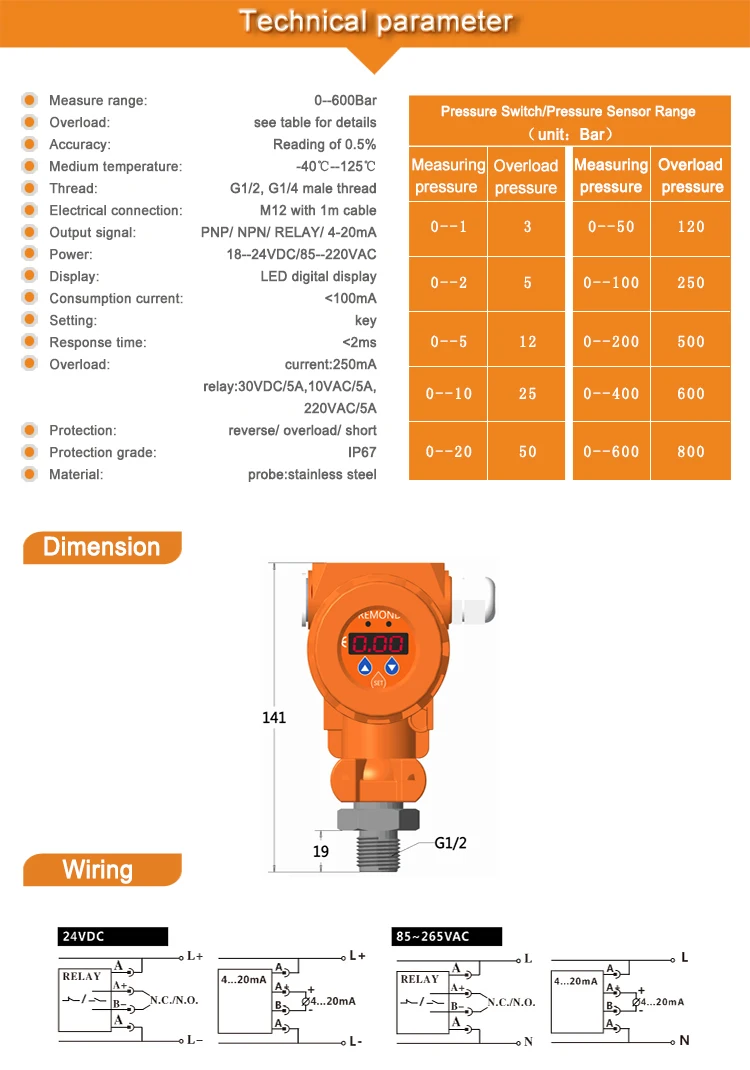

Pressure switch technical parameter
| Measure range | 0-600bar |
| Accuracy | reading of 0.5% |
| Medium temperature | -40℃~125℃ |
| Thread | G1/2, G1/4 male thread,G1 |
| Power connector | M12 with 1m cable |
| Output signal | PNP/ NPN/ RELAY/ 4-20mA |
| Power | 24VDC/85~265VAC |
| Display | LED digital display |
| Consumption current | <100mA |
| Setting | key |
| Response time | <2ms |
| Protection | reverse/ overload/ short |
| Protection grade | Ip67 |
| Material | probe:ANSI316L |
| Overload | current:250mA relay:30VDC/5A, 110VAC/5A, 220VAC/5A |

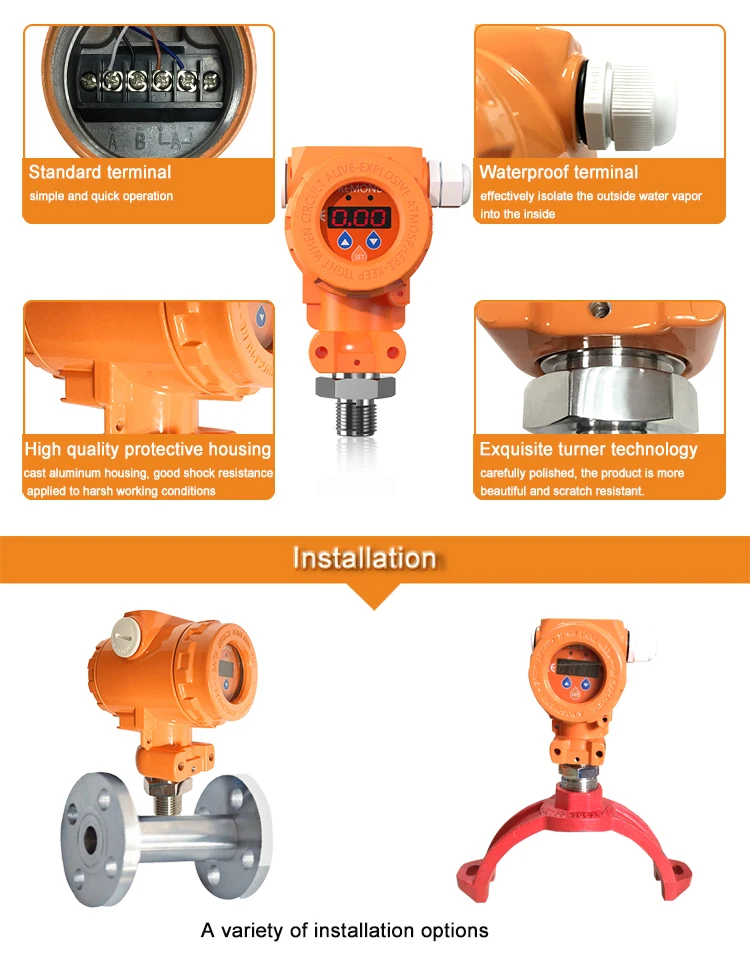

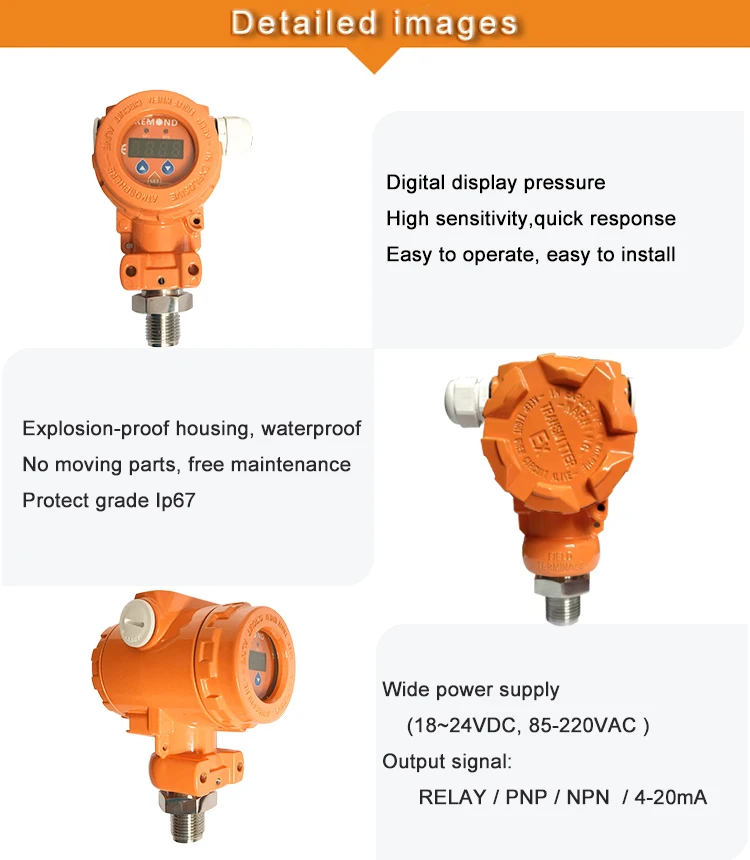

Detailed Images
