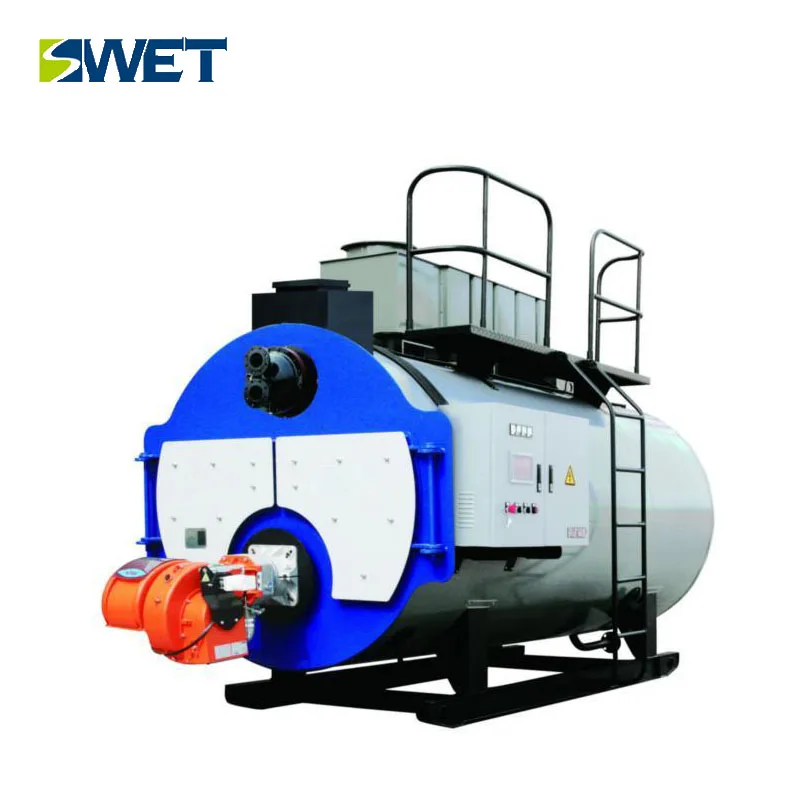

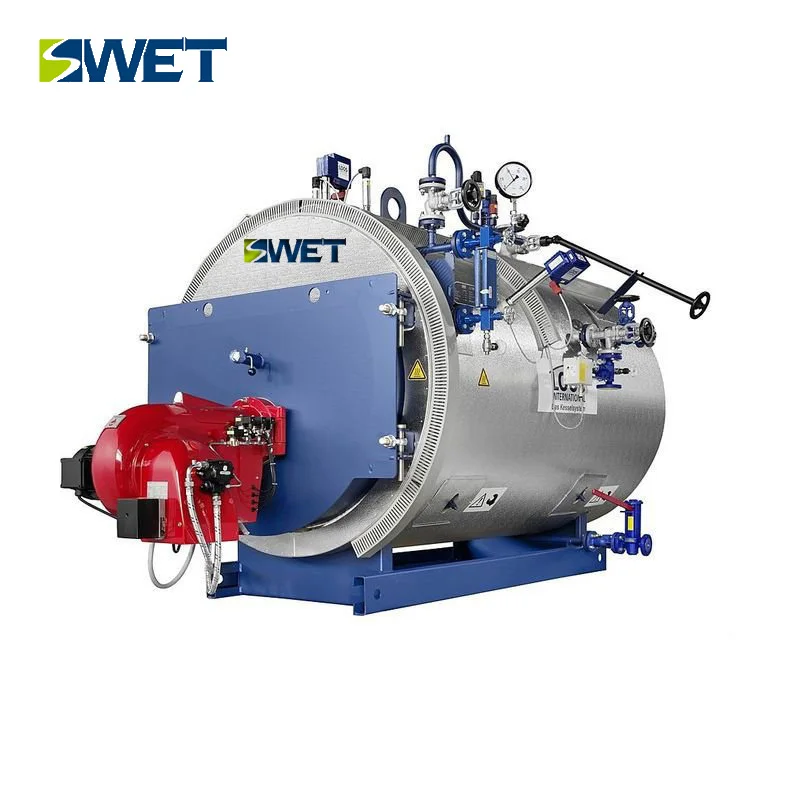

fire tube gas combi diesel steam boiler
- Category: >>>
- Supplier: Henan Swet Boiler Co. Ltd.
Share on (60765854766):
Product Overview
Description
Product Description

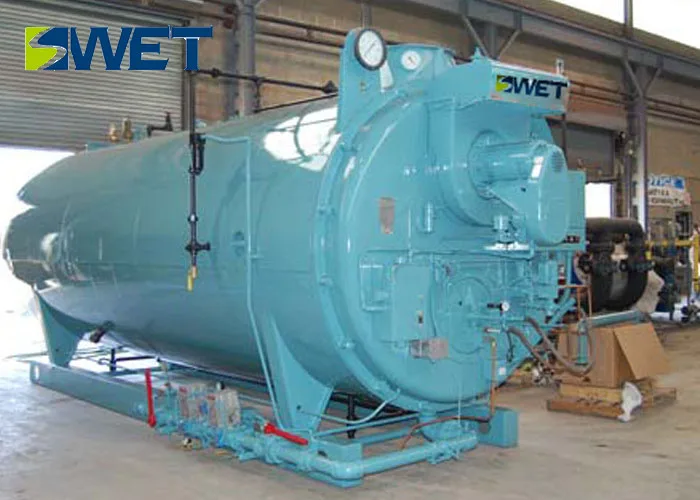

fire tube gas combi diesel steam boiler for paper industry
1.High Quality and Reliable Oil Gas Burner.
High combustion efficiency and environmental protection.
2.Excellent coil design.
The spiral pipes are made of small diameter multi-head steel tubes, good thermal expansibility, low stress, safe and reliable.
3.Large Diameter Furnace.
Large radiation heating area, increase thermal efficiency and reduce the NOx emission.
4.High Thermal Efficiency.

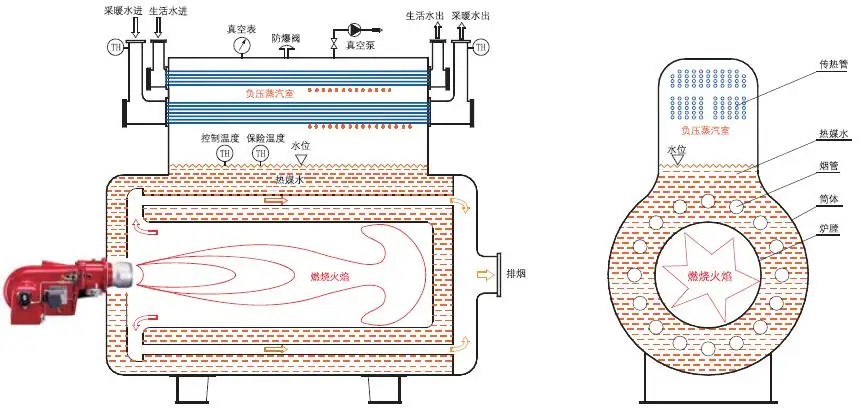

1)Adopts three pass heating system, improve the heat utilization efficiency.
2)Uses aluminium silicate board for heat preservation, high thermal shielding efficiency.
3)By equipping with economizer, make full use of the heat of flue gas.

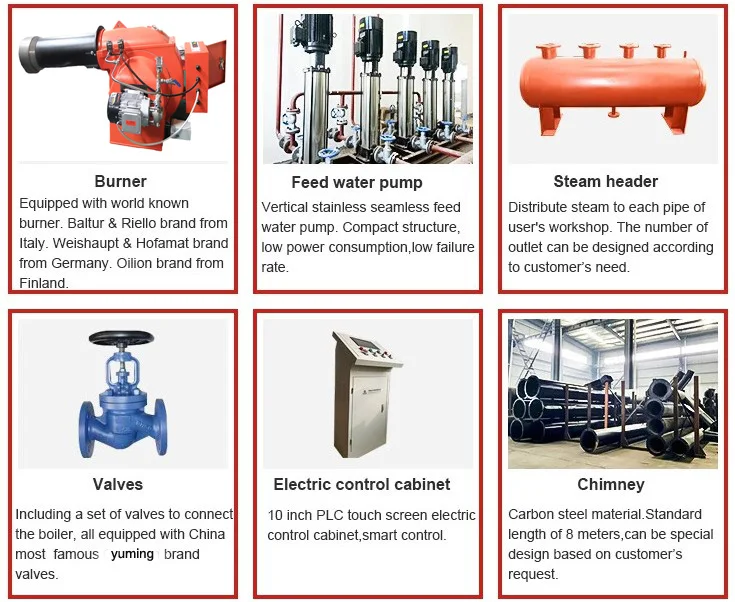

5.High Quality boiler auxiliaries and multiple safety protection devices.
(pressure controller, pressure transmitter, water level alarm, safety valve, etc.)
6.Excellent Automatic System.
Adopts PLC full automatic intelligent control system, to ensure the safe operation.
gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler
boiler steam,diesel boiler,boiler steam,diesel boiler,boiler steam,diesel boiler,boiler steam,diesel boiler,
gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler
boiler steam,diesel boiler,boiler steam,diesel boiler,boiler steam,diesel boiler,boiler steam,diesel boiler,
Technical Parameters
| WNS series automatic gas (oil) steam energy saving boiler product selection formWNS series automatic gas (oil) steam energy saving boiler product selection form | |||||||
| Model | Rated capacity | Working pressure | Steam temperature | Feed temperature | Testing efficiency | Gas consumption | Outline dimension |
| Unit | t/h | Mpa | ℃ | ℃ | % | Nm³/h | mm(L*W*H) |
| WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 97.62 | 1407.5 | 8660*3520*4831 |
| WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 97.51 | 1459 | 8870*3550*3750 |
| WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/197/204 | 105 | 97.2 | 1126 | 7450*3520*4090 |
| WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 96.75 | 837.25 | 6370*2812*3514 |
| WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 96.7 | 659.25 | 6000*2920*3403 |
| WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 96.58 | 433.51 | 5470*2770*3195 |
| WNS5-1.25(1.6)-Q(Y) | 5 | 1.25/1.6 | 194/204 | 20 | 96.48 | 409.33 | 5160*2410*3015 |
| WNS4-1.0(1.25)(1.6)-Q(Y) | 4 | 1.0/1.25/1.6 | 184/197/204 | 20 | 96.3 | 334.23 | 4880*2710*2600 |
| WNS3-1.0(1.25)(1.6)-Q(Y) | 3 | 1.0/1.25/1.6 | 184/197/204 | 20 | 95.99 | 245.12 | 4762*2447*2469 |
| WNS2-1.0(1.25)-Q(Y) | 2 | 1.0/1.25 | 184/197/204 | 20 | 95.81 | 163.72 | 4030*2010*2210 |
| Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output | |||||||
gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler
boiler steam,diesel boiler,boiler steam,diesel boiler,boiler steam,diesel boiler,boiler steam,diesel boiler,
gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler
Protective device
1.Boiler equipped with autoalarm control system,function are as followed:
(1).High and low water level give sound and light alarm.
(2).Low water level interlock protection founction.
(3).Water level automatic control founction.
diesel boiler,diesel boiler,diesel boiler,diesel boiler,diesel boiler,diesel boiler,diesel boiler
boiler steam,diesel boiler,boiler steam,diesel boiler,boiler steam,diesel boiler,boiler steam,diesel boiler,
2.Boiler Fire off Protection :
If oil gas boiler fire off,if continue to supply fuel, the furnace may explode.This oil(gas) boiler burner equip with flam detection device,it can inspect the the furnace combustion condition.if gnition is failure or flamout halfway,it will close the oil(gas) solenoid vave in 5seconds(ignition),close the solenoid valve in 10 seconds(operation),and will Send out sound and light alarm signal. At this time,the forced draft fan continue working to blow off the flammable gas, after 20-30 seconds, the forced draft fan will stop working and all auxiliaries will power off automatically.
gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler
gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler
gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler
diesel boiler,diesel boiler,diesel boiler,diesel boiler,diesel boiler,diesel boiler,diesel boiler
Certifications
gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler
boiler steam,diesel boiler,boiler steam,diesel boiler,boiler steam,diesel boiler,boiler steam,diesel boiler,
gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler
diesel boiler,diesel boiler,diesel boiler,diesel boiler,diesel boiler,diesel boiler,diesel boiler
gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler
diesel boiler,diesel boiler,diesel boiler,diesel boiler,diesel boiler,diesel boiler,diesel boiler
FAQ
Q1: How to install a boiler?
A1: Swet Boiler provides completed installation drawing and operation manual, or can send engineer to your site for guiding and trainning.
Q2: How many years is the boiler’s life span
A2: The boiler is designed for at least 10 years life span, but under good maintenance, usually the boiler can use at least 15 years, Swet Boiler provide full life after-sales service to each sold boiler.
Q3: How to choose a boiler model?
A3: Confirm the type (steam or hot water), capacity, working pressure (or output temperature) and fuel(coal, biomass, gas or oil or other fuel) of the boiler, Swet Boiler will suggest a suitable model based on your usage.
Q4: How is the warranty term?
A4: If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler,gas combi boiler
boiler steam,diesel boiler,boiler steam,diesel boiler,boiler steam,diesel boiler,boiler steam,diesel boiler,
