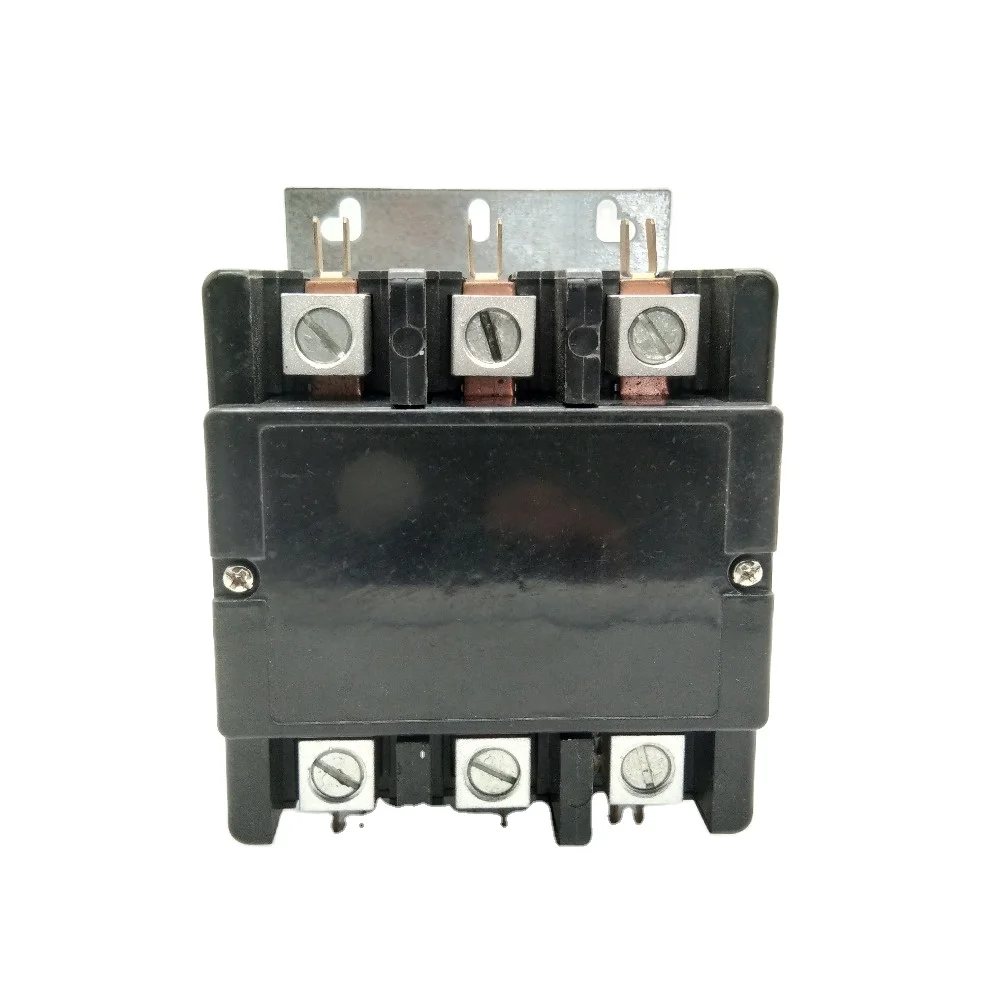

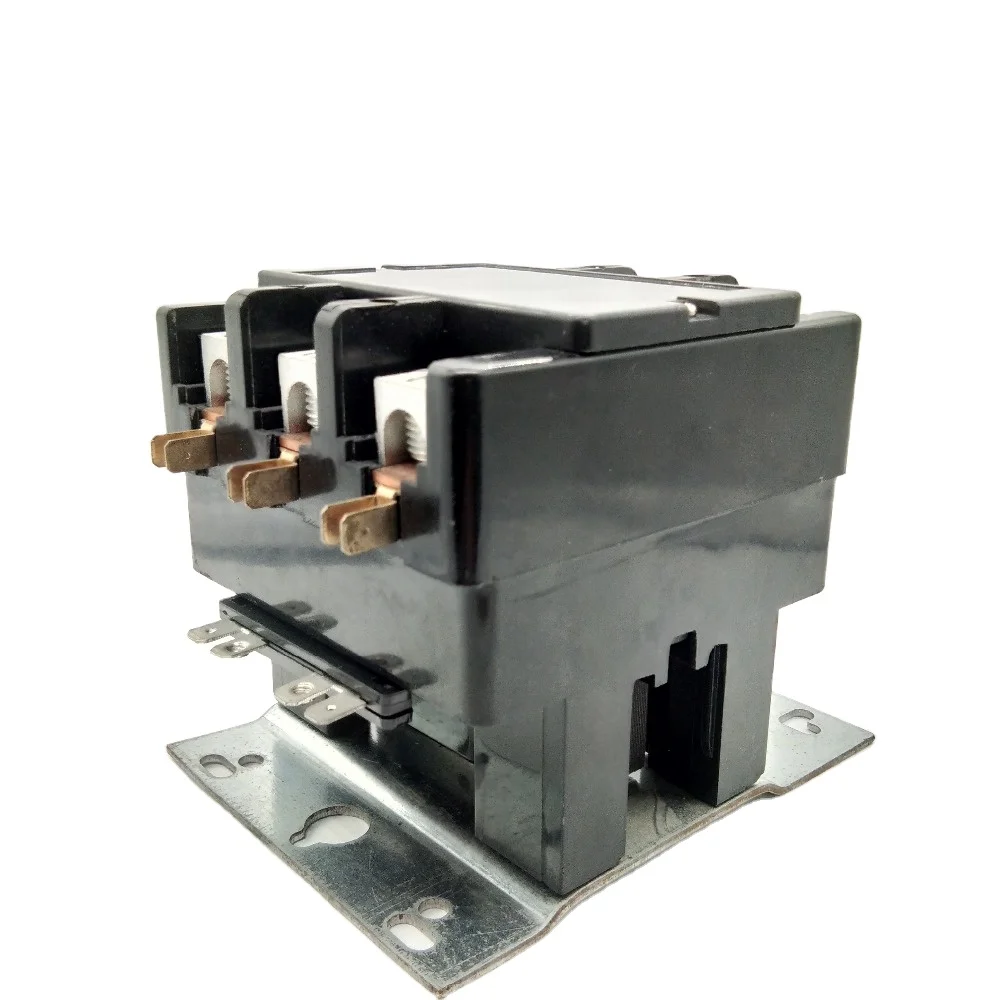

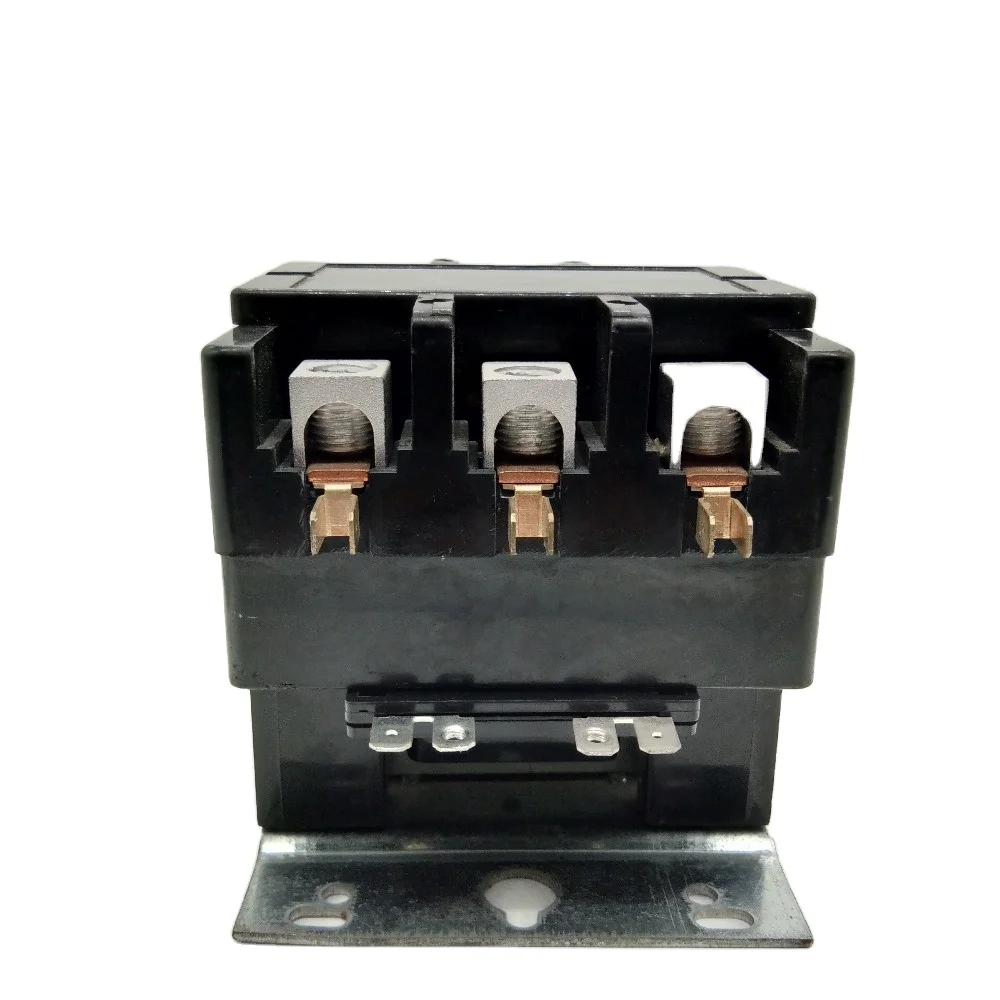

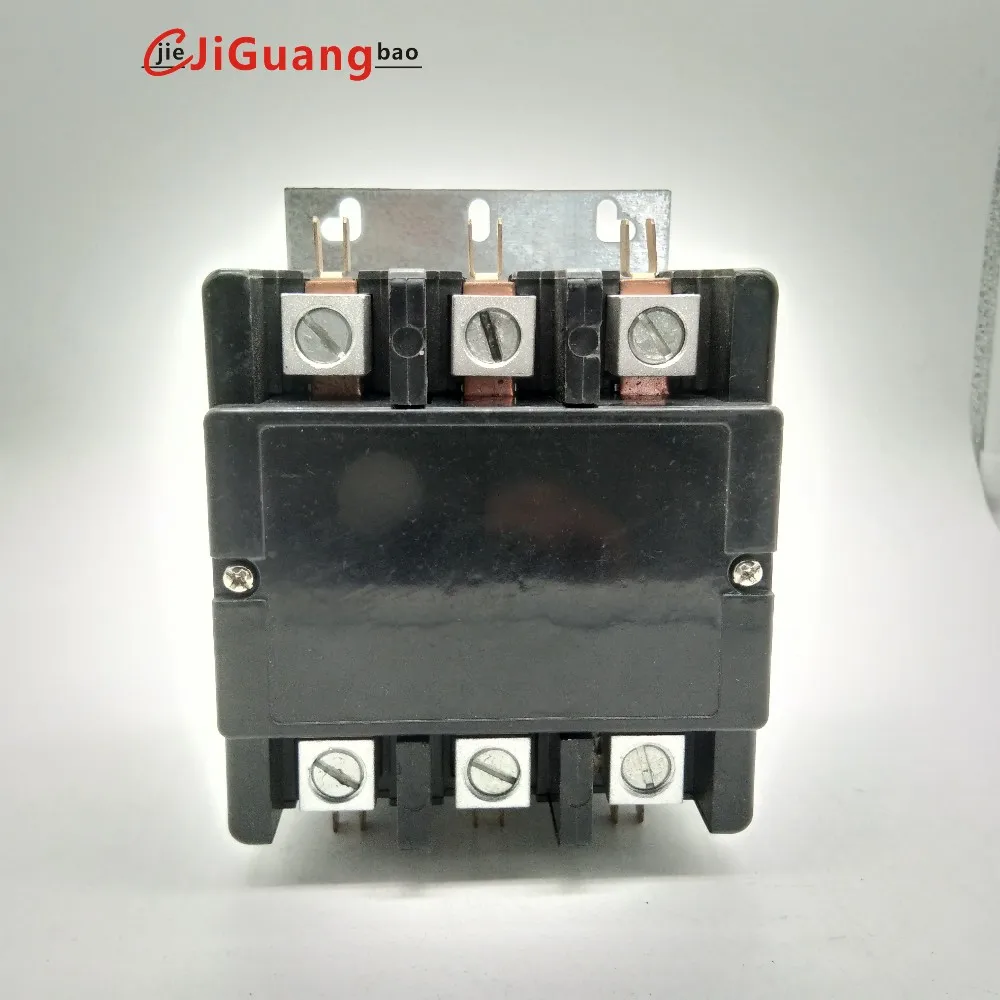

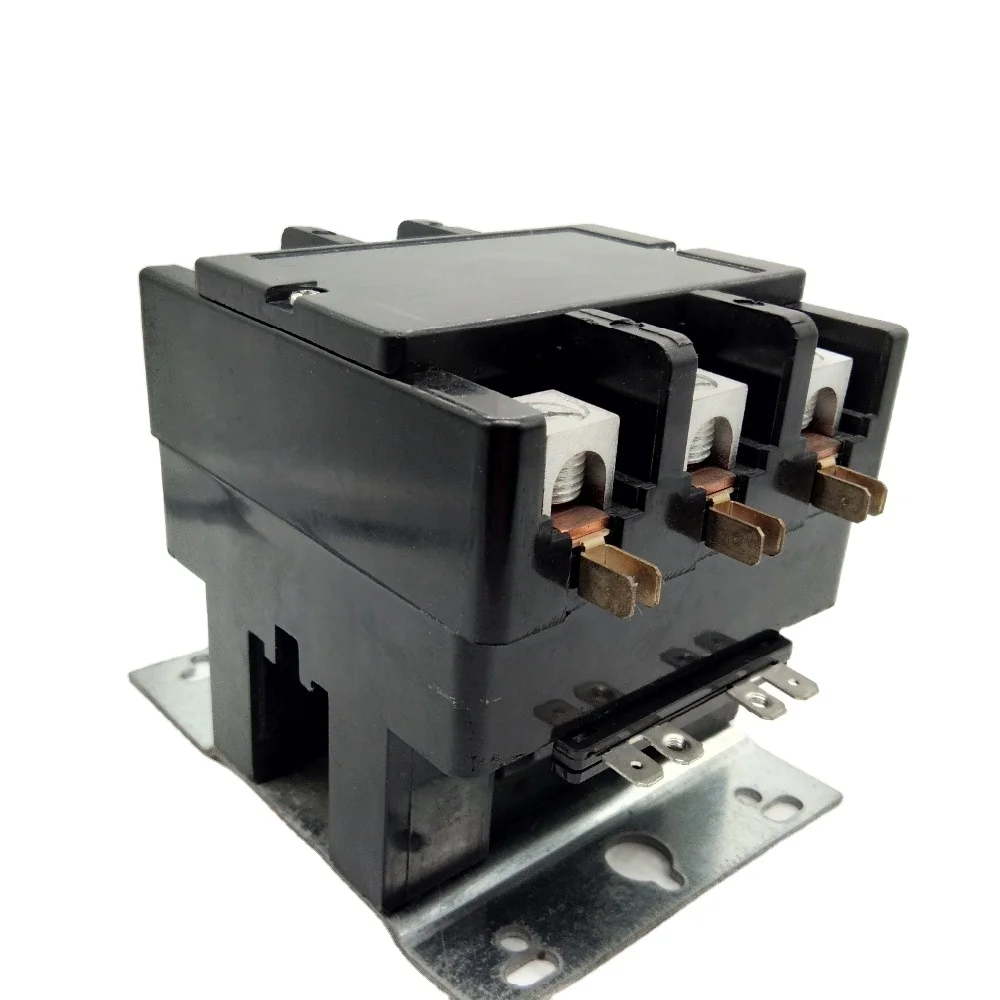

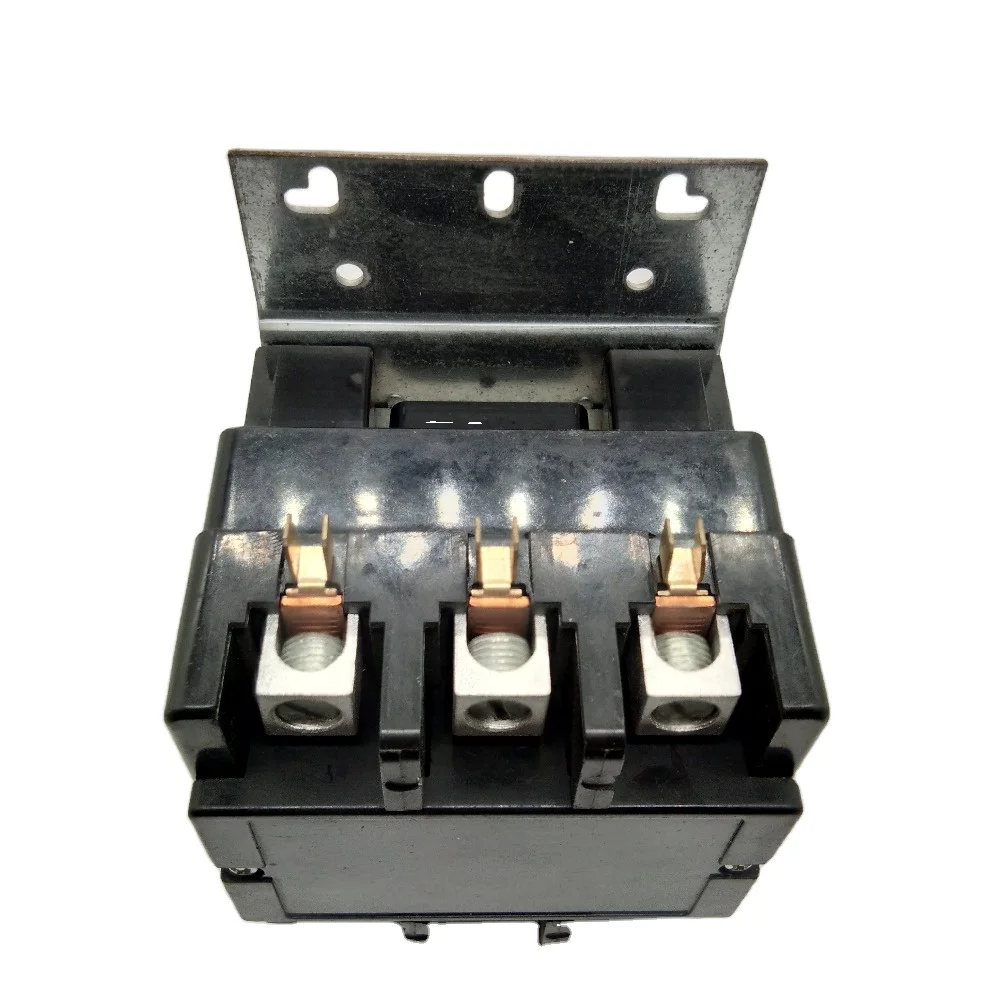

difinite purpose contactor,3p 75a DP contactor with UL certificate,low price dp contactor

Share on (60765861484):


Price:

Quantity:


Product Overview

Description


\t\t\t\t\t\t\t\t\tThe product will \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tProduct material \t\t\t\t\t\t\t

Adopt environment-friendly bakelite material, increase mineral 20%~30%, enhanced environmental protection type and flame retardant property

Adopt all purple copper enameled wire, full circle high power coil, avoid cutting corners, safe and reliable

The contact point of the product is silver contact point, and the silver content is more than 85%

The bottom plate is made of metal with bright luster

\t\t\t\t\t\t\t\t\tProduct attributes \t\t\t\t\t\t\t
\t
Coil Voltage 50/60Hz
\t
Full load amps
\t
Line
voltage
\t
Locked
rotor
amps
\t
Resistive amps
rating
\t
Maximum horsepower
\t
Approx unit weight
\t
Voltage
\t
Single phase
\t
Three phase
\t
75FLA
\t
24
24
110/120
110/120
208/240
208/240
277
\t
75
\t
240/277
480
600
\t
450
375
300
\t
93
93
93
\t
110/120
200/208
240
480
600

\t
5
10
15
-
-
\t
-
20
25
40
40
\t
4 lbs
1.81kgs
\t
COIL TECHNICAL DATA 50/60Hz
\t
Nominal Coil Voltage
\t
24
\t
120
\t
208/240
\t
277
\t
480
\t
Maximum Pickup Voltas
\t
18
\t
88
\t
177
\t
220
\t
384
\t
Drop-Out Volts Range
\t
6-15
\t
20-70
\t
40-140
\t
65-185
\t
150-270
\t
Nominal lnrush VA@50Hz
\t
285
\t
285
\t
285
\t
285
\t
285
\t
Nominal lnrush VA@60Hz
\t
240
\t
240
\t
240
\t
240
\t
240
\t
Nominal Sealed VA@50Hz
\t
42
\t
42
\t
42
\t
42
\t
42
\t
Nominal Sealed VA@60Hz
\t
27
\t
27
\t
27
\t
27
\t
27
\t
Nominal DC Resistance-Ohmse
\t
6.3
\t
15.6
\t
63.5
\t
84
\t
255
\t
Maximum Coil Voltage
\t
30
\t
132
\t
264
\t
300
\t
528
\t
OTHER SPECIFICATIONS
\t
75FLA
\t

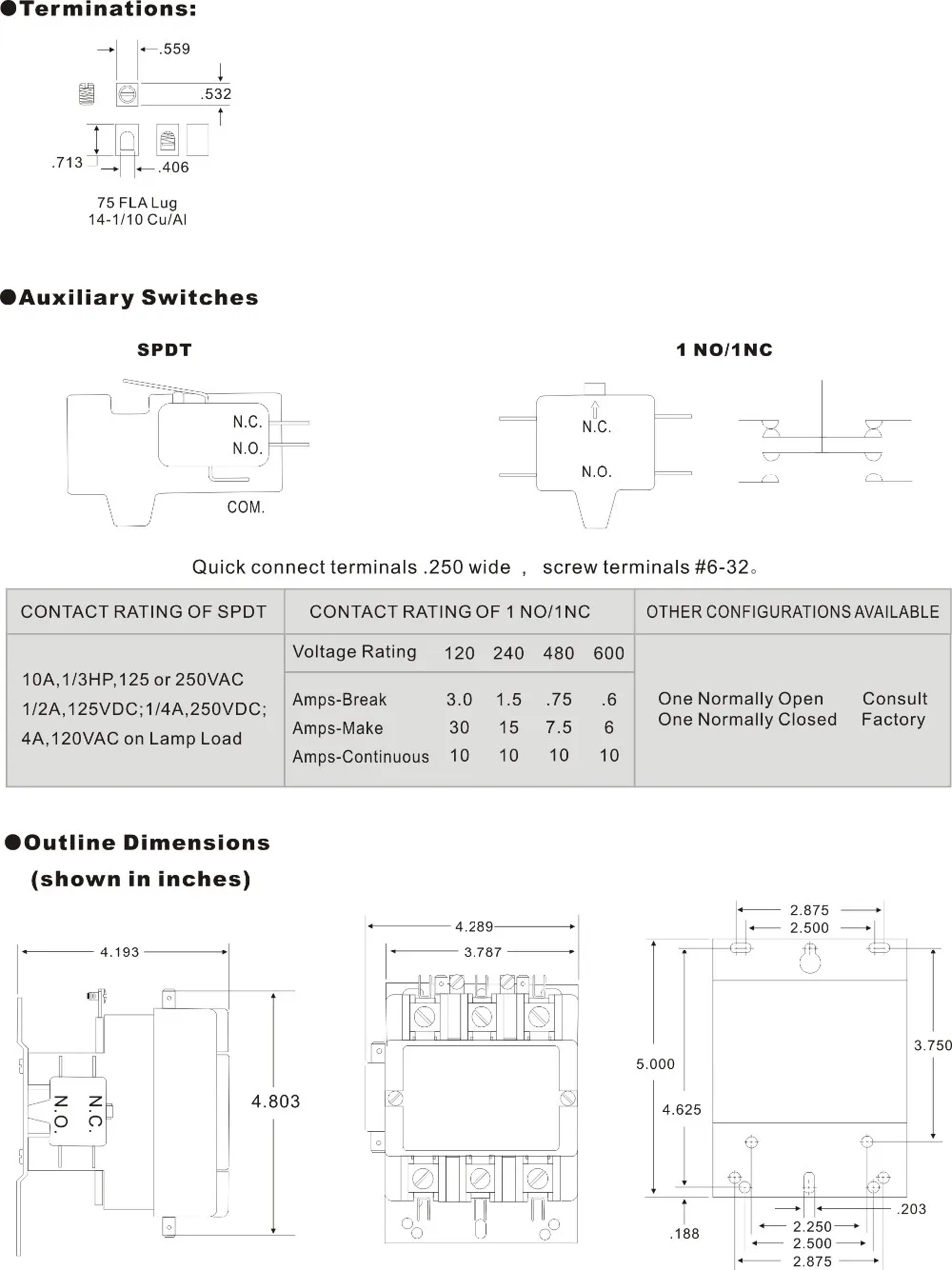

Line and Load Terminals
\t
Box Lugs
\t
Wire Size AWG Min-Max
\t
1/0-14 Cu/Al
\t
Tightening Torque(Recommended)
\t
50 in.lbs
\t
Quick Connects:Power Terminals
\t
Dual.250 QC
\t
Coil Terminals
\t
#6-32 screw &.250 QC
\t
ARC Cover
\t
Standard
\t
Insulation Grade
\t
130℃ Class B
\t
*Stranding  must be split for #8 wire.
\t
**(1)#6-32 screw and(1).250QC are optional.
\t
***Permissible Ambient Temperature
\t
-40℃/65℃      -40℉/150℉
