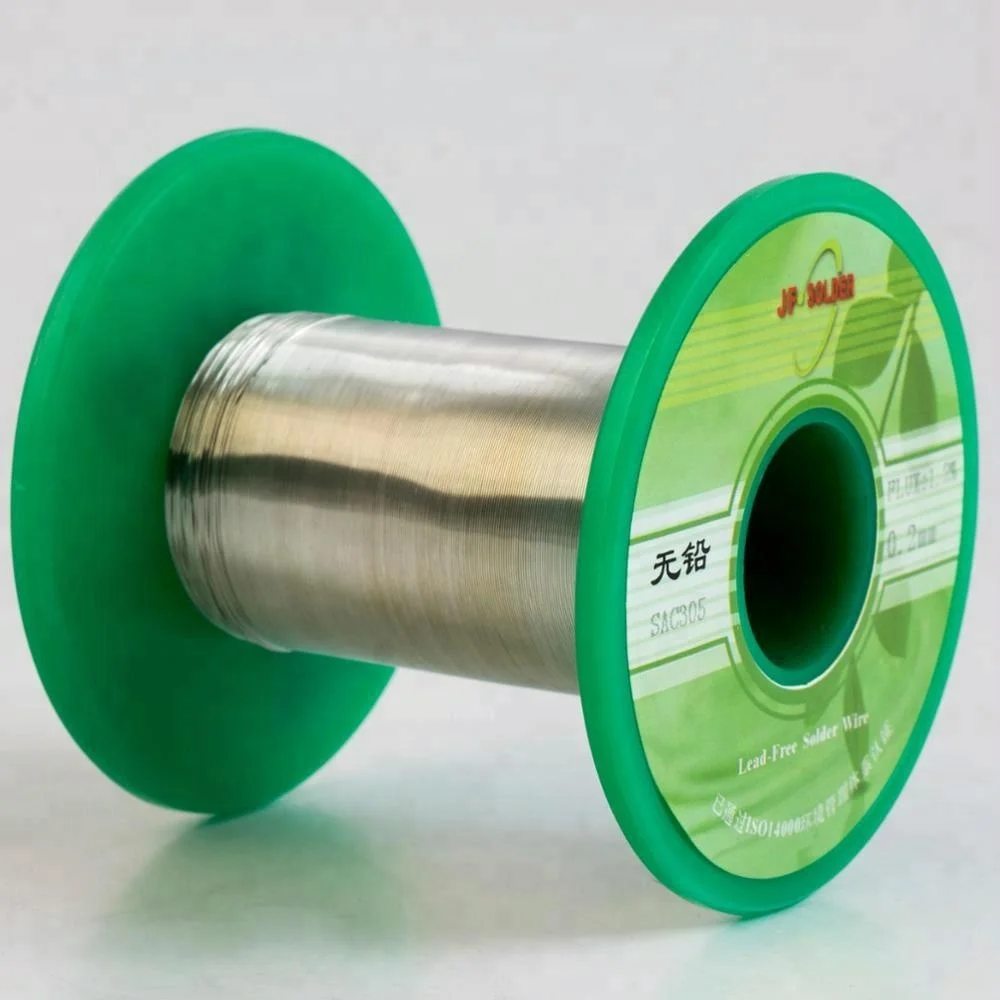

Sn96.5Ag3.0Cu0.5 Lead Free 0.1mm solder wire with flux cored

Product Overview

Description

Sn96.5Ag3.0Cu0.5 Lead Free 0.1mm solder wire with flux cored



1. Introduction:



Our Sn96.5Ag3.0Cu0.5 flux-cored solder wire and solder bar is a commonly used product by adoption of lead-free soldering technique. It features relatively high cost, but bright solder joints and outstanding performance. Our company has achieved both SGS certificate and RoHS certificate for this type product.

The lead content of our solder wire and solder bar is generally less than 100ppm. This product is composed of 96.5% tin, 3% silver, and 0.5% copper. The diameter of the wire reaches over 0.1mm. Due to the adoption of high-purity raw materials, our product can offer superb fluidity during the soldering process. It can significantly reduce such technical problems as bridging, icicle, and some others. It is ideal for both wave soldering and dip soldering processes, which have high demand for environmental protection



2. Specification:



Specification				Sn99-Ag3.0-Cu0.5
Appearance				Lucent, no dirt on surface
Weight				20-1000g/roll, 10kg/ctn
Chemistry component
Sn	Ag	Cu	Pb		Sb	Bi	Zn	Fe	Al	As	Cd
96.5	3.0	0.5±0.2	<0.01		<0.02	<0.01	<0.003	<0.02	<0.001	<0.03	<0.002

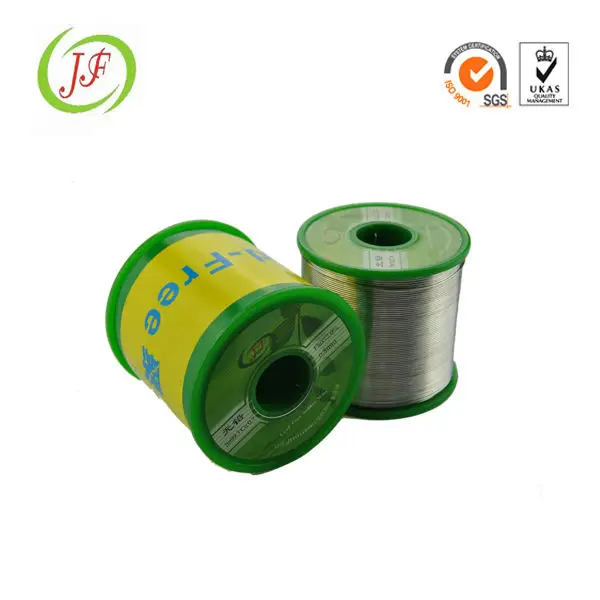

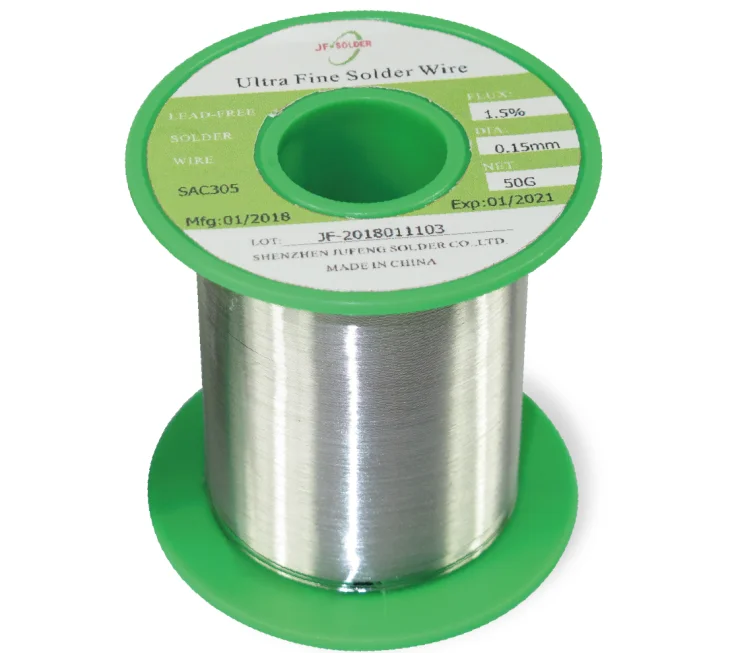

 3. Product Display:



4. Scope of Application:

The Sn96.5Ag3.0Cu0.5 solder wire can be used for the soldering of the precise computer chips, mobile phone chips, stainless steel products, LED, printed circuit board (PCB), and a variety of high-precision electronic circuit boards, among others. Meanwhile, it is suitable for the restoration of mini-sized electronic equipment.

5. Remarkable Features:
1. Favorable Fatigue Resistance and Solderability
There is a no-clean activated rosin flux inside the tin wire, which allows our product to provide distinguished soldering effect.



2. High Electrical Resistivity and Electrical Conductivity.

Owing to the addition of copper, this Sn96.5Ag3.0Cu0.5 solder wire allows the electronic components to produce relatively high electrical resistivity during the soldering process.

3. Ultra High Resistance to Both Oxidation and Creep Deformation
The combination of three different alloy components provides this lead-free and eco-friendly tin wire with high melting point. Additionally, our product is difficult to be softened. Its antioxidant capacity is greatly enhanced.

4. Wonderful Soldering Effect, Fast Soldering Speed, Nice Wetting Property, and Good Fluidness
The activated flux in this product can offer superior fluxing effect.

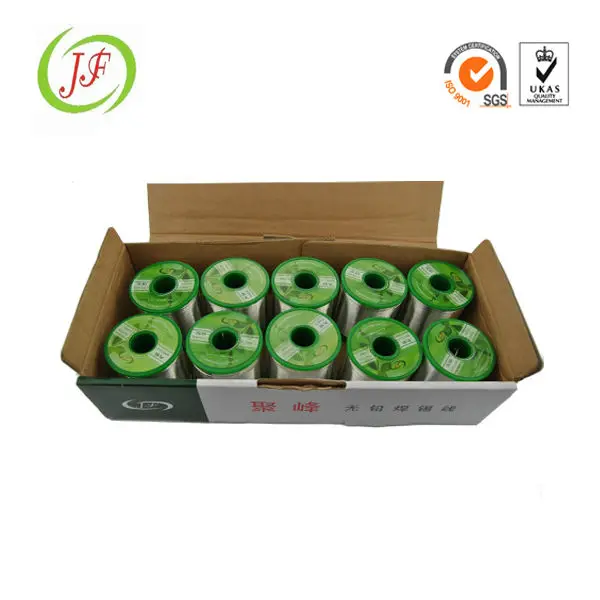

6. Packing:

7. Factory and workshop:





8. Certification:
