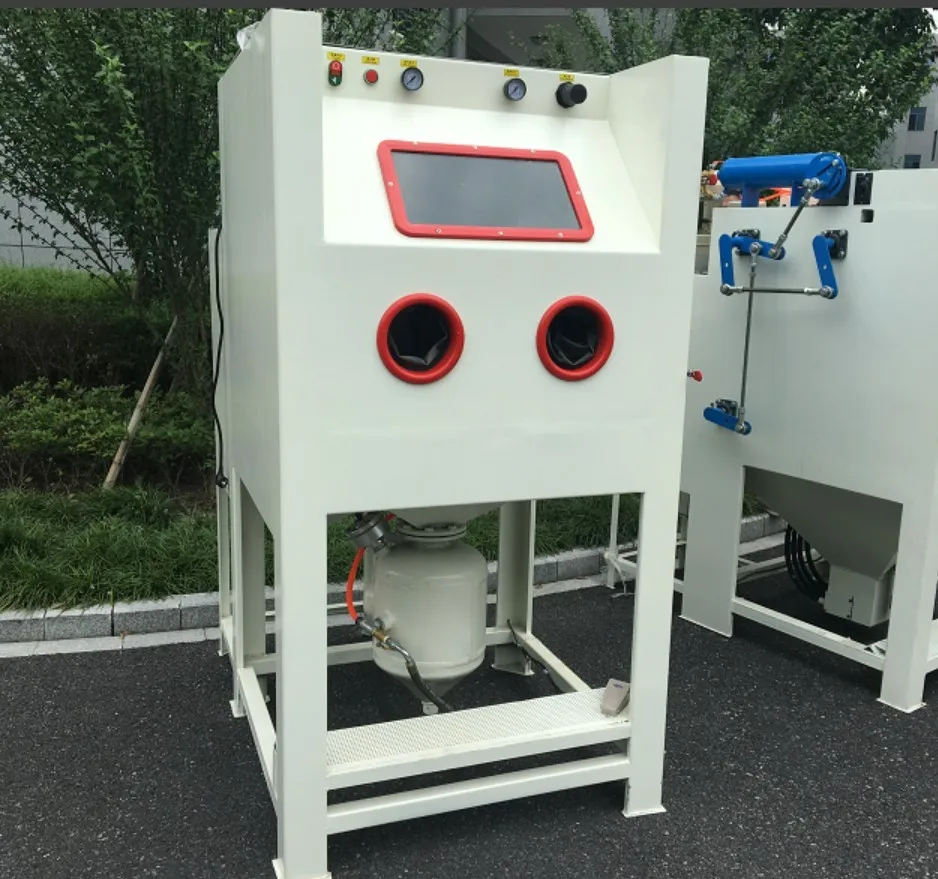

Special Top Quality Super Price High Pressure Sandblaster

Special top quality super price high pressure sandblaster

Dimension size:900*1350(including dust box)*1900(mm)

Working chamber size: 900*800*800(L*W*H mm)

Dust box size: 430*430*1600(L*W*H mm)

Dusting fan power: 0.55kw

Dust removal method: bag pulse dust

Lighting: LED 18W lamp 1 pcs

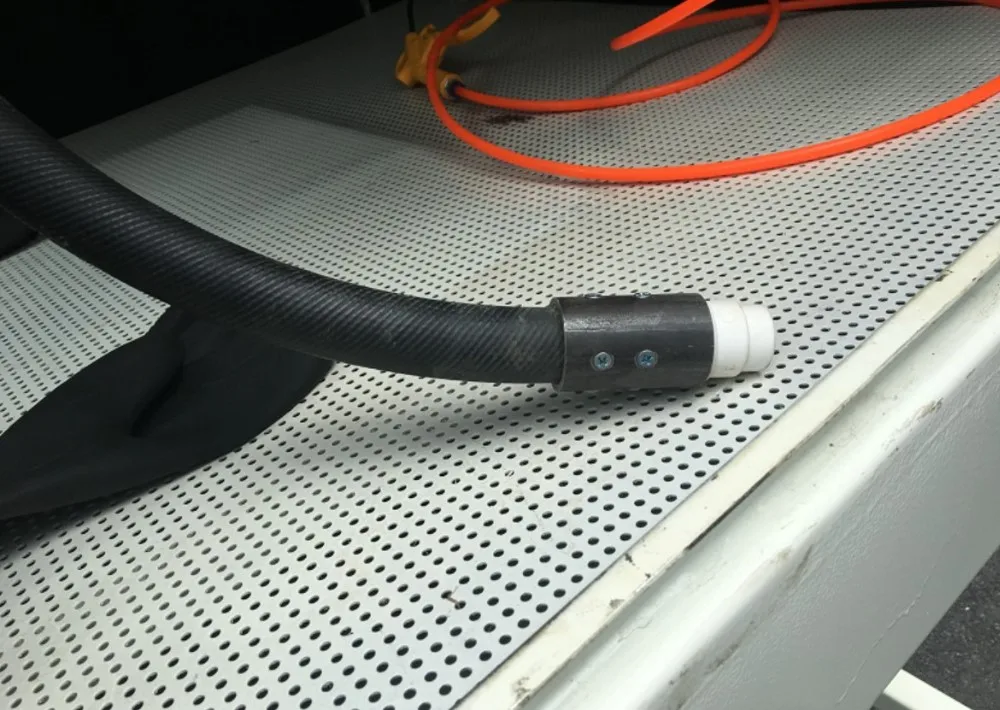

Spray gun: high-pressure spray gun-1pcs

Nozzle: boron carbide nozzle-1pcs

Shell: 2.0mm cold-rolled steel plate welded

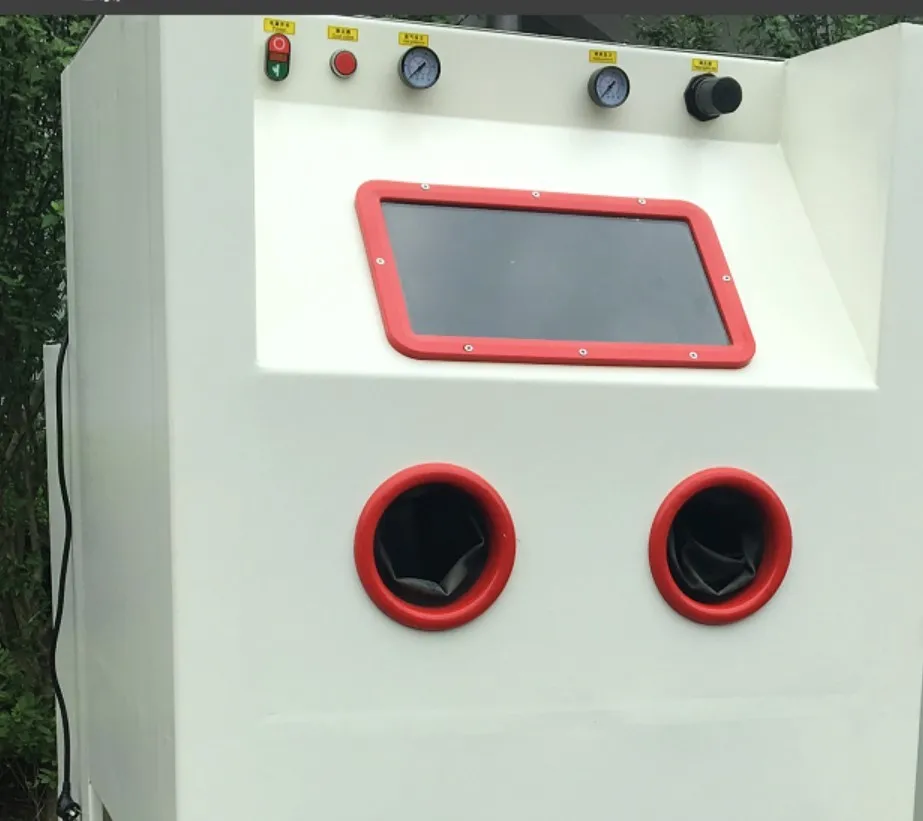

Observation window: 1230* 420(mm)

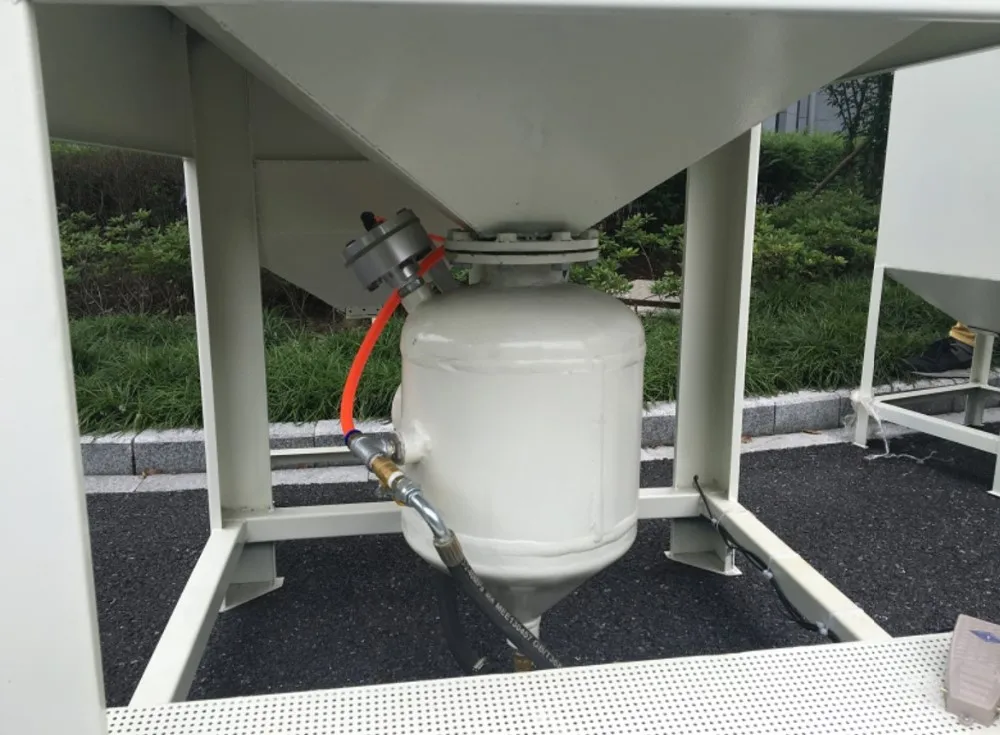

Pressure tank: diameter 350mm *high 450mm

Pressure gauge: 2 pieces Regulator: 1 pcs 1 pcs

Dust valve: Working door size: 630mm * 630mm Air pressure requirements: 5 ~ 8bar (kg / cm2) must be greater than 2 cubic meters of air compressor supporting

Features:

Special top quality super price high pressure sandblaster   uses cyclone separation automatic recovery of sand material, suitable for 30 # -180 # sand material used; Sandblasting efficiency, impact point deep, with instantaneous control system; Dust and sand separation, saving abrasive, environmental protection effect is good;

Scope of application:

For small and medium-sized, small and medium-sized general parts and high hardness of the workpiece rapid blasting.

Such As :

clean cast parts, heat treatment pieces, burrs, residues, you can light decorated its surface, pre-plating; Especially for sprayed steel grit, glass sand; do not recommend the use of steel balls, grit and other large intensity of the sandblasting material

High Pressure blasting machine working principle:

The high pressure sandblasting machine use abrasive as the working medium with compressed air as the driving forces ,abrasive and comressed air in the pressure tank pressured , and after the acceleration of the the sand valve the abasive ejector to sandblasting gun to inject into the surface of the workpiece to achieve the desired purpose of blasting.

CE certificate of Special top quality super price high pressure sandblaster
