220V Magnetic Drive Circulating Water Pump Chemical Pump For Etching Solution And Surface Treatment

Product Overview

Description

MP(MD)/MP(MD)-F Series Acid And Alkaline Resistant Magnetic Drive Circulating Water Pump



Application

The magnetic drive sealless pump MP series is ideal for low capacity with high head or high capacity with low head applications.

It is widely applied in various industrial process. Such as PCB process,chemical industry, circulated filtering, etching, plating, surface treatment, polluted water treatment, etc. these pumps assure outstanding performance and maximum durability.



Feature
1. Outstanding Acid / Alkaline Resisting Capability

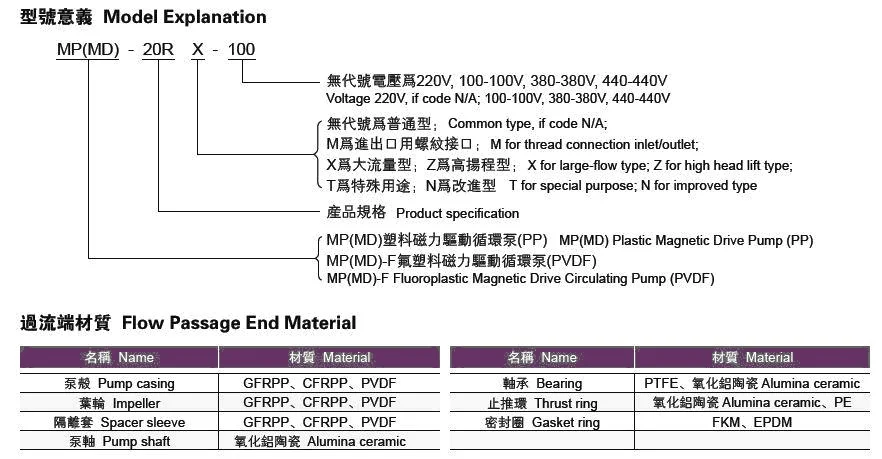

    The material of pump body has four kinds to choose from, including PP(Polypropylene), GFRPP(Glass Fiber Filled Polypropylene), PVDF(Natural PVDF), Correct choice of pump body material depends on acid / alkaline density of solution. To satisfied the market demand,  PP pump material for enhancing the capability of acid resistance. The PP / GFRPP material can resist temperature up to 75℃. The PVDF material can resist temperature up to 90℃. The CFRETFE material can resist temperature up to100℃. In application almost all solutions can be transferred with safety.

2. Corrosion Resisting
   The major parts of the pump feature outstanding corrosion-resist capability. For example the pump spindle can be made from ceramic and SIC. The ceramic spindle is generally applied for low corrosion liquid. The SIC spindle is excellent for high corrosion liquid.

3. Sealless and No Leakage
    Eliminate the mechanical shaft seal design on the conventional pump, the high performance magnetic drive pump features complete seal. It fully eliminates the problem of environmental pollution due to pump damage.

4. Easy to Assemble
    The internal parts of a magnetic drive sealless pump are fully standard for easy assembling completely constructed with high performance. Parts replacement is easy to made without need to of any specially tool. It features convenient maintenance, dismantling and inspection for  time saving service.

5. Maximum Durability
    The MP series pump motor is equipped with temperature protection device which avoids motor damaged due to high temperature caused by overload.



Complete Specification

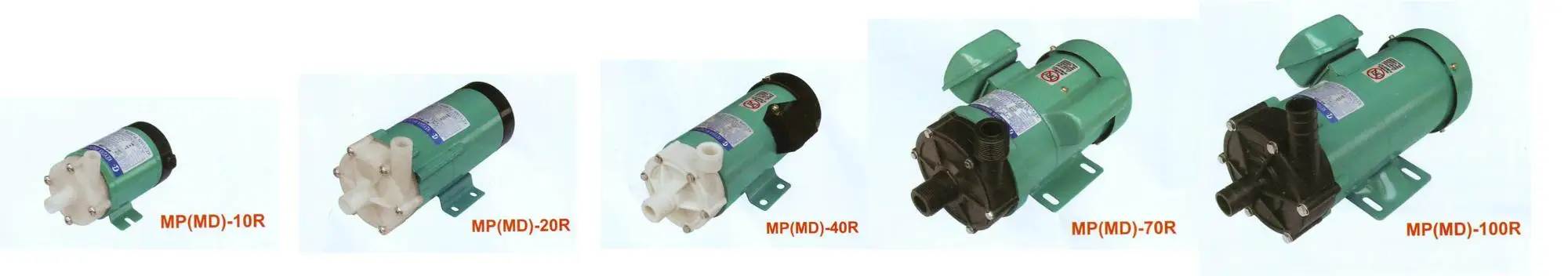

The MP(MD),MP(MD)-F series pump's maximum flow is up to 220L/min from 5L/min. With such options as hose and thread connections, it's applicable for transporting acid and alkali liquid. Different impellers can be selected, subject to specific gravity of liquids, to transport many kinds of liquids with high specific gravity without overload.





Working Principle

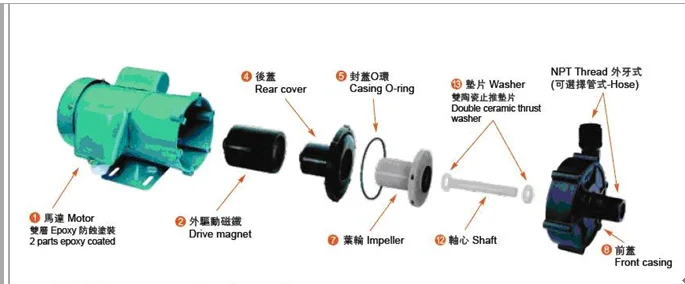

The MP(MD),MP(MD)-F series magnetic pump is driven by a pair of magnets connected on impeller and motor shaft. Unlike the traditional centrifugal pump, it's glandless for its structure. Its chamber is separated by the rear casing.Its motor is provided with active magnetic rotation. The active and passive magnetic coupling toque drives the impeller to rotate, thus achieving the liquid transprotation.

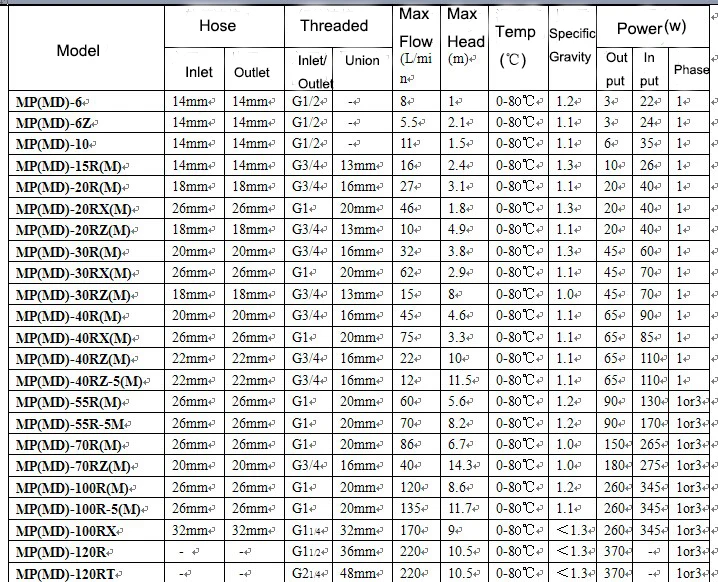

Technical Parameters
