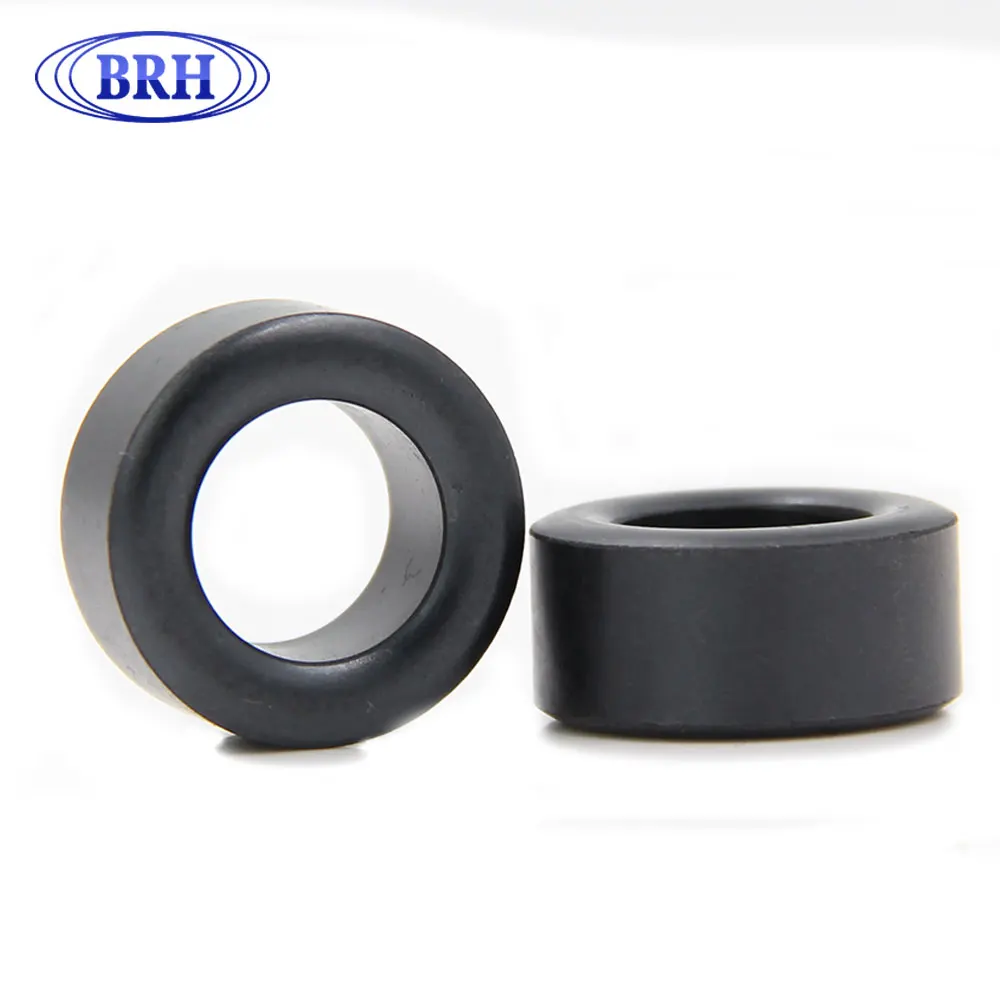

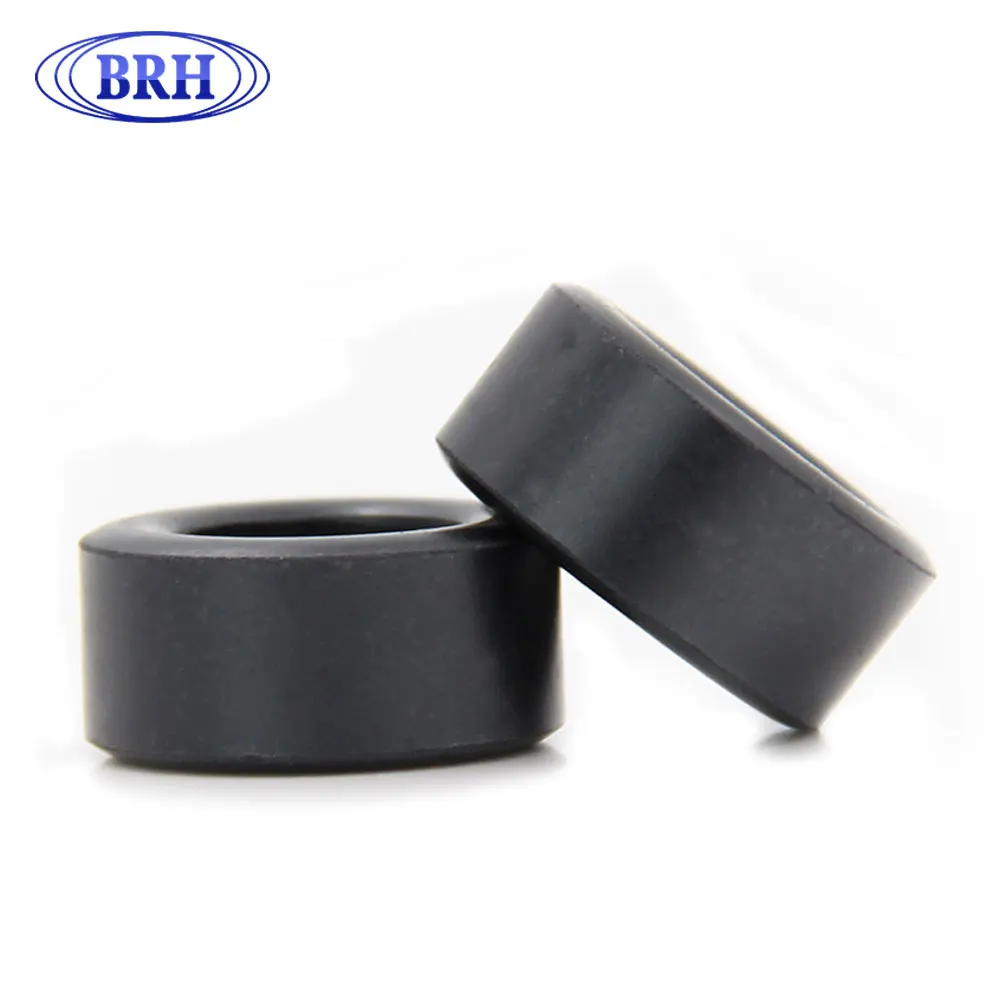

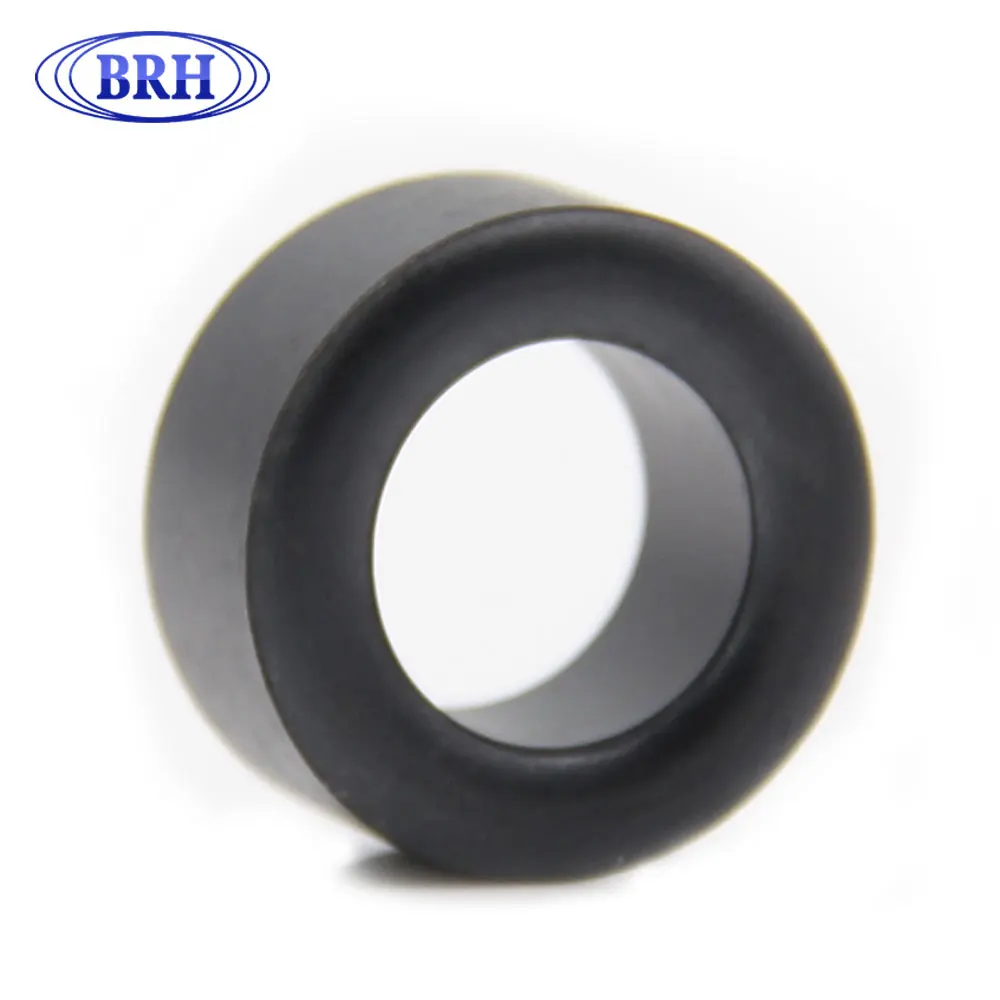

Product Overview

Description

Description

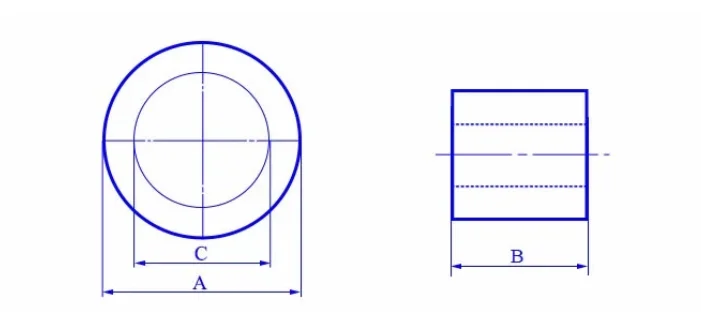

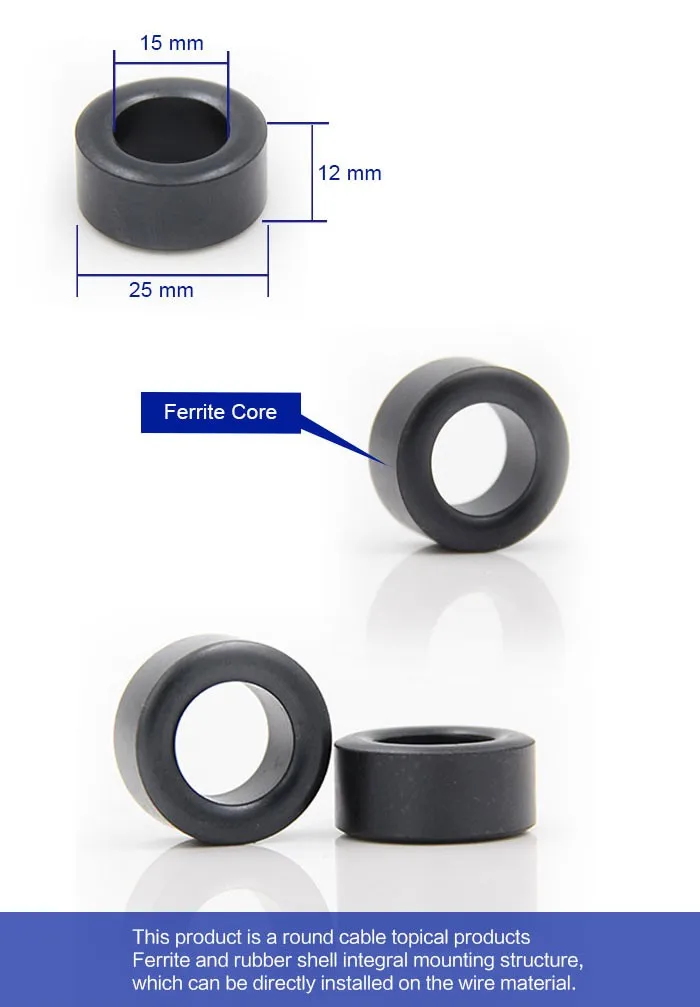

SIZE CODE （mm)
A
B
C
A2 T 25*12*15
25.0±0.6
12.0±0.5
15.0±0.5
Parameter
Electrical Requirements
SIZE CODE （mm)
A2 T 25*12*15
25 MHz
30Ω MIN
100 MHz
80Ω MIN
TEST INSTRUMENTS
HP 4191A
LCR METER
HP 4286
WIRE
0.65T.C.W*100m/m 1/2Ts
TEMPERATURE
15℃ to 35℃
HUMIDITY
25% to 85% RH

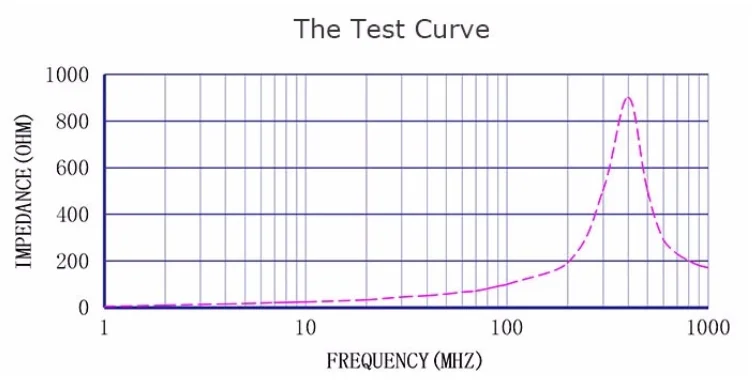

Test Data For Pre Production Samples
MEAS.
 Item
Ω
 AT 25MHz
Ω
 AT 100MHz
A
 m/m
B
 m/m
C
 m/m
Suggest
30Ω MIN
80Ω MIN
25.0±0.6
12.0±0.5
15.0±0.5
1
38.80
97.20
25.13
11.82
14.96
2
38.60
98.60
25.06
11.89
14.98
3
39.40
98.20
25.02
11.86
14.94
4
39.20
97.80
25.00
11.83
14.96
5
39.60
97.40
25.02
11.87
14.93
6
38.80
98.60
24.99
11.85
14.94
7
40.20
98.20
24.98
11.88
14.96
8
40.04
98.40
25.11
11.80
15.05
9
40.40
97.80
25.09
11.81
15.04
10
40.00
98.11
24.98
11.81
14.98





X-bar
39.50
98.03
25.04
11.84
14.97
R
1.80
1.40
0.15
0.09
0.12
The above test data for reference，Actual results may differ due to different production batches
