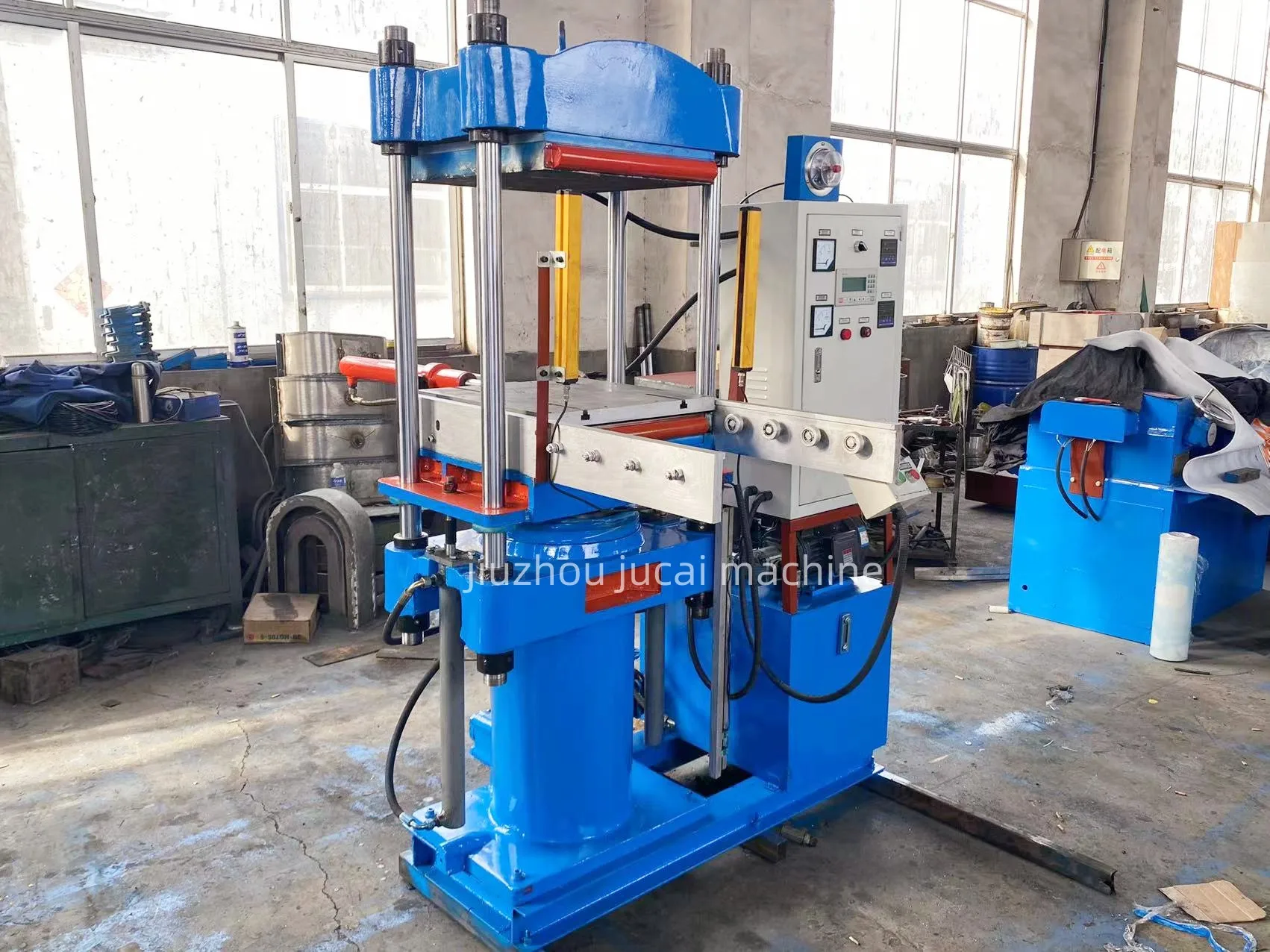

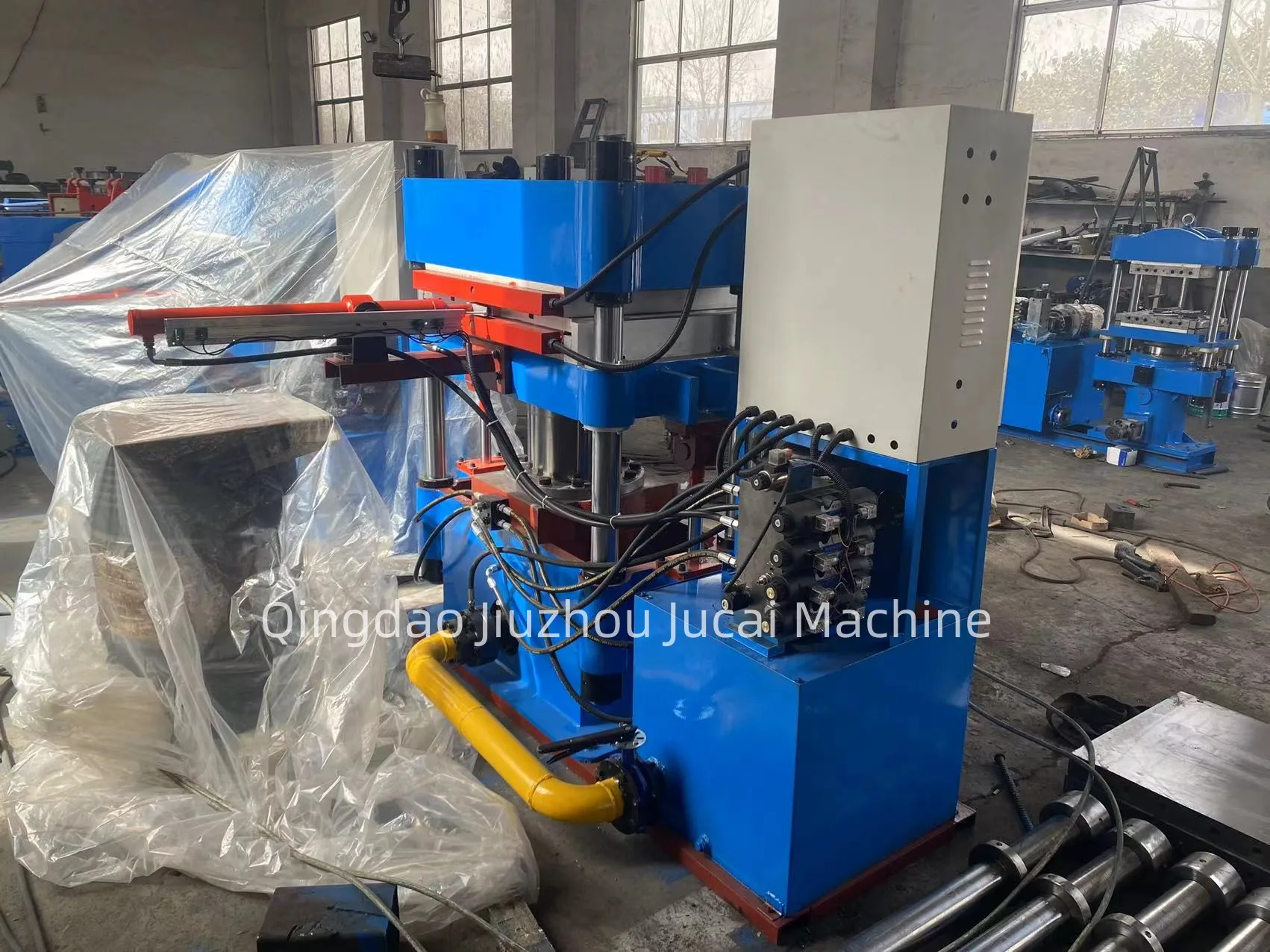

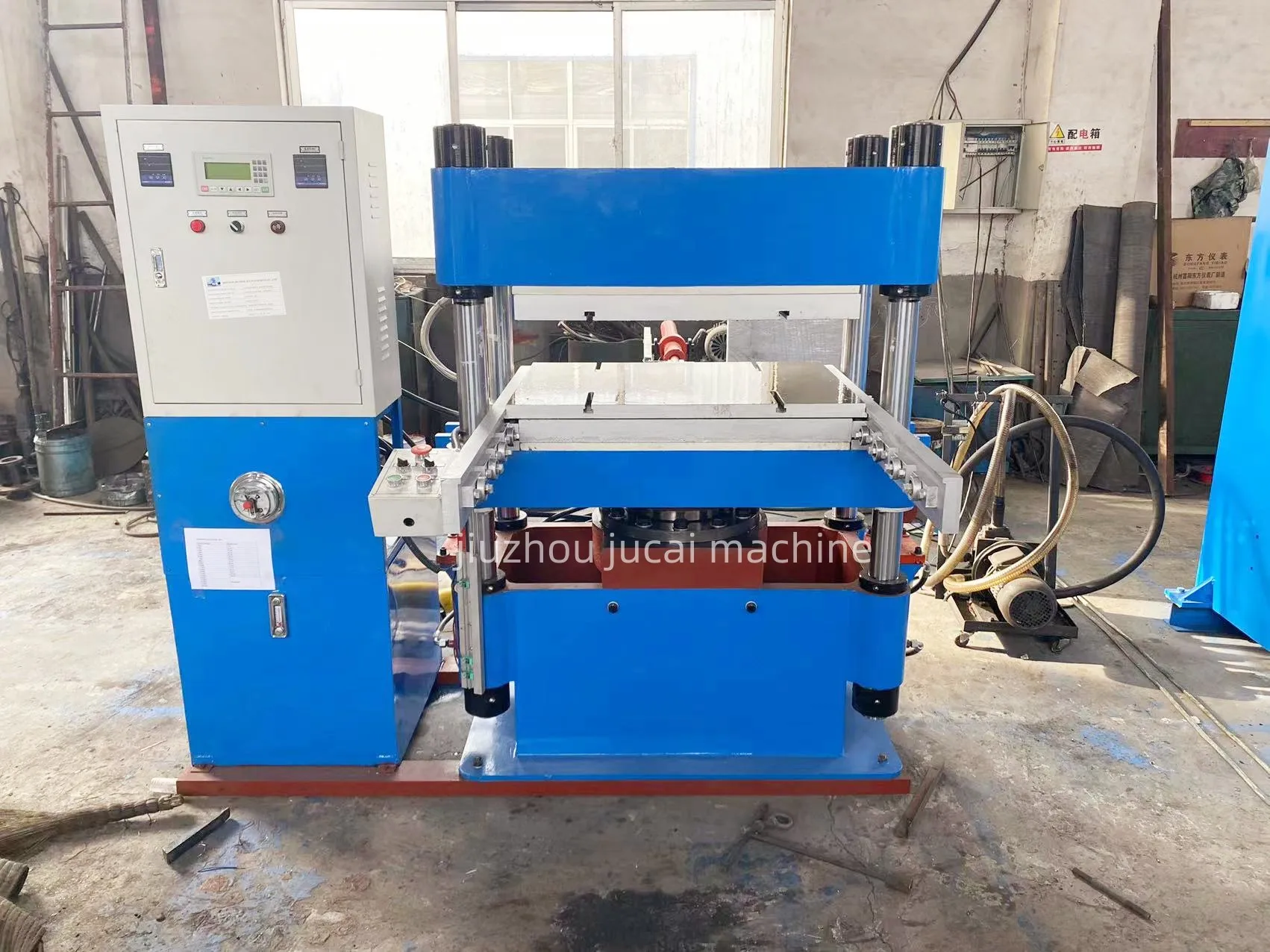

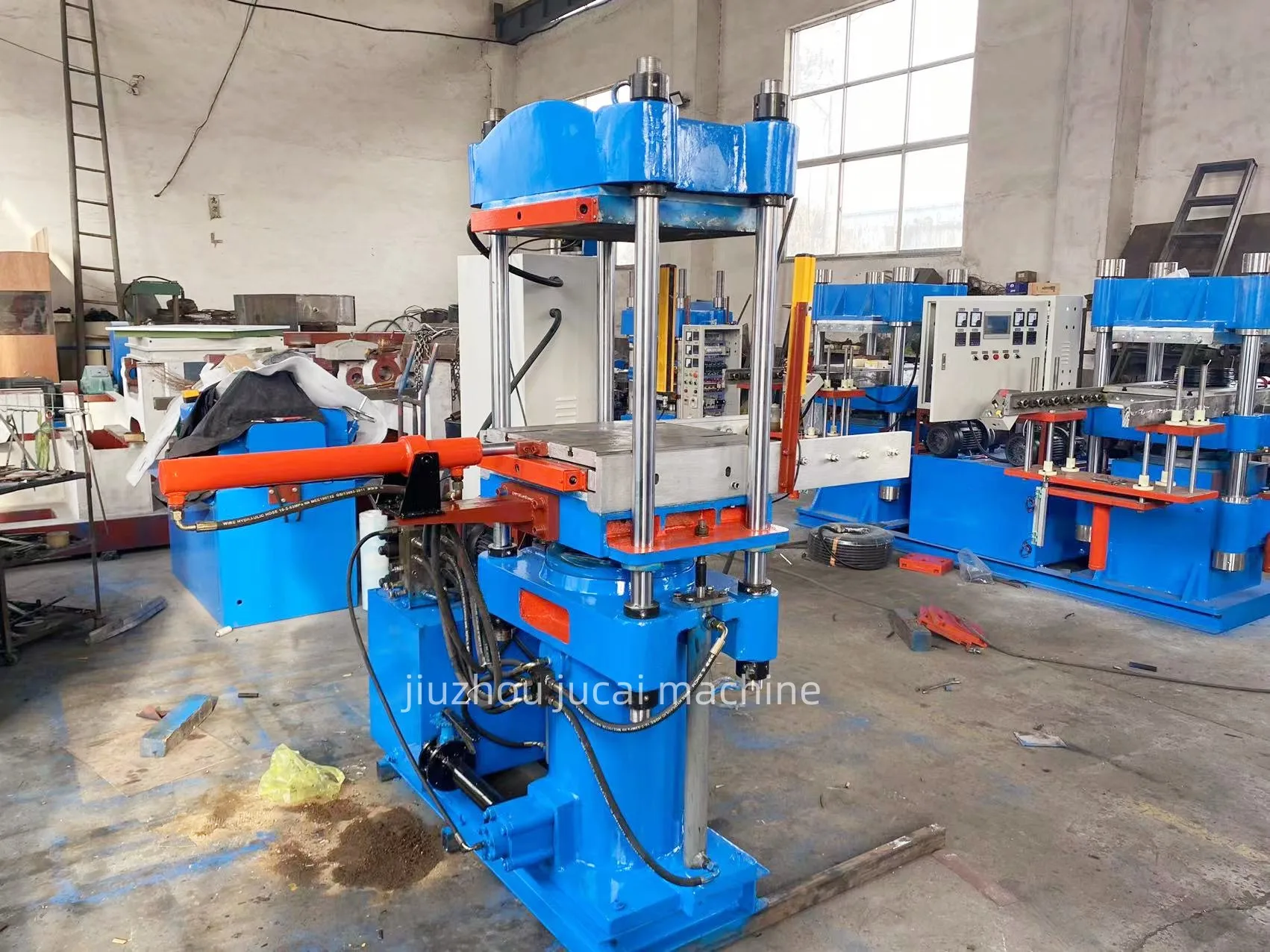

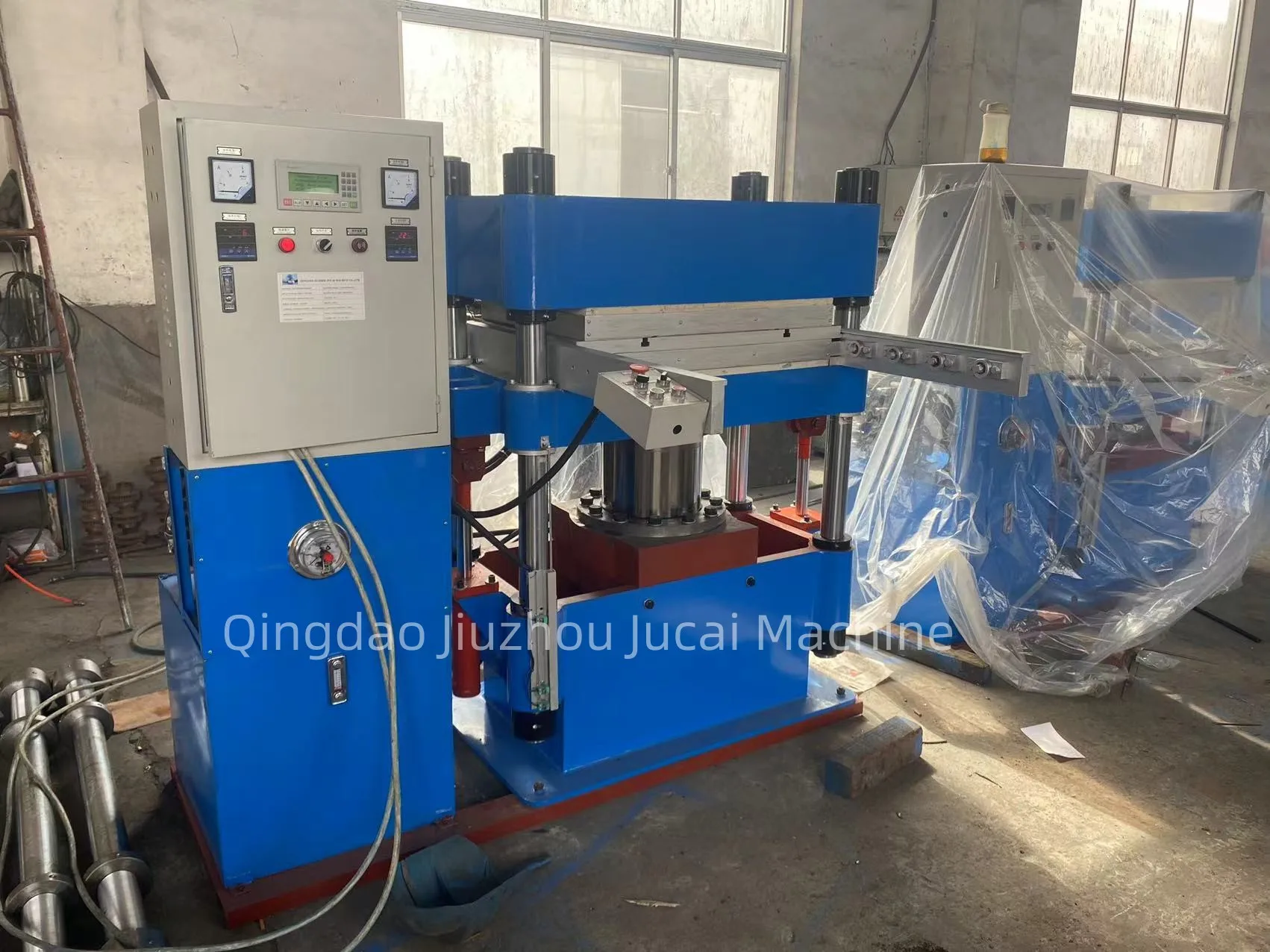

silicone vulcanization press vulcanizer ,vulcanizing press machine ,eva foam vulcanizing machine

We have been specializing in providing hydraulic press machine since our establishment in 2004

We provide a wide range of vulcanizing hot press, ranging from 20 to 10,000 tons mostly made-to-order products. We provide turnkey solution and technical service, for complete machinery installation and production line planning.

Our range of products include

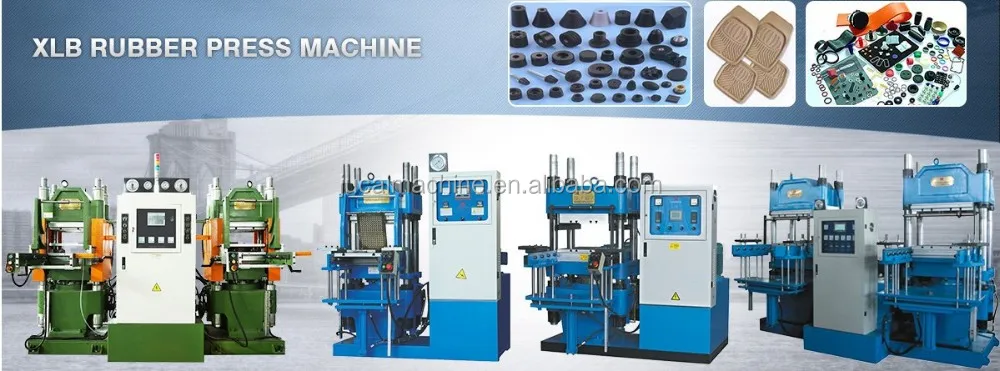

1.Column type Vulcanizing Press

2.Preure Tread Liner Molding Press

3.Foaming Press Machine

4.Hydraulic Heating Press Machine

5.Plate Vulcanizing Machine

1.Applicable for various rubber moulding production

2.PLC control & touch screen

3.Auto mold closing, air exhaust, temperature control, timing setting

4.Custom mold push out system

5.Well-sealed hydraulic cylinder with precise grinding and finishing

6.Stable hydraulic pressure station

1.The machine adopts the semiautomatic control. Worker can set the vulcanzing time , vulcanizing temperature in the cabinet . On finishing vulcanization , machine will alarm and worker can open mold

2.Most spare parts for hydraulic system are from our best domestic brand

3.Machine body casting is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation

4.The machine pillars/ columns are made of medium carbon steel , and its hardness can reach HRC55-58

5.The cartridge heater adopts three stages winding, nichrome wire , non-rusty

6.Oil seal are from Japanese NOK and Sakagmi Brand , it is wear-resisitant ,durable and oil tight

7.Main electrical elements are from Schneider France ,which can stabilize machine performance

1.The machine adopts the world advanced UG software and PO0-E3D analysis aided design to integrally cast and form the optimal design of high rigidity , tight structure and long life service

2.Heating Plate is made of deep hole processing , after carburizing process,by using the principle of heat flux,high precision , and the advantage temperature analysis of optimal design

3.Use computer CNC processing to ensure the optimal precision of design

4.Japanese technology planar average pressure correction with a highest precision up to 0.2mm

5.Heating plate/ in-and-out template adopts carburizing treatment and is completed by grinding and nitriding , long wearproof,not easy to be deformed and high planar precision

1.Vacuum and plate vulcanizing series machine adopts double motors , double oil pumps, double coolers , double oil systems .

2.Unique oil circuit design with no shock and low noise during oil circuit operation to improve efficiency and reduce energy consumption

3.Unique design of high speed circuit makes slow mode locking switch stable and adjustable to adapt to different types of model

4.Oil seals from Japan in the whole plant and special oil-proof design have no oil leakage and good durability. split type fast vacuum system is faster in vacuum pump with higher rate of finished products

5.The oil circuit system has special design with no vibration , good stability , and is faster than similar machines when in-and out mold goes up and down

1.The machine adopts the china best brand CHNT and DELIXI Brand , concise and clear wire connection , stable and reliable operation , low fault rate

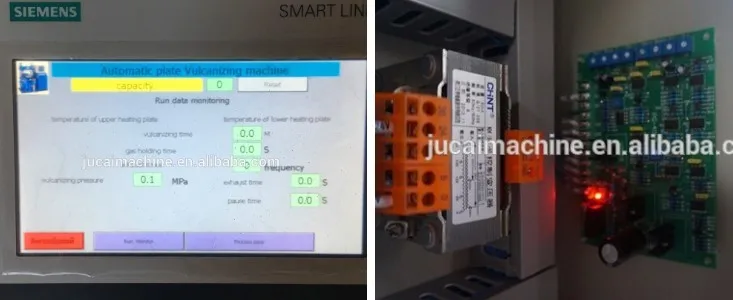

2.Advanced control soft ware in cabinet , which can set the vulcanizing time ,vulcanizing temperature in it

3.Professionally design output contact protection circuit board to make its internal total electric contacts work within DC5V 5mA ; Electromagnetism all adopts no site switch DC24V safe electric furnace control to ensure the control system stable and lasting

4.Electrical element adopts international standardized configuration which permanently avoid customers worries

1. Introduce the latest foreign digital style test high-end technology,provide higher thermodynamic property and better quality stability than traditional design

2.Electric heating , automatic short circuit current detection system breaks the circuit of electric heating temperature system and gives an automatic alert . when it has problem

3.Automatic temperature curve record , temperature control is a continuous prompt , by which improves the machine operation quality

4.Using Japanese famous brand digital temperature controller , it can control scale vein output , PID adjustable , precise humidity operation , so that the temperature is controlled 2C . The program has one week preview function
