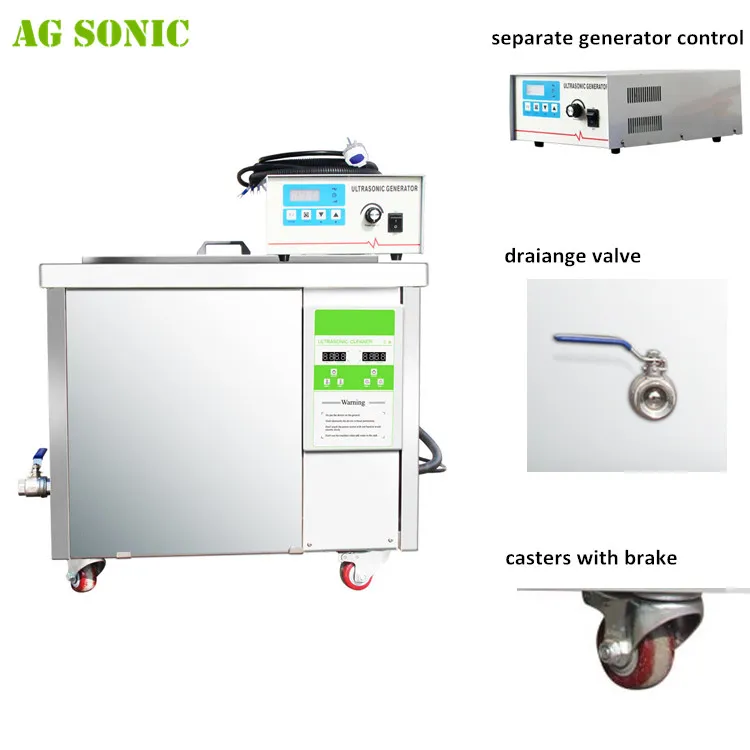

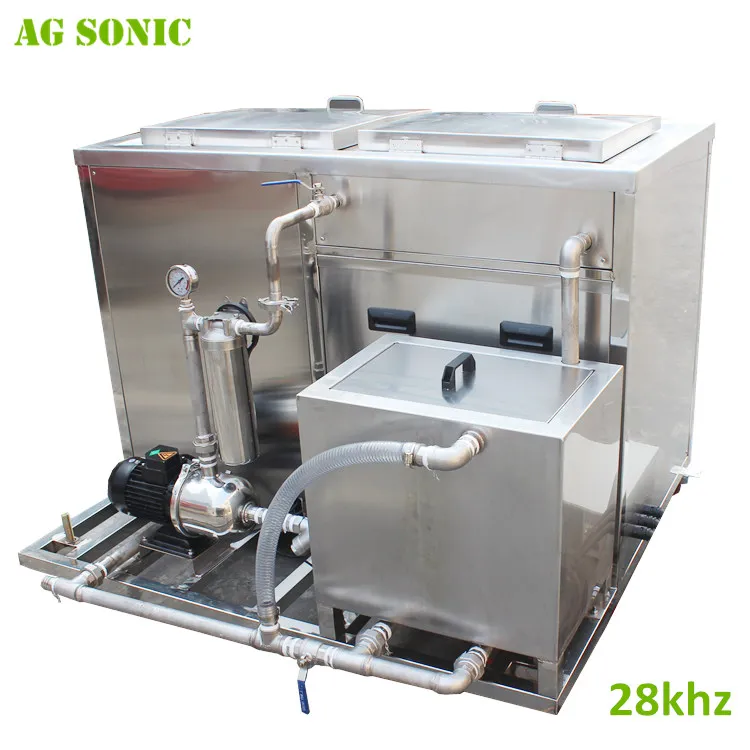

Solvent cylinder head ultrasonic cleaning machine 28K with oil skimming system
Cylinder head ultrasonic cleaner can be effectively used for heavy duty carbon removing oil. Oil filtration system is available to absorb the oil and recycle the solvent.




Before and after ultrasonic cleaning:

The cleaning scope of AG Engine block ultrasonic cleaning machine
Suitable for all types of engine parts
AG engine block ultrasonic cleaning machine effectively and thoroughly clean all types of engine parts
01: Automotive: thoroughly removes carbon deposits, grease, and other types of dirty and contaminants from carburetor, exhaust manifolds, cylinder blocks, 2-stroke and 4 stroke motorcycle engines, snow machines, ATV cylinders and heads, and more.
02: Marine: Suitable for inboard and outboard motors, the cleaning chemistry is both thorough and gentle on the aluminum parts reducing the risk of future corrosion
03: Aircraft: The high performance demands of aircraft engines establish the need for an intensive cleaning process that will restore the engine part to near original condition, our engine block ultrasonic cleaning machine easily, thoroughly, and safely clean both large and small parts, turbine blades, fuel nozzles, generator components, brakes and other parts that require periodic cleaning are all effectively and thoroughly cleaned using the ultrasonic cleaning process
Features:
All imported stainless steel structure, thickening Stainless steel plate,
adopting high Q value transducer and German binding process large power of ultrasonic output, set solvent heating and temperature automatic thermostat instrument, and temperature control range 0~100, base solvent, no pollution
Range: semi-conductor silicon chip, optical glass, parts of watch and clock, glasses, Jewelry, polyester filtration core and etc

The Advantages of AG Engine block ultrasonic cleaning machine
Ultrasonic cleaning machine delivers high performance industrial strength, cleaning action on Engine block, carburetor and Engine parts
01: Cleans carbon deposits from carburetors and all manner of engine parts
02: Removes stubborn oil grease, lubricants, paint, rust, and dirty (with-pre-cleaning in same cases
03: Aluminum sate
04: Penetrates deep into the part and cleans holes, small apertures and crevices
05: Clean sensitive parts like wiring and plastic without damage
06: Does not require line-of-sight for effective cleaning
07: Ensures part longevity due to high degree of cleanliness
Pls find more specifications below:
| Specifications for ultrasonic cleaner T-72S | |
| Model | T-72S |
| Tank capacity | 360L |
| Tank size | 1000x600x600mm |
| Unit size | 1140x740x820mm |
| Tank material | 2mm SUS304 |
| Ultrasonic power | 3600W |
| Heating power | 9KW |
| Timer | 1-99min adjustable |
| Heater | 0-80c adjustable |
| Frequency | 28/40khz |
| Control | External generator, more stable |
| Optional | Oil filter system, pneumatic lift, rinsing tank, etc. |
| Voltage | 110V, 1phase; 220V, 3phases/220V, 1phase; 380V, 3phases |
| Warranty | 1 year |
| Packing | 1unit/wooden case |
Other models for your choice:
| Model | Tank size | Unit size | Volume | Ultrasonic power | Frequency | Heating power | Timer | Heating temperature |
| LxWxH(mm) | LxWxH(mm) | (L) | (W) | (kHz) | (KW) | (MIN) | (℃) | |
| T-12S | 500x300x250 | 640x440x470 | 38 | 600 | 28/40 | 1.5 | 1-99 |
0-80 |
| T-18S | 500x350x350 | 640x490x570 | 61 | 900 | 1.5 | |||
| T-24S | 550x400x400 | 690x540x620 | 88 | 1200 | 3 | |||
| T-30S | 600x450x400 | 740x590x620 | 108 | 1500 | 3 | |||
| T-36S | 600x500x450 | 740x640x670 | 135 | 1800 | 4.5 | |||
| T-48S | 700x500x500 | 840x640x720 | 175 | 2400 | 6 | |||
| T-60S | 800x600x550 | 940x740x770 | 264 | 3000 | 7.5 | |||
| T-72S | 1000x600x600 | 1140x740x820 | 360 | 3600 | 9 |
1) Tank materail is SUS304 with 2mm thickness, Human hand argon welded, Sturdy and durable resistance to high tempearture
2) 50W industrial transducers, outstanding cleaning effects
3) External ultrasonic generator
4) Power adjustable, choose different power according to different cleaning objects
5) Digital timer: 1~99hours timer adjustable. continious working for long time.
6) With memory function, no need to reset time and temperature every time.
7) 20~80C adjustable, 9KW heating panel, faster cleaning
8) Industry use power cord, more safer.
9) Can bear 50~100KG cleaning objects
10) Accessories: Machine with stainless steel basket, drainage, lid, movable castors.
Packing:
1 x ultrasonic cleaner
1 x SUS basket
1 x SUS lid
1 x power cord
1 x English instruction manual
Shipping:
Packing , loading, delivery time | |
Packing unit | 1set/wooden case |
Packing method | Export wooden case |
Loading port | Shenzhen |
Delivery time | About 15 working days |
Minimum Order Quantity | 1set |
Transport method | By express company / air / sea |

Our service:
1. Warranty:
12 months warranty for AG SONIC ultrasonic cleaner.
If any technical problem during warranty time, replacement parts will be sent free of charge.
Technical support is also available in whole time.
2. Our Advantage
1. Reply your enquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. OEM is available if the quantity is large.
4. We offer very competitive for all our products.
3. After-sales
Our machines undergo an extensive and strict testing and quality control procedure, ensuring every item purchased meet global quality standards. It's safe and reliable quality for ultrasonic cleaning equipment.

AG SONIC technology limited is a collection of ultrasound technology research, ultrasonic product development, production, sales and technical services in a body's national high-tech enterprises. We have our own R&D department with the factory in Songgang, Shenzhen. Our engineers are engaged in the filed for more than 8 years, so we have our own improved PCB design for stable and durable industrial use. Not only standard ultrasonic cleaner, but also any non-standard can be designed by engineer.
Product offered:
Household ultrasonic cleaner
Tabletop ultrasonic cleaner (mechanical series, digital series, power adjustable series)
Industrial standard ultrasonic cleaning machine
Customized ultrasonic cleaning machine
Immersible ultrasonic transducer
Stainless steel soak tank
Service offered:
ODM/OEM
If you have good idea of ultrasonic applications, we can help you to make it come true.
Our Market:
We sell ultrasonic machines to worldwide countries, and our professional team will offer you the best after-sales service. We believe after-service is as important as quality and price.
Our faith:
Only action can make the goal come true!
