Китай, android 20R, сканер, биометрический usb считыватель отпечатков пальцев с SDK

Product Overview

Description

China android 20R scanner biometric usb finger print reader with SDK

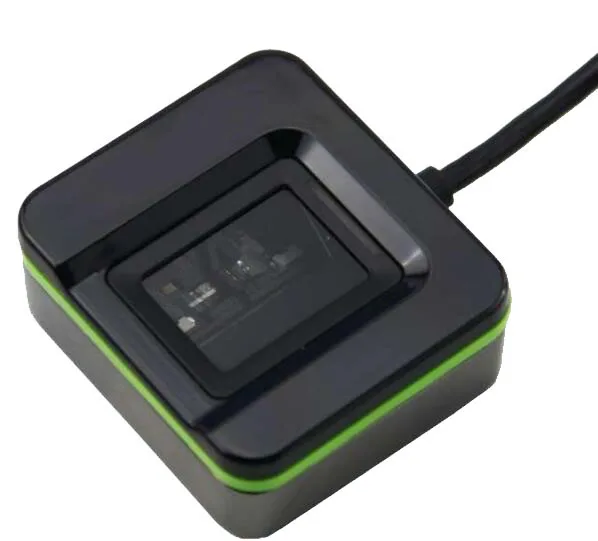

AC20R is a leading fingerprint sensor which adopts the advanced optical design. It has a superior ability to anti-fake fingerprint and capture high-quality fingerprint images by 2 Megapixel camera. It can be the most comfortable and affordable desktop enrollment and identification device.



 Features

l  Stable operation under strong light

l  Support anti-fake fingerprint function

l  Large fingerprint capture area and high image performance

l  Quick recognition of dry, wet and rough fingers

l  High Speed USB 2.0

l  Low Power Idle Mode

l  Available SDK for development



Specification

Sensor Type	Optical
Touth Surface Area	16.5*23mm
Image Capture Area	15.24*20.32mm(FAP20)
Image Size	300*400
Resolution(dpi)	500
Interface Operating systems	USB 2.0, compatible with USB 1.1 Windows xp/Vista/7/8/10(32/64 bit), Android
Supply voltaget	5V, supplied by USB
Operating Environment	-20 °C ~ +50 °C; 90% r.h.
Finger rotation	360°

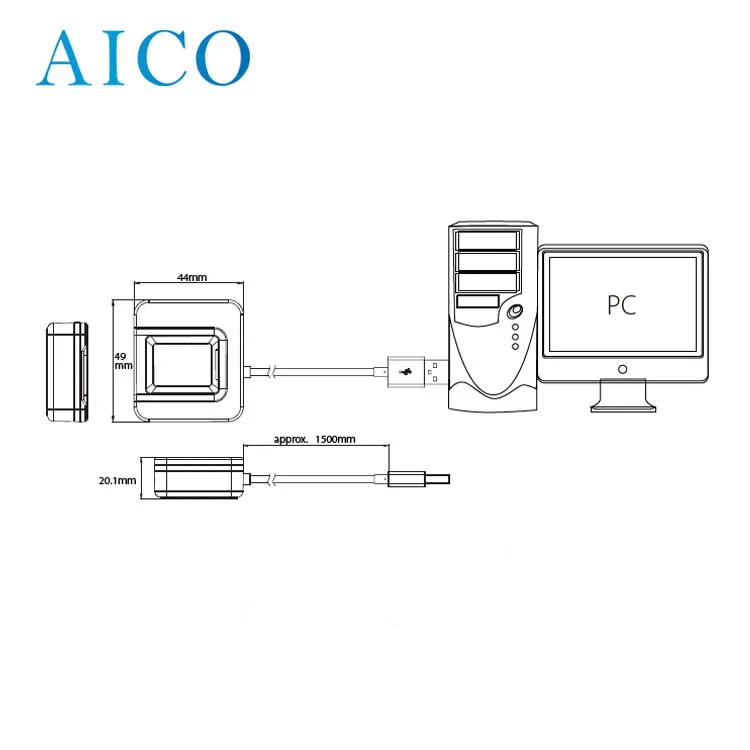

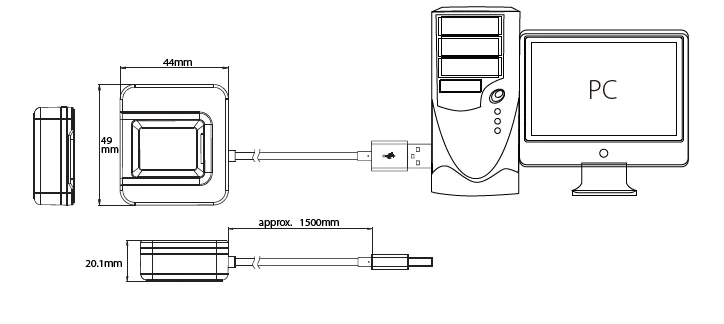

Dimension	49x44x20.1mm(LxWxTH)
