Metal Push in Pneumatic rapid Fittings

Product Overview

Description

Features:



MPGJ-Reducer



Push-In fittings with different shape, only one hand can be very convenient to insert the tube and pull out without any tools. The fitting with safety sealing, and it's thermostable. In addition, these pipe fittings meets repeated insertion and pull-out requirement. When it gets older along with the timed, MP series can easily be replaced.



Reliability - Rapid manual connecting and disassembling. Full flow
Compatibility - Works with the use of nylon, PU, Teflon tube

Adaptability - Hot and cold water systems, steam, machine tool, lathe Such as application if corrosive                               environment SP series



Tube OD:
04, 05, 06, 08, 10, 12, 14 mm
1/8, 1/4, 3/8, 1/2 Inch



Applicable to: Compressed Air, Fluid
Working pressure: 15 Bar
Temperature range: -20° C to +80° C (200° C )

Material:
Body: Brass Nickel-Plated
Gripper: Brass Nickel-Plated
O-ring: NBR or FKM/FPM

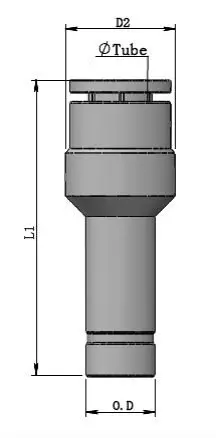

PART NO.			D2	L1
Info	Tube	O.D
MP GJ	04	6	10	34
	04	8	10	33
	06	8	12.7	38.5
	06	10	12.7	36.5
	06	12	12.7	37.5
	08	10	15	42.5
	08	12	15	40
	10	12	17.5	45.5
	10	14	17.5	45.5
	12	14	19.5	51
	06	4	12.7	35
	08	6	15	37.5
