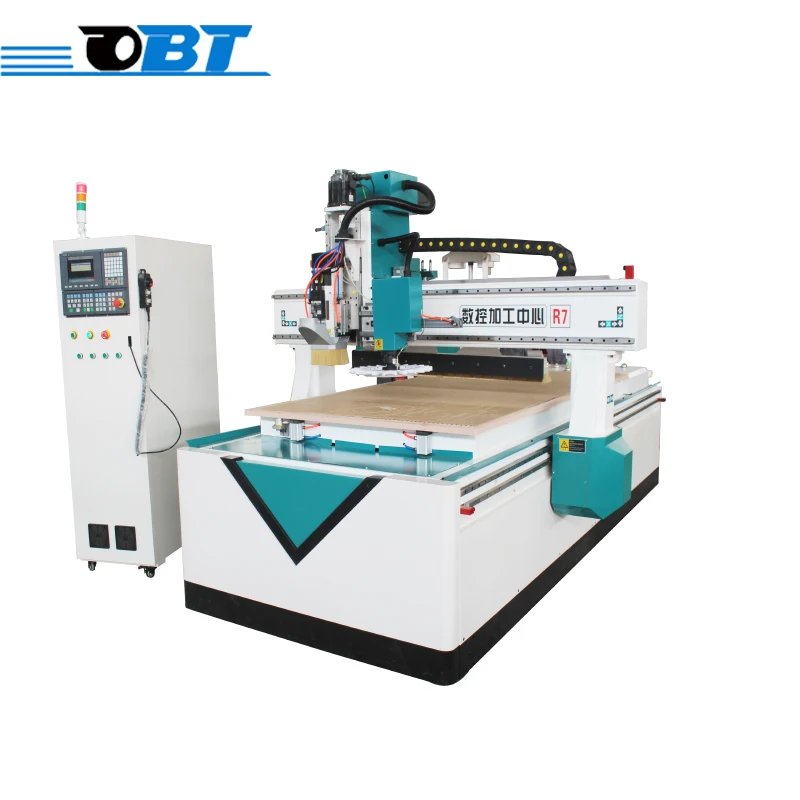

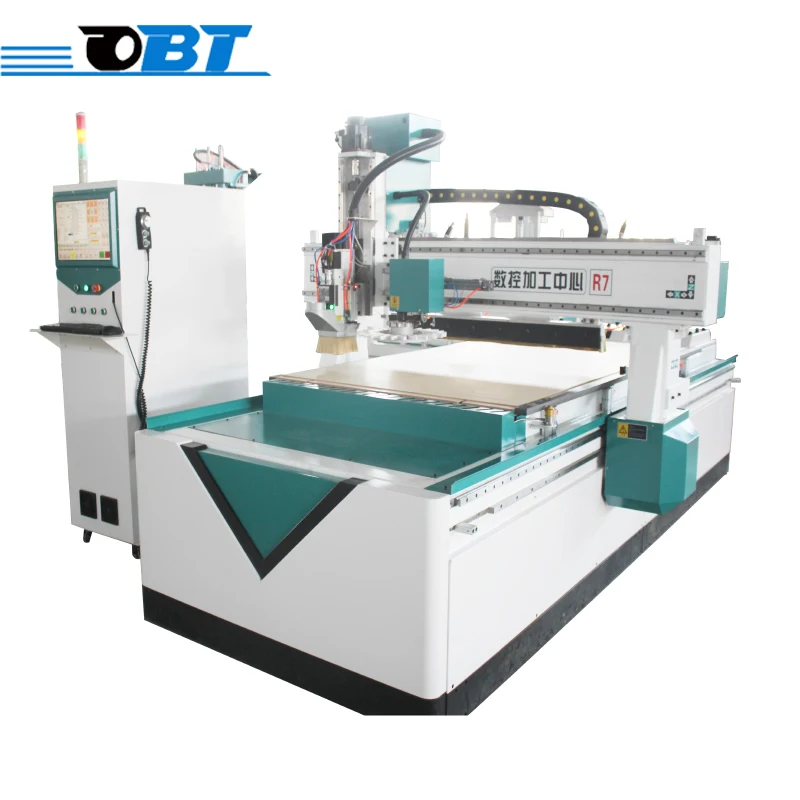

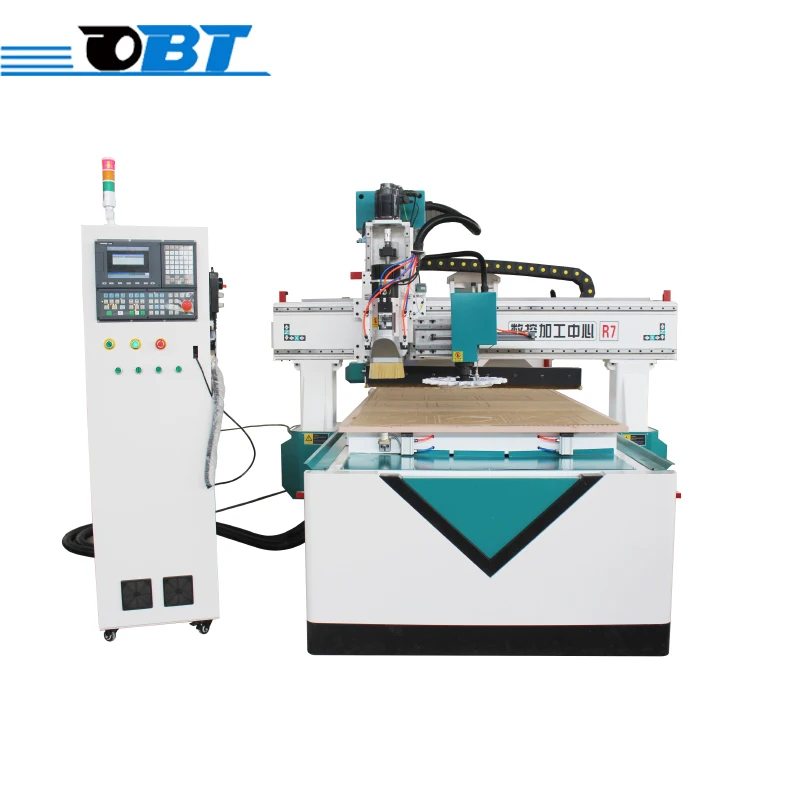

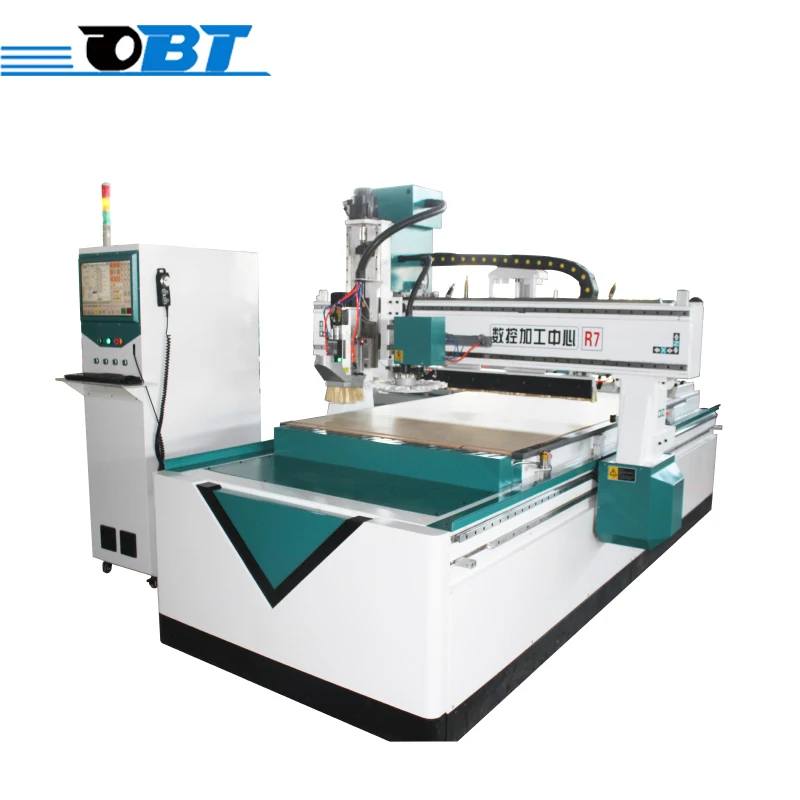

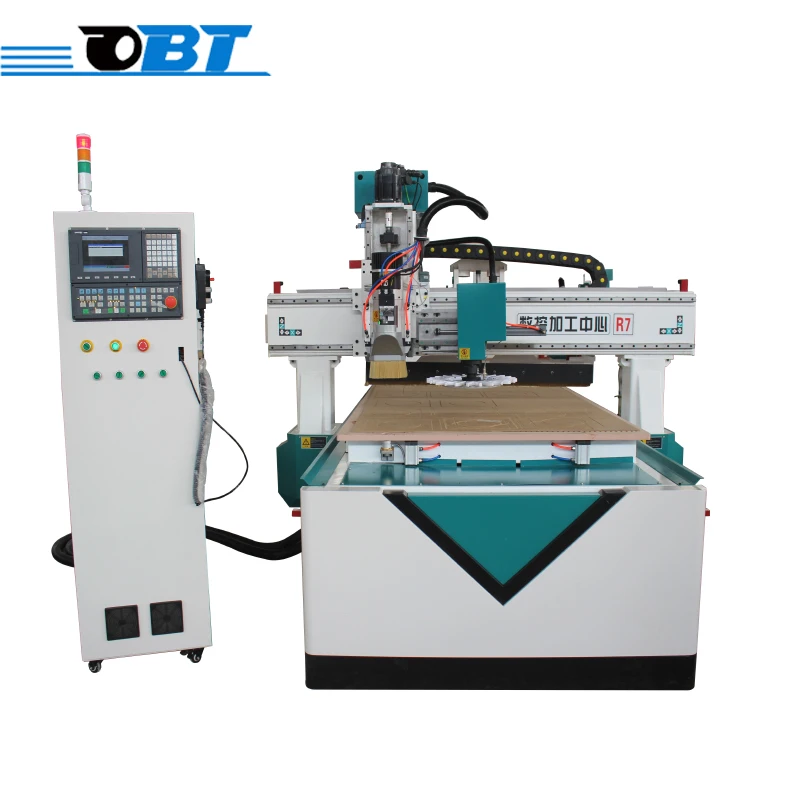

China woodworking wood ATC cnc router machine 1325 price
- Category: >>>
- Supplier: Qingdao O.b.t Manufacture Co. Ltd.
Share on (60766091153):
Product Overview
Description
Welcome to OBT, I hope you can pick the right product, you can see a working video of our product first. follow us to visit our product and company~

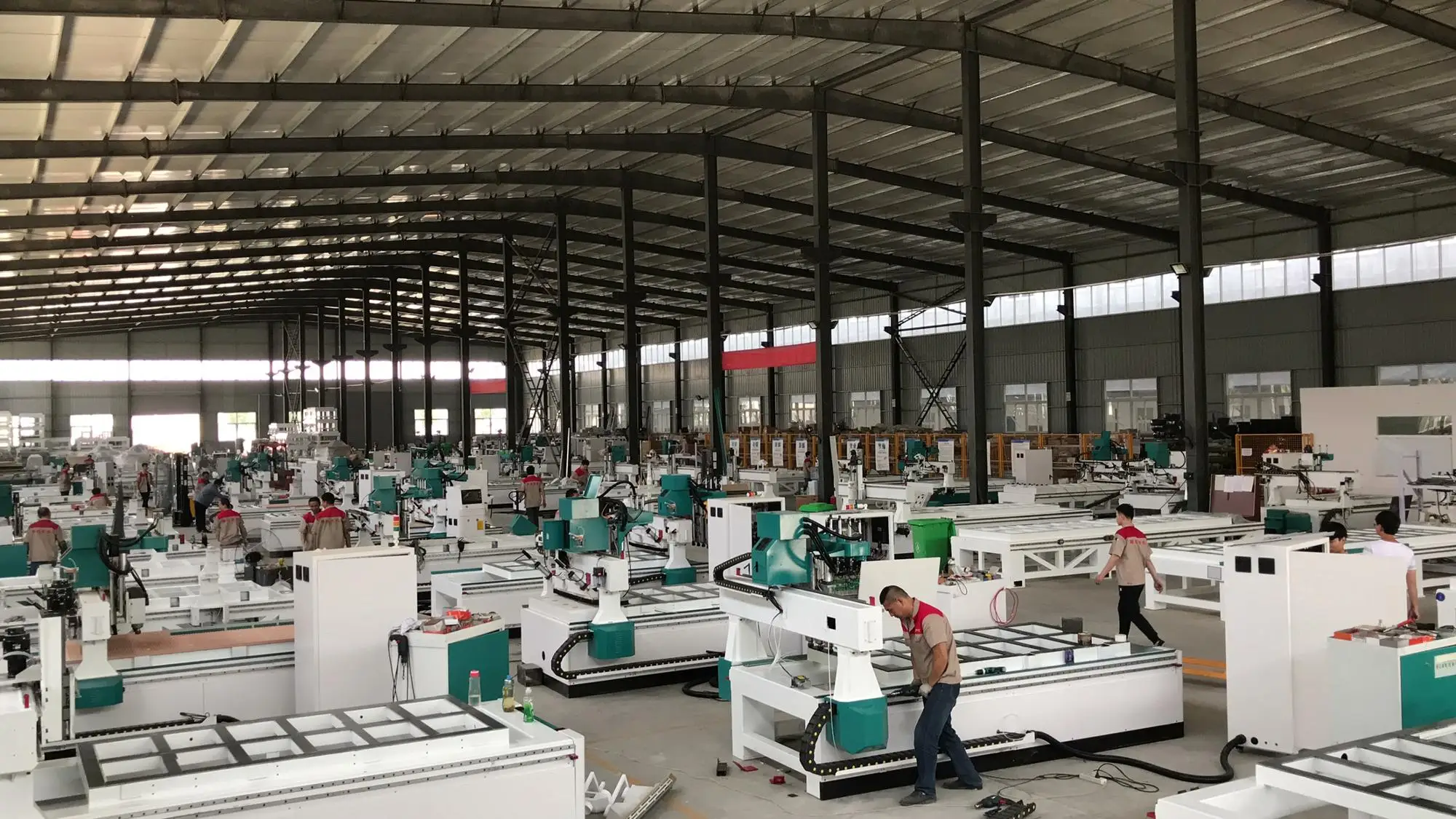

Our company and factory
Qingdao O.B.T Manufacture Co., Ltd.
is a professional manufacturer and exporter with over 18 years of experience
All products are designed and built according to International standards and directives. Since
the very beginning, quality and technology innovation are OBT's milestones, and time after time,
this philosophy is always more recognized by the global market.
1.18 years manufacture experience,8 years Alibaba gold supplier, trade assurance guarantee
2.welcome to visit factory and $300 for flight support,quality pretest and guaranteed one year.
3.engineers available to service overseas,7*24 technical support
4.more than 100 overseas market shipment
5.focus high quality and keep updating
6.we can do OEM/ODM services for you
Main products

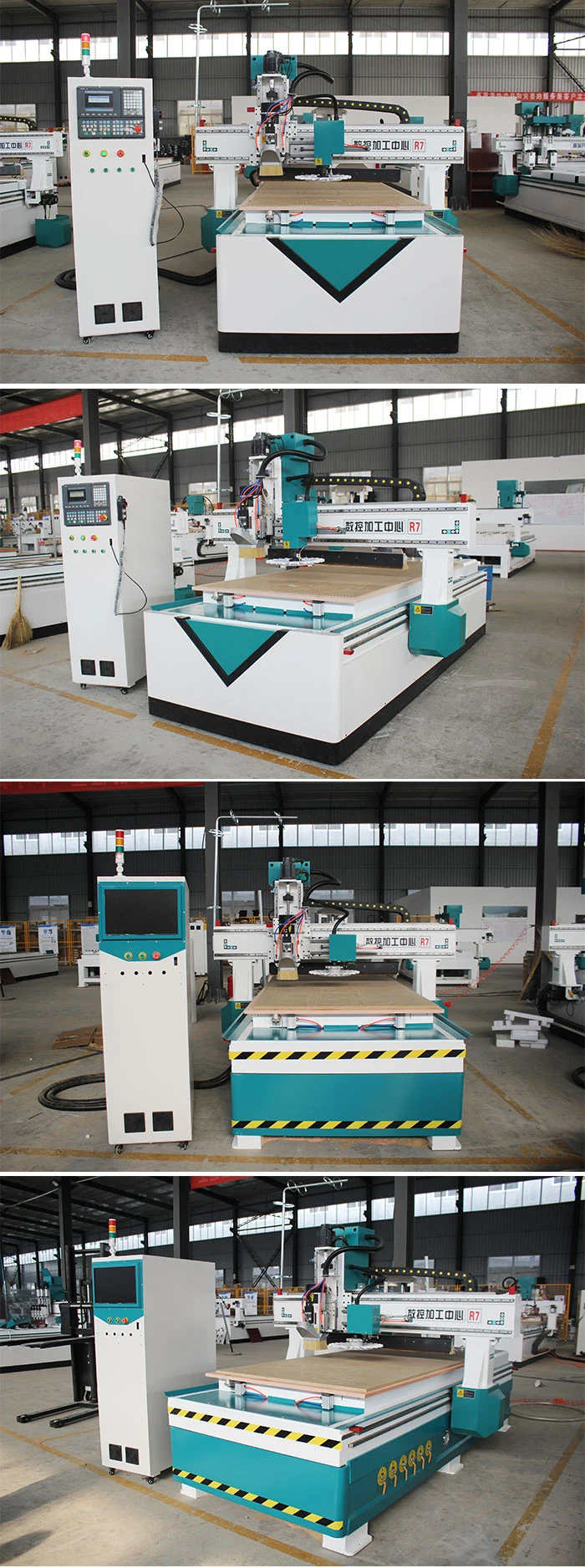

Our CNC Router picture and specifications
Specification | |
Main table working ranges | 1300*2500*200mm |
Spindle speed | 0-24000r/min |
Processing speed | 0-3000mm/min |
Spindle Power | 9kw |
Motor Power | Mixture servo motor()750w) Pure servo motor(850w) |
Motor Voltage | 220/380 |
Moving speed | 0-120000mm/min |
Max. Cutting speed | 0-68000mm/min |
Knife tool number | 8/12/16/20/24(customized) |
Net weight | 2800kg |
Naked machine overall dimension | 2300*3600*1950mm(normal size) |
Gross weight with wood box | 3000kg |
Wood package size | 3700*2250*2150mm |

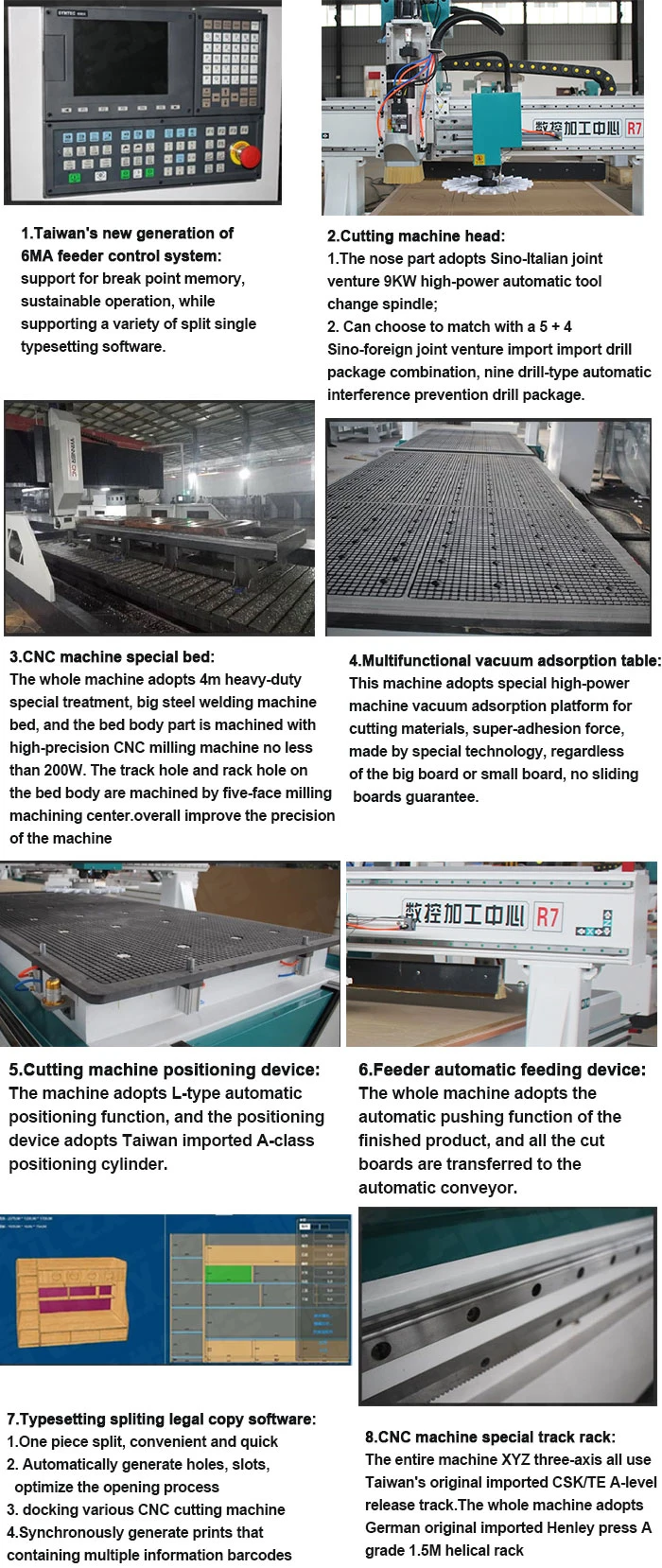

What are the characteristics of our products compared to other products?
Where can the cnc router be applied?
Furniture industries: woodworking,cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.
Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making,3d art design.
Arts & Crafts industries: Engrave on artificial woods, bamboos, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.

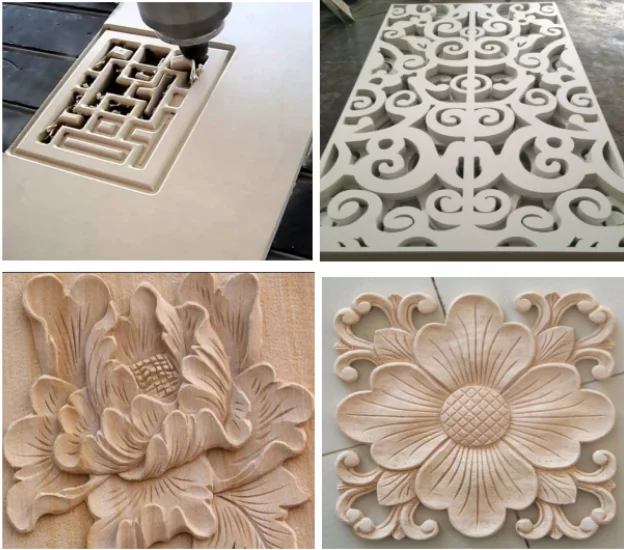

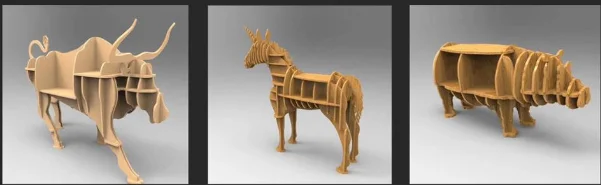

Our Sample
High-end CNC Router Woodworking Production Line Configuration list | |
Panel Furniture Production Line | |
Machine structure | Heavy structure with Tool magazine |
Working demension | 1300*2500*300mm |
Machine bed | 3.8m heavy steel welding bed.(High precision CNC milling machine makes the machine more accurate.) |
Spindle | Sino-foreign joint venture original 9kw GDZ air cooling high power automatic tool changer spindle. |
Tool magazine | 12 tools disc auto tool changer, fast speed and high accuracy.(used to making complex panel furniture ) |
Motor | Origin imported Class-1 Japan Yaskawa servo motor |
Driver | Origin imported Class-1 Japan Yaskawa servo driver |
Guideway | XYZ adopt origin Class-A 25 TE linear rail |
Drive mode | XY adopt origin German Class-A 1.5M diagonal rack,Z axis adopts Taiwan Class-A TBI ballscrew |
Control system | Taiwan Syntec 6MA, support online encryption. Support power outage memory can be operated continuously, the machine process runs more smoothly. |
Reducer | Origin imported Class-1 Japan Shimpo reducer. |
Dust collector | Intelligent multi-channel suction, Chinese 5.5KW dust collector. |
Vacuum table | 7.5kw vacuum pump,electric multi-partition vacuum adsorption platform, super absorptive power. |
Positioning system | Automatic position function,class-A intelligent positioning cylinder. |
Pushing system | Automatic push function of finished products, add secondary dedusting function. |
Loading system | Intelligent automatic feeding platform, equipped with a-level intelligent automatic feeding suction cup. |
Laying-off system | Intelligent infrared feeding platform, random positioning, intelligent identification board, intelligent push. |
Cable | Chinese cable with good quality |
Infrared limited switch | Origin Japan omron limited switch |
Software | Customized version of the self-developed simple 3D design layout software.Whole collocation board type furniture and cabinet door production craft. |
Software types | Type3 Artcam JD UG MasterCAM Powermill and so on. |
Code | G-code PLT MMG UG ENG HPGL and so on. |
Tool setting | Do it all at once. |
Related products you might like
Hot sale products
Our certificate
What kind of service can we provide you?
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* The engineers are available for being dispatched overseas for installation, commissioning or even after-sales service.
* Professional remote technical support is available around the clock, by phone or online instant messenger softwares, such as Skype, Whatsapp, etc.
* Free training is available from us, to teach you how to properly use the CNC machine .
* Spare parts could be supplied in the whole life of the machine, which is free in warranty time.
We are alibaba gold supplier,we joined alibaba assurance to make sure the buyer's benefit.
What packaging do we use?
At last ,Kindly Call or Email us today to discuss what can we do for you ! TKS~~
