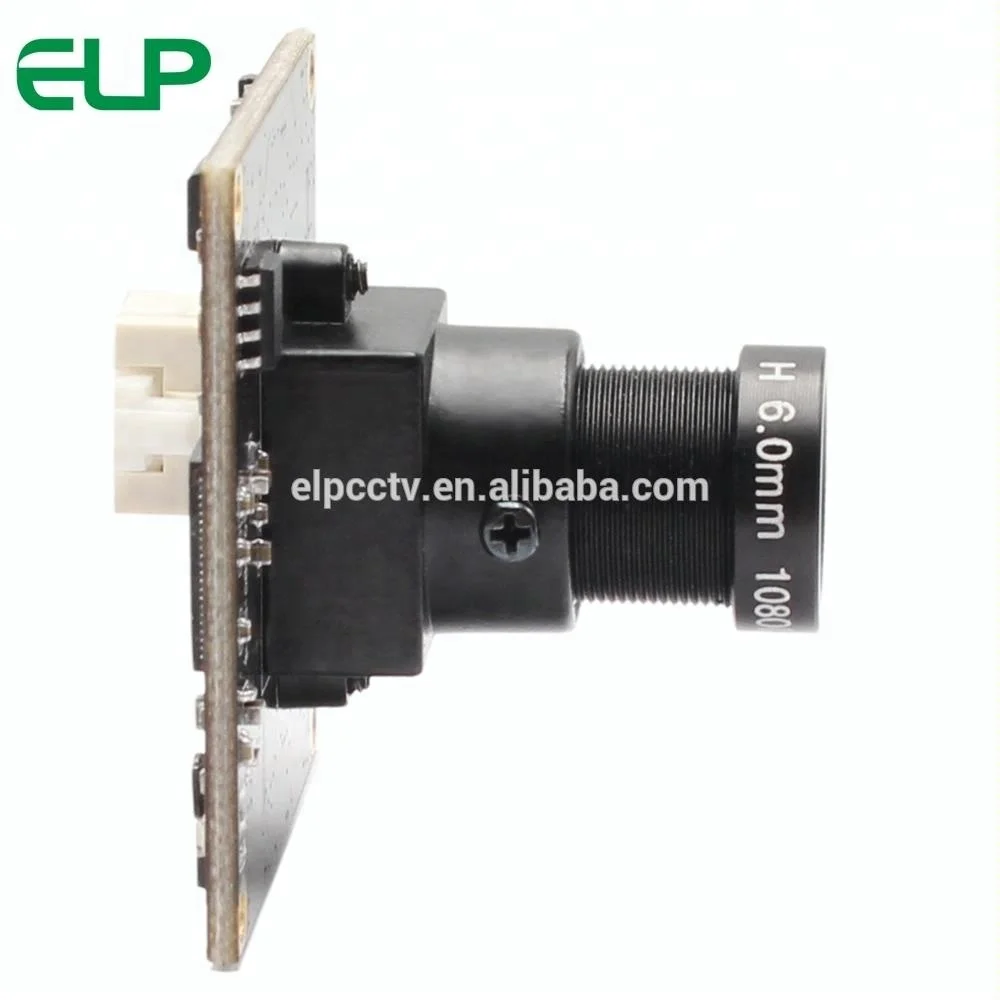

ELP Driver Free USB3.0 Webcam HD UVC 2MegaPixels MJPEG YUYV 50fps 1080P Mini USB 3.0 Camera With Sony IMX291 Sensor
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (60766093851):
Product Overview
Description
ELP Driver Free USB3.0 Webcam 2MegaPixels MJPEG YUYV 50fps 1080P USB 3.0 Board camera With Sony IMX291 Sensor
Model:ELP-SUSB1080P01-L36 is 2.0megapixel 1080P 50fps USB3.0 SONY IMX291 Color CMOS Sensor USB Camera with 6mm lens for Linux Android Windows etc. OS system.
Features
*1080P USB 3.0 Camera Module with no distortion lens
*With 1/2.8 SONY IMX291 Color CMOS Sensor for high quality image
*High speed USB 3.0 interface for high resolution PC camera interface.
*Super small outline 38*38mm and thin profile for embedded applications.
*High frame rate– deliver 50 fps in 1920X1080 resolution.
*OTG support
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specification
Model | ELP-SUSB1080P01-L60 |
Sensor | With Sony IMX291 |
Lens Size | 1/2.8 inch |
Pixel Size | 2.9µm X 2.9µm |
Max. Resolution | 1920(H)X1080(V) |
Compression format | MJPEG / YUV2(YUYV) |
Resolution & frame | 1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps 1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps 640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps |
S/N Ratio | 40dB |
Dynamic Range | 65dB |
Sensitivity | 1900mV/lux-sec@550nm |
Mini illumination | 0. 01lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB3.0 High Speed |
Free Drive Protocol | USB Video Class(UVC) |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |

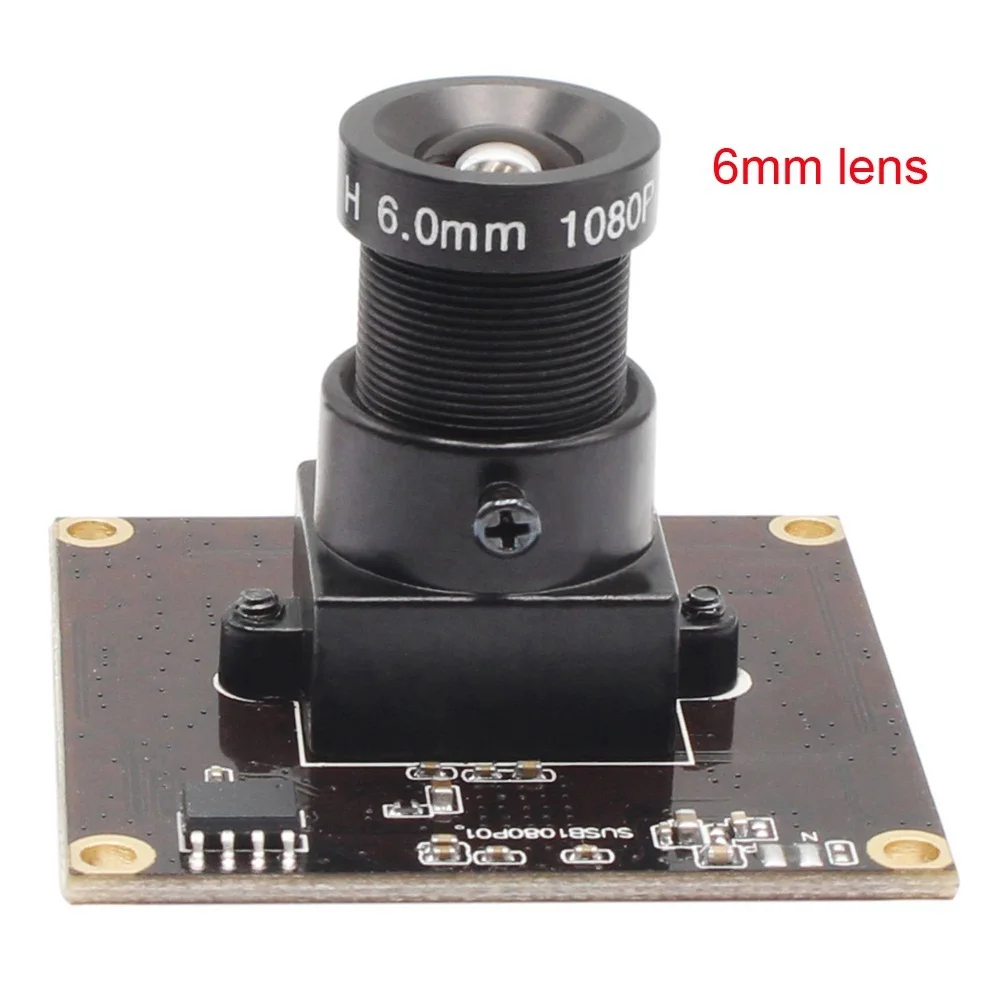

Lens Parameter | Standard 6mm lens, Optional 2.8/2.9/3.6/8/12mm, FOV170/180Degree wide angle lens,100degree no distortion lens |
Power supply | USB BUS POWER |
Operating Voltage | DC5V |
Working current | 170mA~210mA |
Working temperature | 0~70℃ |
Board size /Weight | 38*38mm |
Cable | Standard 1M |
Operating system request | Win8 or above Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |

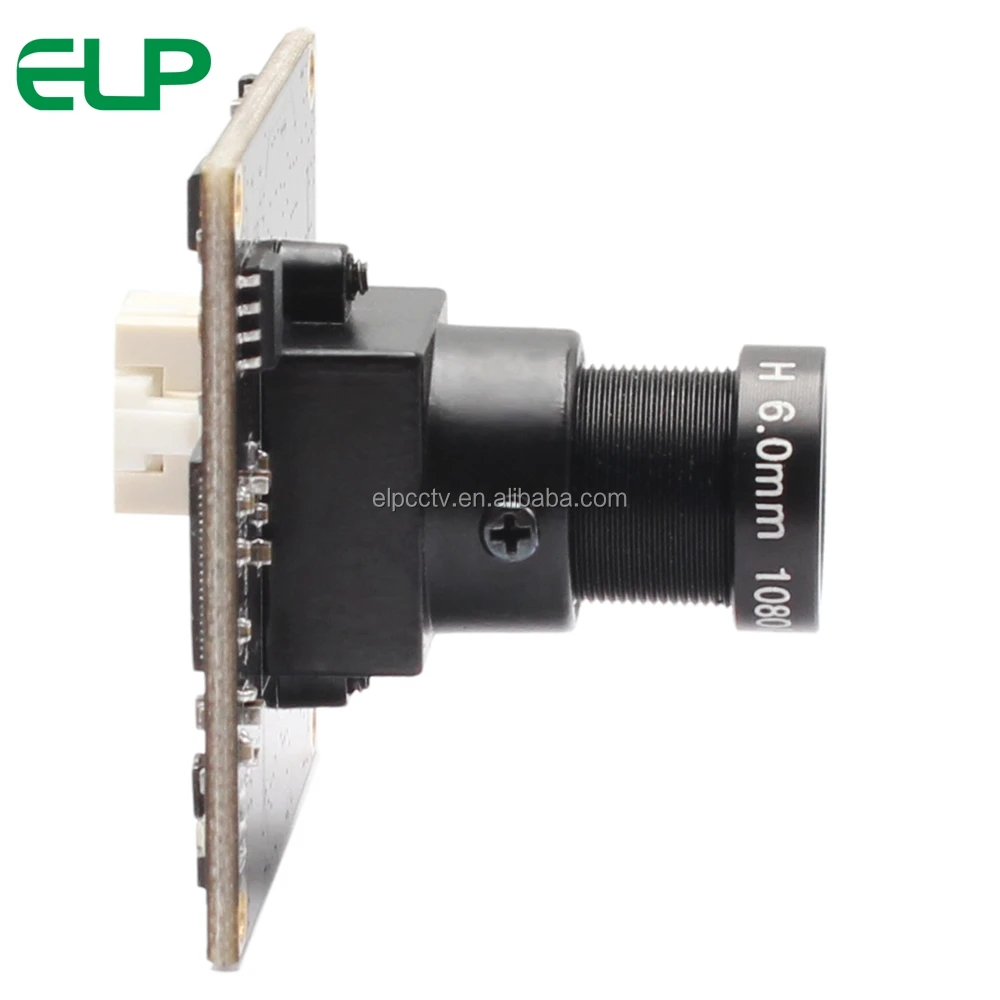

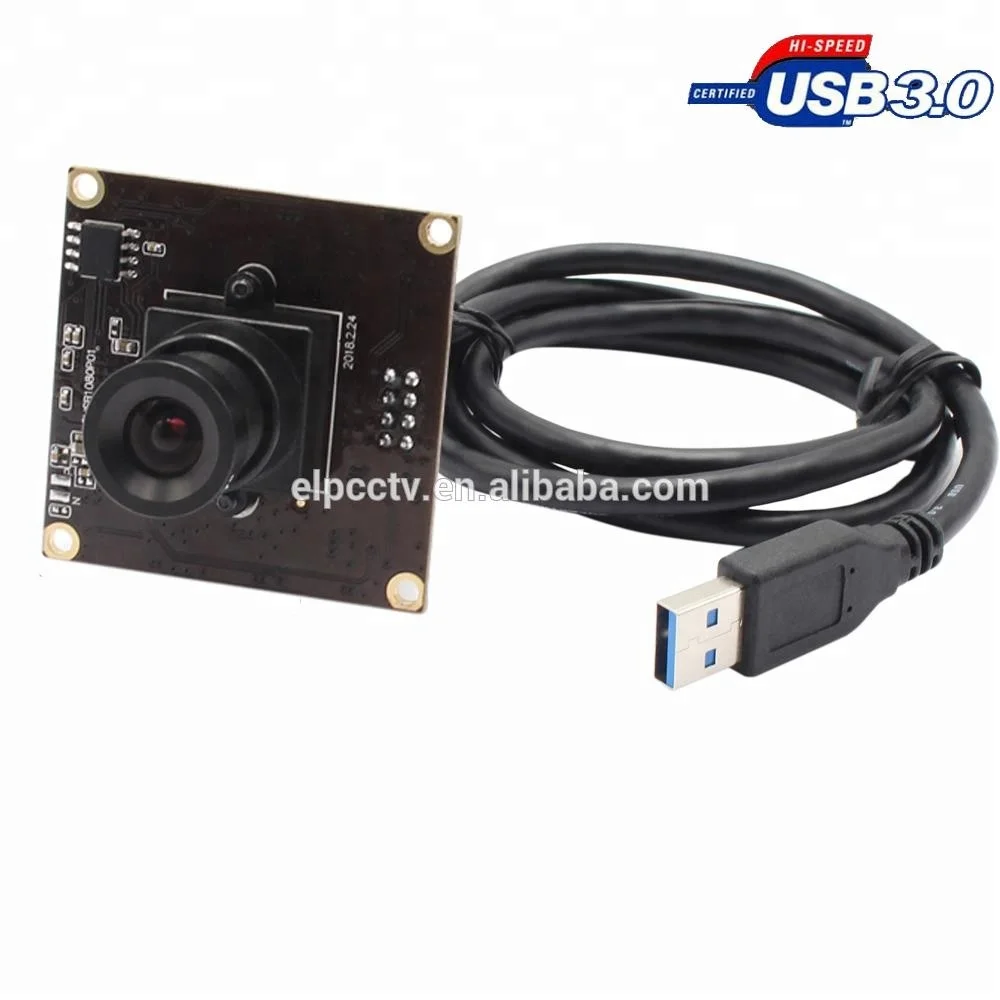

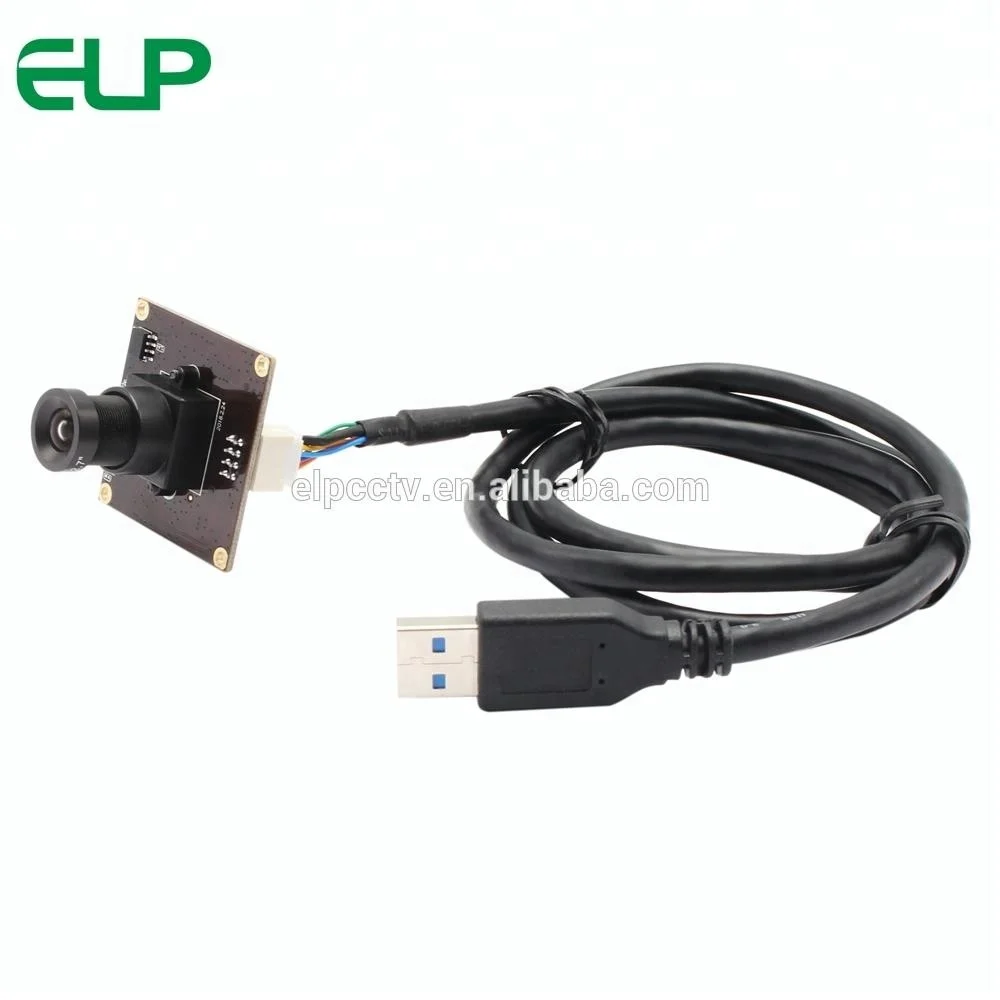

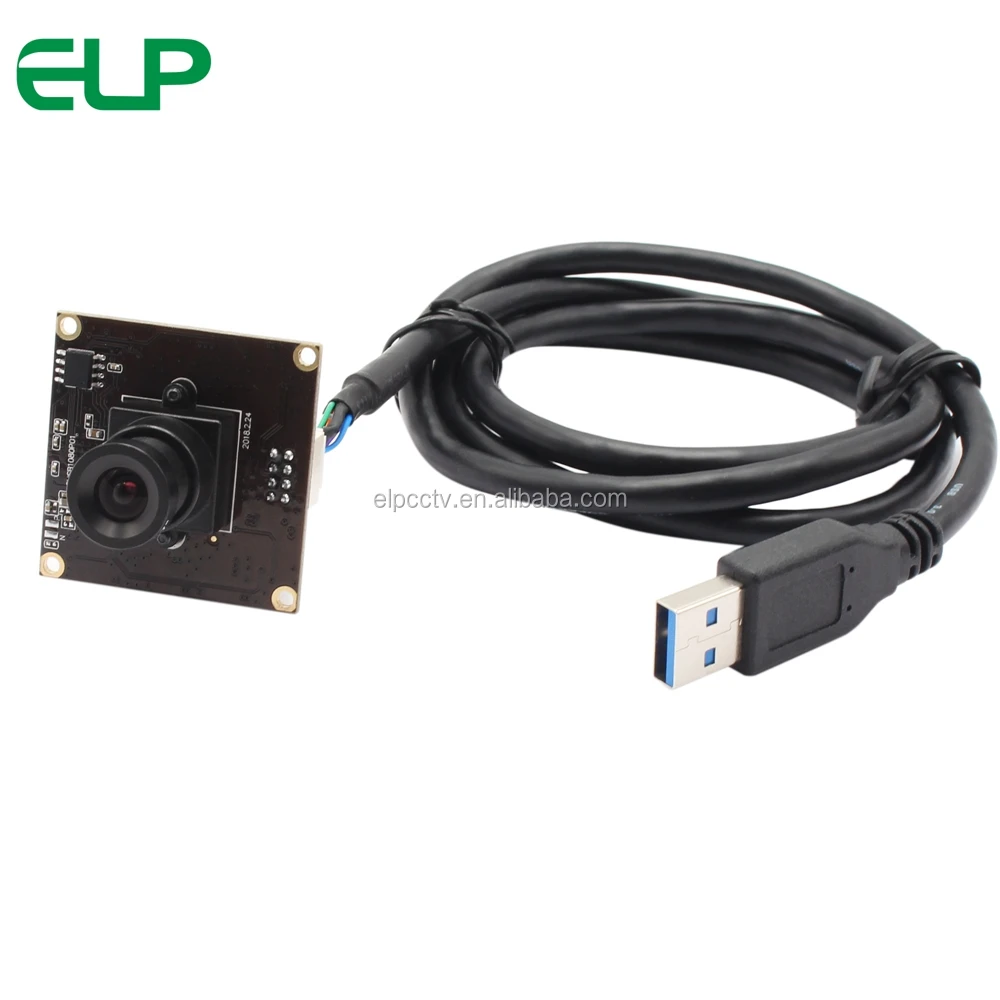

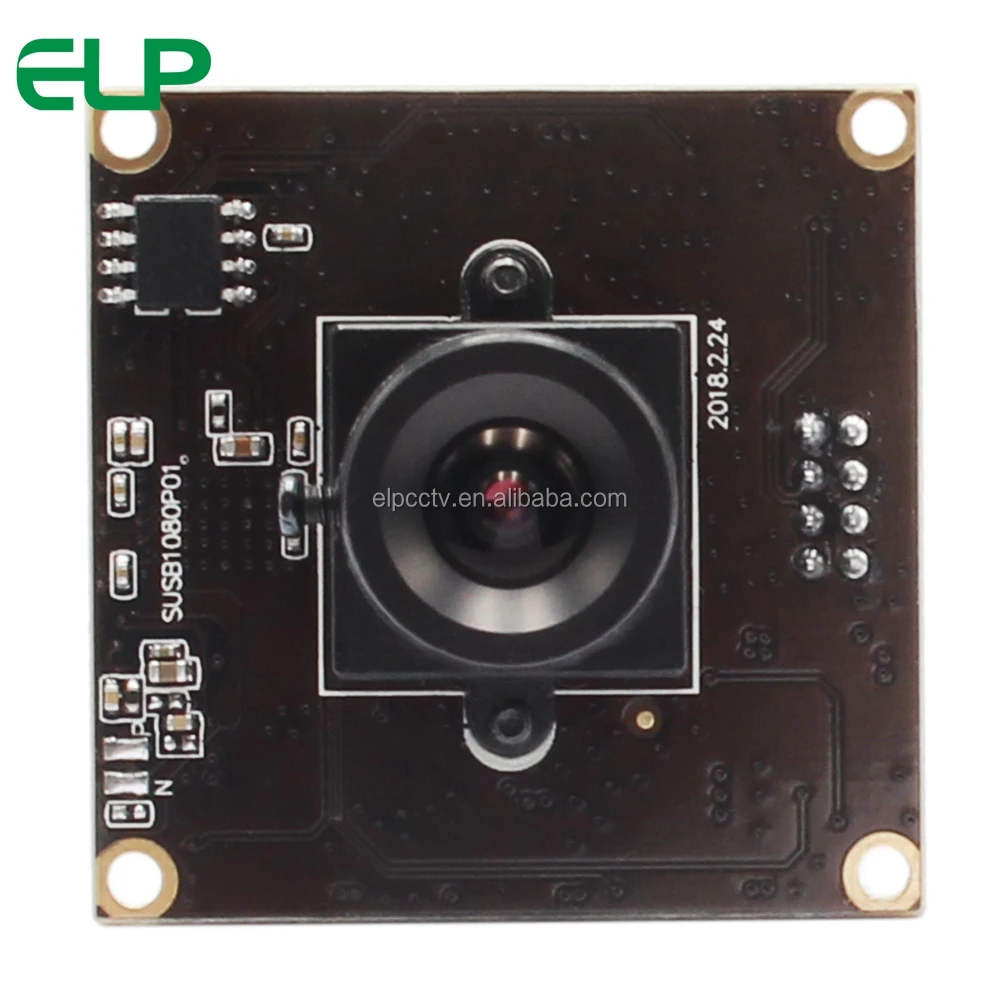

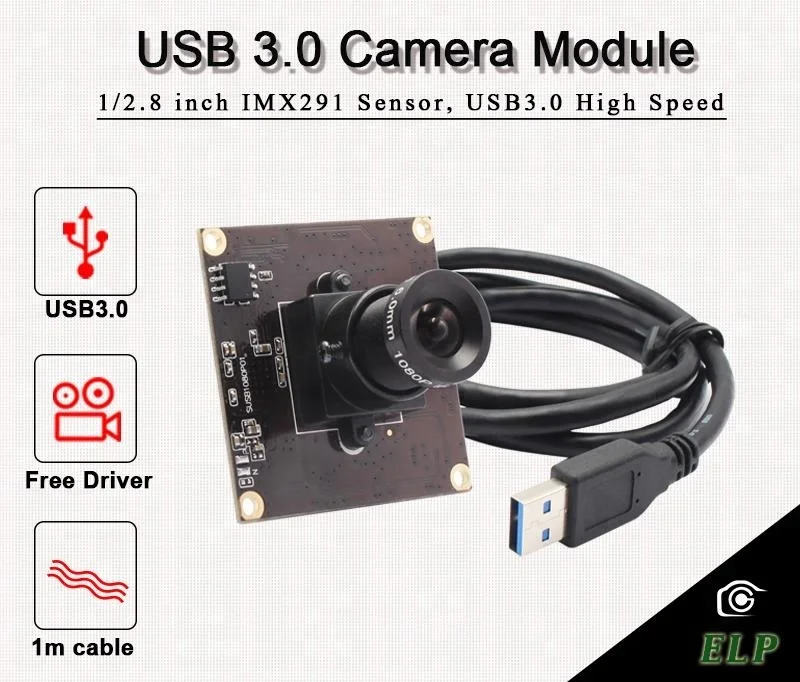

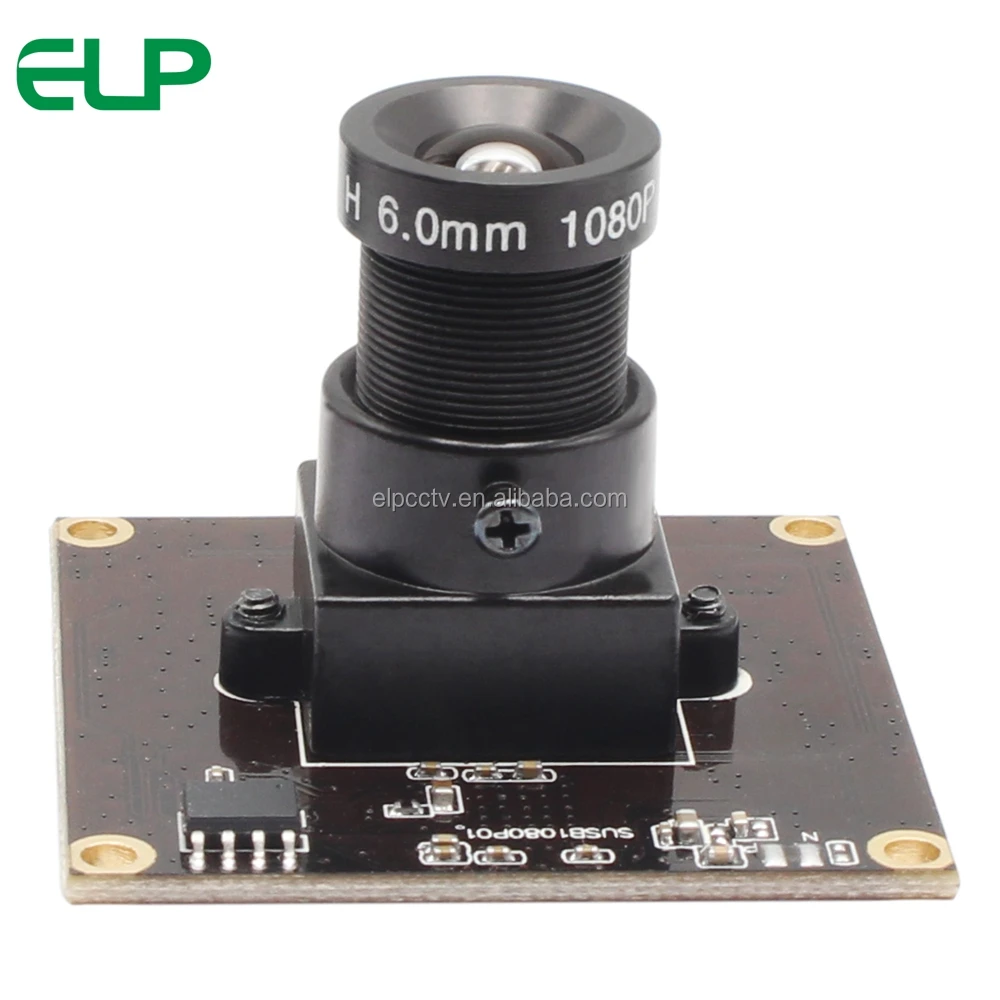

Products Display

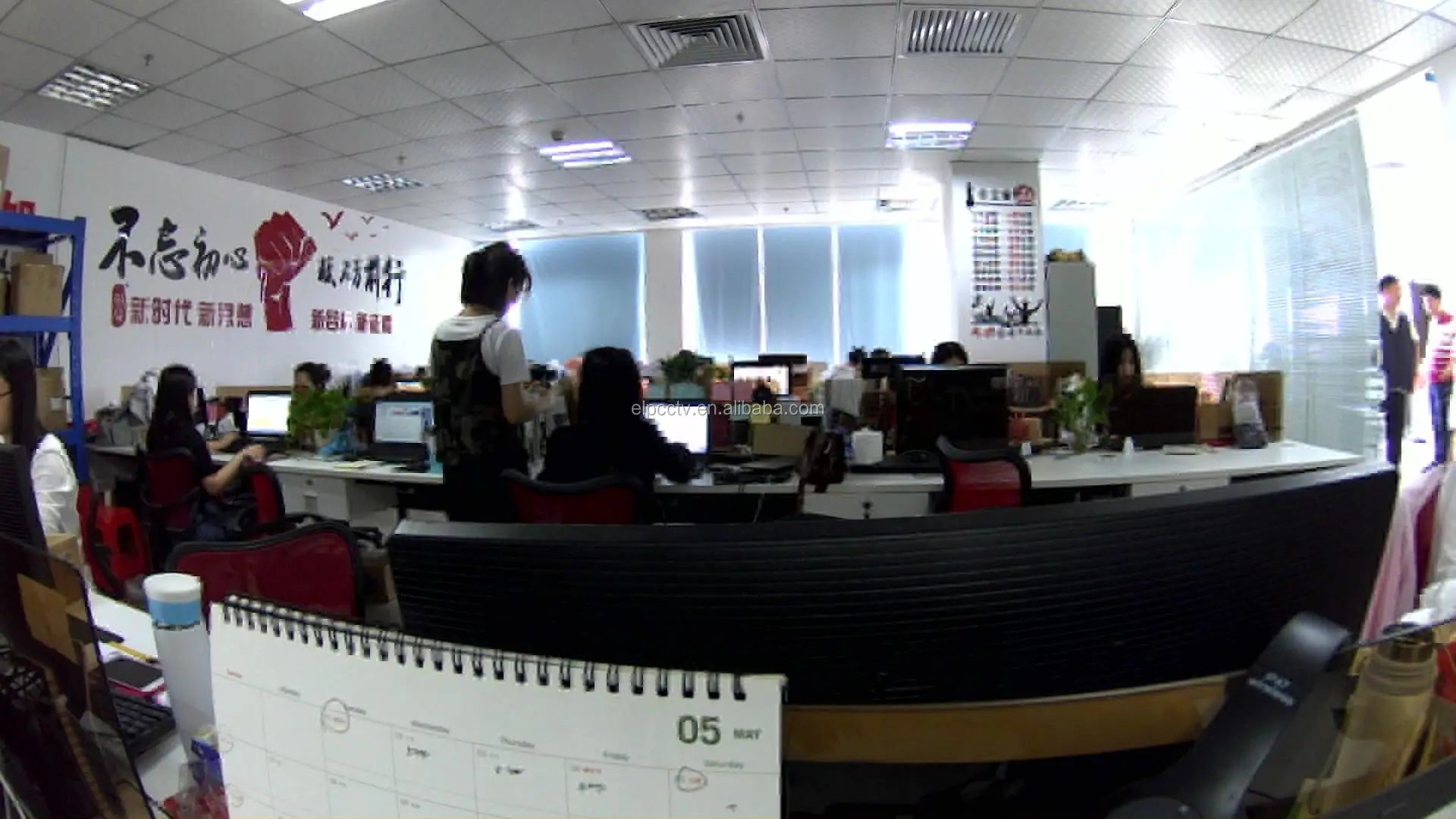

EFFECT DISPLAY
Applications
Company Information
FAQ
*Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
*Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
*What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
*Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
*What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens. Autofocus, manual focus also offered.
*What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
*What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
*Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
*Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
*Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
